Dwubiegunowy wskaźnik napięcia SPN do linii zasilającej

Extremely shock-resistant, waterproof and dust-proof enclosure
Test ball with additional phase, rotation field and continuity test
Two versions with different measuring ranges

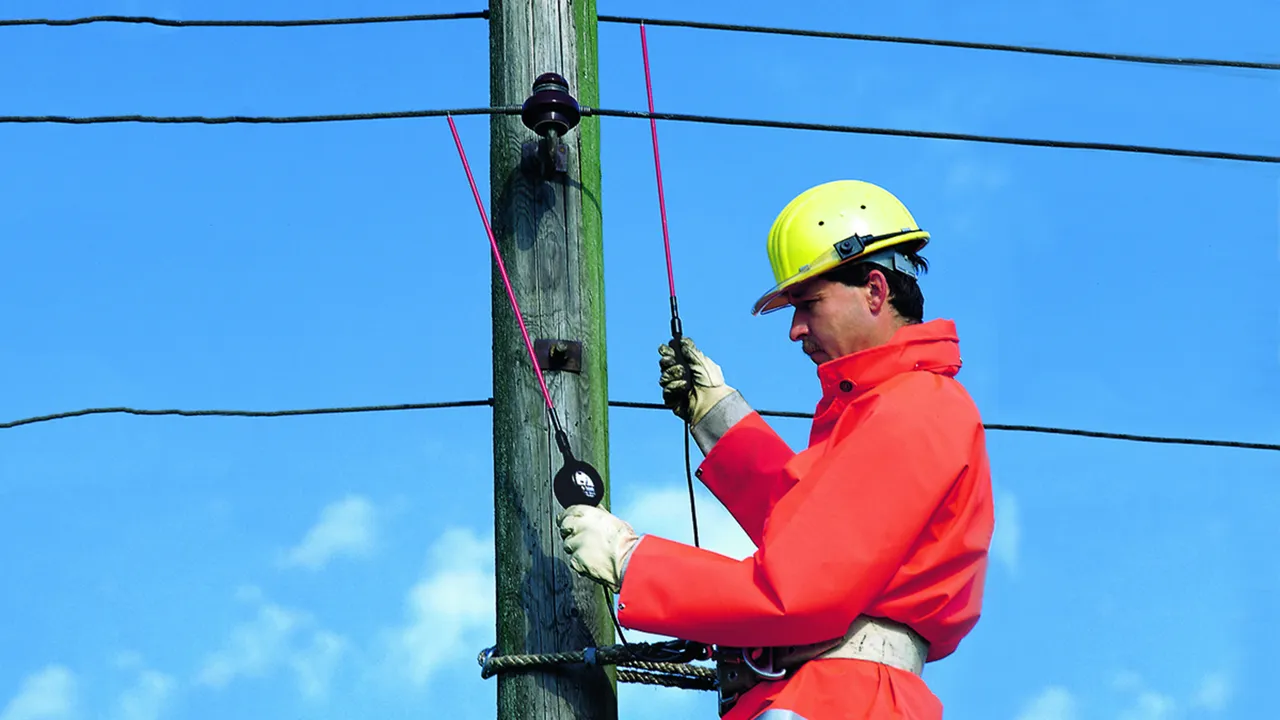

For use in overhead line networks by attaching extension prods
No battery required

Zakres napięcia znamionowego do 1000 V

Basic devices.

2 Produkty

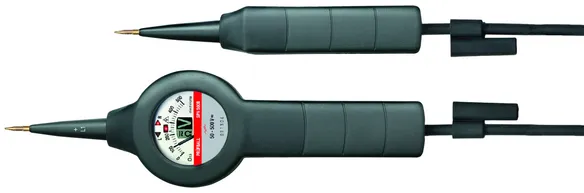

Nr kat. 766660 SPN 500B

GTIN / EAN 4013364302464, Nr taryfy celnej (EU): 90303370, Waga brutto: 460.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage range (U_N )	50 ... 500 V
Frequency range	15 ... 500 Hz and DC
Dimensions (indicator)	274 x 75 x 47 mm

Nominal voltage range (U_N )	50 ... 500 V
Frequency range	15 ... 500 Hz and DC
Dimensions (indicator)	274 x 75 x 47 mm
Standard	EN/IEC 61243-3 (DIN VDE 0682-401)
Temperature range	–15 °C ... +45 °C
Material (indicator)	Safety enclosure made of solid rubber
Indicator	Direct-reading instrument, LCD and LED
Connecting cable	PUR-sheathed cable, highly flexible, 1000 mm
Overvoltage category	CAT IV 500 V
Type	Two-pole
Battery	Lithium
For	Indoor and outdoor installations
Degree of protection	IP 65
For use at	_

Produkt 766660 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766660.

Idź do sklepu internetowego

Nr kat. 766665 SPN 1000B

GTIN / EAN 4013364302488, Nr taryfy celnej (EU): 90303370, Waga brutto: 460.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage range (U_N )	50 ... 1000 V
Frequency range	15 ... 500 Hz and DC
Dimensions (indicator)	274 x 75 x 47 mm

Nominal voltage range (U_N )	50 ... 1000 V
Frequency range	15 ... 500 Hz and DC
Dimensions (indicator)	274 x 75 x 47 mm
Standard	EN/IEC 61243-3 (DIN VDE 0682-401)
Temperature range	–15 °C ... +45 °C
Material (indicator)	Safety enclosure made of solid rubber
Indicator	Direct-reading instrument, LCD and LED
Connecting cable	PUR-sheathed cable, highly flexible, 1000 mm
Overvoltage category	CAT IV 1000 V
Type	Two-pole
Battery	Lithium
For	Indoor and outdoor installations
Degree of protection	IP 65
For use at	_
