Adapter pomiarowy DEHNcap

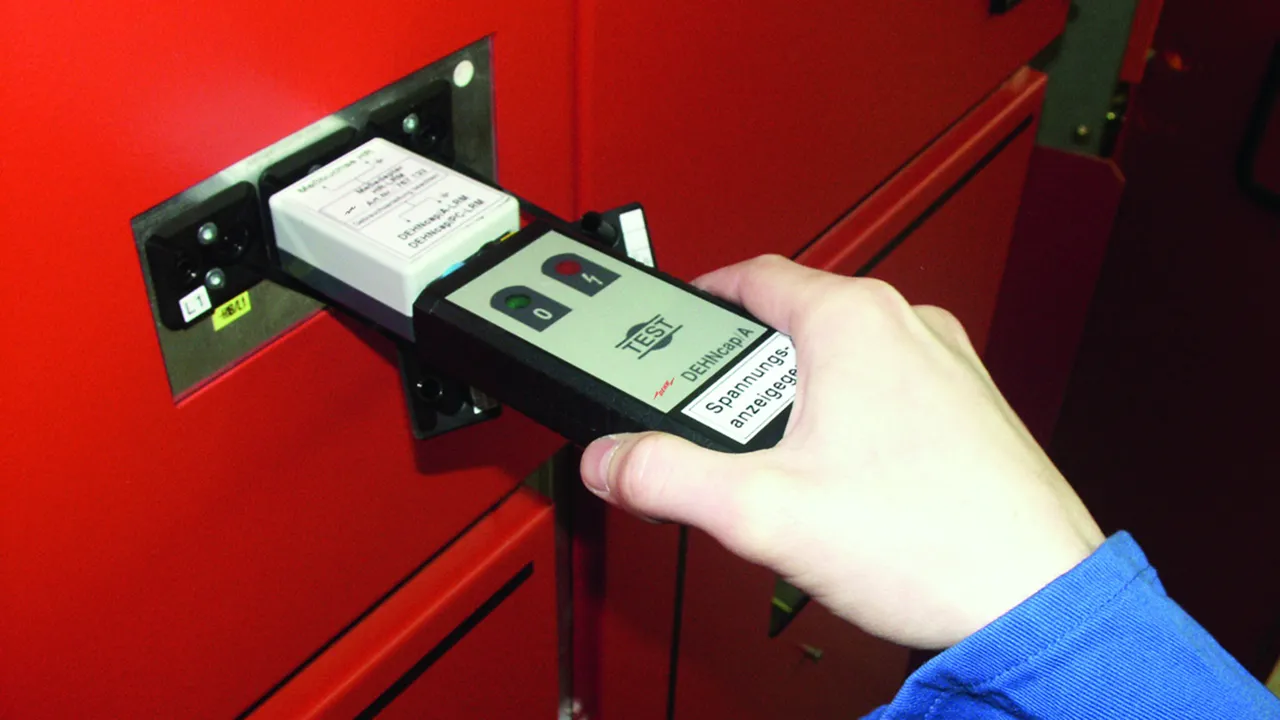

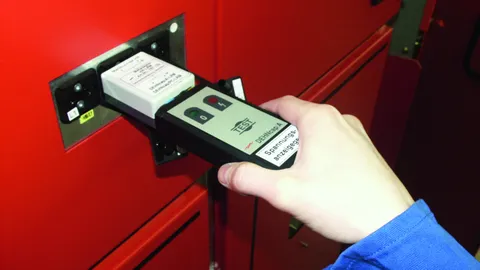

Easy and safe testing

Easy mechanical and electrical adaptation to HR, LR test sockets
Measuring impedance for maintenance tests on coupling systems with suitable µA meter
4 mm safety plugs or sockets
Energised HR plug, insulated

Adapter pomiarowy HR-LRM

For electrical and mechanical adaptation of HR (HO) to LRM systems.
Used as a measuring impedance with X_C = 36 MOhms for maintenance tests on HR coupling systems (with suitable µA meter).

1 Produkt

Nr kat. 767133 MA DCA HR LRM

GTIN / EAN 4013364073494, Nr taryfy celnej (EU): 90309000, Waga brutto: 97.50 g, Jednostka opakowaniowa: 1.00 szt.

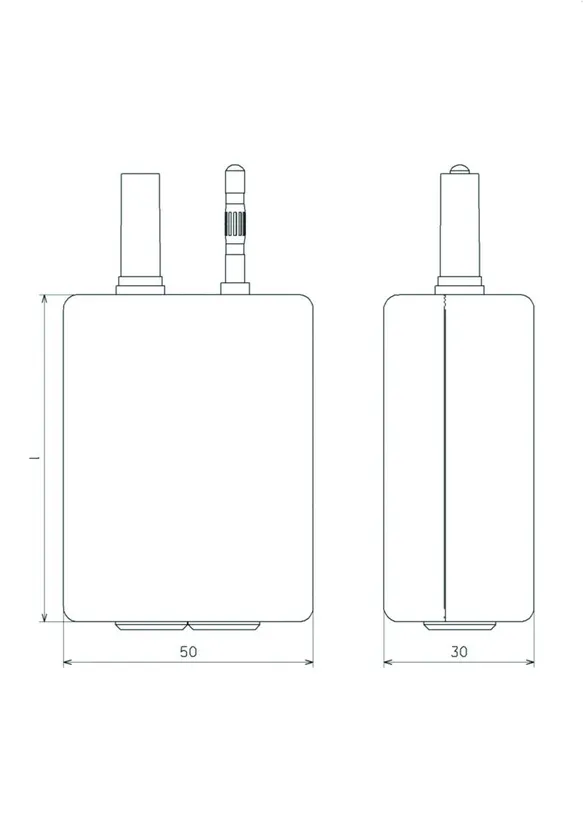

Rysunki

Informacje dodatkowe

Dane techniczne

Dimensions	90 x 50 x 30 mm
Plug spacing	19 mm
Socket spacing	14 mm
Type of plug	2 multilam plugs (Ø4 mm)
Type of test socket	2 sockets (Ø4 mm)

Dimensions	90 x 50 x 30 mm
Plug spacing	19 mm
Socket spacing	14 mm
Type of plug	2 multilam plugs (Ø4 mm)
Type of test socket	2 sockets (Ø4 mm)
Standard	EN/IEC 61243-5 (DIN VDE 0682-415)
Temperature range	–25 °C ... +55 °C
Type of device	HR – LRM test adapter
Type of system	HR

Produkt 767133 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767133.

Idź do sklepu internetowego

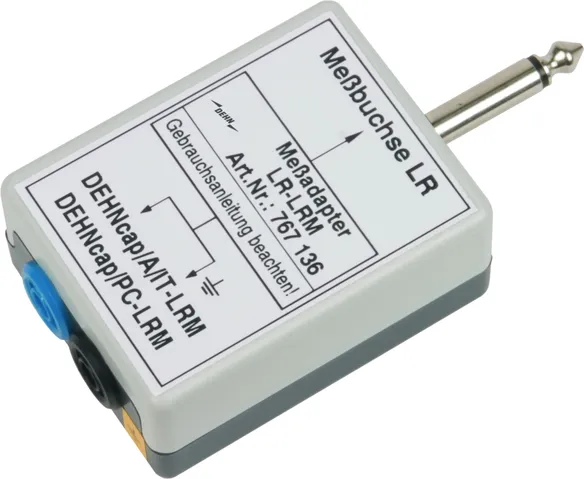

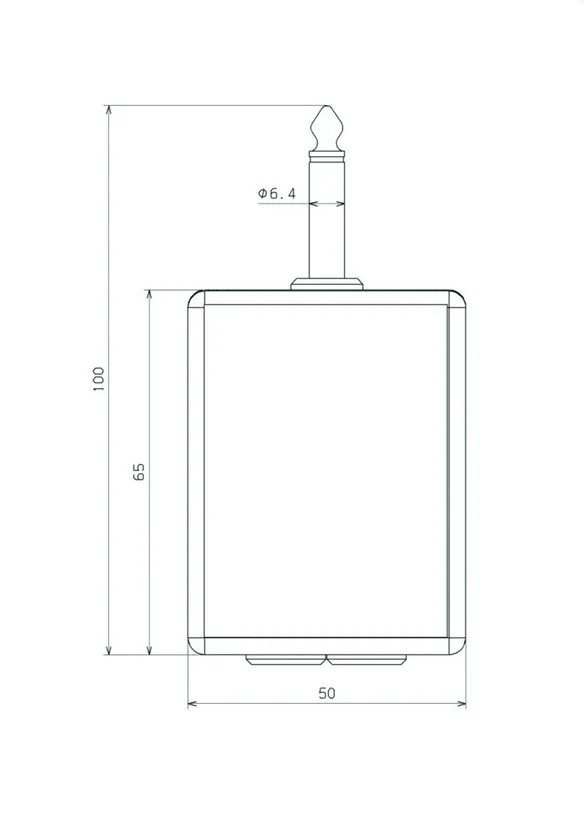

Adapter pomiarowy LR-LRM

For mechanical adaptation of LR (NO) to LRM systems.
