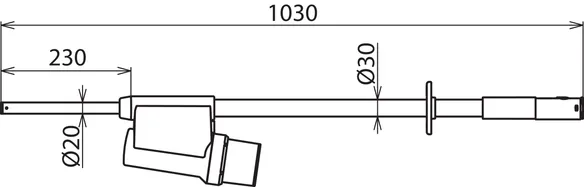

Nr kat. 783003 PHE4 3 S

GTIN / EAN 4013364310179, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783003 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783003.

Idź do sklepu internetowego

Nr kat. 783006 PHE4 6 S

GTIN / EAN 4013364310155, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783006 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783006.

Idź do sklepu internetowego

Nr kat. 783010 PHE4 10 S

GTIN / EAN 4013364297869, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783010 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783010.

Idź do sklepu internetowego

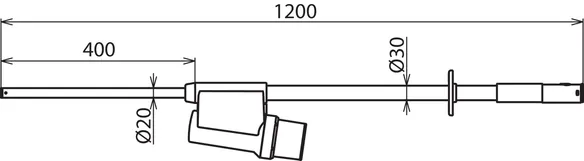

Nr kat. 783020 PHE4 20 S

GTIN / EAN 4013364310124, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.27 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 kV
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783020 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783020.

Idź do sklepu internetowego

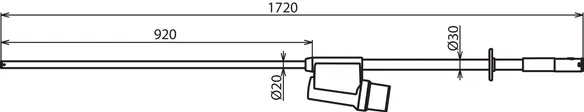

Nr kat. 783030 PHE4 30 S

GTIN / EAN 4013364310100, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.75 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783030 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783030.

Idź do sklepu internetowego

Nr kat. 783013 PHE4 1 3 S

GTIN / EAN 4013364310186, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.60 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	1 ... 3 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	1 ... 3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783013 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783013.

Idź do sklepu internetowego

Nr kat. 783231 PHE4 3 10 S

GTIN / EAN 4013364310087, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783231 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783231.

Idź do sklepu internetowego

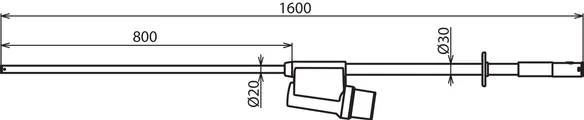

Nr kat. 783235 PHE4 6 20 S

GTIN / EAN 4013364310049, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783235 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783235.

Idź do sklepu internetowego

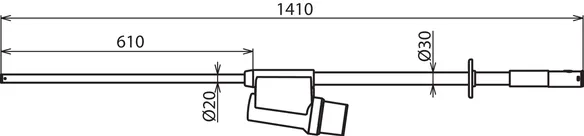

Nr kat. 783240 PHE4 10 20 S

GTIN / EAN 4013364310056, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 20 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783240 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783240.

Idź do sklepu internetowego

Nr kat. 783250 PHE4 10 30 S

GTIN / EAN 4013364309999, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783250 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783250.

Idź do sklepu internetowego

Nr kat. 783245 PHE4 20 36 S

GTIN / EAN 4013364310032, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 ... 36 kV
Type of voltage	AC
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Cu alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783245 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783245.

Idź do sklepu internetowego

Nr kat. 783520 PHE4 U 2 20 S

GTIN / EAN 4013364309913, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	2 ... 6 / 6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	2 ... 6 / 6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783520 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783520.

Idź do sklepu internetowego

Nr kat. 783530 PHE4 U 3 30 S

GTIN / EAN 4013364309968, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783530 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783530.

Idź do sklepu internetowego

Nr kat. 783536 PHE4 U 6 36 S

GTIN / EAN 4013364309944, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 15 / 15 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 15 / 15 ... 36 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783536 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783536.

Idź do sklepu internetowego

Nr kat. 783103 PHE4 3 S ZK

GTIN / EAN 4013364317277, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783103 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783103.

Idź do sklepu internetowego

Nr kat. 783106 PHE4 6 S ZK

GTIN / EAN 4013364317260, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783106 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783106.

Idź do sklepu internetowego

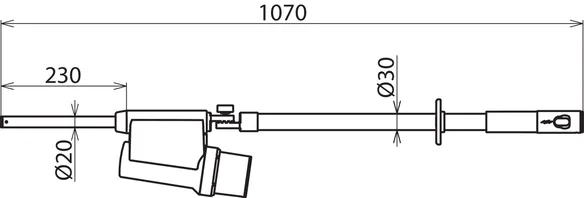

Nr kat. 783110 PHE4 10 S ZK

GTIN / EAN 4013364317253, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783110.

Idź do sklepu internetowego

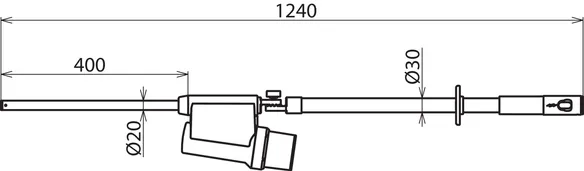

Nr kat. 783120 PHE4 20 S ZK

GTIN / EAN 4013364317246, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.27 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 kV
Total length (l_G )	1240 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1240 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783120 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783120.

Idź do sklepu internetowego

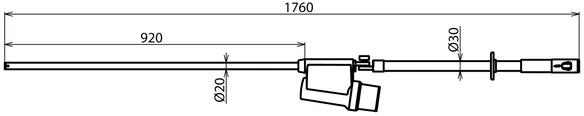

Nr kat. 783130 PHE4 30 S ZK

GTIN / EAN 4013364317239, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	30 kV
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783130 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783130.

Idź do sklepu internetowego

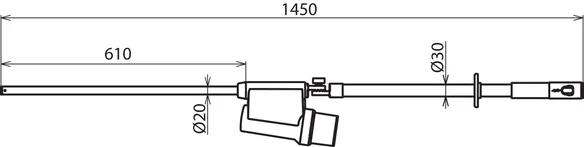

Nr kat. 783141 PHE4 3 10 S ZK

GTIN / EAN 4013364317222, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1450 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1450 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783141 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783141.

Idź do sklepu internetowego

Nr kat. 783151 PHE4 6 20 S ZK

GTIN / EAN 4013364317215, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1640 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1640 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783151 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783151.

Idź do sklepu internetowego

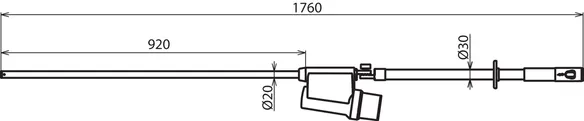

Nr kat. 783161 PHE4 10 30 S ZK

GTIN / EAN 4013364317208, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783161 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783161.

Idź do sklepu internetowego

Nr kat. 783332 PHE4 3 10 S 60

GTIN / EAN 4013364310070, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783332 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783332.

Idź do sklepu internetowego

Nr kat. 783335 PHE4 6 20 S 60

GTIN / EAN 4013364310001, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783335 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783335.

Idź do sklepu internetowego

Nr kat. 783345 PHE4 10 30 S 60

GTIN / EAN 4013364309975, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783345 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783345.

Idź do sklepu internetowego

Nr kat. 783342 PHE4 20 36 S 60

GTIN / EAN 4013364310025, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 ... 36 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783342 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783342.

Idź do sklepu internetowego

Nr kat. 783395 PHE4 U 3 36 S 60

GTIN / EAN 4013364309951, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 / 12 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 / 12 ... 36 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783395 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783395.

Idź do sklepu internetowego

Nr kat. 783430 PHE4 U 6 20 S 16.7 50

GTIN / EAN 4013364309906, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 / 16.7 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783430 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783430.

Idź do sklepu internetowego

Nr kat. 783420 PHE4 6 20 S 16.7

GTIN / EAN 4013364309890, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783420 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783420.

Idź do sklepu internetowego

Wskaźnik napięcia PHE4 do średniego napięcia

Napięcia znamionowe do 30 kV / 50 Hz, gwint M12

Nr kat. 783003 PHE4 3 S

Produkt 783003 został dodany do notatnika.

Do koszyka dodano produkt 783003.

Nr kat. 783006 PHE4 6 S

Produkt 783006 został dodany do notatnika.

Do koszyka dodano produkt 783006.

Nr kat. 783010 PHE4 10 S

Produkt 783010 został dodany do notatnika.

Do koszyka dodano produkt 783010.

Nr kat. 783020 PHE4 20 S

Produkt 783020 został dodany do notatnika.

Do koszyka dodano produkt 783020.

Nr kat. 783030 PHE4 30 S

Produkt 783030 został dodany do notatnika.

Do koszyka dodano produkt 783030.

Zakres napięcia znamionowego do 36 kV / 50 Hz, gwint M12

Nr kat. 783013 PHE4 1 3 S

Produkt 783013 został dodany do notatnika.

Do koszyka dodano produkt 783013.

Nr kat. 783231 PHE4 3 10 S

Produkt 783231 został dodany do notatnika.

Do koszyka dodano produkt 783231.

Nr kat. 783235 PHE4 6 20 S

Produkt 783235 został dodany do notatnika.

Do koszyka dodano produkt 783235.

Nr kat. 783240 PHE4 10 20 S

Produkt 783240 został dodany do notatnika.

Do koszyka dodano produkt 783240.

Nr kat. 783250 PHE4 10 30 S

Produkt 783250 został dodany do notatnika.

Do koszyka dodano produkt 783250.

Nr kat. 783245 PHE4 20 36 S

Produkt 783245 został dodany do notatnika.

Do koszyka dodano produkt 783245.

Zakres napięcia znamionowego do 36 kV / 50 Hz, zmienny zakres, gwint M12

Nr kat. 783520 PHE4 U 2 20 S

Produkt 783520 został dodany do notatnika.

Do koszyka dodano produkt 783520.

Nr kat. 783530 PHE4 U 3 30 S

Produkt 783530 został dodany do notatnika.

Do koszyka dodano produkt 783530.

Nr kat. 783536 PHE4 U 6 36 S

Produkt 783536 został dodany do notatnika.

Do koszyka dodano produkt 783536.

Napięcia znamionowe do 30 kV / 50 Hz, złącze zębate

Nr kat. 783103 PHE4 3 S ZK

Produkt 783103 został dodany do notatnika.

Do koszyka dodano produkt 783103.

Nr kat. 783106 PHE4 6 S ZK

Produkt 783106 został dodany do notatnika.

Do koszyka dodano produkt 783106.

Nr kat. 783110 PHE4 10 S ZK

Produkt 783110 został dodany do notatnika.

Do koszyka dodano produkt 783110.

Nr kat. 783120 PHE4 20 S ZK

Produkt 783120 został dodany do notatnika.

Do koszyka dodano produkt 783120.

Nr kat. 783130 PHE4 30 S ZK

Produkt 783130 został dodany do notatnika.

Do koszyka dodano produkt 783130.

Zakres napięcia znamionowego do 30 kV / 50 Hz, złącze zębate

Nr kat. 783141 PHE4 3 10 S ZK

Produkt 783141 został dodany do notatnika.

Do koszyka dodano produkt 783141.

Nr kat. 783151 PHE4 6 20 S ZK

Produkt 783151 został dodany do notatnika.

Do koszyka dodano produkt 783151.

Nr kat. 783161 PHE4 10 30 S ZK

Produkt 783161 został dodany do notatnika.

Do koszyka dodano produkt 783161.

Zakres napięcia znamionowego do 36 kV / 60 Hz, gwint M12

Nr kat. 783332 PHE4 3 10 S 60

Produkt 783332 został dodany do notatnika.

Do koszyka dodano produkt 783332.

Nr kat. 783335 PHE4 6 20 S 60

Produkt 783335 został dodany do notatnika.

Do koszyka dodano produkt 783335.

Nr kat. 783345 PHE4 10 30 S 60
