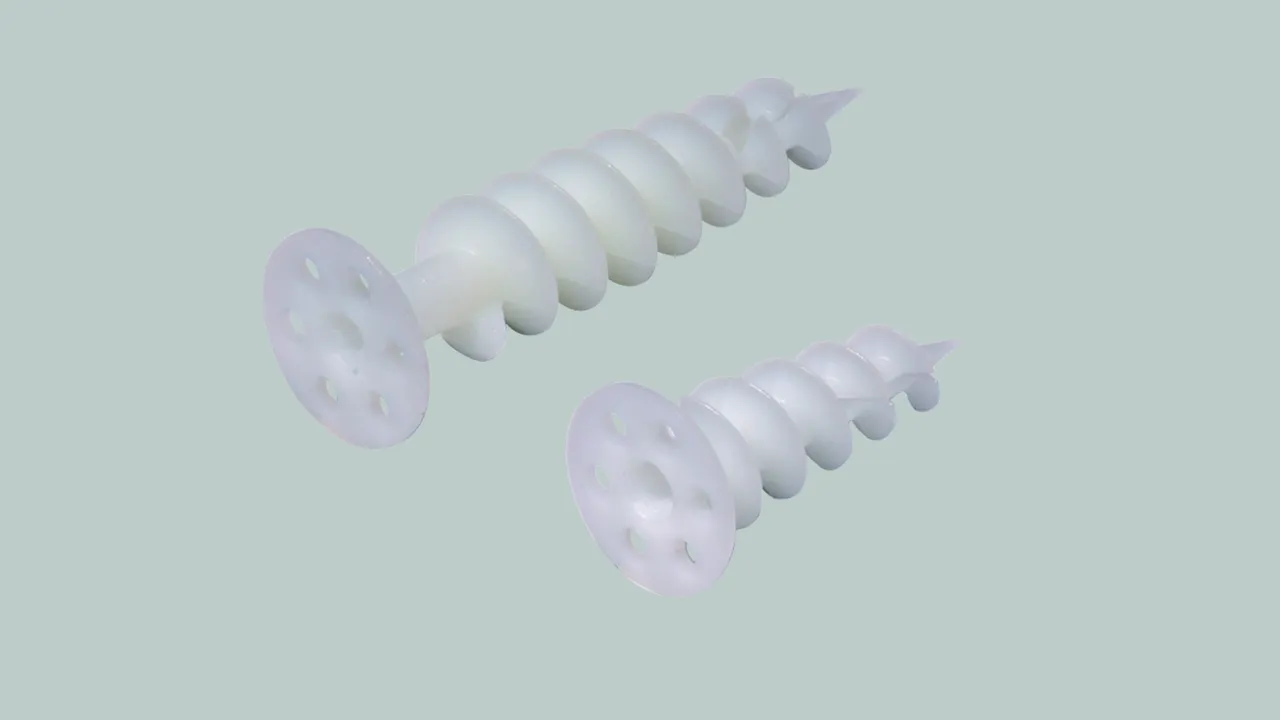

Dowels for Rigid Foam Plates

For fixing conductor holders, flat strip and rod holders to external thermal insulation composite systems.
With star drive (TX40).
Mounting with wood screws Ø4.5 mm.

This dowel is only suitable for fastening conductor holders if no additional traction is applied on the down conductor.

Short design

1 Produkt

Nr kat. 200600 HSPD HS4.5 L50 PA

GTIN / EAN 4013364098220, Nr taryfy celnej (EU): 39269097, Waga brutto: 5.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Dowel for rigid foam plate, short
Dowel for HR foam plates
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 60 mm
Anchoring depth / length: 50 mm
Working load of Styrofoam PS20: 35 N
Working load of rigid foam plates: 60 N

Brand: DEHN
Type: HSPD HS4.5 L50 PA
Part No.: 200600
or equivalent.



Dane techniczne

Material PA
Thickness of insulating material 60 mm
Anchoring depth / length 50 mm

Produkt 200600 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 200600.

Idź do sklepu internetowego

Long design

1 Produkt

Nr kat. 200601 HSPD HS4.5 L85 PA

GTIN / EAN 4013364098237, Nr taryfy celnej (EU): 39269097, Waga brutto: 8.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Dowels for rigid foam plate, long
Dowel for HR foam plates
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 100 mm
Anchoring depth / length: 85 mm
Working load of Styrofoam PS20: 60 N
Working load of rigid foam plates: 85 N

Brand: DEHN
Type: HSPD HS4.5 L85 PA
Part No.: 200601
or equivalent.



Dane techniczne

Material PA
Thickness of insulating material 100 mm
Anchoring depth / length 85 mm
