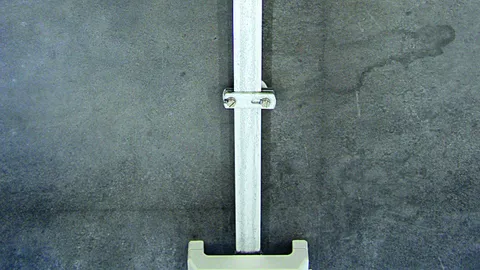

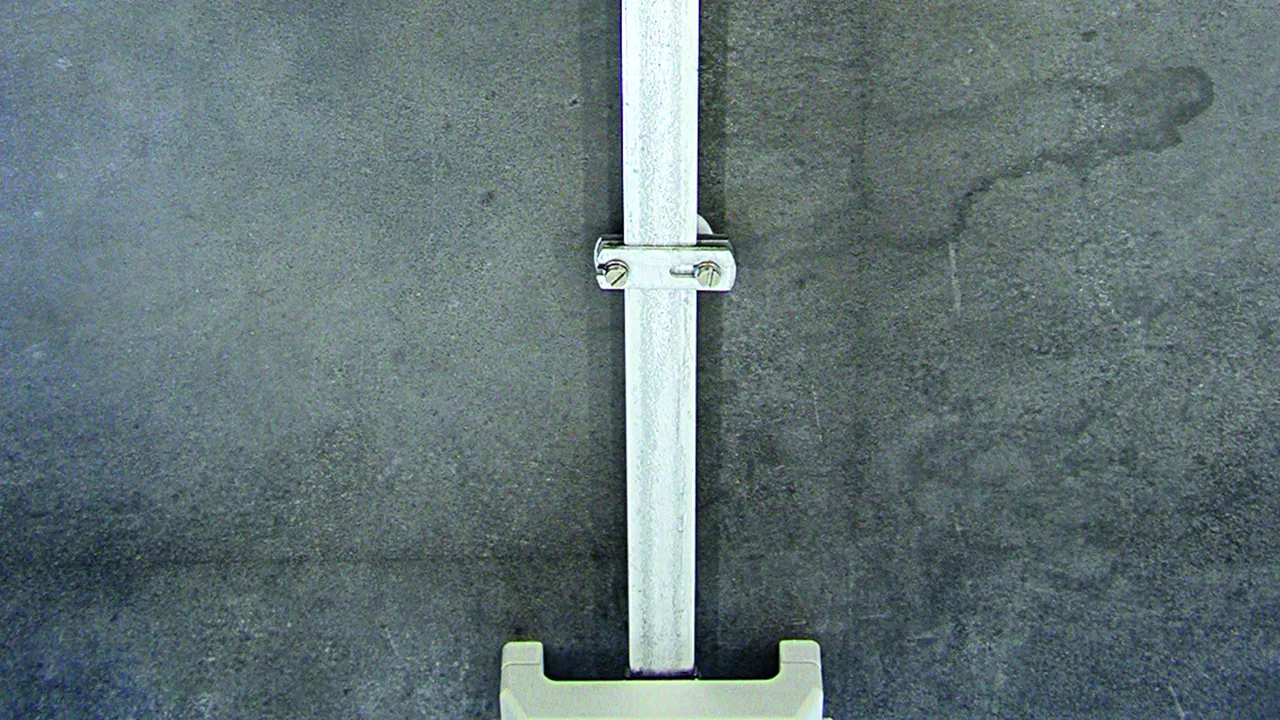

Flat Strip Holders with Cleat and Flange

Complete unit with flange for flat strip installation.

With female thread

1 Produkt

Nr kat. 275030 FBH ZS 30 IGM8 STTZN ZG

GTIN / EAN 4013364095847, Nr taryfy celnej (EU): 85389099, Waga brutto: 89.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Flat strip holder with cleat, flange and female thread, St/tZn
Strip holder with cleat and flange
Complete unit with flange for installation of strip conductors
Conductor holder support Fl: 30 x 3.5 mm
Thread of conductor holder: M8
Material of cleat: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: FBH ZS 30 IGM8 STTZN ZG
Part No.: 275030
or equivalent.

Certyfikaty



Dane techniczne

Conductor holder support Fl 30 x 3.5 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of cleat St/tZn
Material of base part ZDC
Standard EN 62561-4

Produkt 275030 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275030.

Idź do sklepu internetowego

With female thread, pre-assembled with screw and dowel

1 Produkt

Nr kat. 275230 FBH ZS 30 IGM8 KD8X40STTZN ZG

GTIN / EAN 4013364095854, Nr taryfy celnej (EU): 85389099, Waga brutto: 95.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Flat strip holder with cleat, flange and female thread, St/tZn
Strip holder with cleat and flange
Complete unit with flange for installation of strip conductors
Premounted with screw and dowel
Conductor holder support Fl: 30 x 3.5 mm
Thread of conductor holder: M8
Material of cleat: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: FBH ZS 30 IGM8 KD8X40STTZN ZG
Part No.: 275230
or equivalent.

Certyfikaty



Dane techniczne

Conductor holder support Fl 30 x 3.5 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of cleat St/tZn
Material of base part ZDC
Screw ak 5 x 50 mm
Plastic dowel Ø8 x 40 mm
Standard EN 62561-4
