Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

SPANNsnap light

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

2 Produkty

Nr kat. 204469 DLH SSL 8 H16 FG180.280 GR V2A

GTIN / EAN 4013364124851, Nr taryfy celnej (EU): 85389099, Waga brutto: 67.20 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 16 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H16 FG180.280 GR V2A
Part No.: 204469
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204469 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204469.

Idź do sklepu internetowego

Nr kat. 204449 DLH SSL 8 H36 FG180.280 GR V2A

GTIN / EAN 4013364124837, Nr taryfy celnej (EU): 85389099, Waga brutto: 70.30 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 36 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H36 FG180.280 GR V2A
Part No.: 204449
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204449 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204449.

Idź do sklepu internetowego

SPANNsnap

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

4 Produkty

Nr kat. 204269 DLH SS 8 H16 FG180.280 GR V2A

GTIN / EAN 4013364035812, Nr taryfy celnej (EU): 85389099, Waga brutto: 68.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 16 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 GR V2A
Part No.: 204269
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204269 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204269.

Idź do sklepu internetowego

Nr kat. 204267 DLH SS 8 H16 FG180.280 BR CU

GTIN / EAN 4013364035805, Nr taryfy celnej (EU): 85389099, Waga brutto: 74.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 16 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 BR CU
Part No.: 204267
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Produkt 204267 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204267.

Idź do sklepu internetowego

Nr kat. 204249 DLH SS 8 H36 FG180.280 GR V2A

GTIN / EAN 4013364041790, Nr taryfy celnej (EU): 85389099, Waga brutto: 72.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 36 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 GR V2A
Part No.: 204249
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204249 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204249.

Idź do sklepu internetowego

Nr kat. 204247 DLH SS 8 H36 FG180.280 BR CU

GTIN / EAN 4013364041806, Nr taryfy celnej (EU): 85389099, Waga brutto: 76.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 36 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 BR CU
Part No.: 204247
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Produkt 204247 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204247.

Idź do sklepu internetowego

SPANNgrip light

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

2 Produkty

Nr kat. 206439 DLH SGL 8 H20 FG180.280 V2A

GTIN / EAN 4013364124875, Nr taryfy celnej (EU): 85389099, Waga brutto: 76.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side

Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H20 FG180.280 V2A
Part No.: 206439
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206439 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206439.

Idź do sklepu internetowego

Nr kat. 206449 DLH SGL 8 H32 FG180.280 V2A

GTIN / EAN 4013364124899, Nr taryfy celnej (EU): 85389099, Waga brutto: 82.10 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H32 FG180.280 V2A
Part No.: 206449
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206449 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206449.

Idź do sklepu internetowego

SPANNgrip

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

4 Produkty

Nr kat. 206239 DLH SG 8 H20 FG180.280 V2A

GTIN / EAN 4013364042650, Nr taryfy celnej (EU): 85389099, Waga brutto: 78.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 20 mm

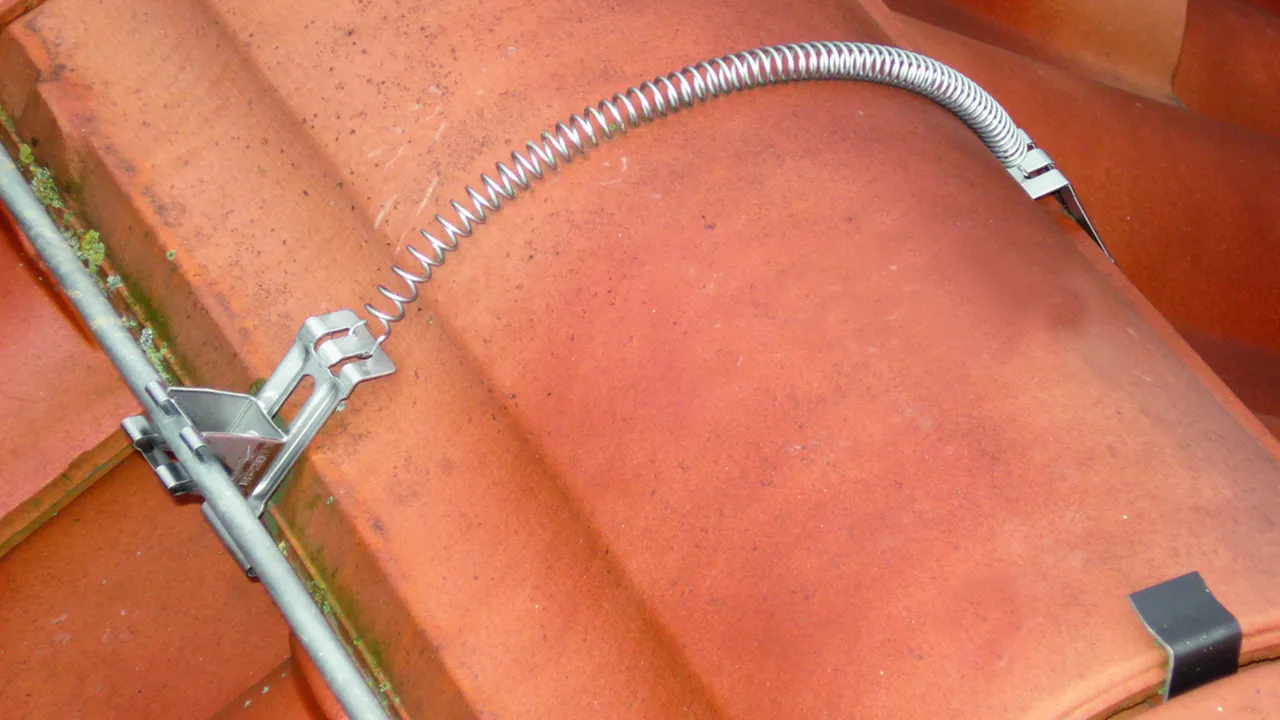

Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 V2A
Part No.: 206239
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206239 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206239.

Idź do sklepu internetowego

Nr kat. 206237 DLH SG 8 H20 FG180.280 CU

GTIN / EAN 4013364077300, Nr taryfy celnej (EU): 85389099, Waga brutto: 85.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 CU
Part No.: 206237
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206237 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206237.

Idź do sklepu internetowego

Nr kat. 206249 DLH SG 8 H32 FG180.280 V2A

GTIN / EAN 4013364042803, Nr taryfy celnej (EU): 85389099, Waga brutto: 84.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 V2A
Part No.: 206249
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206249 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206249.

Idź do sklepu internetowego

Nr kat. 206247 DLH SG 8 H32 FG180.280 CU

GTIN / EAN 4013364078574, Nr taryfy celnej (EU): 85389099, Waga brutto: 96.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 CU
Part No.: 206247
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206247 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206247.

Idź do sklepu internetowego
Powrót na górę
