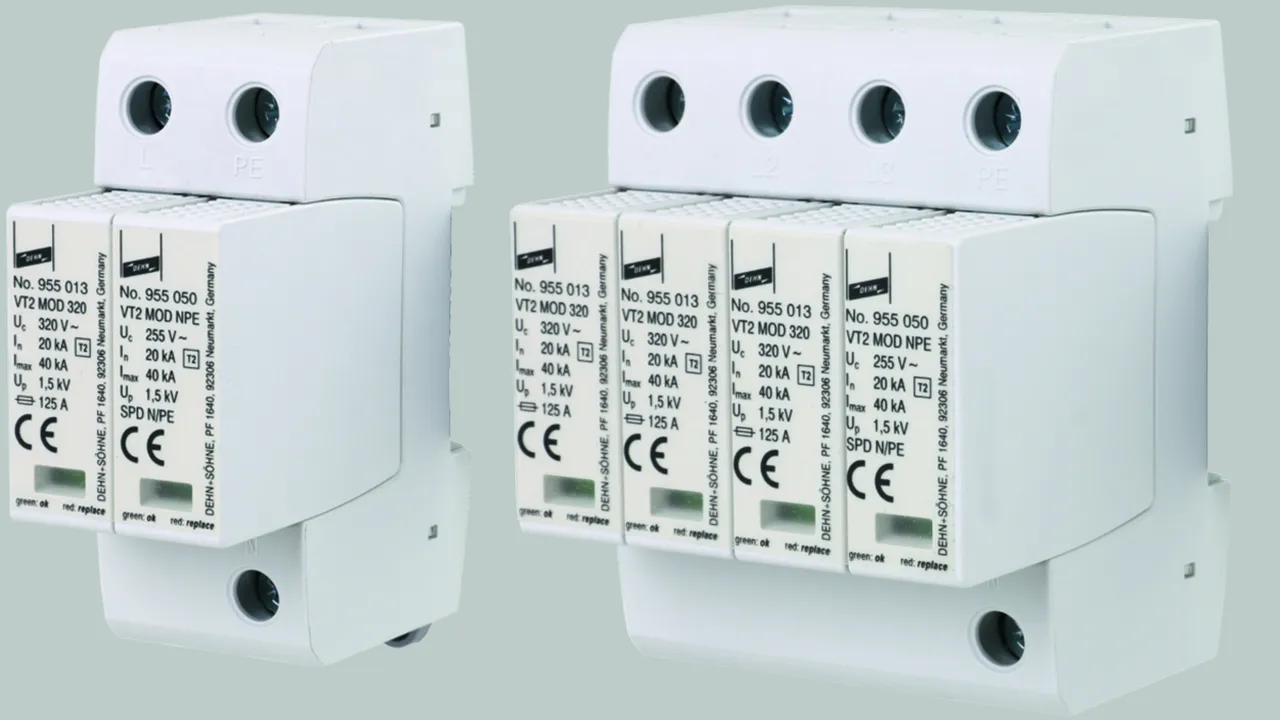

Nr kat. 955320 VT2 M TT 320

GTIN / EAN 4013364369108, Nr taryfy celnej (EU): 85363030, Waga brutto: 442.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 955320 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955320.

Idź do sklepu internetowego

Nr kat. 955325 VT2 M TT 320 FM

GTIN / EAN 4013364369122, Nr taryfy celnej (EU): 85363030, Waga brutto: 450.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 955325 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955325.

Idź do sklepu internetowego

Nr kat. 955130 VT2 M TT 2P 320

GTIN / EAN 4013364369115, Nr taryfy celnej (EU): 85363030, Waga brutto: 263.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 955130 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955130.

Idź do sklepu internetowego

Nr kat. 955135 VT2 M TT 2P 320 FM

GTIN / EAN 4013364369092, Nr taryfy celnej (EU): 85363030, Waga brutto: 269.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 955135 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955135.

Idź do sklepu internetowego

Nr kat. 955300 VT2 M TNC 320 AT

GTIN / EAN 4013364439788, Nr taryfy celnej (EU): 85363030, Waga brutto: 357.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880

Produkt 955300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955300.

Idź do sklepu internetowego

Nr kat. 955305 VT2 M TNC 320 FM AT

GTIN / EAN 4013364439795, Nr taryfy celnej (EU): 85363030, Waga brutto: 365.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 955305 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955305.

Idź do sklepu internetowego

Nr kat. 955013 VT2 MOD 320

GTIN / EAN 4013364376083, Nr taryfy celnej (EU): 85363030, Waga brutto: 52.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA

Produkt 955013 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955013.

Idź do sklepu internetowego

Nr kat. 955050 VT2 MOD NPE

GTIN / EAN 4013364376090, Nr taryfy celnej (EU): 85363030, Waga brutto: 44.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA

Produkt 955050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 955050.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

SPD VT2

SPD VT2 TT (FM)

Nr kat. 955320 VT2 M TT 320

Produkt 955320 został dodany do notatnika.

Do koszyka dodano produkt 955320.

Nr kat. 955325 VT2 M TT 320 FM

Produkt 955325 został dodany do notatnika.

Do koszyka dodano produkt 955325.

SPD VT2 TT 2P (FM)

Nr kat. 955130 VT2 M TT 2P 320

Produkt 955130 został dodany do notatnika.

Do koszyka dodano produkt 955130.

Nr kat. 955135 VT2 M TT 2P 320 FM

Produkt 955135 został dodany do notatnika.

Do koszyka dodano produkt 955135.

SPD VT2 TNC (FM)

Nr kat. 955300 VT2 M TNC 320 AT

Produkt 955300 został dodany do notatnika.

Do koszyka dodano produkt 955300.

Nr kat. 955305 VT2 M TNC 320 FM AT

Produkt 955305 został dodany do notatnika.

Do koszyka dodano produkt 955305.

Varistor-based Protection Module for VT2

Nr kat. 955013 VT2 MOD 320

Produkt 955013 został dodany do notatnika.

Do koszyka dodano produkt 955013.

N-PE Spark-Gap-Based Protection Module for VT2

Nr kat. 955050 VT2 MOD NPE

Produkt 955050 został dodany do notatnika.

Do koszyka dodano produkt 955050.

SPD VT2

SPD VT2 TT (FM)

Nr kat. 955320 VT2 M TT 320

Nie masz uprawnień, by pobrać PLP DG 4P.stp

Nie masz uprawnień, by pobrać PLP DG 4P.igs

Nie masz uprawnień, by pobrać PLP DG 4P.jt

Nie masz uprawnień, by pobrać PLP DG 4P.dwg

Nie masz uprawnień, by pobrać 955320m_E.dxf

Produkt 955320 został dodany do notatnika.

Do koszyka dodano produkt 955320.

Nr kat. 955325 VT2 M TT 320 FM

Nie masz uprawnień, by pobrać PLP DG 4P FM.stp

Nie masz uprawnień, by pobrać PLP DG 4P FM.igs

Nie masz uprawnień, by pobrać PLP DG 4P FM.jt

Nie masz uprawnień, by pobrać PLP DG 4P FM.dwg

Nie masz uprawnień, by pobrać 955325m_E.dxf

Produkt 955325 został dodany do notatnika.

Do koszyka dodano produkt 955325.

SPD VT2 TT 2P (FM)

Nr kat. 955130 VT2 M TT 2P 320

Nie masz uprawnień, by pobrać PLP DG 2P.stp

Nie masz uprawnień, by pobrać PLP DG 2P.igs

Nie masz uprawnień, by pobrać PLP DG 2P.jt

Nie masz uprawnień, by pobrać PLP DG 2P.dwg

Nie masz uprawnień, by pobrać 955130m_E.dxf

Produkt 955130 został dodany do notatnika.

Do koszyka dodano produkt 955130.

Nr kat. 955135 VT2 M TT 2P 320 FM

Nie masz uprawnień, by pobrać PLP DG 2P FM.stp

Nie masz uprawnień, by pobrać PLP DG 2P FM.igs

Nie masz uprawnień, by pobrać PLP DG 2P FM.jt

Nie masz uprawnień, by pobrać PLP DG 2P FM.dwg

Nie masz uprawnień, by pobrać 955135m_E.dxf

Produkt 955135 został dodany do notatnika.

Do koszyka dodano produkt 955135.

SPD VT2 TNC (FM)

Nr kat. 955300 VT2 M TNC 320 AT

Nie masz uprawnień, by pobrać 952305.stp

Nie masz uprawnień, by pobrać 952305.igs

Nie masz uprawnień, by pobrać 952305.jt

Nie masz uprawnień, by pobrać 952305.dwg

Nie masz uprawnień, by pobrać 952305m_E.dxf

Produkt 955300 został dodany do notatnika.

Do koszyka dodano produkt 955300.

Nr kat. 955305 VT2 M TNC 320 FM AT

Nie masz uprawnień, by pobrać 952305.stp

Nie masz uprawnień, by pobrać 952305.igs

Nie masz uprawnień, by pobrać 952305.jt

Nie masz uprawnień, by pobrać 952305.dwg

Nie masz uprawnień, by pobrać 952305m_E.dxf

Produkt 955305 został dodany do notatnika.

Do koszyka dodano produkt 955305.

Varistor-based Protection Module for VT2

Nr kat. 955013 VT2 MOD 320

Produkt 955013 został dodany do notatnika.

Do koszyka dodano produkt 955013.

N-PE Spark-Gap-Based Protection Module for VT2

Nr kat. 955050 VT2 MOD NPE

Produkt 955050 został dodany do notatnika.

Do koszyka dodano produkt 955050.
