Tools and accessories

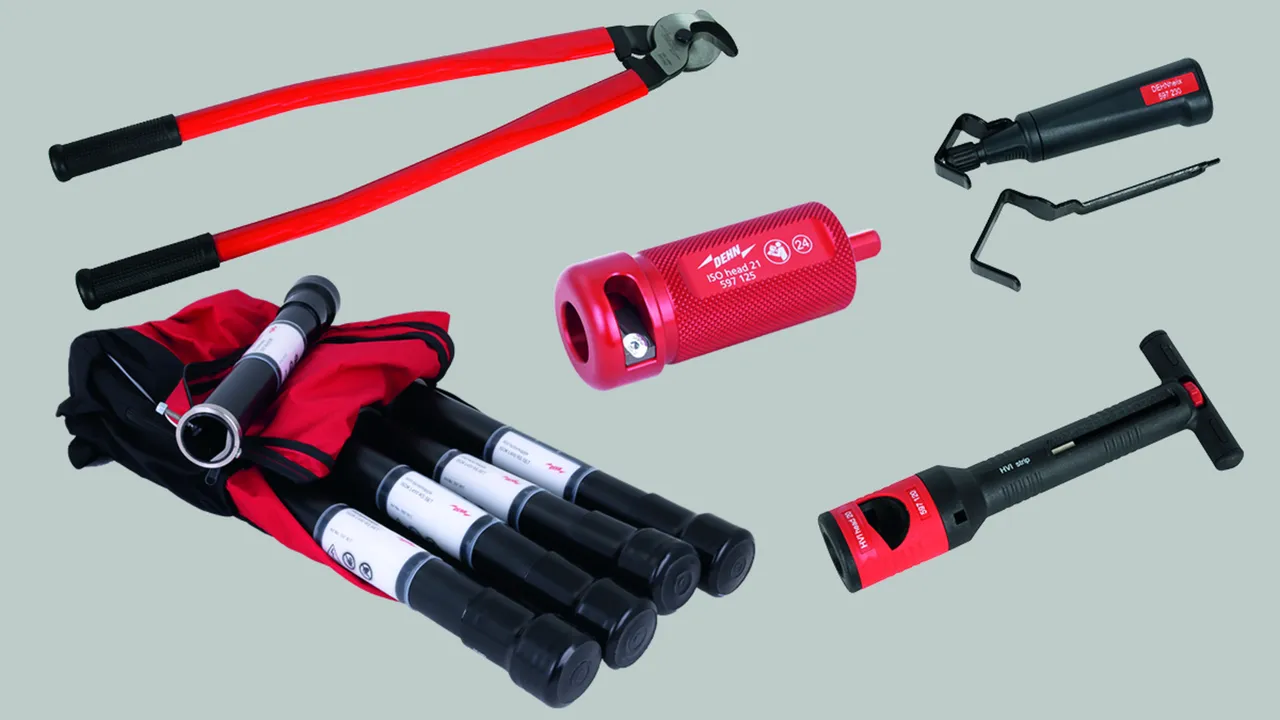

Here you will find Tools for the assembly of our high-voltage-resistant, insulated down conductors and the cutting head for installing the insulated connection elements and the accessories for HVI check.

Stripping tool

1 Produkt

Nr kat. 597230 AW DEHNHELIX

GTIN / EAN 4013364155015, Nr taryfy celnej (EU): 82055980, Waga brutto: 201.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe


Diameter Ø conductor: 23 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ●

Brand: DEHN
Type: AW DEHNHELIX
Part No.: 597230
or equivalent.



Dane techniczne

Diameter Ø conductor 23 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ●

Produkt 597230 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597230.

Idź do sklepu internetowego

Stripping tool

HVI strip 20 tool for stripping the semi-conducting sheath and the PE insulation of the HVI Conductor and HVI light plus Conductor with an outer diameter of 20 mm. The stripping length is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. Version complete with handle and stripping insert.

1 Produkt

Nr kat. 597220 HVI STRIP 20

GTIN / EAN 4013364144972, Nr taryfy celnej (EU): 82055980, Waga brutto: 330.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe


Diameter Ø conductor: 20 mm (remove the grey sheath beforehand if necessary)
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●
Dimensions: approx. 231 x 97 mm

Brand: DEHN
Type: HVI STRIP 20
Part No.: 597220
or equivalent.



Dane techniczne

Diameter Ø conductor 20 mm (remove the grey sheath beforehand if necessary)
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●
Dimensions approx. 231 x 97 mm

Produkt 597220 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597220.

Idź do sklepu internetowego

Cable shears

Cable shears for easily cutting the HVI light Conductor, HVI Conductor (outer diameter 20 / 23 mm), HVI power Conductor (outer diameter 27 mm) and CUI Conductor to length.
The special design of the cable shears also allows for the correct cutting of stranded conductors, making it easier to attach connection elements.

1 Produkt

Nr kat. 597032 HVI CUTTER 32

GTIN / EAN 4013364155008, Nr taryfy celnej (EU): 82033000, Waga brutto: 1.49 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Cable shears
Cable shears for easy
cutting to length the HVI light Conductor,
HVI light plus, HVI Conductor
(outer dimension 20 / 23 mm)
and HVI power Conductor
(outer diameter 27 mm)
as well as for the CUI Conductor.
Diameter Ø conductor: up to 32 mm
Material of knife: Tool steel (CR-Moly (SCM440))
Material of handles: Carbon steel (SS400)
Length: 600 mm
Colour of handles: Red (similar to RAL 3020) ●

Brand: DEHN
Type: HVI CUTTER 32
Part No.: 597032
or equivalent.



Dane techniczne

Diameter Ø conductor up to 32 mm
Material of knife Tool steel (CR-Moly (SCM440))
Material of handles Carbon steel (SS400)
Length 600 mm
Colour of handles Red (similar to RAL 3020) ●

Produkt 597032 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597032.

Idź do sklepu internetowego

Cutting head

Cutting head for mounting the testable, insulated connection elements on high-voltage-resistant, insulated down conductors.

1 Produkt

Nr kat. 597125 ISO HEAD 21

GTIN / EAN 4013364513945, Nr taryfy celnej (EU): 82055980, Waga brutto: 276.84 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Cutting head
for installing the insulated
connection elements on
high-voltage-resistant,
insulated down conductors
Diameter Ø conductor: 21 mm
Material of moulded part: Al
Material of blade: Steel alloy
Colour: red ●
Dimensions: approx. 105 x 40 mm

Brand: DEHN
Type: ISO HEAD 21
Part No.: 597125
or equivalent.



Dane techniczne

Diameter Ø conductor 21 mm
Material of moulded part Al
Material of blade Steel alloy
Colour red ●
Dimensions approx. 105 x 40 mm

Produkt 597125 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597125.

Idź do sklepu internetowego

Insulating cap

Insulating caps for the dielectric withstand test on high-voltage-resistant, insulated down conductors.
Kit: 5 pieces in a suitable rucksack.
The insulating caps allow the connection elements to be safely insulated, thus preventing contact and errors of measurement.

1 Produkt

Nr kat. 597817 ISOK L450 RS SET

GTIN / EAN 4013364512597, Nr taryfy celnej (EU): 39269097, Waga brutto: 400.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Insulating caps for the dielectric withstand test
Insulating caps for the dielectric withstand test
on high-voltage-resistant
insulated down conductors
Kit: 5 pieces in a suitable
rucksack.
Colour: black
Opening: 34 mm
Suitable for: HVI light plus and HVI
Length: 450 mm
Material: Plastic

Brand: DEHN
Type: ISOK L450 RS SET
Part No.: 597817
or equivalent.



Dane techniczne

Colour black 1
Opening (Ø) 34 mm
Suitable for HVI light plus and HVI
Length 450 mm
Material Plastic

Produkt 597817 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597817.

Idź do sklepu internetowego
