Supporting tubes for HVI light plus Conductor

Discreet supporting tube with integrated EB spring element for the applications
– Wall mounting
– Inside and outside routing with installation in an n-legged stand (with/without side outlet)
– Installation on metal roof/roof rafter bracket

Without side outlet

Supporting tube with internal sealing end / EB spring element without side outlet. Air-termination tip, StSt, Ø10 mm, length 500/1000 mm.

4 Produkty

Nr kat. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

GTIN / EAN 4013364494473, Nr taryfy celnej (EU): 85389099, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

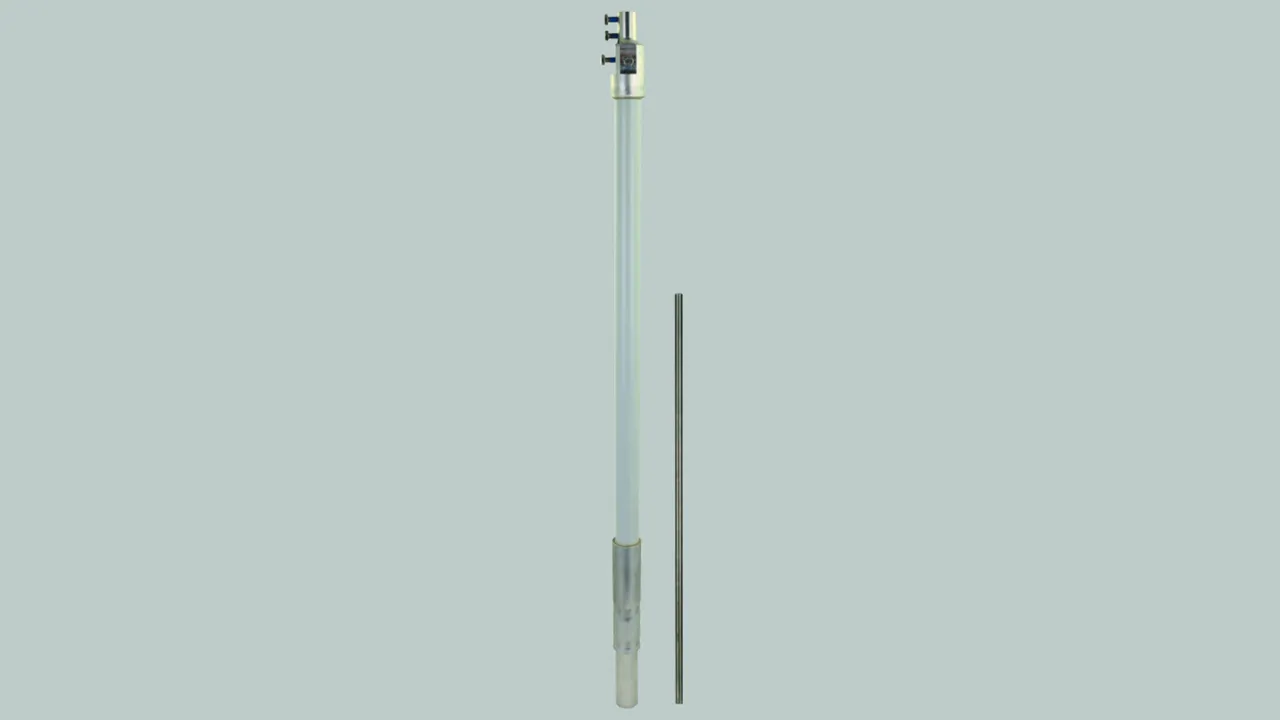

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,100 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 1600 FSP500 HVI LI PL GFK AL V2A
Part No.: 105672
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105672 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105672.

Idź do sklepu internetowego

Nr kat. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

GTIN / EAN 4013364494497, Nr taryfy celnej (EU): 85389099, Waga brutto: 2.80 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,600 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 1600 FSP1000 HVI LI PL GFK AL V2A
Part No.: 105673
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105673 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105673.

Idź do sklepu internetowego

Nr kat. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

GTIN / EAN 4013364494503, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.53 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,900 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP500 HVI LI PL GFK AL V2A
Part No.: 105674
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105674 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105674.

Idź do sklepu internetowego

Nr kat. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

GTIN / EAN 4013364494510, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.80 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip, length: 3,400 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP1000 HVI LI PL GFK AL V2A
Part No.: 105675
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105675 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105675.

Idź do sklepu internetowego

With side outlet

Supporting tube with internal sealing end / EB spring element with side outlet | air-termination tip, StSt, Ø10 mm, length: 500 / 1,000 mm.

2 Produkty

Nr kat. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

GTIN / EAN 4013364500044, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.35 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip
and side outlet, length: 2,900 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP500 SA HVI LI PL GFK AL
Part No.: 105677
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105677 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105677.

Idź do sklepu internetowego

Nr kat. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

GTIN / EAN 4013364500051, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.62 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip
and side outlet, length: 3,400 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP1000 SA HVI LI PL GFK AL
Part No.: 105678
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105678 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105678.

Idź do sklepu internetowego

For metal roof/roof rafter bracket

Supporting tube with internal sealing end / EB spring element for sub-roof installation. Air-termination tip, StSt, Ø10 mm, length 1000 mm.

1 Produkt

Nr kat. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

GTIN / EAN 4013364499775, Nr taryfy celnej (EU): 85389099, Waga brutto: 4.83 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Supporting tube for HVI light plus Conductor with air-termination tip, length: 3,680 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2680 mm
Transport length: 2680 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2680 FSP1000 DSH GFK AL V2A
Part No.: 105688
or equivalent.

Certyfikaty

Dane techniczne

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2680 mm
Transport length	2680 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2680 mm
Transport length	2680 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105688 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105688.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

Supporting tubes for HVI light plus Conductor

Without side outlet

Nr kat. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

Produkt 105672 został dodany do notatnika.

Do koszyka dodano produkt 105672.

Nr kat. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

Produkt 105673 został dodany do notatnika.

Do koszyka dodano produkt 105673.

Nr kat. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

Produkt 105674 został dodany do notatnika.

Do koszyka dodano produkt 105674.

Nr kat. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

Produkt 105675 został dodany do notatnika.

Do koszyka dodano produkt 105675.

With side outlet

Nr kat. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

Produkt 105677 został dodany do notatnika.

Do koszyka dodano produkt 105677.

Nr kat. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

Produkt 105678 został dodany do notatnika.

Do koszyka dodano produkt 105678.

For metal roof/roof rafter bracket

Nr kat. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

Produkt 105688 został dodany do notatnika.

Do koszyka dodano produkt 105688.

Supporting tubes for HVI light plus Conductor

Without side outlet

Nr kat. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

Nie masz uprawnień, by pobrać 105672_819672.stp

Nie masz uprawnień, by pobrać 105672_819672.igs

Nie masz uprawnień, by pobrać 105672_819672.jt

Nie masz uprawnień, by pobrać 105672_819672.dwg

Nie masz uprawnień, by pobrać 105672m_D.dxf

Produkt 105672 został dodany do notatnika.

Do koszyka dodano produkt 105672.

Nr kat. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

Nie masz uprawnień, by pobrać 105673_819673.stp

Nie masz uprawnień, by pobrać 105673_819673.igs

Nie masz uprawnień, by pobrać 105673_819673.jt

Nie masz uprawnień, by pobrać 105673_819673.dwg

Nie masz uprawnień, by pobrać 105673m_D.dxf

Produkt 105673 został dodany do notatnika.

Do koszyka dodano produkt 105673.

Nr kat. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

Nie masz uprawnień, by pobrać 105674_819674.stp

Nie masz uprawnień, by pobrać 105674_819674.igs

Nie masz uprawnień, by pobrać 105674_819674.jt

Nie masz uprawnień, by pobrać 105674_819674.dwg

Nie masz uprawnień, by pobrać 105674m_D.dxf

Produkt 105674 został dodany do notatnika.

Do koszyka dodano produkt 105674.

Nr kat. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

Nie masz uprawnień, by pobrać 105675_819675.stp

Nie masz uprawnień, by pobrać 105675_819675.igs

Nie masz uprawnień, by pobrać 105675_819675.jt

Nie masz uprawnień, by pobrać 105675_819675.dwg

Nie masz uprawnień, by pobrać 105675m_D.dxf

Produkt 105675 został dodany do notatnika.

Do koszyka dodano produkt 105675.

With side outlet

Nr kat. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

Nie masz uprawnień, by pobrać 105677.stp

Nie masz uprawnień, by pobrać 105677.igs

Nie masz uprawnień, by pobrać 105677.jt

Nie masz uprawnień, by pobrać 105677.dwg

Nie masz uprawnień, by pobrać 105677m_D.dxf

Produkt 105677 został dodany do notatnika.

Do koszyka dodano produkt 105677.

Nr kat. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

Nie masz uprawnień, by pobrać 105678.stp

Nie masz uprawnień, by pobrać 105678.igs

Nie masz uprawnień, by pobrać 105678.jt

Nie masz uprawnień, by pobrać 105678.dwg

Nie masz uprawnień, by pobrać 105678m_D.dxf

Produkt 105678 został dodany do notatnika.

Do koszyka dodano produkt 105678.

For metal roof/roof rafter bracket

Nr kat. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

Nie masz uprawnień, by pobrać 105688_819688.stp

Nie masz uprawnień, by pobrać 105688_819688.igs

Nie masz uprawnień, by pobrać 105688_819688.jt

Nie masz uprawnień, by pobrać 105688_819688.dwg

Nie masz uprawnień, by pobrać 105688m_D.dxf

Produkt 105688 został dodany do notatnika.

Do koszyka dodano produkt 105688.
