Short-Circuiting Bar

Simply compile the right short circuit bar online
Individual configuration
Permanent plausibility check in the background
With longitudinal slot for reliable contact
High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)
For use with earthing sticks for hexagon or T pin shafts
Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

Szczegóły

**SQ:** T pin shaft (bayonet locking mechanism).

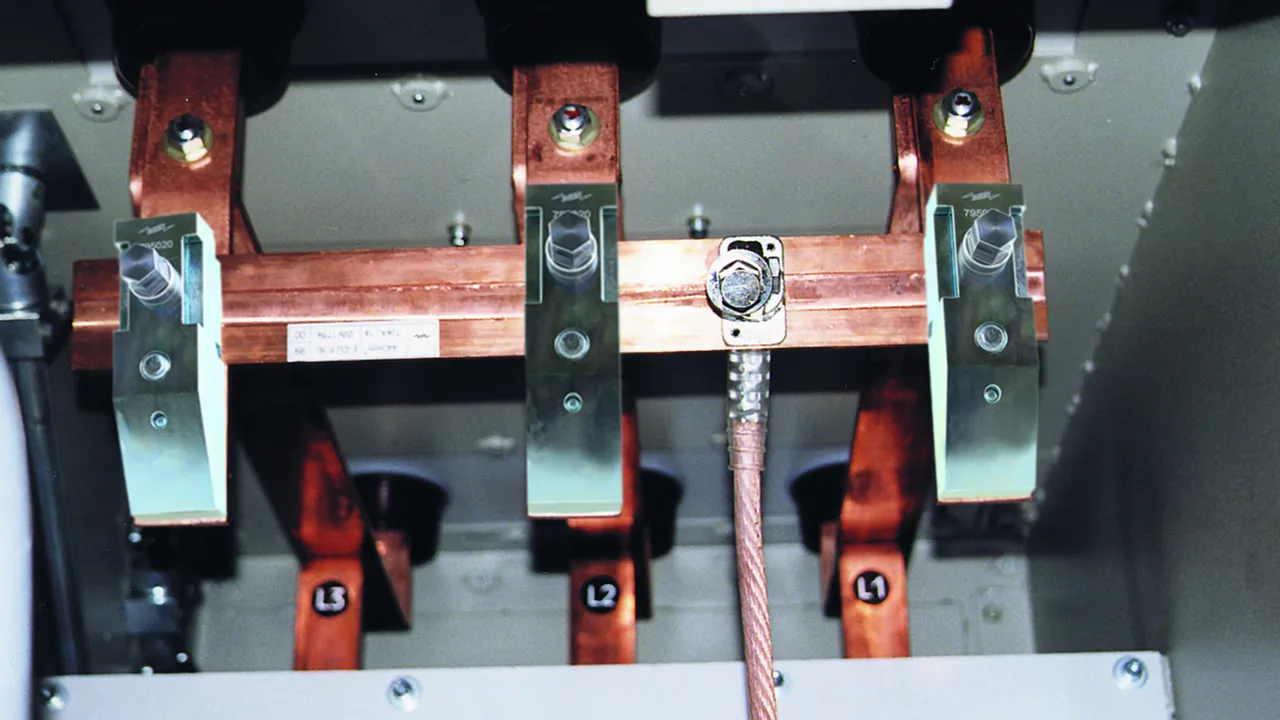

Fixed clamping point mounted on busbar and inserted short-circuiting bar

Short-Circuiting Bar made of Copper

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Produkty

Nr kat. VL2FG28 KS SQ C NS VL2FG28

GTIN / EAN 4013364450820, Nr taryfy celnej (EU): 85359000, Waga brutto: 6.18 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Produkt VL2FG28 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VL2FG28.

Idź do sklepu internetowego

Nr kat. VHNEFQE KS SK C NS VHNEFQE

GTIN / EAN 4013364450837, Nr taryfy celnej (EU): 85359000, Waga brutto: 6.14 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Produkt VHNEFQE został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VHNEFQE.

Idź do sklepu internetowego

Nr kat. VV7M6CQ KSX SQ C MS VV7M6CQ

GTIN / EAN 4013364461963, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Produkt VV7M6CQ został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VV7M6CQ.

Idź do sklepu internetowego

Nr kat. V5DHK24 KSX SK C MS V5DHK24

GTIN / EAN 4013364461970, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Produkt V5DHK24 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt V5DHK24.

Idź do sklepu internetowego

Short-Circuiting Bar made of Aluminium

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Produkty

Nr kat. VNRLBXU KS SQ A NS VNRLBXU

GTIN / EAN 4013364450868, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Produkt VNRLBXU został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VNRLBXU.

Idź do sklepu internetowego

Nr kat. VP33XYL KS SK A NS VP33XYL

GTIN / EAN 4013364450875, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Produkt VP33XYL został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VP33XYL.

Idź do sklepu internetowego

Nr kat. VSJ3Y6N KSX SQ A MS VSJ3Y6N

GTIN / EAN 4013364461994, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Produkt VSJ3Y6N został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VSJ3Y6N.

Idź do sklepu internetowego

Nr kat. VANH53Y KSX SK A MS VANH53Y

GTIN / EAN 4013364461987, Nr taryfy celnej (EU): 85359000, Waga brutto: 10.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Dane techniczne

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Produkt VANH53Y został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt VANH53Y.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

Short-Circuiting Bar

Szczegóły

Short-Circuiting Bar made of Copper

Nr kat. VL2FG28 KS SQ C NS VL2FG28

Produkt VL2FG28 został dodany do notatnika.

Do koszyka dodano produkt VL2FG28.

Nr kat. VHNEFQE KS SK C NS VHNEFQE

Produkt VHNEFQE został dodany do notatnika.

Do koszyka dodano produkt VHNEFQE.

Nr kat. VV7M6CQ KSX SQ C MS VV7M6CQ

Produkt VV7M6CQ został dodany do notatnika.

Do koszyka dodano produkt VV7M6CQ.

Nr kat. V5DHK24 KSX SK C MS V5DHK24

Produkt V5DHK24 został dodany do notatnika.

Do koszyka dodano produkt V5DHK24.

Short-Circuiting Bar made of Aluminium

Nr kat. VNRLBXU KS SQ A NS VNRLBXU

Produkt VNRLBXU został dodany do notatnika.

Do koszyka dodano produkt VNRLBXU.

Nr kat. VP33XYL KS SK A NS VP33XYL

Produkt VP33XYL został dodany do notatnika.

Do koszyka dodano produkt VP33XYL.

Nr kat. VSJ3Y6N KSX SQ A MS VSJ3Y6N

Produkt VSJ3Y6N został dodany do notatnika.

Do koszyka dodano produkt VSJ3Y6N.

Nr kat. VANH53Y KSX SK A MS VANH53Y

Produkt VANH53Y został dodany do notatnika.

Do koszyka dodano produkt VANH53Y.
