HSA 194 High-Voltage Indicator

Easy and safe testing

For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead
Cost-effective / space-saving transport

Szczegóły

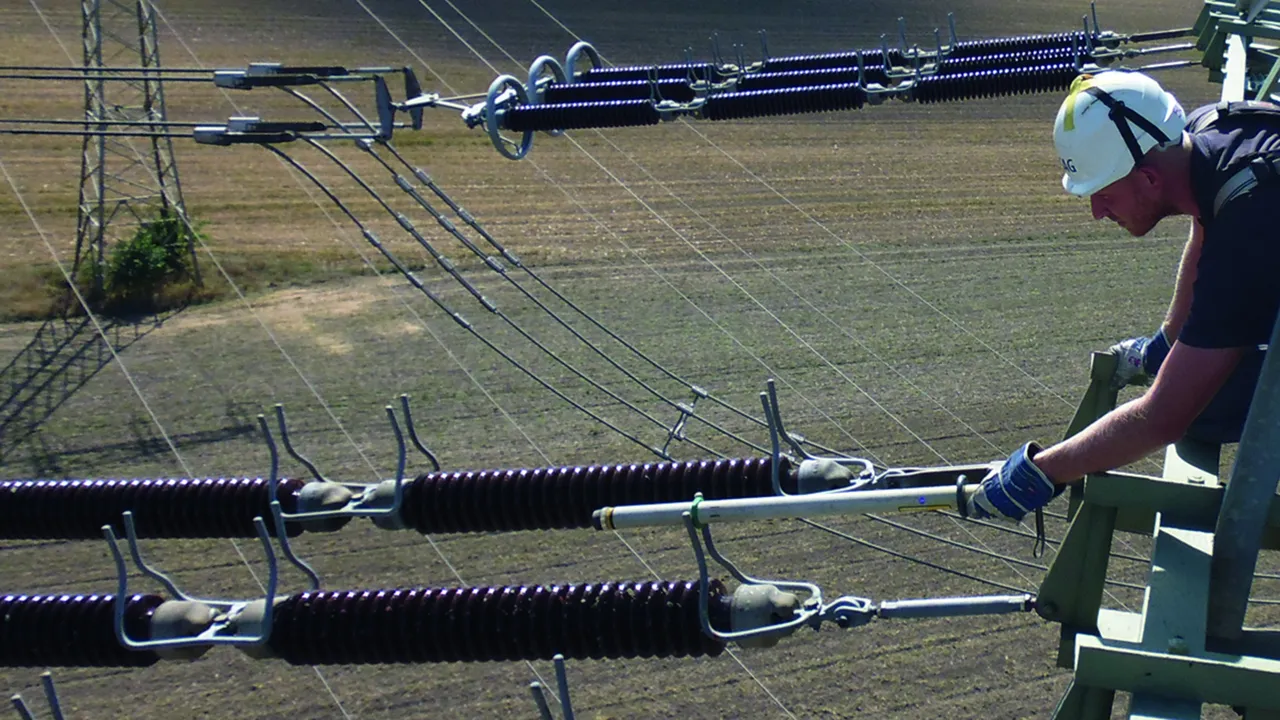

Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“

lorem ipsum — Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“

Figure 1: Example of application on the corner leg of a lattice tower with switch position "climbing check“ (only HSA 194 110 420 SN7737)

Nominal Voltage Range 110 ... 420 kV

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

2 Produkty

Nr kat. 767541 HSA194 110 420 STK

GTIN / EAN 4013364115712, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.70 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Verification while climbing the tower	No

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	No

Produkt 767541 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767541.

Idź do sklepu internetowego

Nr kat. 767542 HSA194 110 420 16.7

GTIN / EAN 4013364086616, Nr taryfy celnej (EU): 90303370, Waga brutto: 5.85 kg, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	16.7 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
DB drawing No.	3 Ekgw 02.54
Verification while climbing the tower	No

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
DB drawing No.	3 Ekgw 02.54
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	No

Produkt 767542 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767542.

Idź do sklepu internetowego

Nominal Voltage Range 110 ... 420 kV, with verification while climbing the tower

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

1 Produkt

Nr kat. 767539 HSA 194 110 420 SN7737

GTIN / EAN 4013364306769, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.82 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Verification while climbing the tower	Yes

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	Yes

Produkt 767539 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767539.

Idź do sklepu internetowego
