Nr kat. 410503 EL10 L0.35M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029408, Nr taryfy celnej (EU): 85444290, Waga brutto: 99.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

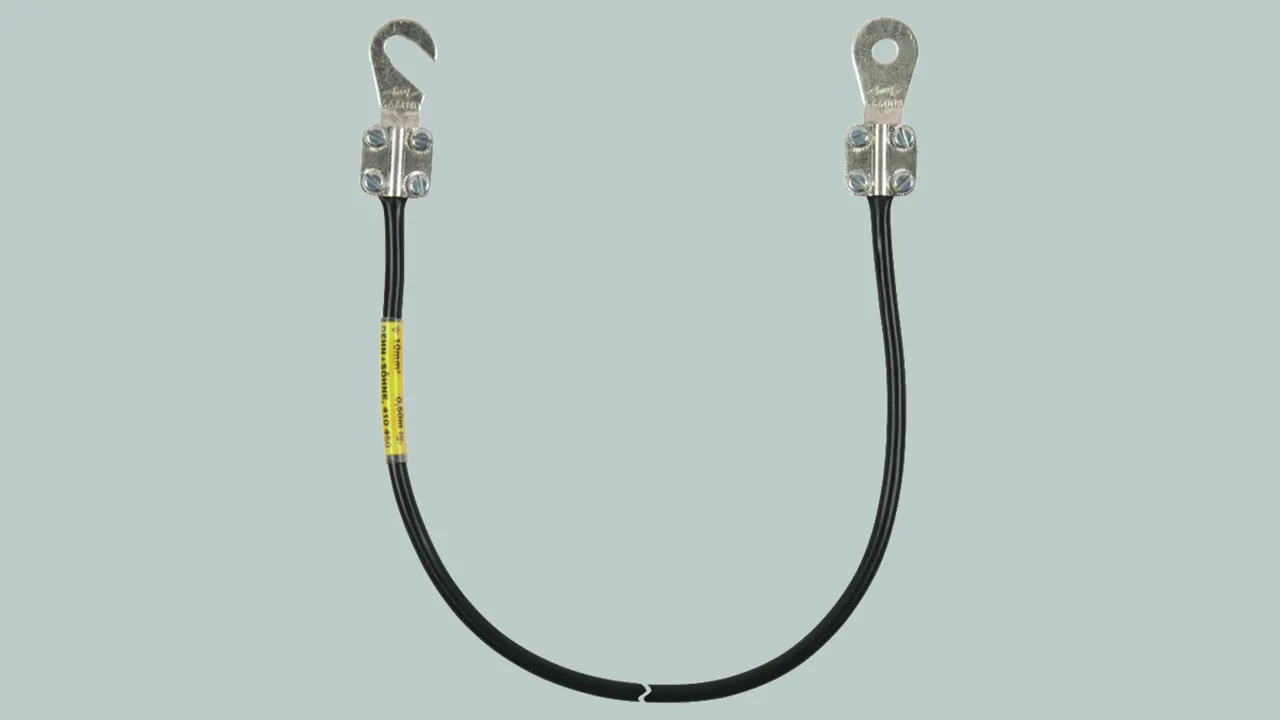

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 5.6 1KSG 8
Part No.: 410503
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410503 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410503.

Idź do sklepu internetowego

Nr kat. 410506 EL10 L0.65M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029415, Nr taryfy celnej (EU): 85444290, Waga brutto: 115.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 5.6 1KSG 8
Part No.: 410506
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410506 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410506.

Idź do sklepu internetowego

Nr kat. 410510 EL10 L1.05M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029422, Nr taryfy celnej (EU): 85444290, Waga brutto: 185.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 5.6 1KSG 8
Part No.: 410510
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410510 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410510.

Idź do sklepu internetowego

Nr kat. 410515 EL10 L1.55M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029439, Nr taryfy celnej (EU): 85444290, Waga brutto: 250.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 5.6 1KSG 8
Part No.: 410515
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410515 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410515.

Idź do sklepu internetowego

Nr kat. 410520 EL10 L2.05M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029446, Nr taryfy celnej (EU): 85444290, Waga brutto: 300.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 5.6 1KSG 8
Part No.: 410520
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410520 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410520.

Idź do sklepu internetowego

Nr kat. 410525 EL10 L2.55M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029453, Nr taryfy celnej (EU): 85444290, Waga brutto: 365.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 5.6 1KSG 8
Part No.: 410525
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410525 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410525.

Idź do sklepu internetowego

Nr kat. 410530 EL10 L3.05M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029460, Nr taryfy celnej (EU): 85444290, Waga brutto: 425.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, 1x open cable lug, 1x closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 5.6 1KSG 8
Part No.: 410530
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410530 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410530.

Idź do sklepu internetowego

Nr kat. 410401 EL10 L0.20M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029200, Nr taryfy celnej (EU): 85444290, Waga brutto: 90.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.20 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.20 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.20M 1KSO 8.10 1KSG 8
Part No.: 410401
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.20 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.20 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410401 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410401.

Idź do sklepu internetowego

Nr kat. 410403 EL10 L0.35M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029194, Nr taryfy celnej (EU): 85444290, Waga brutto: 109.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 8
Part No.: 410403
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410403 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410403.

Idź do sklepu internetowego

Nr kat. 410404 EL10 L0.45M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029187, Nr taryfy celnej (EU): 85444290, Waga brutto: 122.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.45 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.45 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.45M 1KSO 8.10 1KSG 8
Part No.: 410404
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.45 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.45 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410404 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410404.

Idź do sklepu internetowego

Nr kat. 410450 EL10 L0.55M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029170, Nr taryfy celnej (EU): 85444290, Waga brutto: 135.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 8
Part No.: 410450
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410450 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410450.

Idź do sklepu internetowego

Nr kat. 410406 EL10 L0.65M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029163, Nr taryfy celnej (EU): 85444290, Waga brutto: 147.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 8
Part No.: 410406
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410406 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410406.

Idź do sklepu internetowego

Nr kat. 410411 EL10 L1.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029156, Nr taryfy celnej (EU): 85444290, Waga brutto: 197.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 8
Part No.: 410411
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410411 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410411.

Idź do sklepu internetowego

Nr kat. 410415 EL10 L1.55M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029149, Nr taryfy celnej (EU): 85444290, Waga brutto: 261.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 8
Part No.: 410415
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410415 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410415.

Idź do sklepu internetowego

Nr kat. 410420 EL10 L2.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029132, Nr taryfy celnej (EU): 85444290, Waga brutto: 320.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 8
Part No.: 410420
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410420 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410420.

Idź do sklepu internetowego

Nr kat. 410425 EL10 L2.55M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029125, Nr taryfy celnej (EU): 85444290, Waga brutto: 385.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 8
Part No.: 410425
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410425 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410425.

Idź do sklepu internetowego

Nr kat. 410430 EL10 L3.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364029118, Nr taryfy celnej (EU): 85444290, Waga brutto: 445.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 8
Part No.: 410430
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410430 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410430.

Idź do sklepu internetowego

Nr kat. 410413 EL10 L0.35M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029279, Nr taryfy celnej (EU): 85444290, Waga brutto: 110.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open / closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 10
Part No.: 410413
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410413 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410413.

Idź do sklepu internetowego

Nr kat. 410405 EL10 L0.55M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029262, Nr taryfy celnej (EU): 85444290, Waga brutto: 140.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 10
Part No.: 410405
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410405 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410405.

Idź do sklepu internetowego

Nr kat. 410407 EL10 L0.65M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029255, Nr taryfy celnej (EU): 85444290, Waga brutto: 145.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 10
Part No.: 410407
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410407 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410407.

Idź do sklepu internetowego

Nr kat. 410410 EL10 L1.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029248, Nr taryfy celnej (EU): 85444290, Waga brutto: 200.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 10
Part No.: 410410
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410410 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410410.

Idź do sklepu internetowego

Nr kat. 410416 EL10 L1.55M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029231, Nr taryfy celnej (EU): 85444290, Waga brutto: 250.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 10
Part No.: 410416
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410416 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410416.

Idź do sklepu internetowego

Nr kat. 410421 EL10 L2.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029224, Nr taryfy celnej (EU): 85444290, Waga brutto: 320.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 10
Part No.: 410421
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410421 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410421.

Idź do sklepu internetowego

Nr kat. 410426 EL10 L2.55M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029217, Nr taryfy celnej (EU): 85444290, Waga brutto: 370.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 10
Part No.: 410426
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410426 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410426.

Idź do sklepu internetowego

Nr kat. 410431 EL10 L3.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029590, Nr taryfy celnej (EU): 85444290, Waga brutto: 430.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 10
Part No.: 410431
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 410431 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410431.

Idź do sklepu internetowego

Nr kat. 416505 EL16 L0.55M 1KSO 5.6 1KSG 8

GTIN / EAN 4013364029477, Nr taryfy celnej (EU): 85444290, Waga brutto: 158.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L0.55M 1KSO 5.6 1KSG 8
Part No.: 416505
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416505 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416505.

Idź do sklepu internetowego

Nr kat. 416411 EL16 L1.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032545, Nr taryfy celnej (EU): 85444290, Waga brutto: 266.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 8
Part No.: 416411
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416411 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416411.

Idź do sklepu internetowego

Nr kat. 416415 EL16 L1.55M KSO 8.10 KSG 8

GTIN / EAN 4013364032439, Nr taryfy celnej (EU): 85444290, Waga brutto: 364.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.55M KSO 8.10 KSG 8
Part No.: 416415
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416415 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416415.

Idź do sklepu internetowego

Nr kat. 416420 EL16 L2.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032446, Nr taryfy celnej (EU): 85444290, Waga brutto: 464.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 8
Part No.: 416420
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416420 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416420.

Idź do sklepu internetowego

Nr kat. 416425 EL16 L2.55M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032460, Nr taryfy celnej (EU): 85444290, Waga brutto: 558.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 8
Part No.: 416425
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416425 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416425.

Idź do sklepu internetowego

Nr kat. 416430 EL16 L3.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032484, Nr taryfy celnej (EU): 85444290, Waga brutto: 654.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 8
Part No.: 416430
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416430 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416430.

Idź do sklepu internetowego

Nr kat. 416440 EL16 L4.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032507, Nr taryfy celnej (EU): 85444290, Waga brutto: 849.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 8
Part No.: 416440
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416440 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416440.

Idź do sklepu internetowego

Nr kat. 416450 EL16 L5.05M 1KSO 8.10 1KSG 8

GTIN / EAN 4013364032521, Nr taryfy celnej (EU): 85444290, Waga brutto: 1.04 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 8
Part No.: 416450
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

Produkt 416450 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416450.

Idź do sklepu internetowego

Nr kat. 416403 EL16 L0.35M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364029286, Nr taryfy celnej (EU): 85444290, Waga brutto: 130.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.35M 1KSO 8.10 1KSG 10
Part No.: 416403
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416403 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416403.

Idź do sklepu internetowego

Nr kat. 416410 EL16 L1.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032422, Nr taryfy celnej (EU): 85444290, Waga brutto: 265.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 10
Part No.: 416410
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416410 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416410.

Idź do sklepu internetowego

Nr kat. 416416 EL16 L1.55M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032453, Nr taryfy celnej (EU): 85444290, Waga brutto: 364.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.55M 1KSO 8.10 1KSG 10
Part No.: 416416
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416416 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416416.

Idź do sklepu internetowego

Nr kat. 416421 EL16 L2.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364036116, Nr taryfy celnej (EU): 85444290, Waga brutto: 461.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 10
Part No.: 416421
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416421 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416421.

Idź do sklepu internetowego

Nr kat. 416426 EL16 L2.55M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032477, Nr taryfy celnej (EU): 85444290, Waga brutto: 558.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 10
Part No.: 416426
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416426 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416426.

Idź do sklepu internetowego

Nr kat. 416431 EL16 L3.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032491, Nr taryfy celnej (EU): 85444290, Waga brutto: 655.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 10
Part No.: 416431
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416431 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416431.

Idź do sklepu internetowego

Nr kat. 416441 EL16 L4.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032514, Nr taryfy celnej (EU): 85444290, Waga brutto: 849.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 10
Part No.: 416441
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416441 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416441.

Idź do sklepu internetowego

Nr kat. 416451 EL16 L5.05M 1KSO 8.10 1KSG 10

GTIN / EAN 4013364032538, Nr taryfy celnej (EU): 85444290, Waga brutto: 1.04 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 10
Part No.: 416451
or equivalent.

Certyfikaty

Dane techniczne

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

Produkt 416451 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 416451.

Idź do sklepu internetowego

Earthing Cables with Cable Lugs open / closed

Cable lug, 1x open M5 / M6 and 1x closed M8

Nr kat. 410503 EL10 L0.35M 1KSO 5.6 1KSG 8

Produkt 410503 został dodany do notatnika.

Do koszyka dodano produkt 410503.

Nr kat. 410506 EL10 L0.65M 1KSO 5.6 1KSG 8

Produkt 410506 został dodany do notatnika.

Do koszyka dodano produkt 410506.

Nr kat. 410510 EL10 L1.05M 1KSO 5.6 1KSG 8

Produkt 410510 został dodany do notatnika.

Do koszyka dodano produkt 410510.

Nr kat. 410515 EL10 L1.55M 1KSO 5.6 1KSG 8

Produkt 410515 został dodany do notatnika.

Do koszyka dodano produkt 410515.

Nr kat. 410520 EL10 L2.05M 1KSO 5.6 1KSG 8

Produkt 410520 został dodany do notatnika.

Do koszyka dodano produkt 410520.

Nr kat. 410525 EL10 L2.55M 1KSO 5.6 1KSG 8

Produkt 410525 został dodany do notatnika.

Do koszyka dodano produkt 410525.

Nr kat. 410530 EL10 L3.05M 1KSO 5.6 1KSG 8

Produkt 410530 został dodany do notatnika.

Do koszyka dodano produkt 410530.

Cable lug, 1x open M8 / M10 and 1x closed M8

Nr kat. 410401 EL10 L0.20M 1KSO 8.10 1KSG 8

Produkt 410401 został dodany do notatnika.

Do koszyka dodano produkt 410401.

Nr kat. 410403 EL10 L0.35M 1KSO 8.10 1KSG 8

Produkt 410403 został dodany do notatnika.

Do koszyka dodano produkt 410403.

Nr kat. 410404 EL10 L0.45M 1KSO 8.10 1KSG 8

Produkt 410404 został dodany do notatnika.

Do koszyka dodano produkt 410404.

Nr kat. 410450 EL10 L0.55M 1KSO 8.10 1KSG 8

Produkt 410450 został dodany do notatnika.

Do koszyka dodano produkt 410450.

Nr kat. 410406 EL10 L0.65M 1KSO 8.10 1KSG 8

Produkt 410406 został dodany do notatnika.

Do koszyka dodano produkt 410406.

Nr kat. 410411 EL10 L1.05M 1KSO 8.10 1KSG 8

Produkt 410411 został dodany do notatnika.

Do koszyka dodano produkt 410411.

Nr kat. 410415 EL10 L1.55M 1KSO 8.10 1KSG 8

Produkt 410415 został dodany do notatnika.

Do koszyka dodano produkt 410415.

Nr kat. 410420 EL10 L2.05M 1KSO 8.10 1KSG 8

Produkt 410420 został dodany do notatnika.

Do koszyka dodano produkt 410420.

Nr kat. 410425 EL10 L2.55M 1KSO 8.10 1KSG 8

Produkt 410425 został dodany do notatnika.

Do koszyka dodano produkt 410425.

Nr kat. 410430 EL10 L3.05M 1KSO 8.10 1KSG 8

Produkt 410430 został dodany do notatnika.

Do koszyka dodano produkt 410430.

Cable lug, 1x open M8 / M10 and 1x closed M10

Nr kat. 410413 EL10 L0.35M 1KSO 8.10 1KSG 10

Produkt 410413 został dodany do notatnika.

Do koszyka dodano produkt 410413.

Nr kat. 410405 EL10 L0.55M 1KSO 8.10 1KSG 10

Produkt 410405 został dodany do notatnika.

Do koszyka dodano produkt 410405.

Nr kat. 410407 EL10 L0.65M 1KSO 8.10 1KSG 10

Produkt 410407 został dodany do notatnika.

Do koszyka dodano produkt 410407.

Nr kat. 410410 EL10 L1.05M 1KSO 8.10 1KSG 10

Produkt 410410 został dodany do notatnika.

Do koszyka dodano produkt 410410.

Nr kat. 410416 EL10 L1.55M 1KSO 8.10 1KSG 10

Produkt 410416 został dodany do notatnika.

Do koszyka dodano produkt 410416.

Nr kat. 410421 EL10 L2.05M 1KSO 8.10 1KSG 10

Produkt 410421 został dodany do notatnika.

Do koszyka dodano produkt 410421.

Nr kat. 410426 EL10 L2.55M 1KSO 8.10 1KSG 10

Produkt 410426 został dodany do notatnika.

Do koszyka dodano produkt 410426.

Nr kat. 410431 EL10 L3.05M 1KSO 8.10 1KSG 10

Produkt 410431 został dodany do notatnika.

Do koszyka dodano produkt 410431.

Cable lug, 1x open M5 / M6 and 1x closed M8
