Nr kat. 972147 DG ME DC Y 1000 FM
GTIN / EAN 4013364519817, Nr taryfy celnej (EU): 85363030, Waga brutto: 530.49 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD analogous to EN 61643-11 / IEC 61643-11 | type 1 + type 2 / class I + class II |
Max. continuous operating voltage (d.c.) (UC ) | 1000 V |
Lightning impulse current (10/350 µs) (Iimp ) | 5 kA |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level [DC+ --> DC-] (UP ) | < 3,75 kV |
Voltage protection level [(DC+/DC-) --> PE] (UP ) | < 2,5 kV |
Max. short circuit withstand capability (ISCCR ) | 500 A / 170 ms |
Type of remote signalling contact | changeover contact |
Nr kat. 972110 DG SE DC 60
GTIN / EAN 4013364158504, Nr taryfy celnej (EU): 85363030, Waga brutto: 160.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 60 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 0.5 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 300 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Nr kat. 972120 DG SE DC 242
GTIN / EAN 4013364158528, Nr taryfy celnej (EU): 85363030, Waga brutto: 170.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 242 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 1.25 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 300 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Nr kat. 972130 DG SE DC 550
GTIN / EAN 4013364158627, Nr taryfy celnej (EU): 85363030, Waga brutto: 184.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 550 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 2.0 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 200 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Nr kat. 972140 DG SE DC 900
GTIN / EAN 4013364158641, Nr taryfy celnej (EU): 85363030, Waga brutto: 190.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 900 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 3.0 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 100 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 80 A gPV |
Nr kat. 972115 DG SE DC 60 FM
GTIN / EAN 4013364158511, Nr taryfy celnej (EU): 85363030, Waga brutto: 164.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 60 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 0.5 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 300 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Type of remote signalling contact | changeover contact |

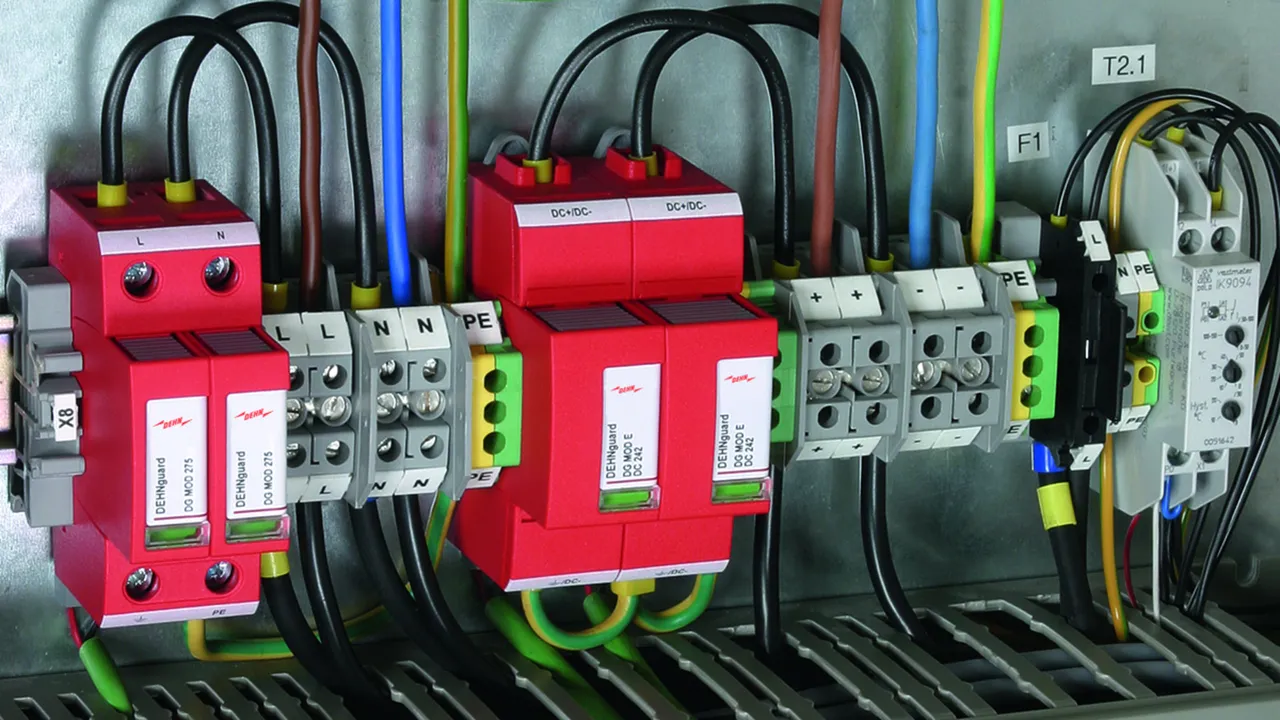

Nr kat. 972125 DG SE DC 242 FM
GTIN / EAN 4013364158610, Nr taryfy celnej (EU): 85363030, Waga brutto: 174.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 242 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 1.25 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 300 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Type of remote signalling contact | changeover contact |
Nr kat. 972135 DG SE DC 550 FM
GTIN / EAN 4013364158634, Nr taryfy celnej (EU): 85363030, Waga brutto: 189.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 550 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 2.0 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 200 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 35 A gG |
Type of remote signalling contact | changeover contact |
Nr kat. 972145 DG SE DC 900 FM
GTIN / EAN 4013364158658, Nr taryfy celnej (EU): 85363030, Waga brutto: 194.00 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. continuous operating voltage (d.c.) (UC ) | 900 V |
Nominal discharge current (8/20 µs) (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 3.0 kV |
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR ) | 100 A |
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR ) | 25 kA |
Max. mains-side overcurrent protection | 80 A gPV |
Type of remote signalling contact | changeover contact |
Nr kat. 972150 DG M DC ACI 1250 FM
GTIN / EAN 4013364530850, Nr taryfy celnej (EU): 85354000, Waga brutto: 652.76 g, Jednostka opakowaniowa: 1.00 pc(s)
Dane techniczne
SPD classification similar to EN 61643-41 / ... IEC 61643-41 | Type 2 / class II |
Max. continuous operating voltage (DC) [DC+ --> DC-] (UC ) | 1250 V |
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (UC ) | 625 V |
Nominal discharge current (8/20 µs) (In ) | 10 kA |
Max. nominal impulse discharge current (8/20 µs) (Imax ) | 20 kA |
Voltage protection level [DC+ --> DC-] (UP ) | < 5 kV |
Voltage protection level [(DC+/DC-) --> PE] (UP ) | < 2,5 kV |
Max. short circuit withstand capability (ISCCR ) | 5 kA |
Type of remote signalling contact | changeover contact |
