Connecting components 200 kA (10/350 μs)

For use in class of LPS I and II (LPL I, II).
Clamps are tested with a 200 kA (10/350 µs) lightning impulse current, based on EN 62561-1.

UNI disconnecting clamp for two round conductors

1 Produkt

Nr kat. 459200 UTK 200 2X10 FL30 ZP V2A

GTIN / EAN 4013364155527, Nr taryfy celnej (EU): 85359000, Waga brutto: 132.00 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

UNI disconnecting clamp (200 kA) for two round conductors, StSt
UNI disconnecting clamp for connecting an air-termination rod or
earth entry to a round conductor, with intermediate plate for Rd and Fl,
lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 10 / 10 mm
Clamping range Rd / Fl: 10 / 30 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 2X10 FL30 ZP V2A
Part No.: 459200
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd / Rd 10 / 10 mm
Clamping range Rd / Fl 10 / 30 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

Produkt 459200 został dodany do notatnika.

Do koszyka dodano produkt 459200.

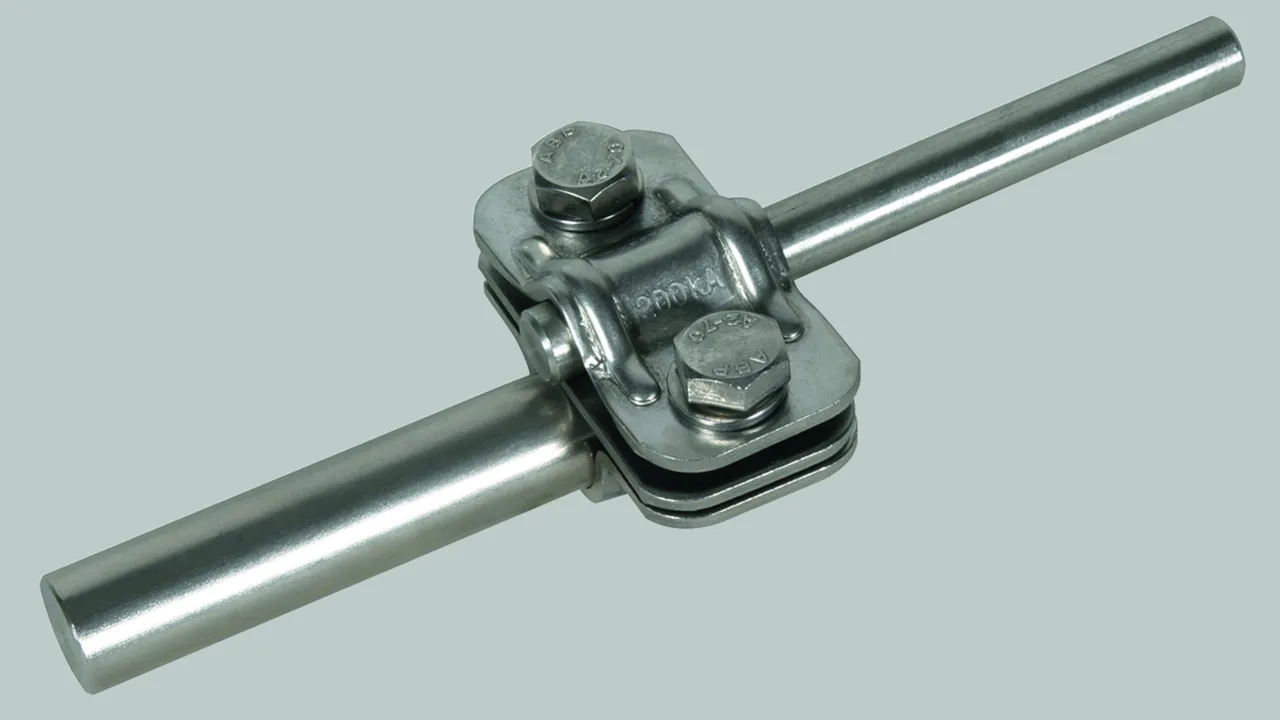

UNI disconnecting clamp for earth entry rods

1 Produkt

Nr kat. 459219 UTK 200 8.10 16 ZP V2A

GTIN / EAN 4013364158221, Nr taryfy celnej (EU): 85359000, Waga brutto: 136.00 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

UNI disconnecting clamp (200 kA) for earth entry rods
UNI disconnecting clamp for connecting an air-termination rod or
earth entry to a round conductor, with intermediate plate for Rd and Fl,
lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 8.10 16 ZP V2A
Part No.: 459219
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

Produkt 459219 został dodany do notatnika.

Do koszyka dodano produkt 459219.


Clamping piece

1 Produkt

Nr kat. 380209 KS 200 B11.11 FL30X4 V2A

GTIN / EAN 4013364158269, Nr taryfy celnej (EU): 85359000, Waga brutto: 110.00 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

Clamping piece (200 kA) StSt with spring washer
Clamping piece for connecting flat material to structural parts
Version for flat conductors
Lightning current carrying capability 200 kA (10/350)
Material: StSt
Clamping range Fl: 30 x 4 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: KS 200 B11.11 FL30X4 V2A
Part No.: 380209
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Fl 30 x 4 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact assignment see test certificate.

Produkt 380209 został dodany do notatnika.

Do koszyka dodano produkt 380209.


KS connector

1 Produkt

Nr kat. 301209 KSV 200 10 FER V2A

GTIN / EAN 4013364158252, Nr taryfy celnej (EU): 85359000, Waga brutto: 67.00 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

KS connector (200 kA) with spring washer, StSt
KS connector for connecting round conductors to flat profiles
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd: 10 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: KSV 200 10 FER V2A
Part No.: 301209
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd 10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

Produkt 301209 został dodany do notatnika.

Do koszyka dodano produkt 301209.


MV clamp for round conductors

1 Produkt

Nr kat. 390209 MVK 200 8.10 SKM10X30 V2A

GTIN / EAN 4013364158245, Nr taryfy celnej (EU): 85359000, Waga brutto: 103.50 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

MV clamp for round conductors
MV clamp for universal use as a cross, T and parallel clamp
without intermediate plate for Rd
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 SKM10X30 V2A
Part No.: 390209
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd / Rd 8-10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

Produkt 390209 został dodany do notatnika.

Do koszyka dodano produkt 390209.


MV clamp for air-termination rods

1 Produkt

Nr kat. 392209 MVK 200 8.10 16 SKM10X40 FSC V2A

GTIN / EAN 4013364158238, Nr taryfy celnej (EU): 85359000, Waga brutto: 140.00 g, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

MV clamp for air-termination rods
MV clamp for universal use as a cross, T and parallel clamp
Without intermediate plate for Rd
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 16 SKM10X40 FSC V2A
Part No.: 392209
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

Produkt 392209 został dodany do notatnika.

Do koszyka dodano produkt 392209.
