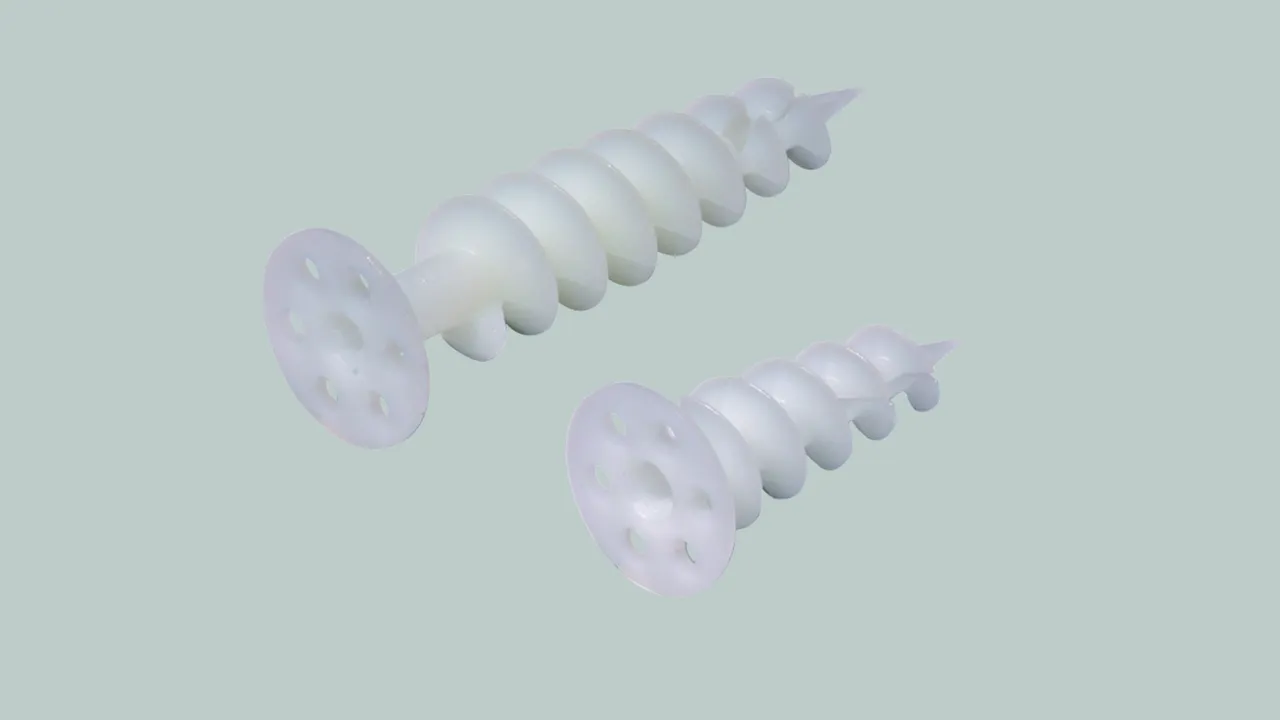

Anchors for Rigid Foam Boards

For fixing conductor, flat strip and rod holders in external thermal insulation composite systems.
With star drive (TX40).
Mounting with wood screws Ø4.5 mm.

This anchor may only be used for fixing conductor holders if there is no additional traction on the down conductor.

Short design

1 Produkt

Nr kat. 200600 HSPD HS4.5 L50 PA

GTIN / EAN 4013364098220, Nr taryfy celnej (EU): 39269097, Waga brutto: 5.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Anchor for rigid foam boards, short
Anchor for rigid foam boards
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 60 mm
Anchoring depth / length: 50 mm
Working load of styrofoam PS20: 35 N
Working load of rigid foam plates: 60 N

Brand: DEHN
Type: HSPD HS4.5 L50 PA
Part No.: 200600
or equivalent.



Dane techniczne

Material PA
Thickness of insulating material 60 mm
Anchoring depth / length 50 mm

Produkt 200600 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 200600.

Idź do sklepu internetowego

Long design

1 Produkt

Nr kat. 200601 HSPD HS4.5 L85 PA

GTIN / EAN 4013364098237, Nr taryfy celnej (EU): 39269097, Waga brutto: 8.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Anchor for rigid foam boards, short
Anchor for rigid foam boards
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 100 mm
Anchoring depth / length: 85 mm
Working load of styrofoam PS20: 60 N
Working load of rigid foam plates: 85 N

Brand: DEHN
Type: HSPD HS4.5 L85 PA
Part No.: 200601
or equivalent.



Dane techniczne

Material PA
Thickness of insulating material 100 mm
Anchoring depth / length 85 mm

Produkt 200601 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 200601.

Idź do sklepu internetowego
