Connecting Clamps for Foundation Earth Electrodes

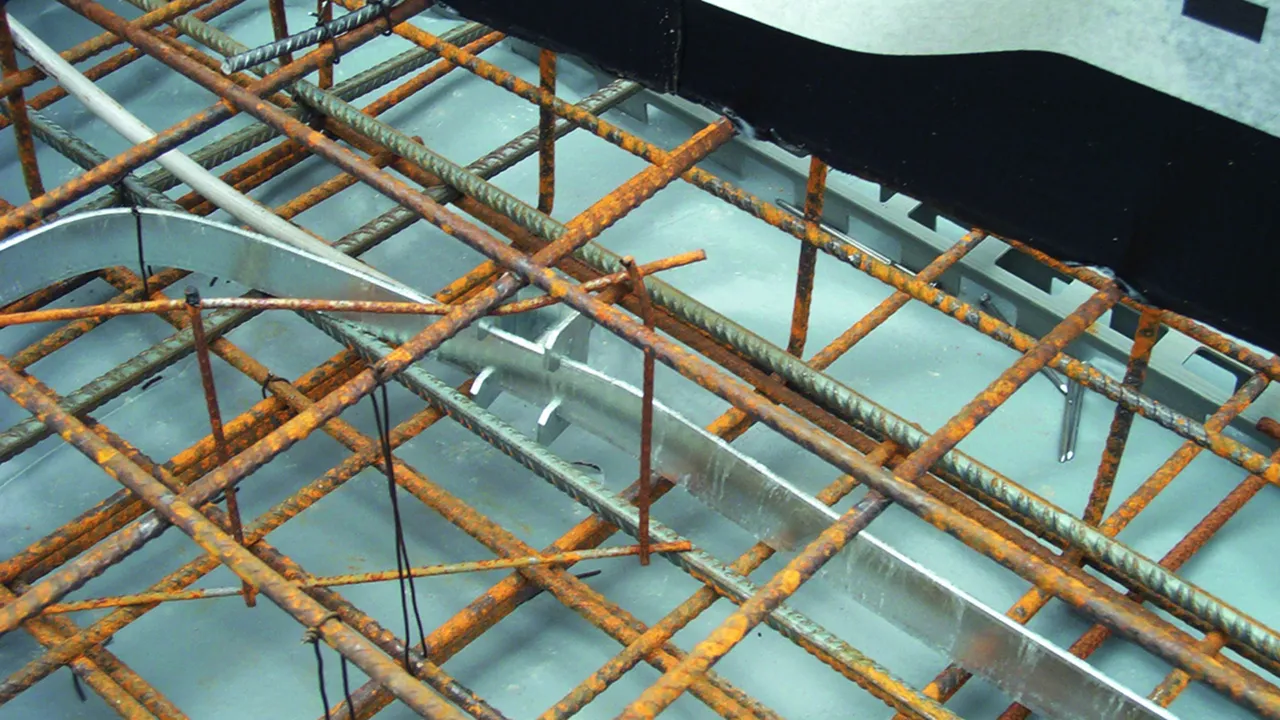

For connecting round and flat conductors in the concrete foundation.
For T, cross and parallel connections, without having to insert the conductor.

Arrangement:
(II) = parallel
(+) = cross

2 Produkty

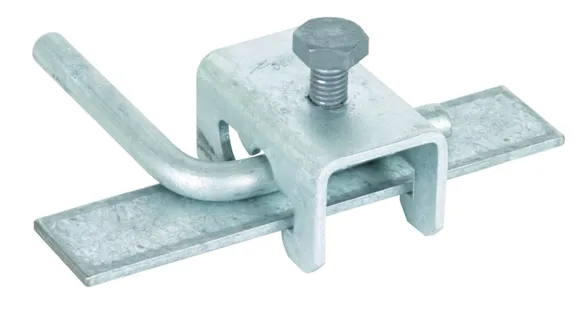

Nr kat. 308120 VK EH R10 F30 ST

GTIN / EAN 4013364099258, Nr taryfy celnej (EU): 85359000, Waga brutto: 138.10 g, Jednostka opakowaniowa: 25.00 pc(s)

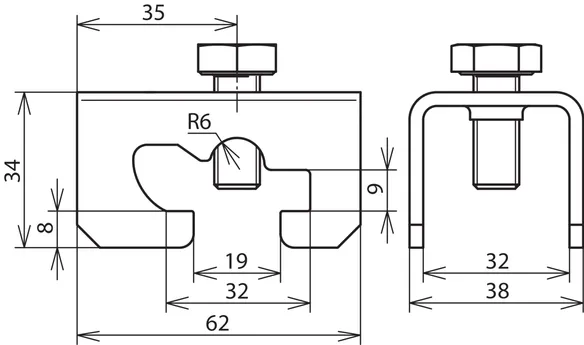

Rysunki

Informacje dodatkowe

Connecting clamps for foundation earth electrodes, St/tZn
Connecting clamps for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For T, cross and parallel connections, without having to insert the conductor
Material: St/tZn
Clamping range Rd / Fl: (II) 10 / 30 mm
Clamping range Fl / Fl: (+/II) 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK EH R10 F30 ST
Part No.: 308120
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd / Fl (II) 10 / 30 mm
Clamping range Fl / Fl (+/II) 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308120 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308120.

Idź do sklepu internetowego

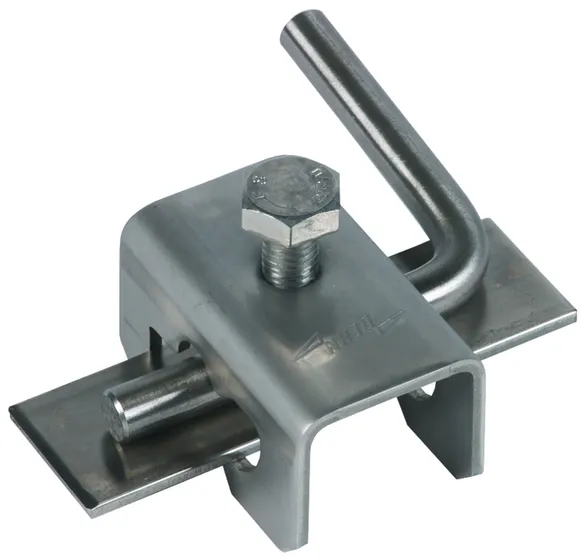

Nr kat. 308129 VK EH R10 F30 V2A

GTIN / EAN 4013364099265, Nr taryfy celnej (EU): 85359000, Waga brutto: 134.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for foundation earth electrodes, StSt
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For T, cross and parallel connections, without having to insert the conductor
Material: StSt
Clamping range Rd / Fl: (II) 10 / 30 mm
Clamping range Fl / Fl: (+/II) 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK EH R10 F30 V2A
Part No.: 308129
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Rd / Fl (II) 10 / 30 mm
Clamping range Fl / Fl (+/II) 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.
