Connecting Clamps for Reinforcements

Clamps for connecting reinforcing steel mesh or bar with round and flat conductors

Arrangement:
(II) = parallel
(+) = cross

Szczegóły

Figure 1: Diameters of reinforcing steels.
Ref.: Steel for the reinforcement of concrete according to DIN EN 10080:2005.
lorem ipsum
Figure 4: U-bolt clamp with cable lug
lorem ipsum
Figure 5: Connecting clamp Part No. 308 035
lorem ipsum
Figure 3: U-bolt clamp Part No. 308 045
lorem ipsum
Figure 3: U-bolt clamp Part No. 308 046
lorem ipsum

For T, cross and parallel connections

1 Produkt

Nr kat. 308025 VK A UNI ST

GTIN / EAN 4013364035881, Nr taryfy celnej (EU): 85359000, Waga brutto: 102.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and reinforcements with round conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Rd: (+) 6-10 / 6-10 mm
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9 kA

Brand: DEHN
Type: VK A UNI ST
Part No.: 308025
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd / Rd (+) 6-10 / 6-10 mm
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9 kA

Produkt 308025 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308025.

Idź do sklepu internetowego

For T, cross and parallel connections

1 Produkt

Nr kat. 308026 VK 6.10 FL30 FL30 BSB STTZN

GTIN / EAN 4013364035874, Nr taryfy celnej (EU): 85359000, Waga brutto: 111.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and reinforcements with flat conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (+ / II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 13 kA

Brand: DEHN
Type: VK 6.10 FL30 FL30 BSB STTZN
Part No.: 308026
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (+ / II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 13 kA
*) For exact assignment see test certificate.

Produkt 308026 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308026.

Idź do sklepu internetowego

For T and cross connections

Note: recommended tightening torque ≥ 10 Nm

1 Produkt

Nr kat. 308030 VK A R22 F40 STBL

GTIN / EAN 4013364030749, Nr taryfy celnej (EU): 85359000, Waga brutto: 130.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for reinforcements, St/bare
Connecting clamp for connecting reinforcing steel

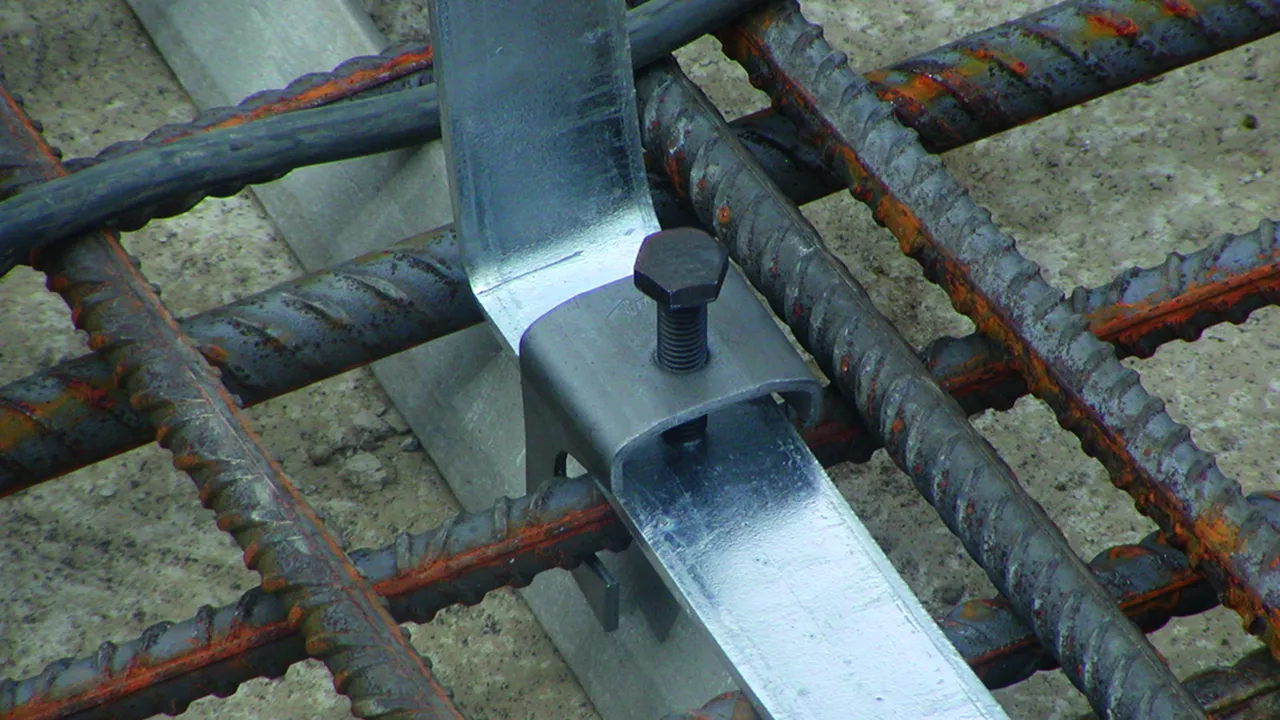

mesh reinforcements bar with flat conductors
For T and cross connections
Material: St/bare
Clamping range Rd / Fl: (+) 6-22 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK A R22 F40 STBL
Part No.: 308030
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Fl (+) 6-22 / 30-40 mm
Screw di M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

Produkt 308030 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308030.

Idź do sklepu internetowego

For T, cross and parallel connections with clamping piece

For flexible connection of round conductors or for fixed earthing terminals while fixing in the formwork.

1 Produkt

Nr kat. 308035 VK 6.22 FL40 KB6.10 BSB STBL

GTIN / EAN 4013364123472, Nr taryfy celnej (EU): 85359000, Waga brutto: 169.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for reinforcements, St/bare
Connecting clamp for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals
while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl: (+) 6-22 / 40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK 6.22 FL40 KB6.10 BSB STBL
Part No.: 308035
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl (+) 6-22 / 40 mm
Screw di M10 x 60 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

Produkt 308035 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308035.

Idź do sklepu internetowego

U-bolt clamp for large diameters

1 Produkt

Nr kat. 308045 BVK 16.48 6.10 FL40 BSB STBL

GTIN / EAN 4013364124455, Nr taryfy celnej (EU): 85359000, Waga brutto: 266.50 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

U-bolt clamp for large diameters, St/bare
U-bolt clamp for reinforcements
for large diameters
For connecting reinforcements with round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 16 kA

Brand: DEHN
Type: BVK 16.48 6.10 FL40 BSB STBL
Part No.: 308045
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 16 kA
*) For exact assignment see test certificate.

Produkt 308045 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308045.

Idź do sklepu internetowego

U-bolt clamp for large diameters with two additional clamping pieces

For cross connections of round conductors (6-10 mm) or for fixing and simultaneous connection of fixed earthing terminals.

1 Produkt

Nr kat. 308046 BVK 16.48 FL40 KB6.10 BSB STBL

GTIN / EAN 4013364124462, Nr taryfy celnej (EU): 85359000, Waga brutto: 292.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

U-bolt clamps, St/bare
U-bolt clamp for reinforcements
for large diameters
For connecting reinforcements with round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals with
simultaneous fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9.9 kA

Brand: DEHN
Type: BVK 16.48 FL40 KB6.10 BSB STBL
Part No.: 308046
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9.9 kA
*) For exact assignment see test certificate.

Produkt 308046 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308046.

Idź do sklepu internetowego

MAXI MV clamps

For T, cross and parallel connections.

1 Produkt

Nr kat. 308040 MAMVK 8.16 15.25 STBL

GTIN / EAN 4013364055902, Nr taryfy celnej (EU): 85359000, Waga brutto: 462.30 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

MAXI MV clamps, St/bright
MAXI MV clamps
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 8-16 / 15-25 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 10.2 kA

Brand: DEHN
Type: MAMVK 8.16 15.25 STBL
Part No.: 308040
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (+/II) 8-16 / 15-25 mm
Screw di M12 x 65 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 10.2 kA
Approvals UL 467
*) For exact classification, see test certificate.

Produkt 308040 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308040.

Idź do sklepu internetowego

MV clamps with hexagon screw

Threaded base part.

2 Produkty

Nr kat. 390050 MVK 8.10 SKM10X30 STTZN

GTIN / EAN 4013364095991, Nr taryfy celnej (EU): 85359000, Waga brutto: 101.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 5.5 kA

Brand: DEHN
Type: MVK 8.10 SKM10X30 STTZN
Part No.: 390050
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 5.5 kA
*) For exact classification, see test certificate.

Produkt 390050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 390050.

Idź do sklepu internetowego

Nr kat. 391050 MVK 10 SKM10X35 STTZN

GTIN / EAN 4013364087064, Nr taryfy celnej (EU): 85359000, Waga brutto: 103.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 10 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 STTZN
Part No.: 391050
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 391050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 391050.

Idź do sklepu internetowego

MV clamps with hexagon screw and spring washer

Threaded base part.

1 Produkt

Nr kat. 390550 MVK 8.10 SKM10X30 FSC STTZN

GTIN / EAN 4013364096042, Nr taryfy celnej (EU): 85359000, Waga brutto: 103.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

MV clamp with hexagon screw and spring washer, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw, spring washer and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC STTZN
Part No.: 390550
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 390550 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 390550.

Idź do sklepu internetowego

Parallel connectors with truss head screw

2 Produkty

Nr kat. 306121 PV 6.22 FRM10X40 STBLANK

GTIN / EAN 4013364284920, Nr taryfy celnej (EU): 85359000, Waga brutto: 163.16 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Parallel connector with one screw, St/blank
Parallel connector for connecting two conductors in parallel arrangement
Material: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 6.1 kA

Brand: DEHN
Type: PV 6.22 FRM10X40 STBLANK
Part No.: 306121
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 6.1 kA

Produkt 306121 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 306121.

Idź do sklepu internetowego

Nr kat. 306122 PV 6.22 FRM10X40 STTZN

GTIN / EAN 4013364284937, Nr taryfy celnej (EU): 85359000, Waga brutto: 167.12 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Parallel connector with one screw, St/tZn
Parallel connector for connecting two conductors in parallel arrangement
Material: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 6.1 kA

Brand: DEHN
Type: PV 6.22 FRM10X40 STTZN
Part No.: 306122
or equivalent.

Certyfikaty



Dane techniczne

Material St/tZn
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 6.1 kA

Produkt 306122 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 306122.

Idź do sklepu internetowego
Powrót na górę
