Fixed Earthing Points

For connecting earth bushings or earth connecting plates in accordance with DIN 48088-2
Welding-type or bolted-type connector for connecting earth connectors with wing nut or wing bolt on the earth cable end
Connectors with M12 or M16 threaded pin
M12 or M16 female thread

Szczegóły

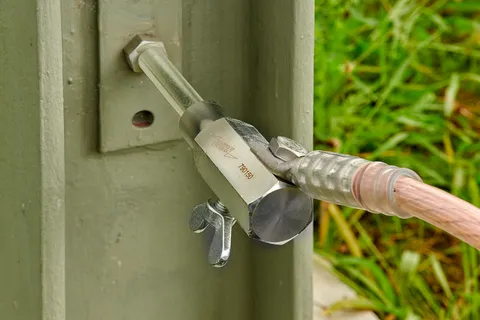

Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

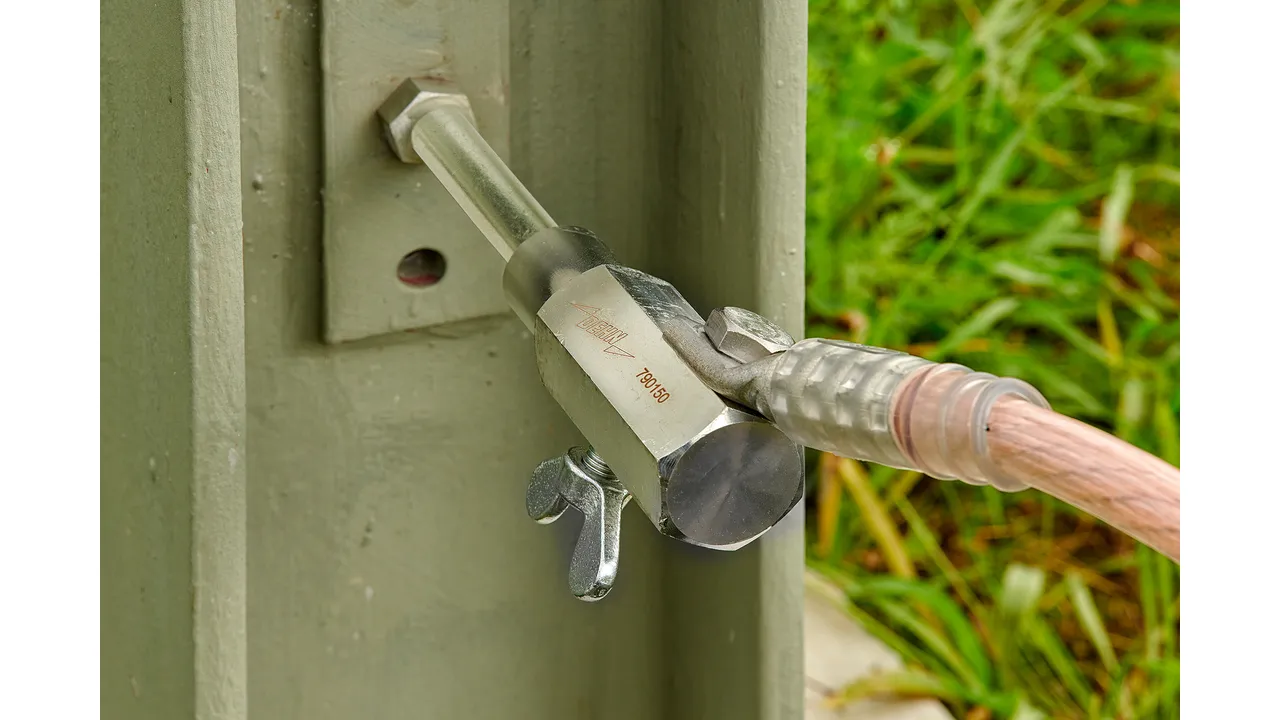

lorem ipsum — Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

Ring Groove Fixed Point with Threaded Pin and Nut

2 Produkty

Nr kat. 790251 EFP 16 RN M12 35 SSM

GTIN / EAN 4013364089501, Nr taryfy celnej (EU): 85359000, Waga brutto: 248.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
Tightening torque	50 ... 65 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Produkt 790251 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 790251.

Idź do sklepu internetowego

Nr kat. 790261 EFP 16 RN M16 45 SSM

GTIN / EAN 4013364089525, Nr taryfy celnej (EU): 85359000, Waga brutto: 277.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
Tightening torque	100 ... 110 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Produkt 790261 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 790261.

Idź do sklepu internetowego

Ring Groove Fixed Point with Female Thread

2 Produkty

Nr kat. 790250 EFP 16 RN M12

GTIN / EAN 4013364089495, Nr taryfy celnej (EU): 85359000, Waga brutto: 193.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Produkt 790250 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 790250.

Idź do sklepu internetowego

Nr kat. 790260 EFP 16 RN M16

GTIN / EAN 4013364089518, Nr taryfy celnej (EU): 85359000, Waga brutto: 180.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)
