Connecting Clamps for Fixed Earthing Terminals and Reinforcement

For connecting the reinforcement with clamping piece.
For round conductors or fixed earthing terminals with simultaneous fixing in the formwork.

Arrangement:
(II) = parallel
(+) = cross

For small diameters

1 Produkt

Nr kat. 308035 VK 6.22 FL40 KB6.10 BSB STBL

GTIN / EAN 4013364123472, Nr taryfy celnej (EU): 85359000, Waga brutto: 169.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps for reinforcements, St/bare
Connecting clamps for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals
while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl: (+) 6-22 / 40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK 6.22 FL40 KB6.10 BSB STBL
Part No.: 308035
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl (+) 6-22 / 40 mm
Screw di M10 x 60 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

Produkt 308035 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308035.

Idź do sklepu internetowego

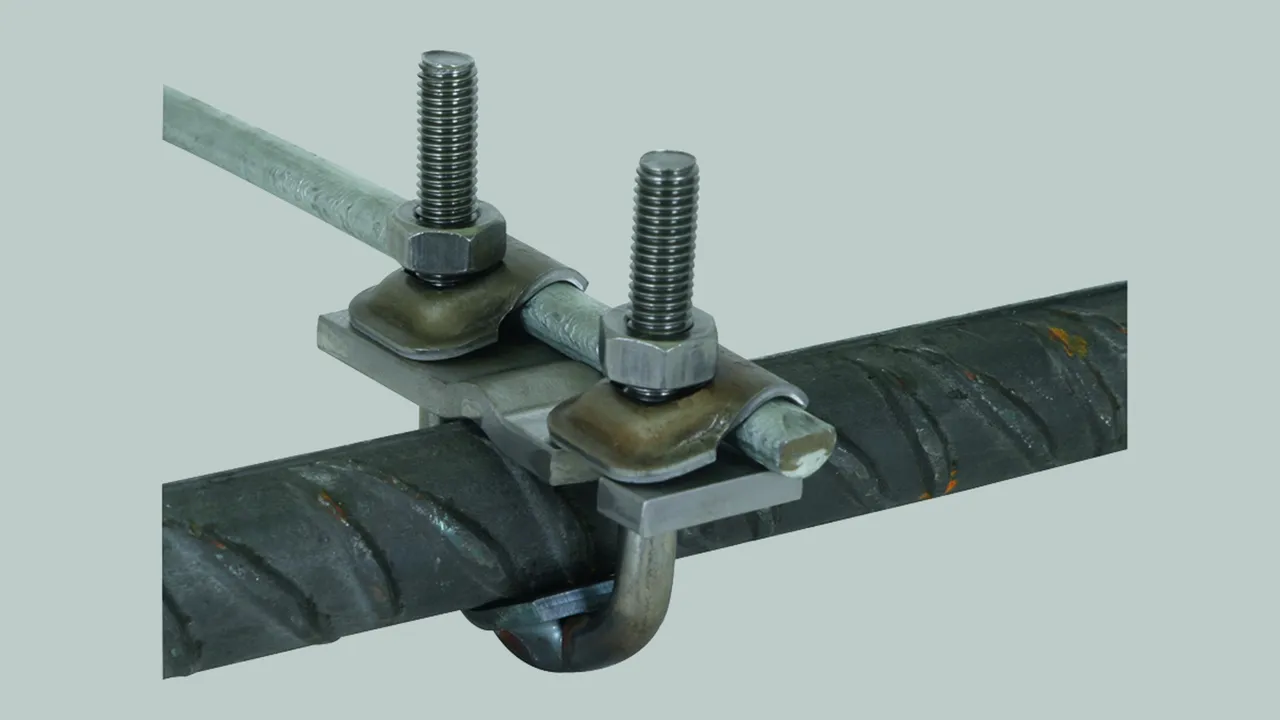

U-clamp for large diameters

1 Produkt

Nr kat. 308046 BVK 16.48 FL40 KB6.10 BSB STBL

GTIN / EAN 4013364124462, Nr taryfy celnej (EU): 85359000, Waga brutto: 292.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Connecting clamps, U-clamps, St/bare
Connecting clamps for reinforcements
U-clamp for large diameters
For connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of
round conductors or fixed earthing terminals while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9.9 kA

Brand: DEHN
Type: BVK 16.48 FL40 KB6.10 BSB STBL
Part No.: 308046
or equivalent.

Certyfikaty



Dane techniczne

Material St/bare
Clamping range Rd / Rd (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9.9 kA
*) For exact assignment see test certificate.
