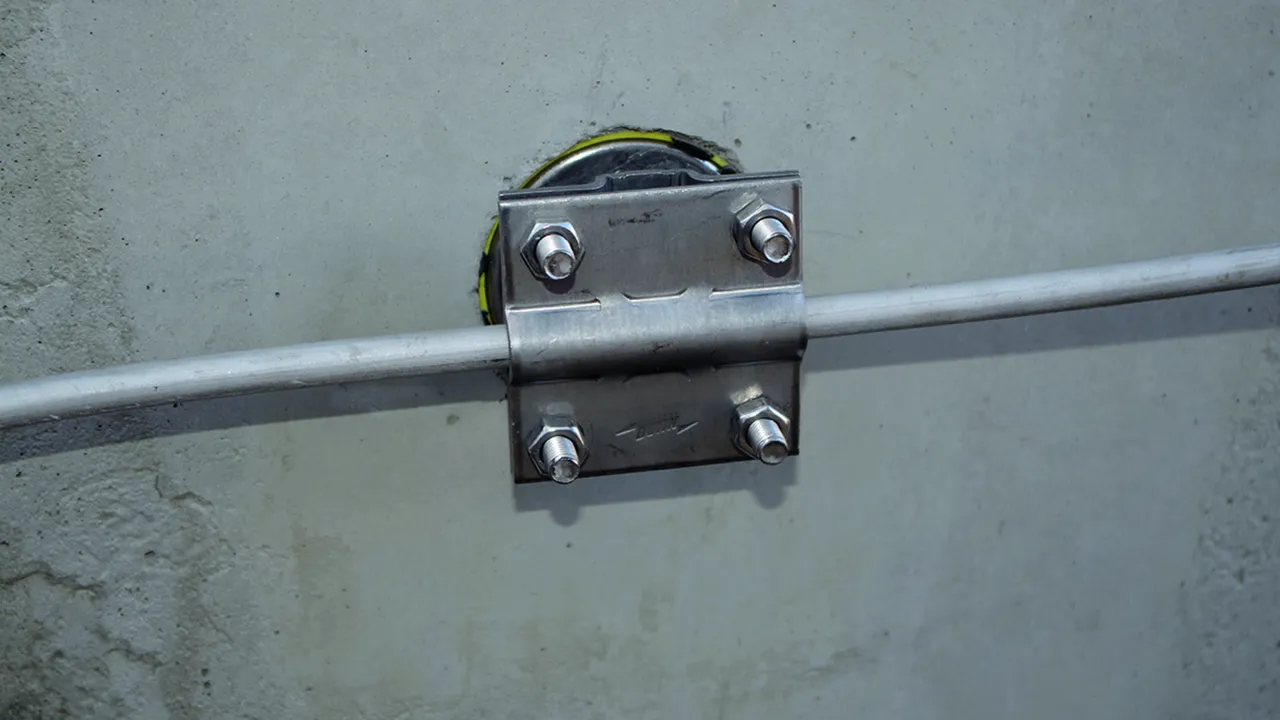

Connection Clamps with Threaded Bolt

For connecting round and flat conductors to fixed earthing terminals with M10 / M12 thread (e.g. Part Nos. 478 011, 478 200) and M16 thread (Part No. 478 027).
Clamps with M10 thread are also suitable for installation on the rear side of the fixed earthing terminal (without connecting shaft), e.g. to connect a flat strip.

Heavy design M10

1 Produkt

Nr kat. 478141 AK 7.10 FL40 GBM10X45 STTZN

GTIN / EAN 4013364101425, Nr taryfy celnej (EU): 85359000, Waga brutto: 348.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Connection clamp with threaded bolt, heavy design, M10, HDG steel
Connection clamp with threaded bolt
for connecting Rd and Fl conductors
to fixed earthing terminals with M10/M12 thread
Also for installation on the rear side of the
fixed earthing terminal
Material of clamp: St/tZn
Clamping range Rd / Fl: 7-10 / 30-40 mm
<TRANSLATION_PLACEHOLDER>: 35-95 <TRANSLATION_PLACEHOLDER>
Material of bolt: StSt
Screw: M10 x 45 / M8 x 25 mm
Material of screw / nut: StSt
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 FL40 GBM10X45 STTZN
Part No.: 478141
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Fl 7-10 / 30-40 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) 35-95 <TRANSLATION_PLACEHOLDER>
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 478141 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478141.

Idź do sklepu internetowego

Heavy design M12

1 Produkt

Nr kat. 478149 AK 7.10 FL40 GBM12X55 V4A

GTIN / EAN 4013364154964, Nr taryfy celnej (EU): 85359000, Waga brutto: 400.50 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Connection clamp with threaded bolt, heavy design, M12, StSt (V4A)
Connection clamp with threaded bolt
for connecting Rd and Fl conductors to
fixed earthing terminals with M10/M12 thread
Also for installation on the rear side of the
fixed earthing terminal
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 7-10 / 30-40 mm
Material of bolt: StSt (V4A)
Screw: M12 x 55 / M8 x 25 mm
Material of screw / nut: StSt (V4A)
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 FL40 GBM12X55 V4A
Part No.: 478149
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Fl 7-10 / 30-40 mm
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.3 kA
*) For exact assignment see test certificate.

Produkt 478149 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478149.

Idź do sklepu internetowego

Heavy design M16

1 Produkt

Nr kat. 478150 AK 7.10 FL40 GBM16X65 V4A

GTIN / EAN 4013364359512, Nr taryfy celnej (EU): 85359000, Waga brutto: 472.60 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Connection clamp with threaded bolt, heavy design, M16, StSt (V4A)
Connection clamp with threaded bolt
for connecting Rd and Fl conductors to
fixed earthing terminals with M16 thread
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 7-10 / 30-40 mm
<TRANSLATION_PLACEHOLDER>: 35-95 <TRANSLATION_PLACEHOLDER>
Material of bolt: StSt (V4A)
Screw: M16 x 65 / M8 x 25 mm
Material of screw / nut: StSt (V4A)
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 FL40 GBM16X65 V4A
Part No.: 478150
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Fl 7-10 / 30-40 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) 35-95 <TRANSLATION_PLACEHOLDER>
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 5.9 kA
*) For exact assignment see test certificate.

Produkt 478150 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478150.

Idź do sklepu internetowego

Light design M10

1 Produkt

Nr kat. 478129 AK ZS 8.10 FL30 GBM10X60 V4A

GTIN / EAN 4013364118508, Nr taryfy celnej (EU): 85359000, Waga brutto: 148.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Connection clamp with threaded bolt, light design, M10, StSt (V4A)
Connection clamp with threaded bolt
for connecting Rd and Fl conductors to
fixed earthing terminals with M10/M12 thread
Also for installation on the rear side of the
fixed earthing terminal
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 8-10 / 30 mm
<TRANSLATION_PLACEHOLDER>: 35-95 <TRANSLATION_PLACEHOLDER>
Material of bolt: StSt (V4A)
Screw: M10 x 60 / M8 x 16 mm
Material of screw / nut: StSt (V4A)
Standard: EN 62561-1

Brand: DEHN
Type: AK ZS 8.10 FL30 GBM10X60 V4A
Part No.: 478129
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Fl 8-10 / 30 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) 35-95 <TRANSLATION_PLACEHOLDER>
Dimensions 58 x 30 x 2.5 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 2.7 kA
*) For exact assignment see test certificate.
