DEHNguard 5 kA

High reliability due to "Thermo Dynamic Control" monitoring system
Easy installation and retrofitting thanks to narrow design (width of 18 / 36 mm)
Application-optimised discharge capacity of 5 kA (I_n) / 15 kA (I_max) (8/20 µs) per pole
Energy coordination with other arresters of the Red/Line family
Operating state / fault indication by green / red indicator flag in the inspection window
Vibration and shock-tested according to EN 60068-2

DEHNguard TT 2P 5 275

Compact surge arrester for single-phase TT and TN systems (1+1 circuit)

1 Produkt

Nr kat. 900450 DG TT 2P 5 275

GTIN / EAN 4013364157989, Nr taryfy celnej (EU): 85363030, Waga brutto: 91.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard TT 2P 5 275 surge arrester
Two-pole surge arrester
Width: 1 modules
Type 2 SPD according to IEC 61643-11，GB/T 18802.1-2011
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: ≤ 1.5 kV / 1.5 kV
Nominal discharge current: 5 kA/20kA
Short circuit strength: 6 kArms
Energy-coordinated according to IEC 62305-4, GB/T21714.4-2015
with arresters of the Red/Line series
Approvals: KEMA

Brand: DEHN
Type: DG TT 2P 5 275
Part No.: 900450
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	MCB C 63 A
Approvals	KEMA

SPD according to EN 61643-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Power supply system	single-phase TT / TN system
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic (U_T )	1200 V / 200 ms. – withstand
Operating temperature range	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area, solid / flexible (min.)	0.75 mm²
Cross-sectional area, solid / flexible (max.)	10 mm² / 6 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA

Produkt 900450 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900450.

Idź do sklepu internetowego

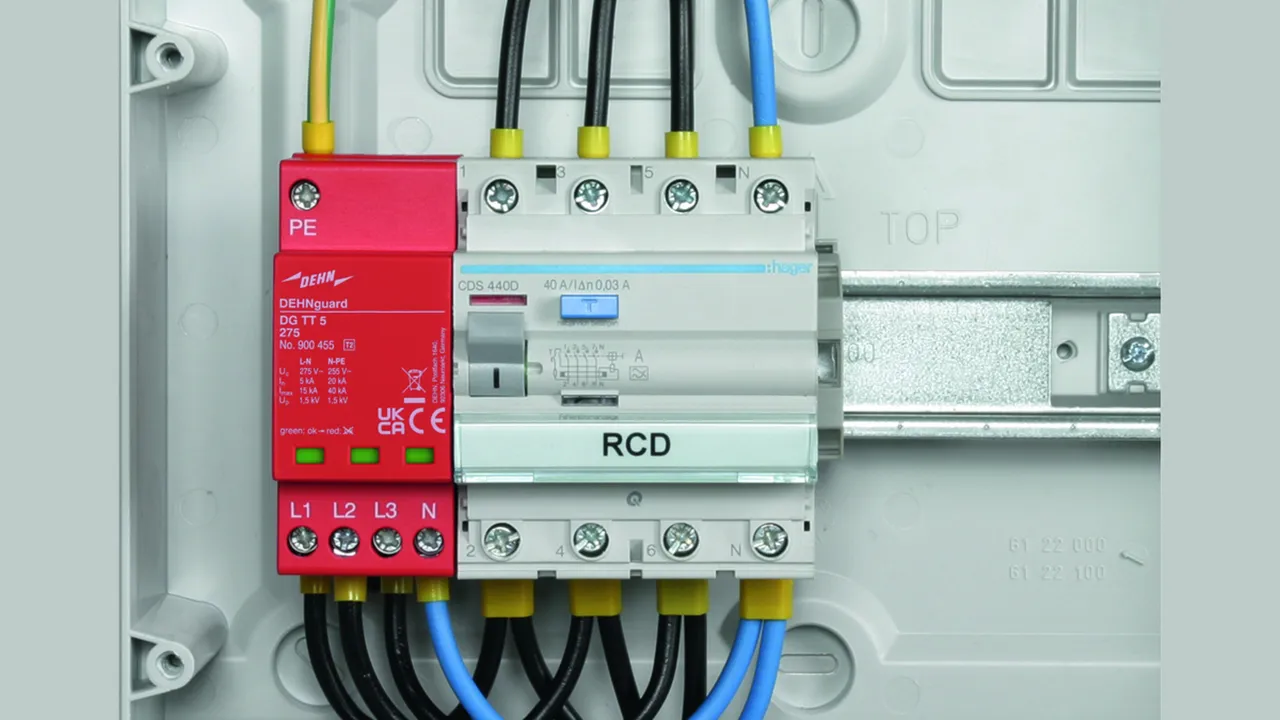

DEHNguard TT 5 275

Compact surge arrester for TT and TN-S systems (3+1 circuit)

1 Produkt

Nr kat. 900455 DG TT 5 275

GTIN / EAN 4013364157996, Nr taryfy celnej (EU): 85363030, Waga brutto: 164.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard TT 5 275 surge arrester
Four-pole surge arrester
Width: 2 modules
Type 2 SPD according to IEC 61643-11，GB/T 18802.1-2011
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: ≤ 1.5 kV / 1.5 kV
Nominal discharge current: 5 kA/20kA
Short circuit strength: 6 kArms
Energy-coordinated according to IEC 62305-4, GB/T21714.4-2015
with arresters of the Red/Line series
Approvals: KEMA

Brand: DEHN
Type: DG TT 5 275
Part No.: 900455
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	MCB C 63 A
Approvals	KEMA

SPD according to EN 61643-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Power supply system	three-phase TT / TN system
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic (U_T )	1200 V / 200 ms. – withstand
Operating temperature range	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area, solid / flexible (min.)	0.75 mm²
Cross-sectional area, solid / flexible (max.)	10 mm² / 6 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA

Produkt 900455 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900455.

Idź do sklepu internetowego

DEHNguard TT 2P 5 275 NL

Compact surge arrester for single-phase TT and TN systems (1+1 circuit)

1 Produkt

Nr kat. 900458 DG TT 2P 5 275 NL

GTIN / EAN 4013364320574, Nr taryfy celnej (EU): 85363030, Waga brutto: 90.68 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard TT 2P 5 275 NL surge arrester
Two-pole surge arrester
Width: 1 modules
Type 2 SPD according to IEC 61643-11，GB/T 18802.1-2011
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: ≤ 1.5 kV / 1.5 kV
Nominal discharge current: 5 kA/20kA
Short circuit strength: 6 kArms
Energy-coordinated according to IEC 62305-4, GB/T21714.4-2015
with arresters of the Red/Line series

Brand: DEHN
Type: DG TT 2P 5 275 NL
Part No.: 900458
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	MCB C 63 A

SPD according to EN 61643-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Power supply system	single-phase TT / TN system
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic (U_T )	1200 V / 200 ms. – withstand
Operating temperature range	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area, solid / flexible (min.)	0.75 mm²
Cross-sectional area, solid / flexible (max.)	10 mm² / 6 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 900458 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900458.

Idź do sklepu internetowego

DEHNguard TT 5 275 NL

Compact surge arrester for TT and TN-S systems (3+1 circuit)

1 Produkt

Nr kat. 900459 DG TT 5 275 NL

GTIN / EAN 4013364320581, Nr taryfy celnej (EU): 85363030, Waga brutto: 163.06 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard TT 5 275 NL surge arrester
Two-pole surge arrester
Width: 2 modules
Type 2 SPD according to IEC 61643-11，GB/T 18802.1-2011
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: ≤ 1.5 kV / 1.5 kV
Nominal discharge current: 5 kA/20kA
Short circuit strength: 6 kArms
Energy-coordinated according to IEC 62305-4, GB/T21714.4-2015
with arresters of the Red/Line series

Brand: DEHN
Type: DG TT 5 275 NL
Part No.: 900459
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	MCB C 63 A

SPD according to EN 61643-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Power supply system	three-phase TT / TN system
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic (U_T )	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic (U_T )	1200 V / 200 ms. – withstand
Operating temperature range	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area, solid / flexible (min.)	0.75 mm²
Cross-sectional area, solid / flexible (max.)	10 mm² / 6 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880

Produkt 900459 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900459.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNguard 5 kA

DEHNguard TT 2P 5 275

Nr kat. 900450 DG TT 2P 5 275

Produkt 900450 został dodany do notatnika.

Do koszyka dodano produkt 900450.

DEHNguard TT 5 275

Nr kat. 900455 DG TT 5 275

Produkt 900455 został dodany do notatnika.

Do koszyka dodano produkt 900455.

DEHNguard TT 2P 5 275 NL

Nr kat. 900458 DG TT 2P 5 275 NL

Produkt 900458 został dodany do notatnika.

Do koszyka dodano produkt 900458.

DEHNguard TT 5 275 NL

Nr kat. 900459 DG TT 5 275 NL

Produkt 900459 został dodany do notatnika.

Do koszyka dodano produkt 900459.

DEHNguard 5 kA

DEHNguard TT 2P 5 275

Nr kat. 900450 DG TT 2P 5 275

Nie masz uprawnień, by pobrać 900450.stp

Nie masz uprawnień, by pobrać 900450.igs

Nie masz uprawnień, by pobrać 900450.jt

Nie masz uprawnień, by pobrać 900450.dwg

Nie masz uprawnień, by pobrać 900450m_E.dxf

Produkt 900450 został dodany do notatnika.

Do koszyka dodano produkt 900450.

DEHNguard TT 5 275

Nr kat. 900455 DG TT 5 275

Nie masz uprawnień, by pobrać 900455.stp

Nie masz uprawnień, by pobrać 900455.igs

Nie masz uprawnień, by pobrać 900455.jt

Nie masz uprawnień, by pobrać 900455.dwg

Nie masz uprawnień, by pobrać 900455m_E.dxf

Produkt 900455 został dodany do notatnika.

Do koszyka dodano produkt 900455.

DEHNguard TT 2P 5 275 NL

Nr kat. 900458 DG TT 2P 5 275 NL

Produkt 900458 został dodany do notatnika.

Do koszyka dodano produkt 900458.

DEHNguard TT 5 275 NL

Nr kat. 900459 DG TT 5 275 NL

Produkt 900459 został dodany do notatnika.

Do koszyka dodano produkt 900459.
