Bridging Cables

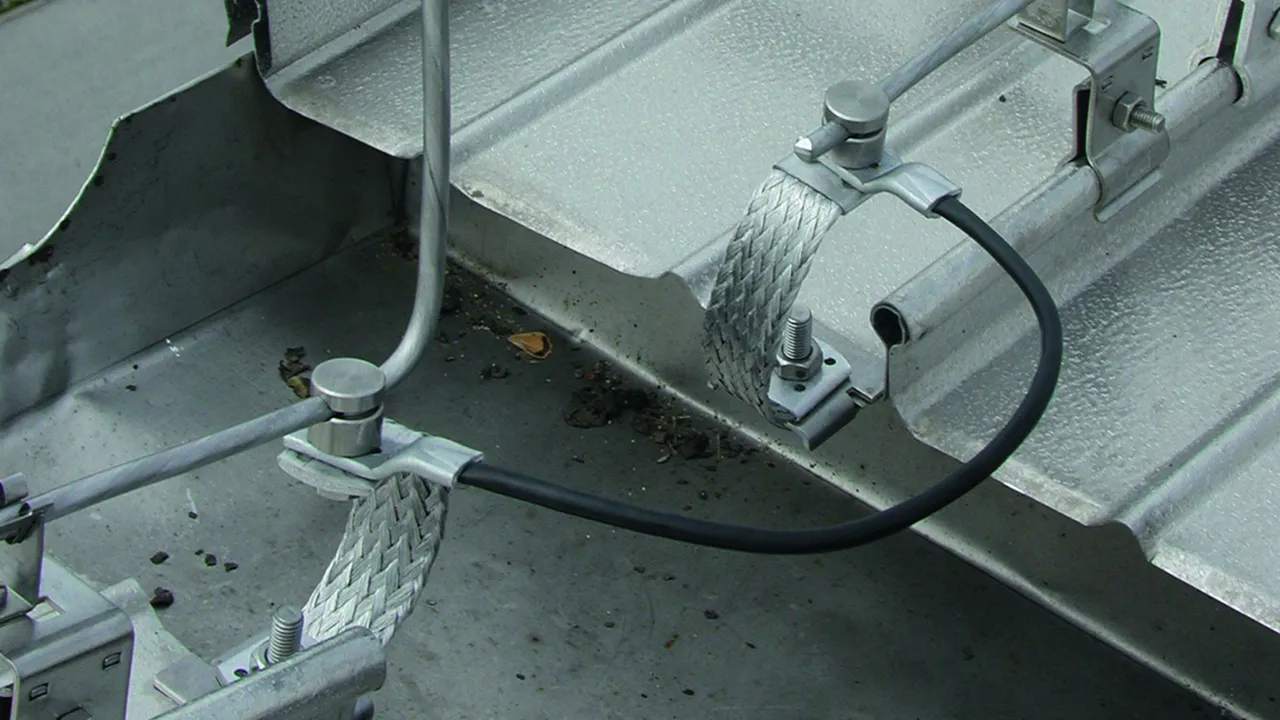

Suitable for connecting / bridging metal claddings, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.
For connecting/bridging fixed earthing terminals. Suitable for protective and functional equipotential bonding.

Configurable lengths Outdoor

For use in outdoor areas with UV-stabilised conductor (H01N2-D)
Specify cable length when ordering (50 mm steps)

5 Produkty

Nr kat. 377316 UEBS 16 L... B10.5 CU SW OD

GTIN / EAN 4013364522459, Nr taryfy celnej (EU): 85359000, Waga brutto: 411.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW OD
Part No.: 377316
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377316 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377316.

Idź do sklepu internetowego

Nr kat. 377325 UEBS 25 L... B10.5 CU SW OD

GTIN / EAN 4013364522466, Nr taryfy celnej (EU): 85359000, Waga brutto: 558.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW OD
Part No.: 377325
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377325 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377325.

Idź do sklepu internetowego

Nr kat. 377335 UEBS 35 L... B10.5 CU SW OD

GTIN / EAN 4013364522473, Nr taryfy celnej (EU): 85359000, Waga brutto: 937.30 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW OD
Part No.: 377335
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377335 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377335.

Idź do sklepu internetowego

Nr kat. 377350 UEBS 50 L... B10.5 CU SW OD

GTIN / EAN 4013364522480, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.02 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW OD
Part No.: 377350
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377350 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377350.

Idź do sklepu internetowego

Nr kat. 377370 UEBS 70 L... B10.5 CU SW OD

GTIN / EAN 4013364522497, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.40 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW OD
Part No.: 377370
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377370 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377370.

Idź do sklepu internetowego

Configurable lengths Indoor

For use indoors (H07V-K)
Specify cable length when ordering (50 mm steps)

10 Produkty

Nr kat. 377216 UEBS 16 L... B10.5 CU SW ID

GTIN / EAN 4013364494565, Nr taryfy celnej (EU): 85359000, Waga brutto: 411.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW ID
Part No.: 377216
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377216 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377216.

Idź do sklepu internetowego

Nr kat. 377217 UEBS 16 L... B10.5 CU GNGE ID

GTIN / EAN 4013364494572, Nr taryfy celnej (EU): 85359000, Waga brutto: 411.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 16 L... B10.5 CU GNGE ID
Part No.: 377217
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377217 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377217.

Idź do sklepu internetowego

Nr kat. 377225 UEBS 25 L... B10.5 CU SW ID

GTIN / EAN 4013364494589, Nr taryfy celnej (EU): 85359000, Waga brutto: 558.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW ID
Part No.: 377225
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377225 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377225.

Idź do sklepu internetowego

Nr kat. 377226 UEBS 25 L... B10.5 CU GNGE ID

GTIN / EAN 4013364494596, Nr taryfy celnej (EU): 85359000, Waga brutto: 558.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 25 L... B10.5 CU GNGE ID
Part No.: 377226
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377226 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377226.

Idź do sklepu internetowego

Nr kat. 377235 UEBS 35 L... B10.5 CU SW ID

GTIN / EAN 4013364494602, Nr taryfy celnej (EU): 85359000, Waga brutto: 937.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW ID
Part No.: 377235
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377235 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377235.

Idź do sklepu internetowego

Nr kat. 377236 UEBS 35 L... B10.5 CU GNGE ID

GTIN / EAN 4013364494619, Nr taryfy celnej (EU): 85359000, Waga brutto: 937.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 35 L... B10.5 CU GNGE ID
Part No.: 377236
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377236 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377236.

Idź do sklepu internetowego

Nr kat. 377250 UEBS 50 L... B10.5 CU SW ID

GTIN / EAN 4013364494725, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.02 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW ID
Part No.: 377250
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377250 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377250.

Idź do sklepu internetowego

Nr kat. 377251 UEBS 50 L... B10.5 CU GNGE ID

GTIN / EAN 4013364494732, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.02 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 50 L... B10.5 CU GNGE ID
Part No.: 377251
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377251 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377251.

Idź do sklepu internetowego

Nr kat. 377270 UEBS 70 L... B10.5 CU SW ID

GTIN / EAN 4013364494749, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.40 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW ID
Part No.: 377270
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377270 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377270.

Idź do sklepu internetowego

Nr kat. 377271 UEBS 70 L... B10.5 CU GNGE ID

GTIN / EAN 4013364494756, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.40 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 70 L... B10.5 CU GNGE ID
Part No.: 377271
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Produkt 377271 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377271.

Idź do sklepu internetowego

Standard lengths

Suitable for use outdoors

4 Produkty

Nr kat. 377210 UEBS 16 L200 B10.5 B6.5 AL CU

GTIN / EAN 4013364083028, Nr taryfy celnej (EU): 85359000, Waga brutto: 53.01 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Bridging cable, 200 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 200 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L200 B10.5 B6.5 AL CU
Part No.: 377210
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 200 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 377210 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377210.

Idź do sklepu internetowego

Nr kat. 377310 UEBS 16 L300 B10.5 B6.5 AL CU

GTIN / EAN 4013364033382, Nr taryfy celnej (EU): 85359000, Waga brutto: 88.50 g, Jednostka opakowaniowa: 100.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Bridging cable, 300 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 300 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L300 B10.5 B6.5 AL CU
Part No.: 377310
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 300 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 377310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377310.

Idź do sklepu internetowego

Nr kat. 377410 UEBS 16 L400 B10.5 B6.5 AL CU

GTIN / EAN 4013364083035, Nr taryfy celnej (EU): 85359000, Waga brutto: 90.40 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Bridging cable, 400 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 400 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L400 B10.5 B6.5 AL CU
Part No.: 377410
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 400 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 377410 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377410.

Idź do sklepu internetowego

Nr kat. 377510 UEBS 16 L500 B10.5 B6.5 AL CU

GTIN / EAN 4013364033399, Nr taryfy celnej (EU): 85359000, Waga brutto: 110.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Bridging cable, 500 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 500 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L500 B10.5 B6.5 AL CU
Part No.: 377510
or equivalent.

Certyfikaty



Dane techniczne

Length (l1) 500 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 377510 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 377510.

Idź do sklepu internetowego
Powrót na górę
