Expansion Pieces

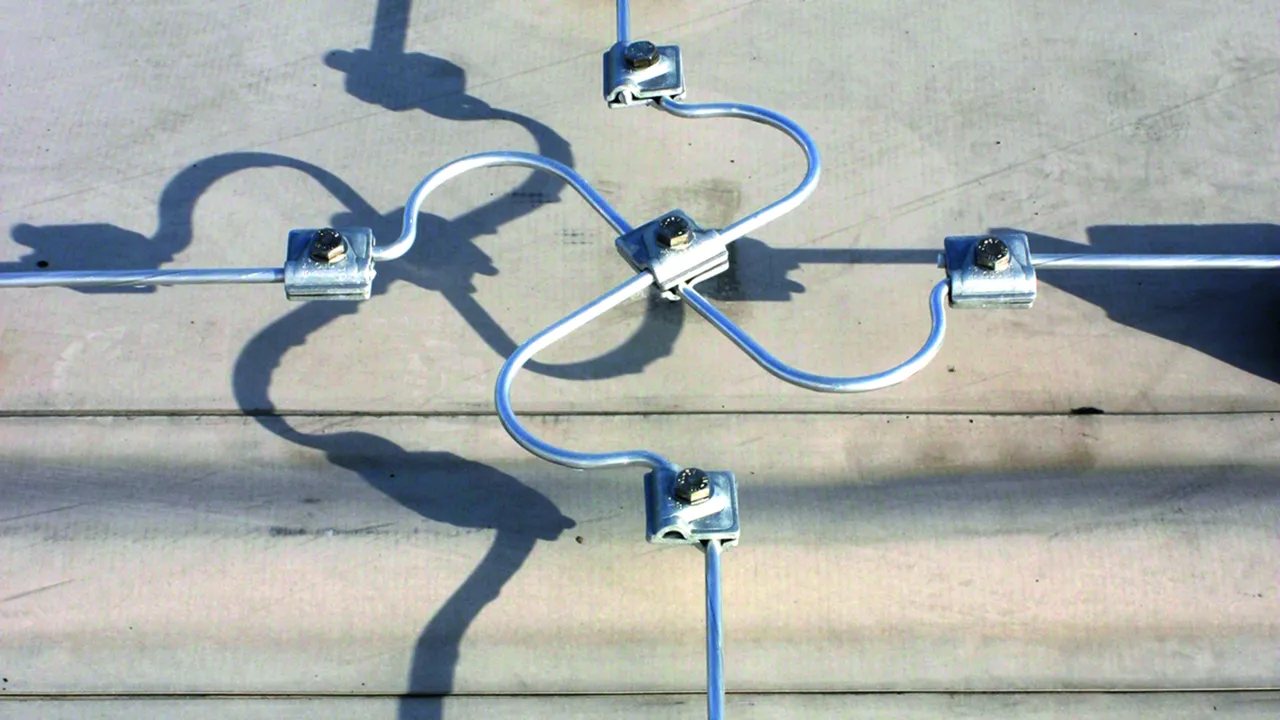

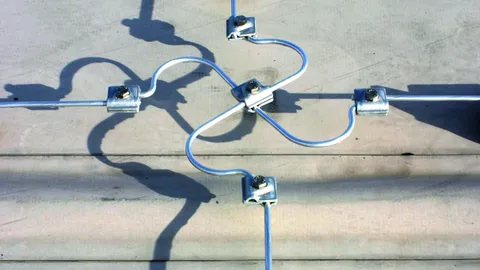

For temperature-related length compensation of long conductors (provided that the conductor routing in the holders is loose).

Round design

For connection e.g. with MV clamp (Part No. 390 051).

1 Produkt

Nr kat. 374011 DS 8 L395 AL

GTIN / EAN 4013364030701, Nr taryfy celnej (EU): 85359000, Waga brutto: 89.92 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Expansion piece, round
Expansion piece
For temperature-related length compensation of long
conductors (provided that the conductor routing in the holders is loose)
Material: Al
Dimensions: Ø8 mm
Length: approx. 395 mm
Standard: EN 62561-2

Brand: DEHN
Type: DS 8 L395 AL
Part No.: 374011
or equivalent.

Certyfikaty



Dane techniczne

Material Al
Dimensions Ø8 mm
Length approx. 395 mm
Standard EN 62561-2

Produkt 374011 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 374011.

Idź do sklepu internetowego

Flat design

For connection e.g. with KS connector (Part No. 301 000).
Note: At cross points two expansion pieces can be connected with one M10 x 20 mm screw and nut.

1 Produkt

Nr kat. 374020 DS 30X2 L170 3XB11 AL

GTIN / EAN 4013364030725, Nr taryfy celnej (EU): 85359000, Waga brutto: 39.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Expansion piece, flat
Expansion piece
For temperature-related length compensation of long
conductors (provided that the conductor routing in the holders is loose)
Material: Al
Dimensions: 30 x 2 mm
Length: 170 mm
Fixing : [2x] Ø11 mm
Central hole: Ø11 mm
Standard: based on DIN EN 62561-2

Brand: DEHN
Type: DS 30X2 L170 3XB11 AL
Part No.: 374020
or equivalent.

Certyfikaty



Dane techniczne

Material Al
Dimensions 30 x 2 mm
Length 170 mm
Fixing [2x] Ø11 mm
Central hole Ø11 mm
Standard based on DIN EN 62561-2

Produkt 374020 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 374020.

Idź do sklepu internetowego
