BLITZDUCTORconnect – Compact

Universal lightning current and surge arrester

For protecting data bus interfaces as well as measuring and control circuits
High discharge capacity of 3 kA (10/350 µs), 10 kA (8/20 µs)
Max. impulse current carrying capability (8/20 µs) I_max up to 20 kA
Low voltage protection level, also capable of protecting terminal equipment

Compact arrester

Fast and simple cable connection thanks to push-in connection technology
High system availability thanks to fail-safe performance

Function-optimised design with a width of 6 mm

LifeCheck and visual status indication integrated in the module
Simple remote signalling of the status with the help of an optional remote signalling unit
Vibration and shock-tested for safe operation

Szczegóły

**Connect = Protect**
Push-in connection technology for simple and fast cable connection

lorem ipsum — **Connect = Protect**
Push-in connection technology for simple and fast cable connection

**Maximum system availability**
Approvals for use in intrinsically safe measuring circuits

**Quickly tested – at a glance**
Integrated indication for easy and fast maintenance

**Easy maintenance**

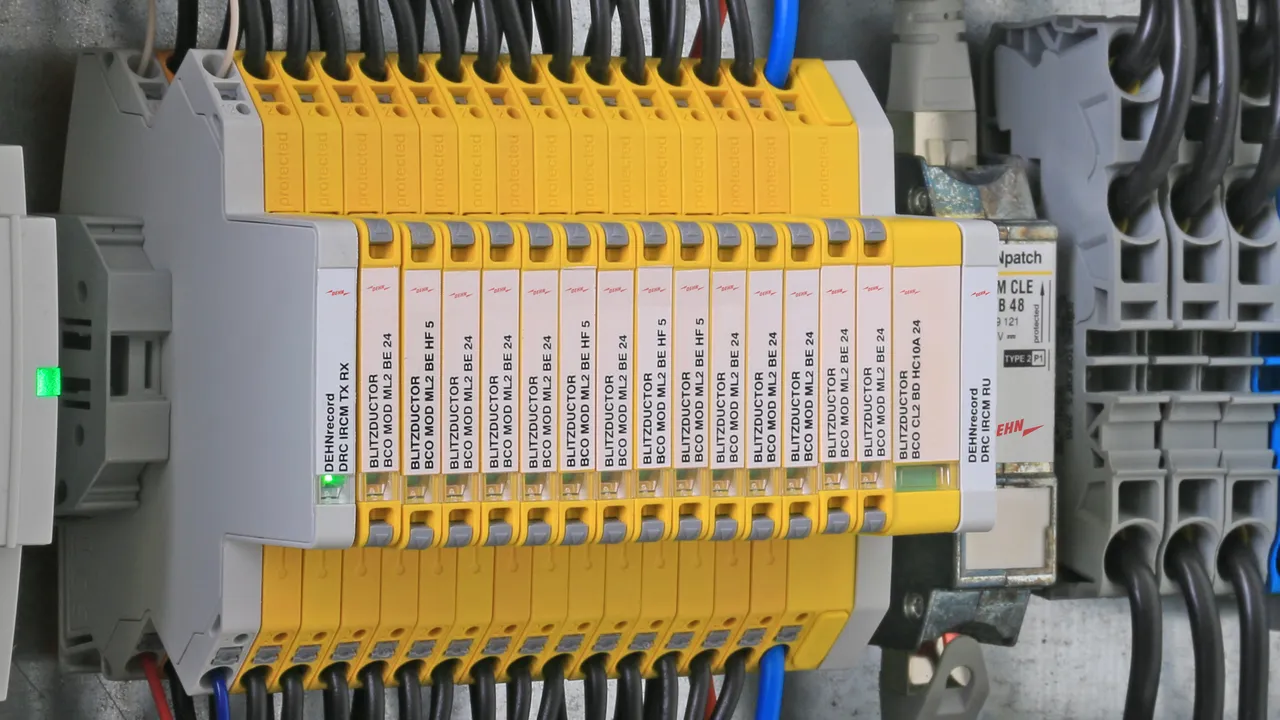

Simple status message with monitoring unit for arrester groups

BCO CL2 B 180

Space-saving, compact lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables.

1 Produkt

Nr kat. 927910 BCO CL2 B 180

GTIN / EAN 4013364411739, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Lightning current arrester BLITZDUCTORconnect CL2 B 180
Compact lightning current arrester for protecting
two single lines for lightning equipotential bonding as well
as indirect earthing of shielded cables
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1
Impulse category: C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180.0 V DC / 127.0 V AC
Nominal current at 80°C: 1.2 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 B 180
Part No.: 927910
or equivalent.

Certyfikaty

Dane techniczne

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	1.2 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	0 ohms
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	A
Impulse category	D1, C2, C3
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	1.2 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 1100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 950 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 700 V
Series resistance per line	0 ohms
Cut-off frequency line-line at 100 ohms (f_G )	150 MHz
Capacitance line-line (C)	≤ 10 pF
Capacitance line-PG (C)	≤ 13 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 700 V
^*) For details, see: www.dehn-international.com

Produkt 927910 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927910.

Idź do sklepu internetowego

BCO CL2 BE

Space-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.

3 Produkty

Nr kat. 927922 BCO CL2 BE 12

GTIN / EAN 4013364411951, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BE 12
Compact combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BE 12
Part No.: 927922
or equivalent.

Certyfikaty

Dane techniczne

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	1.4 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 45 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 48 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 45 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 38 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 20 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	1.4 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 4 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 20 V
^*) For details, see: www.dehn-international.com

Produkt 927922 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927922.

Idź do sklepu internetowego

Nr kat. 927924 BCO CL2 BE 24

GTIN / EAN 4013364411968, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BE 24
Compact combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 33.0 V DC / 23.3 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BE 24
Part No.: 927924
or equivalent.

Certyfikaty

Dane techniczne

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	3.4 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23.3 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 75 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 75 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 85 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 45 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	3.4 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 2 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 45 V
^*) For details, see: www.dehn-international.com

Produkt 927924 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927924.

Idź do sklepu internetowego

Nr kat. 927925 BCO CL2 BE 48

GTIN / EAN 4013364411975, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BE 48
Compact combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 54.0 V DC / 38.1 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BE 48
Part No.: 927925
or equivalent.

Certyfikaty

Dane techniczne

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	54 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	5 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Max. continuous operating voltage (a.c.) (U_C )	38.1 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 140 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 140 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 90 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 130 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 68 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 1.5 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 68 V
^*) For details, see: www.dehn-international.com

Produkt 927925 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927925.

Idź do sklepu internetowego

BCO CL2 BD

Space-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces.

3 Produkty

Nr kat. 927942 BCO CL2 BD 12

GTIN / EAN 4013364411777, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD 12
Compact combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BD 12
Part No.: 927942
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	2.6 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 32 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 32 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 20 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	2.6 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Produkt 927942 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927942.

Idź do sklepu internetowego

Nr kat. 927944 BCO CL2 BD 24

GTIN / EAN 4013364411784, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD 24
Compact combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in
Width of 6 mm

Brand: DEHN
Type: BCO CL2 BD 24
Part No.: 927944
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	5.8 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 57 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 57 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 46 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	5.8 MHz
Capacitance line-line (C)	≤ 1.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Produkt 927944 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927944.

Idź do sklepu internetowego

Nr kat. 927945 BCO CL2 BD 48

GTIN / EAN 4013364411807, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD 48
Compact combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication
Max. continuous operating voltage: 56.0 V DC / 39.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in
Width of 6 mm

Brand: DEHN
Type: BCO CL2 BD 48
Part No.: 927945
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	56 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	7.2 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	56 V
Max. continuous operating voltage (a.c.) (U_C )	39.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 70 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	7.2 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Produkt 927945 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927945.

Idź do sklepu internetowego

BCO CL2 BE HF

Space-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines of high-frequency transmissions sharing a common reference potential as well as unbalanced interfaces.

1 Produkt

Nr kat. 927970 BCO CL2 BE HF 5

GTIN / EAN 4013364411982, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BE HF 5
Compact combined arrester for protecting
two single lines of high-frequency transmissions sharing
a common reference potential as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BE HF 5
Part No.: 927970
or equivalent.

Certyfikaty

Dane techniczne

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 70 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 50 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 70 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 15 V
Series resistance per line	1 ohms
Cut-off frequency line-PG (f_G )	100 MHz
Capacitance line-line (C)	≤ 20 pF
Capacitance line-PG (C)	≤ 23 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 15 V
^*) For details, see: www.dehn-international.com

Produkt 927970 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927970.

Idź do sklepu internetowego

BCO CL2 BD HF

Space-saving, compact combined arrester with a width of 6 mm and push-in connection terminal with status indication for protecting one pair of unearthed high-frequency bus systems as well as balanced interfaces.

1 Produkt

Nr kat. 927971 BCO CL2 BD HF 5

GTIN / EAN 4013364411999, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD HF 5
Compact combined arrester for protecting
one pair of unearthed high-frequency bus systems
as well as balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BD HF 5
Part No.: 927971
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	100 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 42 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 42 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 21 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Produkt 927971 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927971.

Idź do sklepu internetowego

BCO CL2 E

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status indication. Finely limiting, single-stage surge protection with powerful diodes for protecting two single cores sharing a common reference potential as well as unbalanced interfaces.

3 Produkty

Nr kat. 927987 BCO CL2 E 12

GTIN / EAN 4013364485754, Nr taryfy celnej (EU): 85363010, Waga brutto: 55.94 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester BLITZDUCTORconnect CL2 E 12
Compact, single-stage surge protection
with powerful diodes for protecting
two single cores sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class: type 3/P1
Impulse category: C1, C3
Status indication, width of 6 mm
Max. continuous operating voltage: 15 V DC / 10.6 V AC
Nominal current at 60°C: 10 A
C1 nominal impulse discharge current per line (8/20): 1.5 kA
C1 total nominal impulse discharge current (8/20): 3 kA
Conductor connection: Push-in

Brand: DEHN
Type: BCO CL2 E 12
Part No.: 927987
or equivalent.

Certyfikaty

Dane techniczne

SPD class	W
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	3 kA
Series resistance per line	0 ohms
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	W
Impulse category	C1, C3
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	3 kA
C1 Nominal discharge current (8/20 µs) per line (I_n )	1.5 kA
Voltage protection level line-line for I_n C1 (U_P )	≤ 80 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 50 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 44 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 22 V
Series resistance per line	0 ohms
Cut-off frequency line-PG at 100 ohms (f_G )	0.6 MHz
Capacitance line-line (C)	≤ 3 nF
Capacitance line-PG (C)	≤ 6 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Produkt 927987 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927987.

Idź do sklepu internetowego

Nr kat. 927988 BCO CL2 E 24

GTIN / EAN 4013364485747, Nr taryfy celnej (EU): 85363010, Waga brutto: 56.04 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester BLITZDUCTORconnect CL2 E 24
Compact, single-stage surge protection
with powerful diodes for protecting
two single cores sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class: type 3/P1
Impulse category: C1, C3
Status indication, width of 6 mm
Max. continuous operating voltage: 33 V DC / 23 V AC
Nominal current at 60°C: 10 A
C1 nominal impulse discharge current per line (8/20): 0.6 kA
C1 total nominal impulse discharge current (8/20): 1.2 kA
Conductor connection: Push-in

Brand: DEHN
Type: BCO CL2 E 24
Part No.: 927988
or equivalent.

Certyfikaty

Dane techniczne

SPD class	W
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	1.2 kA
Series resistance per line	0 ohms
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	W
Impulse category	C1, C3
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	1.2 kA
C1 Nominal discharge current (8/20 µs) per line (I_n )	0.6 kA
Voltage protection level line-line for I_n C1 (U_P )	≤ 100 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 55 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 90 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 45 V
Series resistance per line	0 ohms
Cut-off frequency line-PG at 100 ohms (f_G )	1.5 MHz
Capacitance line-line (C)	≤ 1.5 nF
Capacitance line-PG (C)	≤ 3 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Produkt 927988 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927988.

Idź do sklepu internetowego

Nr kat. 927989 BCO CL2 E 48

GTIN / EAN 4013364485761, Nr taryfy celnej (EU): 85363010, Waga brutto: 36.58 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester BLITZDUCTORconnect CL2 E 48
Compact, single-stage surge protection
with powerful diodes for protecting
two single cores sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class: type 3/P1
Impulse category: C1, C3
Status indication, width of 6 mm
Max. continuous operating voltage: 58 V DC / 41 V AC
Nominal current at 60°C: 10 A
C1 nominal impulse discharge current per line (8/20): 0.4 kA
C1 total nominal impulse discharge current (8/20): 0.8 kA
Conductor connection: Push-in

Brand: DEHN
Type: BCO CL2 E 48
Part No.: 927989
or equivalent.

Certyfikaty

Dane techniczne

SPD class	W
Max. continuous operating voltage (d.c.) (U_C )	58 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	0.8 kA
Series resistance per line	0 ohms
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	W
Impulse category	C1, C3
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	58 V
Max. continuous operating voltage (a.c.) (U_C )	41 V
Nominal current at 60 °C (I_L )	10 A
Nominal current at 80 °C (I_L )	6 A
C1 Total nominal discharge current (8/20 µs) (I_n )	0.8 kA
C1 Nominal discharge current (8/20 µs) per line (I_n )	0.4 kA
Voltage protection level line-line for I_n C1 (U_P )	≤ 180 V
Voltage protection level line-PG for I_nC1 (U_P )	≤ 90 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 145 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 75 V
Series resistance per line	0 ohms
Cut-off frequency line-PG at 100 ohms (f_G )	2.5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 2 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Produkt 927989 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927989.

Idź do sklepu internetowego

BCO CL4 BC

Space-saving, compact combined arrester with a width of 12 mm and push-in connection technology with status indication for protecting unearthed 4-conductor measuring circuits for IT systems and measuring and control systems.

1 Produkt

Nr kat. 927954 BCO CL4 BC 24

GTIN / EAN 4013364485730, Nr taryfy celnej (EU): 85363010, Waga brutto: 80.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BC 24
Compact combined arrester for the protection of
unearthed 4-conductor measurements for IT
systems and measuring and control circuits
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: D1, C1, C2, C3, B2
Status indication
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 80°C: 3 A
Series impedance per line: 0 ohm
C2 nominal impulse discharge current per line (8/20): 10 kA
C2 total nominal impulse discharge current (8/20): 20 kA
D1 lightning impulse current (10/350 µs) per line: 2.5 kA
D1 total lightning impulse current (10/350): 5 kA
Conductor connection: Push-in
Width: 12 mm

Brand: DEHN
Type: BCO CL4 BC 24
Part No.: 927954
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	3 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
Series resistance per line	0 ohms
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	3 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-PG for I_n C2 (U_P )	≤ 650 V
Voltage protection level line-line for I_n 1 kA C1 (U_P )	≤ 85 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 55 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	0 ohms
Cut-off frequency line-line at 100 ohms (f_G )	1.5 MHz
Capacitance line-line (C)	≤ 3 nF
Capacitance line-PG (C)	≤ 42 pF
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	Push-in / Push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	Polyamide PA 6.6, UL 94 V-0
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Produkt 927954 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927954.

Idź do sklepu internetowego

BCO CL2 BD HC10A 24

Space-saving, compact combined arrester with a width of 12 mm and push-in connection technology with status indication for protecting one pair in unearthed DC supplies for IT systems and measuring and control circuits.

1 Produkt

Nr kat. 927408 BCO CL2 BD HC10A 24

GTIN / EAN 4013364463653, Nr taryfy celnej (EU): 85363010, Waga brutto: 68.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD HC10A 24
Compact combined arrester for protecting
one pair in unearthed DC supplies for IT systems
and measuring and control circuits.
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication
Max. continuous operating voltage: 45.0 V DC / 31.8 V AC
Nominal current at 80°C: 10 A
C2 nominal impulse discharge current per line (8/20): 10 kA
C2 total nominal impulse discharge current (8/20): 20 kA
D1 lightning current impulse (10/350 µs) per line: 2.5 kA
D1 total lightning impulse current (10/350 µs): 5 kA
Conductor connection: Push-in
Width: 12 mm

Brand: DEHN
Type: BCO CL2 BD HC10A 24
Part No.: 927408
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	45 V
Nominal current at 80 °C (I_L )	10 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
Series resistance per line	0 ohms
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	45 V
Max. continuous operating voltage (a.c.) (U_C )	31.8 V
Nominal current at 80 °C (I_L )	10 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-line for I_n 1 kA C2 (U_P )	≤ 100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 800 V
Series resistance per line	0 ohms
Cut-off frequency line-line at 100 ohms (f_G )	2 MHz
Capacitance line-line (C)	≤ 1.37 nF
Capacitance line-PG (C)	≤ 13.06 pF
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	Push-in / Push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	Polyamide PA 6.6, UL 94 V-0
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Produkt 927408 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927408.

Idź do sklepu internetowego

BCO CL2 BD EX 24

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground.

1 Produkt

Nr kat. 927984 BCO CL2 BD EX 24

GTIN / EAN 4013364412002, Nr taryfy celnej (EU): 85363010, Waga brutto: 57.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

Combined arrester BLITZDUCTORconnect CL2 BD EX 24
Compact combined arrester for protecting
one pair of intrinsically safe unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Max. input voltage according to EN 60079-11: 30 V
Max. input current according to EN 60079-11: 0.5 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Cable connection: Push-in

Brand: DEHN
Type: BCO CL2 BD EX 24
Part No.: 927984
or equivalent.

Certyfikaty

Dane techniczne

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	3.5 MHz
Approvals	ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection line-line for I_nC2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG for 1 kV/µs C3 (U_P )	≤ 1000 V
Series resistance per line	1 ohms
Cut-off frequency line-line (f_G )	3.5 MHz
Capacitance line-line (C)	≤ 2 nF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	push-in / push-in
Cross-sectional area, solid	0.2-2.5 mm²
Cross-sectional area, flexible	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	blue
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals (1)	TÜV 19 ATEX 8476 X: II (1)2 G Ex ia [ia Ga] IIC T4 ... T6 Gb
ATEX approvals (2)	TÜV 19 ATEX 8476 X: II 2 G Ex ib IIC T4 ... T6 Gb
ATEX approvals (3)	TÜV 19 ATEX 8476 X: II (1) D [Ex ia Da] IIIC
IECEx approvals (1)	IECEx TUR 20.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals (2)	IECEx TUR 20.0025X: Ex ib IIC T4 ... T6 Gb
IECEx approvals (3)	IECEx TUR 20.0025X: [Ex ia Da] IIIC
China Compulsory Certification	CCC No. 2021312304001130 (Ex ia, Ex ib)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 1000 V
^*) For details, see: www.dehn-international.com

Produkt 927984 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 927984.

Idź do sklepu internetowego

BLITZDUCTORconnect – Compact

Szczegóły

BCO CL2 B 180

Nr kat. 927910 BCO CL2 B 180

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927910.wspak

Nie masz uprawnień, by pobrać 9279XX_XD.ema

Produkt 927910 został dodany do notatnika.

Do koszyka dodano produkt 927910.

BCO CL2 BE

Nr kat. 927922 BCO CL2 BE 12

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927922.wspak

Nie masz uprawnień, by pobrać 927924_eplan.zip

Produkt 927922 został dodany do notatnika.

Do koszyka dodano produkt 927922.

Nr kat. 927924 BCO CL2 BE 24

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927924.wspak

Nie masz uprawnień, by pobrać 927924_eplan.zip

Produkt 927924 został dodany do notatnika.

Do koszyka dodano produkt 927924.

Nr kat. 927925 BCO CL2 BE 48

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927925.wspak

Nie masz uprawnień, by pobrać 927924_eplan.zip

Produkt 927925 został dodany do notatnika.

Do koszyka dodano produkt 927925.

BCO CL2 BD

Nr kat. 927942 BCO CL2 BD 12

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927942.wspak

Nie masz uprawnień, by pobrać 927944_eplan.zip

Produkt 927942 został dodany do notatnika.

Do koszyka dodano produkt 927942.

Nr kat. 927944 BCO CL2 BD 24

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927944.wspak

Nie masz uprawnień, by pobrać 927944_eplan.zip

Produkt 927944 został dodany do notatnika.

Do koszyka dodano produkt 927944.

Nr kat. 927945 BCO CL2 BD 48

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.dwg

Nie masz uprawnień, by pobrać 9279XX_BCO CL2 XXX_m_D_E.dxf

Nie masz uprawnień, by pobrać DEHN.927945.wspak

Nie masz uprawnień, by pobrać 927944_eplan.zip

Produkt 927945 został dodany do notatnika.

Do koszyka dodano produkt 927945.

BCO CL2 BE HF

Nr kat. 927970 BCO CL2 BE HF 5

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.stp

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.igs

Nie masz uprawnień, by pobrać 9279XXX_BCO CL2 XXX_gelb.jt
