SVP Clamps for Aboveground and Underground Connections

Diagonal and parallel connecting clamps (Schräg-Verbinder-Parallel-Klemmen) for cross and parallel connections, with slotted upper part (no need to detach the screws).

Without intermediate plate

2 Produkty

Nr kat. 308060 SVPK 8.10 8.10 FL30 STTZN

GTIN / EAN 4013364066281, Nr taryfy celnej (EU): 85359000, Waga brutto: 139.80 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

SVP clamp without intermediate plate, St/tZn
SVP clamp for aboveground and underground connections
For cross and parallel connection, with slotted top
part (no need to remove the screws)
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 STTZN
Part No.: 308060
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308060 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308060.

Idź do sklepu internetowego

Nr kat. 308069 SVPK 8.10 8.10 FL30 V4A

GTIN / EAN 4013364246720, Nr taryfy celnej (EU): 85359000, Waga brutto: 140.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

SVP clamp without StSt intermediate plate (V4A)
SVP clamps for above-ground and underground
connections for cross and parallel connections
with slotted top section
(no need to remove the screws)
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 V4A
Part No.: 308069
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308069 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 308069.

Idź do sklepu internetowego

With intermediate plate (slotted)

1 Produkt

Nr kat. 308070 SVPK 8.10 8.10 FL30 ZP STTZN

GTIN / EAN 4013364066298, Nr taryfy celnej (EU): 85359000, Waga brutto: 199.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

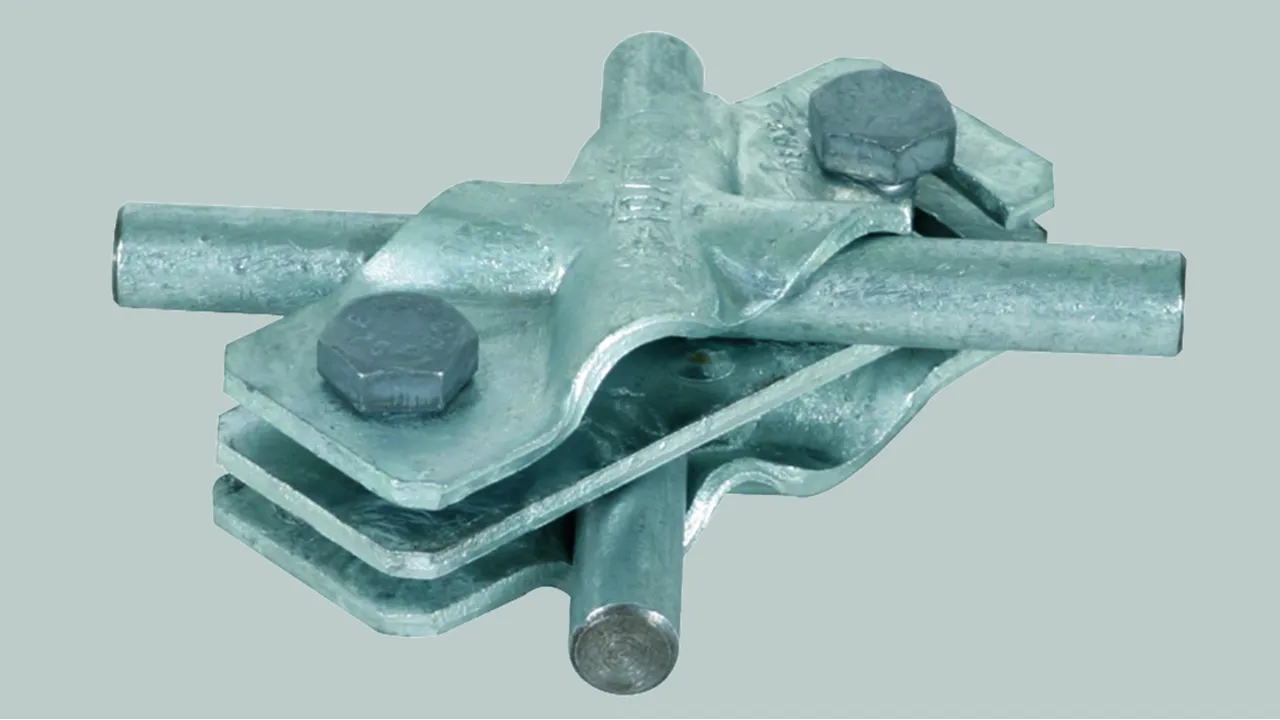

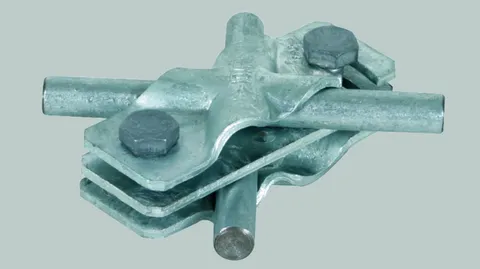

SVP clamp with intermediate plate, slotted, St/tZn
SVP clamp for aboveground and underground connections
For cross and parallel connection, with slotted top
part (no need to remove the screws)
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 ZP STTZN
Part No.: 308070
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.
