MV Clamps for Air-Termination Rods

Multi-purpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

With hexagon screw, spring washer and thread in the base part

2 Produkty

Nr kat. 392050 MVK 8.10 16 SKM10X40 FSC STTZN

GTIN / EAN 4013364096066, Nr taryfy celnej (EU): 85359000, Waga brutto: 123.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

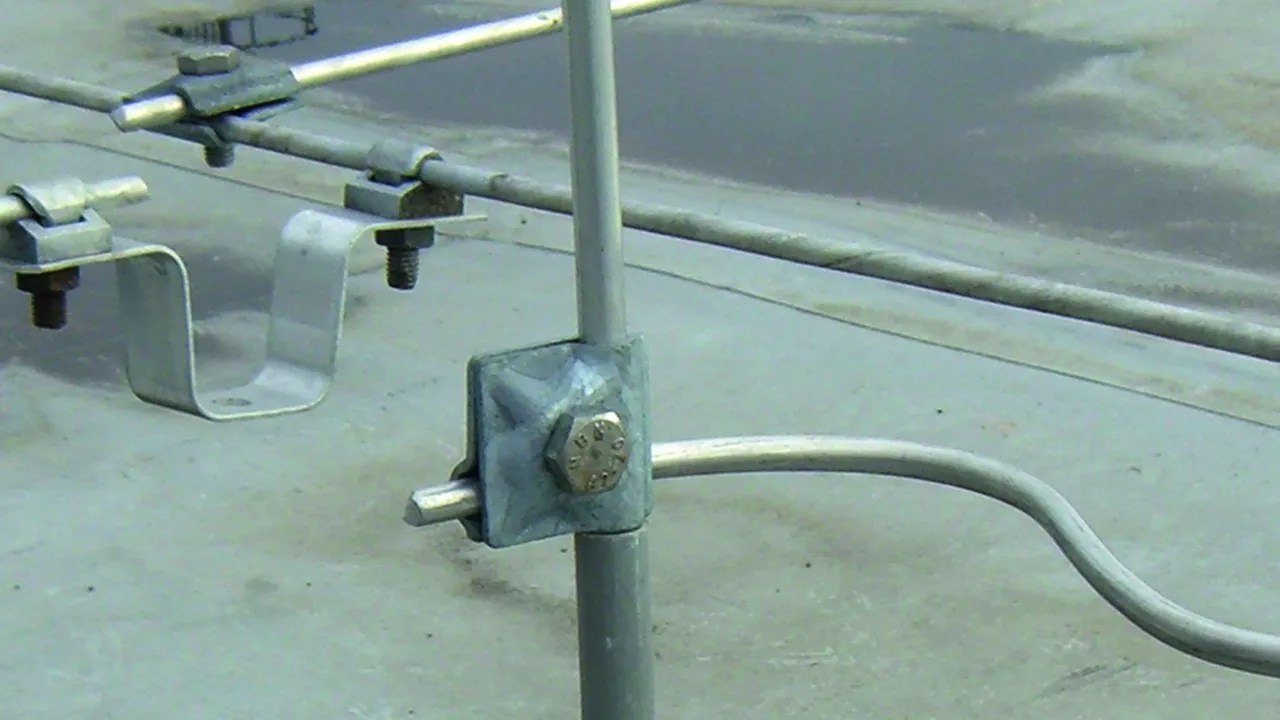

MV clamp for air-termination rods, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC STTZN
Part No.: 392050
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 392050.

Idź do sklepu internetowego

Nr kat. 392059 MVK 8.10 16 SKM10X40 FSC V2A

GTIN / EAN 4013364096059, Nr taryfy celnej (EU): 85359000, Waga brutto: 121.40 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

MV clamp for air-termination rods, StSt
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC V2A
Part No.: 392059
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392059 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 392059.

Idź do sklepu internetowego

With truss head screw and anti-rotation protection

2 Produkty

Nr kat. 392060 MVK 8.10 16 FRM10X40 STTZN

GTIN / EAN 4013364096141, Nr taryfy celnej (EU): 85359000, Waga brutto: 132.40 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 STTZN
Part No.: 392060
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392060 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 392060.

Idź do sklepu internetowego

Nr kat. 392069 MVK 8.10 16 FRM10X40 V2A

GTIN / EAN 4013364096158, Nr taryfy celnej (EU): 85359000, Waga brutto: 128.40 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 V2A
Part No.: 392069
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392069 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 392069.

Idź do sklepu internetowego
