Nr kat. 941300 DSH TNC 255

GTIN / EAN 4013364133556, Nr taryfy celnej (EU): 85363090, Waga brutto: 415.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TNC 255 FM combined arrester
Three-pole combined arrester for 230/400 V TN-C systems
width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 37.5 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TNC 255
Part No.: 941300
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	37.5 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	12.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	37.5 kA
Specific energy [L1+L2+L3-PEN] (W/R)	352.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	12.5 kA
Specific energy [L-PEN] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	12.5 / 37.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, PEN) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, PEN) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Produkt 941300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941300.

Idź do sklepu internetowego

Nr kat. 941305 DSH TNC 255 FM

GTIN / EAN 4013364275317, Nr taryfy celnej (EU): 85363090, Waga brutto: 420.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TNC 255 FM combined arrester
Three-pole combined arrester for 230/400 V TN-C systems
with remote signalling contact, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 37.5 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TNC 255 FM
Part No.: 941305
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	37.5 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	12.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	37.5 kA
Specific energy [L1+L2+L3-PEN] (W/R)	352.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	12.5 kA
Specific energy [L-PEN] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	12.5 / 37.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, PEN) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, PEN) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 941305 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941305.

Idź do sklepu internetowego

Nr kat. 941306 DSH B TNC 255 FM

GTIN / EAN 4013364328068, Nr taryfy celnej (EU): 85363090, Waga brutto: 422.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield B TNC 255 FM combined arrester
Three-pole combined arrester for 230/400 V TN-C systems
with remote signalling contact, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 37.5 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH B TNC 255 FM
Part No.: 941306
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	22.5 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	7.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	22.5 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	7.5 kA
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	12.5 / 37.5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, PEN) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, PEN) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 941306 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941306.

Idź do sklepu internetowego

Nr kat. 941400 DSH TNS 255

GTIN / EAN 4013364133563, Nr taryfy celnej (EU): 85363090, Waga brutto: 555.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

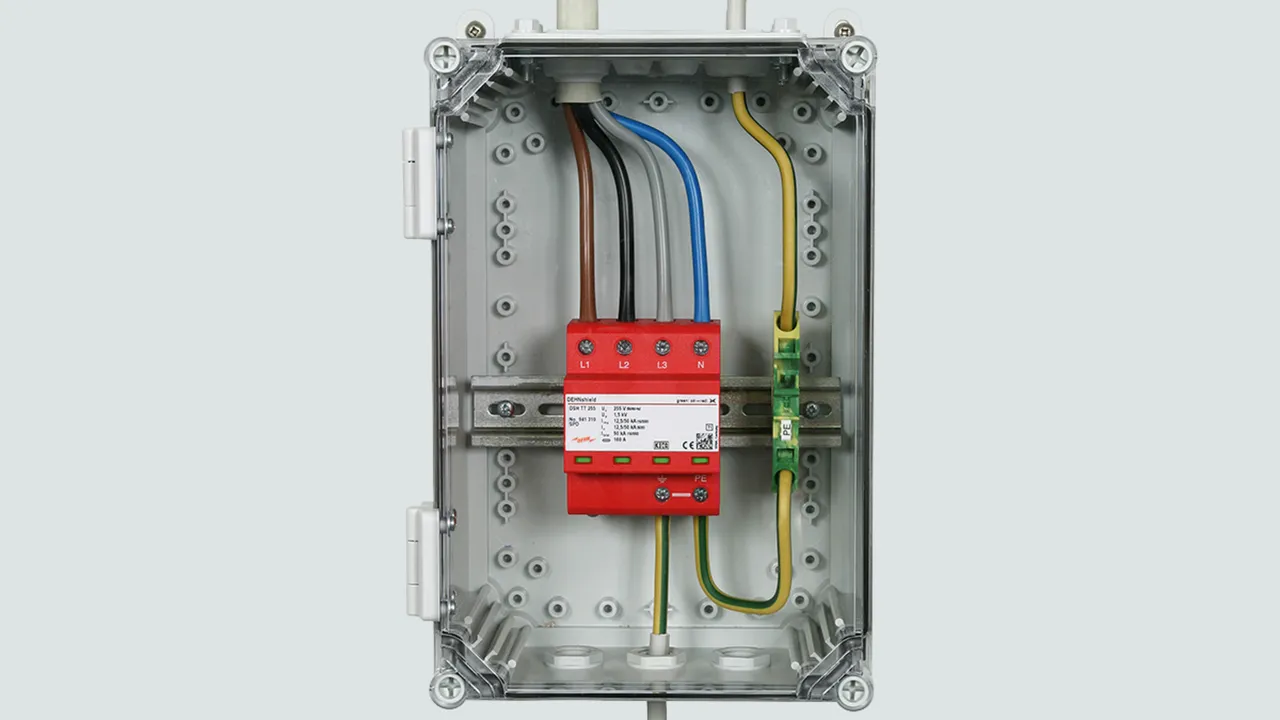

DEHNshield TNS 255 FM combined arrester
Four-pole combined arrester for 230/400 V TN(C)-S systems, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TNS 255
Part No.: 941400
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Specific energy [L,N-PE] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Produkt 941400 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941400.

Idź do sklepu internetowego

Nr kat. 941405 DSH TNS 255 FM

GTIN / EAN 4013364275331, Nr taryfy celnej (EU): 85363090, Waga brutto: 488.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TNS 255 FM combined arrester
Four-pole combined arrester for 230/400 V TN(C)-S systems
Width: 4 mod., with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TNS 255 FM
Part No.: 941405
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Specific energy [L,N-PE] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 941405 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941405.

Idź do sklepu internetowego

Nr kat. 941406 DSH B TNS 255 FM

GTIN / EAN 4013364328082, Nr taryfy celnej (EU): 85363090, Waga brutto: 489.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield B TNS 255 FM combined arrester
Four-pole combined arrester for 230/400 V TN(C)-S systems
Width: 4 mod., with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 30 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH B TNS 255 FM
Part No.: 941406
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	30 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	7.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	30 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	7.5 kA
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 941406 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941406.

Idź do sklepu internetowego

Nr kat. 941310 DSH TT 255

GTIN / EAN 4013364131798, Nr taryfy celnej (EU): 85363090, Waga brutto: 509.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TT 255 combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TT 255
Part No.: 941310
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941310.

Idź do sklepu internetowego

Nr kat. 941315 DSH TT 255 FM

GTIN / EAN 4013364275324, Nr taryfy celnej (EU): 85363090, Waga brutto: 508.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Width: 4 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TT 255 FM
Part No.: 941315
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	50 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941315 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941315.

Idź do sklepu internetowego

Nr kat. 941316 DSH B TT 255 FM

GTIN / EAN 4013364328075, Nr taryfy celnej (EU): 85363090, Waga brutto: 510.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield B TT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT and TN(C)-S systems
Width: 4 mod., With remote signalling contact,
Type 1 + type 2 SPD according to EN 61643-11
Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 30 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH B TT 255 FM
Part No.: 941316
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	30 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	7.5 / 30 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	VDE
Type of remote signalling contact	changeover contact
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	30 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	7.5 / 30 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941316 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941316.

Idź do sklepu internetowego

Nr kat. 941200 DSH TN 255

GTIN / EAN 4013364138209, Nr taryfy celnej (EU): 85363090, Waga brutto: 266.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TN 255 combined arrester
Two-pole combined arrester for 230/400 V TN systems, width: 2 mod.
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TN 255
Part No.: 941200
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Specific energy [L+N-PE] (W/R)	156.25 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Specific energy [L,N-PE] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Produkt 941200 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941200.

Idź do sklepu internetowego

Nr kat. 941205 DSH TN 255 FM

GTIN / EAN 4013364289185, Nr taryfy celnej (EU): 85363090, Waga brutto: 276.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TN 255 FM combined arrester
Two-pole combined arrester for 230/400 V TN systems,
Width: 2 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TN 255 FM
Part No.: 941205
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Specific energy [L+N-PE] (W/R)	156.25 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	12.5 kA
Specific energy [L,N-PE] (W/R)	39.06 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 941205 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941205.

Idź do sklepu internetowego

Nr kat. 941206 DSH B TN 255 FM

GTIN / EAN 4013364373839, Nr taryfy celnej (EU): 85363090, Waga brutto: 276.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield B TN 255 FM combined arrester
Two-pole combined arrester for 230/400 V TN systems,
Width: 2 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 15 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH B TN 255 FM
Part No.: 941206
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	15 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	7.5 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	15 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	7.5 kA
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 /≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 941206 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941206.

Idź do sklepu internetowego

Nr kat. 941110 DSH TT 2P 255

GTIN / EAN 4013364137899, Nr taryfy celnej (EU): 85363090, Waga brutto: 291.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TT 2P 255 combined arrester
Two-pole combined arrester
for 230/400 V TT systems, Width: 2 mod.
SPD type 1 + type 2 in accordance with EN 61643-11
For use in compact and simply equipped electrical
installations with reduced technical requirements
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TT 2P 255
Part No.: 941110
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 25 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Specific energy [L+N-PE] (W/R)	156.25 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 25 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 / 156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941110.

Idź do sklepu internetowego

Nr kat. 941115 DSH TT 2P 255 FM

GTIN / EAN 4013364289208, Nr taryfy celnej (EU): 85363090, Waga brutto: 301.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield TT 2P 255 FM combined arrester
Two-pole combined arrester
for 230/400 V TT systems,
SPD type 1 + type 2 in accordance with EN 61643-11
Width: 2 mod., With remote signalling contact
For use in compact and simply equipped electrical
installations with reduced technical requirements
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH TT 2P 255 FM
Part No.: 941115
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 25 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	25 kA
Specific energy [L+N-PE] (W/R)	156.25 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 25 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 / 156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941115 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941115.

Idź do sklepu internetowego

Nr kat. 941116 DSH B TT 2P 255 FM

GTIN / EAN 4013364373235, Nr taryfy celnej (EU): 85363090, Waga brutto: 301.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNshield B TT 2P 255 FM combined arrester
Two-pole combined arrester for 230/400 V TT systems,
Width: 2 mod., With remote signalling contact
SPD type 1 + type 2 in accordance with EN 61643-11
Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 15 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DSH B TT 2P 255 FM
Part No.: 941116
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	15 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	7.5 / 15 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	160 A gG
Type of remote signalling contact	changeover contact
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	15 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	7.5 / 15 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	12.5 / 25 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	160 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 941116 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 941116.

Idź do sklepu internetowego

DEHNshield

Szczegóły

DEHNshield TNC

Nr kat. 941300 DSH TNC 255

Nie masz uprawnień, by pobrać 941300.stp

Nie masz uprawnień, by pobrać 941300.igs

Nie masz uprawnień, by pobrać 941300.jt

Nie masz uprawnień, by pobrać 941300.dwg

Nie masz uprawnień, by pobrać 941300m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941300.wspak

Nie masz uprawnień, by pobrać 941300_eplan.zip

Funkcja falochronu

Produkt 941300 został dodany do notatnika.

Do koszyka dodano produkt 941300.

DEHNshield TNC FM

Nr kat. 941305 DSH TNC 255 FM

Nie masz uprawnień, by pobrać 941305.stp

Nie masz uprawnień, by pobrać 941305.igs

Nie masz uprawnień, by pobrać 941305.jt

Nie masz uprawnień, by pobrać 941305.dwg

Nie masz uprawnień, by pobrać 941305+306m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941305.wspak

Nie masz uprawnień, by pobrać DEHN.941305.edz

Funkcja falochronu

Produkt 941305 został dodany do notatnika.

Do koszyka dodano produkt 941305.

DEHNshield TNC Basic FM

Nr kat. 941306 DSH B TNC 255 FM

Nie masz uprawnień, by pobrać 941305.stp

Nie masz uprawnień, by pobrać 941305.igs

Nie masz uprawnień, by pobrać 941305.jt

Nie masz uprawnień, by pobrać 941305.dwg

Nie masz uprawnień, by pobrać 941305+306m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941306.wspak

Nie masz uprawnień, by pobrać DEHN.941306.edz

Funkcja falochronu

Produkt 941306 został dodany do notatnika.

Do koszyka dodano produkt 941306.

DEHNshield TNS

Nr kat. 941400 DSH TNS 255

Nie masz uprawnień, by pobrać 941400.stp

Nie masz uprawnień, by pobrać 941400.igs

Nie masz uprawnień, by pobrać 941400.jt

Nie masz uprawnień, by pobrać 941400.dwg

Nie masz uprawnień, by pobrać 941310+400m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941400.wspak

Nie masz uprawnień, by pobrać 941400_eplan.zip

Funkcja falochronu

Produkt 941400 został dodany do notatnika.

Do koszyka dodano produkt 941400.

DEHNshield TNS FM

Nr kat. 941405 DSH TNS 255 FM

Nie masz uprawnień, by pobrać 941315.stp

Nie masz uprawnień, by pobrać 941315.igs

Nie masz uprawnień, by pobrać 941315.jt

Nie masz uprawnień, by pobrać 941315.dwg

Nie masz uprawnień, by pobrać 941315+316+405+406m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941405.wspak

Nie masz uprawnień, by pobrać 941315_eplan.zip

Funkcja falochronu

Produkt 941405 został dodany do notatnika.

Do koszyka dodano produkt 941405.

DEHNshield TNS Basic FM

Nr kat. 941406 DSH B TNS 255 FM

Nie masz uprawnień, by pobrać 941315.stp

Nie masz uprawnień, by pobrać 941315.jt

Nie masz uprawnień, by pobrać 941315.jt

Nie masz uprawnień, by pobrać 941315.dwg

Nie masz uprawnień, by pobrać 941315+316+405+406m_E.dxf

Nie masz uprawnień, by pobrać DEHN.941406.wspak

Nie masz uprawnień, by pobrać 941315_eplan.zip

Funkcja falochronu

Produkt 941406 został dodany do notatnika.

Do koszyka dodano produkt 941406.

DEHNshield TT

Nr kat. 941310 DSH TT 255

Nie masz uprawnień, by pobrać 941400.stp

Nie masz uprawnień, by pobrać 941400.igs

Nie masz uprawnień, by pobrać 941400.jt

Nie masz uprawnień, by pobrać 941400.dwg
