Nr kat. 372330 AKK AL B11.11 KBF 3 20 STTZN

GTIN / EAN 4013364515758, Nr taryfy celnej (EU): 85359000, Waga brutto: 278.21 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

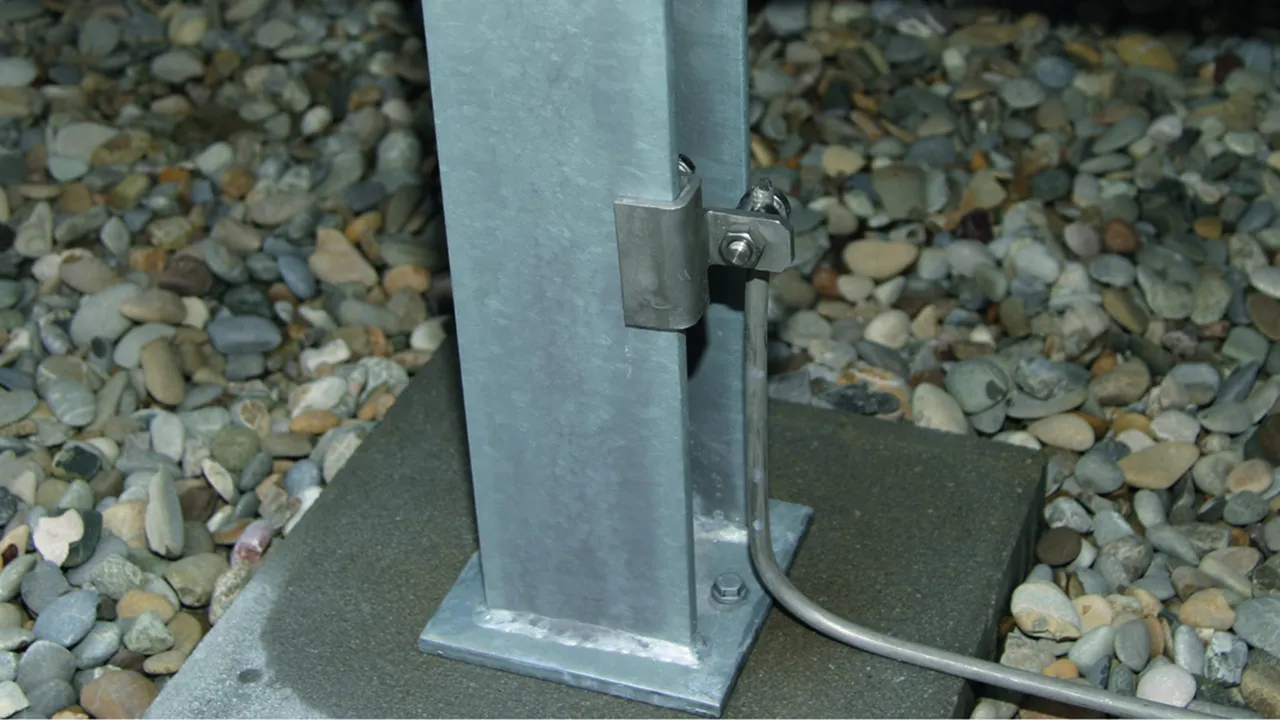

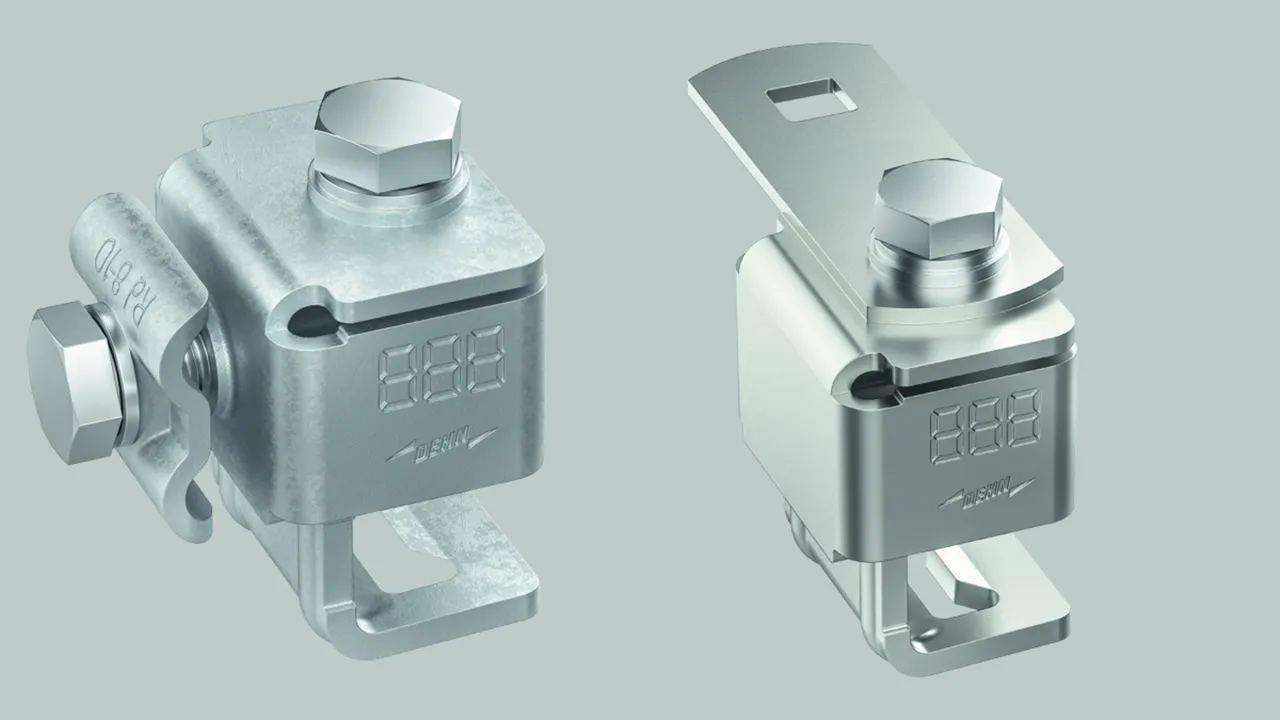

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures

Clamping range: 3-20 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 3 20 STTZN
Part No.: 372330
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-20 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372330 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372330.

Idź do sklepu internetowego

Nr kat. 372339 AKK AL B11.11 KBF 3 20 V2A

GTIN / EAN 4013364518988, Nr taryfy celnej (EU): 85359000, Waga brutto: 263.25 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 3 20 V2A
Part No.: 372339
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-20 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372339 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372339.

Idź do sklepu internetowego

Nr kat. 372300 AKK DUL 8.10 KBF 3 20 STTZN

GTIN / EAN 4013364515765, Nr taryfy celnej (EU): 85359000, Waga brutto: 250.66 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 3 20 STTZN
Part No.: 372300
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-20 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372300.

Idź do sklepu internetowego

Nr kat. 372309 AKK DUL 8.10 KBF 3 20 V2A

GTIN / EAN 4013364518971, Nr taryfy celnej (EU): 85359000, Waga brutto: 266.98 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 3 20 V2A
Part No.: 372309
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-20 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372309 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372309.

Idź do sklepu internetowego

Nr kat. 372340 AKK AL B11.11 KBF 20 36 STTZN

GTIN / EAN 4013364520400, Nr taryfy celnej (EU): 85359000, Waga brutto: 298.72 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 20 36 STTZN
Part No.: 372340
or equivalent.

Dane techniczne

Clamping range	20-36 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372340 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372340.

Idź do sklepu internetowego

Nr kat. 372349 AKK AL B11.11 KBF 20 36 V2A

GTIN / EAN 4013364520349, Nr taryfy celnej (EU): 85359000, Waga brutto: 282.53 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 20 36 V2A
Part No.: 372349
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	20-36 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372349 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372349.

Idź do sklepu internetowego

Nr kat. 372310 AKK DUL 8.10 KBF 20 36 STTZN

GTIN / EAN 4013364520363, Nr taryfy celnej (EU): 85359000, Waga brutto: 304.56 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 20 36 STTZN
Part No.: 372310
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	20-36 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372310.

Idź do sklepu internetowego

Nr kat. 372319 AKK DUL 8.10 KBF 20 36 V2A

GTIN / EAN 4013364520370, Nr taryfy celnej (EU): 85359000, Waga brutto: 285.95 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 20 36 V2A
Part No.: 372319
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	20-36 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372319 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372319.

Idź do sklepu internetowego

Nr kat. 372350 AKK AL B11.11 KBF 36 52 STTZN

GTIN / EAN 4013364520356, Nr taryfy celnej (EU): 85359000, Waga brutto: 327.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 36 52 STTZN
Part No.: 372350
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	36-52 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372350 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372350.

Idź do sklepu internetowego

Nr kat. 372359 AKK AL B11.11 KBF 36 52 V2A

GTIN / EAN 4013364520103, Nr taryfy celnej (EU): 85359000, Waga brutto: 303.90 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 36 52 V2A
Part No.: 372359
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	36-52 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372359 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372359.

Idź do sklepu internetowego

Nr kat. 372320 AKK DUL 8.10 KBF 36 52 STTZN

GTIN / EAN 4013364520387, Nr taryfy celnej (EU): 85359000, Waga brutto: 321.44 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 36 52 STTZN
Part No.: 372320
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	36-52 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372320 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372320.

Idź do sklepu internetowego

Nr kat. 372329 AKK DUL 8.10 KBF 36 52 V2A

GTIN / EAN 4013364520394, Nr taryfy celnej (EU): 85359000, Waga brutto: 308.22 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 36 52 V2A
Part No.: 372329
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	36-52 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Produkt 372329 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372329.

Idź do sklepu internetowego

Nr kat. 372110 AK 6.10 KB S KBF3 18 STTZN

GTIN / EAN 4013364119055, Nr taryfy celnej (EU): 85359000, Waga brutto: 287.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 STTZN
Part No.: 372110
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372110.

Idź do sklepu internetowego

Nr kat. 372119 AK 6.10 KB S KBF3 18 V2A

GTIN / EAN 4013364119178, Nr taryfy celnej (EU): 85359000, Waga brutto: 282.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 V2A
Part No.: 372119
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372119 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372119.

Idź do sklepu internetowego

Nr kat. 372140 AK 6.10 KB S KBF18 35 STTZN

GTIN / EAN 4013364119086, Nr taryfy celnej (EU): 85359000, Waga brutto: 340.20 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Conneciton clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 STTZN
Part No.: 372140
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372140 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372140.

Idź do sklepu internetowego

Nr kat. 372149 AK 6.10 KB S KBF18 35 V2A

GTIN / EAN 4013364119208, Nr taryfy celnej (EU): 85359000, Waga brutto: 331.10 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 V2A
Part No.: 372149
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372149 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372149.

Idź do sklepu internetowego

Nr kat. 372210 AK 6.10 KB W KBF3 18 STTZN

GTIN / EAN 4013364119116, Nr taryfy celnej (EU): 85359000, Waga brutto: 288.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 STTZN
Part No.: 372210
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372210 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372210.

Idź do sklepu internetowego

Nr kat. 372219 AK 6.10 KB W KBF3 18 V2A

GTIN / EAN 4013364119239, Nr taryfy celnej (EU): 85359000, Waga brutto: 282.90 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 V2A
Part No.: 372219
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372219 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372219.

Idź do sklepu internetowego

Nr kat. 372240 AK 6.10 KB W KBF18 35 STTZN

GTIN / EAN 4013364119147, Nr taryfy celnej (EU): 85359000, Waga brutto: 339.50 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 STTZN
Part No.: 372240
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372240 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372240.

Idź do sklepu internetowego

Nr kat. 372249 AK 6.10 KB W KBF18 35 V2A

GTIN / EAN 4013364119260, Nr taryfy celnej (EU): 85359000, Waga brutto: 330.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 V2A
Part No.: 372249
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372249 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372249.

Idź do sklepu internetowego

Nr kat. 372120 AK 7.10 KSV S KBF3 18 STTZN

GTIN / EAN 4013364119062, Nr taryfy celnej (EU): 85359000, Waga brutto: 292.30 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF3 18 STTZN
Part No.: 372120
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372120 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372120.

Idź do sklepu internetowego

Nr kat. 372129 AK 6.10 KSV S KBF3 18 V2A

GTIN / EAN 4013364119185, Nr taryfy celnej (EU): 85359000, Waga brutto: 280.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF3 18 V2A
Part No.: 372129
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372129 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372129.

Idź do sklepu internetowego

Nr kat. 372150 AK 7.10 KSV S KBF18 35 STTZN

GTIN / EAN 4013364119093, Nr taryfy celnej (EU): 85359000, Waga brutto: 343.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF18 35 STTZN
Part No.: 372150
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372150 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372150.

Idź do sklepu internetowego

Nr kat. 372159 AK 6.10 KSV S KBF18 35 V2A

GTIN / EAN 4013364119215, Nr taryfy celnej (EU): 85359000, Waga brutto: 337.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF18 35 V2A
Part No.: 372159
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372159 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372159.

Idź do sklepu internetowego

Nr kat. 372220 AK 7.10 KSV W KBF3 18 STTZN

GTIN / EAN 4013364119123, Nr taryfy celnej (EU): 85359000, Waga brutto: 292.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF3 18 STTZN
Part No.: 372220
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372220 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372220.

Idź do sklepu internetowego

Nr kat. 372229 AK 6.10 KSV W KBF3 18 V2A

GTIN / EAN 4013364119246, Nr taryfy celnej (EU): 85359000, Waga brutto: 287.90 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF3 18 V2A
Part No.: 372229
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372229 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372229.

Idź do sklepu internetowego

Nr kat. 372250 AK 7.10 KSV W KBF18 35 STTZN

GTIN / EAN 4013364119154, Nr taryfy celnej (EU): 85359000, Waga brutto: 342.60 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF18 35 STTZN
Part No.: 372250
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372250 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372250.

Idź do sklepu internetowego

Nr kat. 372259 AK 6.10 KSV W KBF18 35 V2A

GTIN / EAN 4013364119277, Nr taryfy celnej (EU): 85359000, Waga brutto: 335.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF18 35 V2A
Part No.: 372259
or equivalent.

Certyfikaty

Dane techniczne

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Produkt 372259 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 372259.

Idź do sklepu internetowego

Connection Clamps for Steel Girders

Small version

Nr kat. 372330 AKK AL B11.11 KBF 3 20 STTZN

Nie masz uprawnień, by pobrać 372330.stp

Nie masz uprawnień, by pobrać 372330.igs

Nie masz uprawnień, by pobrać 372330.jt

Nie masz uprawnień, by pobrać 372330.dwg

Nie masz uprawnień, by pobrać 372330m_D.dxf

Produkt 372330 został dodany do notatnika.

Do koszyka dodano produkt 372330.

Nr kat. 372339 AKK AL B11.11 KBF 3 20 V2A

Nie masz uprawnień, by pobrać 372339.stp

Nie masz uprawnień, by pobrać 372339.igs

Nie masz uprawnień, by pobrać 372339.jt

Nie masz uprawnień, by pobrać 372339.dwg

Nie masz uprawnień, by pobrać 372339m_D.dxf

Produkt 372339 został dodany do notatnika.

Do koszyka dodano produkt 372339.

Nr kat. 372300 AKK DUL 8.10 KBF 3 20 STTZN

Nie masz uprawnień, by pobrać 372300_372309.stp

Nie masz uprawnień, by pobrać 372300_372309.igs

Nie masz uprawnień, by pobrać 372300_372309.jt

Nie masz uprawnień, by pobrać 372300_372309.dwg

Nie masz uprawnień, by pobrać 372300_372309m_D.dxf

Produkt 372300 został dodany do notatnika.

Do koszyka dodano produkt 372300.

Nr kat. 372309 AKK DUL 8.10 KBF 3 20 V2A

Nie masz uprawnień, by pobrać 372300_372309.stp

Nie masz uprawnień, by pobrać 372300_372309.igs

Nie masz uprawnień, by pobrać 372300_372309.jt

Nie masz uprawnień, by pobrać 372300_372309.dwg

Nie masz uprawnień, by pobrać 372300_372309m_D.dxf

Produkt 372309 został dodany do notatnika.

Do koszyka dodano produkt 372309.

Medium version

Nr kat. 372340 AKK AL B11.11 KBF 20 36 STTZN

Nie masz uprawnień, by pobrać 372340.stp

Nie masz uprawnień, by pobrać 372340.igs

Nie masz uprawnień, by pobrać 372340.jt

Nie masz uprawnień, by pobrać 372340.dwg

Nie masz uprawnień, by pobrać 372340m_D.dxf

Produkt 372340 został dodany do notatnika.

Do koszyka dodano produkt 372340.

Nr kat. 372349 AKK AL B11.11 KBF 20 36 V2A

Nie masz uprawnień, by pobrać 372349.stp

Nie masz uprawnień, by pobrać 372349.igs

Nie masz uprawnień, by pobrać 372349.jt

Nie masz uprawnień, by pobrać 372349.dwg

Nie masz uprawnień, by pobrać 372349m_D.dxf

Produkt 372349 został dodany do notatnika.

Do koszyka dodano produkt 372349.

Nr kat. 372310 AKK DUL 8.10 KBF 20 36 STTZN

Nie masz uprawnień, by pobrać 372310_372319.stp

Nie masz uprawnień, by pobrać 372310_372319.igs

Nie masz uprawnień, by pobrać 372310_372319.jt

Nie masz uprawnień, by pobrać 372310_372319.dwg

Nie masz uprawnień, by pobrać 372310_372319m_D.dxf

Produkt 372310 został dodany do notatnika.

Do koszyka dodano produkt 372310.

Nr kat. 372319 AKK DUL 8.10 KBF 20 36 V2A

Nie masz uprawnień, by pobrać 372310_372319.stp

Nie masz uprawnień, by pobrać 372310_372319.igs

Nie masz uprawnień, by pobrać 372310_372319.jt

Nie masz uprawnień, by pobrać 372310_372319.dwg

Nie masz uprawnień, by pobrać 372310_372319m_D.dxf

Produkt 372319 został dodany do notatnika.

Do koszyka dodano produkt 372319.

Large version

Nr kat. 372350 AKK AL B11.11 KBF 36 52 STTZN

Nie masz uprawnień, by pobrać 372350.stp

Nie masz uprawnień, by pobrać 372350.igs

Nie masz uprawnień, by pobrać 372350.jt

Nie masz uprawnień, by pobrać 372350.dwg

Nie masz uprawnień, by pobrać 372350m_D.dxf

Produkt 372350 został dodany do notatnika.

Do koszyka dodano produkt 372350.

Nr kat. 372359 AKK AL B11.11 KBF 36 52 V2A

Nie masz uprawnień, by pobrać 372359.stp

Nie masz uprawnień, by pobrać 372359.igs

Nie masz uprawnień, by pobrać 372359.jt
