Accessories for HVI power Conductor / HVI power long Conductor

Roof conductor holder for roofs with standing seam

1 Produkt

Nr kat. 202862 DLH SF ZS 27 V2A

GTIN / EAN 4013364354203, Nr taryfy celnej (EU): 85389099, Waga brutto: 164.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder for metal roof for HVI power Conductor
Roof conductor holder with slotted two-screw clamp for fixing the
HVI power Conductor onto metal roofs with standing seam
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: 0.7-8 mm
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH SF ZS 27 V2A
Part No.: 202862
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range 0.7-8 mm
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 202862 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202862.

Idź do sklepu internetowego

Concrete block

1 Produkt

Nr kat. 253301 BES 4.6KG SB10 180X180X70

GTIN / EAN 4013364129788, Nr taryfy celnej (EU): 68109100, Waga brutto: 4.60 kg, Jednostka opakowaniowa: 24.00 pc(s)

Rysunki

Informacje dodatkowe

Concrete block
Separate concrete block
For stabilising the base plate
with inserted spacer bar
DEHNGEPRUEFT: no
Type : square, open
Material: concrete (C35/45)
Dimensions: 180 x 180 x 70 mm

Brand: DEHN
Type: BES 4.6KG SB10 180X180X70
Part No.: 253301
or equivalent.



Dane techniczne

Material concrete (C35/45)
Dimensions 180 x 180 x 70 mm

Produkt 253301 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253301.

Idź do sklepu internetowego

Concrete base

1 Produkt

Nr kat. 102075 BES 8.5KG KT10 16 D240 SET

GTIN / EAN 4013364094215, Nr taryfy celnej (EU): 68109100, Waga brutto: 8.46 kg, Jednostka opakowaniowa: 120.00 pc(s)

Rysunki

Informacje dodatkowe

Concrete base with wedge
Concrete base for mounting air-termination tips length 1 m,
e.g. Part No. 101 001 to protect small roof-mounted structures on flat roofs
or for installing DEHNiso spacers for, e.g. isolated ring conductors

DEHNGEPRUEFT: no
Total weight: 8.5 kg
Diameter Ø: 240 mm
Material: concrete (C45/55)
Material of wedge / adapter: StSt

Brand: DEHN
Type: BES 8.5KG KT10 16 D240 SET
Part No.: 102075
or equivalent.

Certyfikaty



Dane techniczne

Total weight 8.5 kg
Diameter Ø 240 mm
Material concrete (C45/55)
Material of wedge / adapter StSt

Produkt 102075 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 102075.

Idź do sklepu internetowego

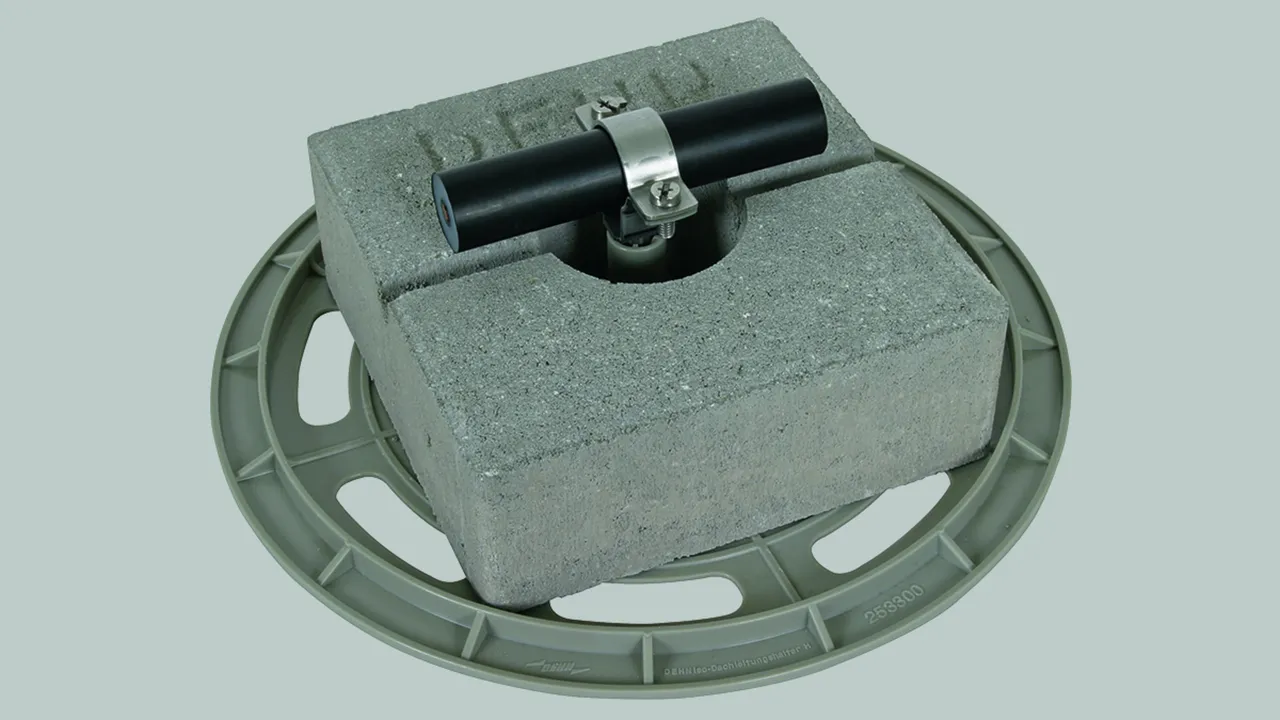

Roof conductor holder

1 Produkt

Nr kat. 253333 DLH ZS 27 V2A BES180 GP300 K

GTIN / EAN 4013364153578, Nr taryfy celnej (EU): 85389099, Waga brutto: 4.74 kg, Jednostka opakowaniowa: 24.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder with two-screw clamp
Roof conductor holder with two-screw clamp
for installing HVI power Conductors on flat roofs.
For use with a concrete block and base plate.
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH ZS 27 V2A BES180 GP300 K
Part No.: 253333
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 253333 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253333.

Idź do sklepu internetowego

Spacer with EB element for HVI power Conductor (length of variable sealing end 350-900 mm)

1 Produkt

Nr kat. 105462 DIDH PAE 27 D16 1270 AL V2A

GTIN / EAN 4013364381537, Nr taryfy celnej (EU): 85389099, Waga brutto: 892.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Spacer with EB element length 1270mm
Spacer for establishing the variable
sealing end of the HVI power Conductor
With MV clamp for connection of
Rd 16 mm / Rd 8-10 mm.
Concrete base (Part No. 102 010, weight 17 kg) and
base plate (Part No. 102 050) must be ordered
separately.
Material of spacer: Al
Lenght of spacer : 1270
Conductor support Rd: 27 mm
Material of conductor holder: StSt
Clamping range Rd MV clamp: 8-10 / 16 mm
Material of clamp: Al
Length of variable sealing end: 350-900 mm
Max. gust wind speed (1 base, 17 kg each; l = 900 mm): 100 km/h
Max. gust wind speed (2 bases, 17 kg each; l = 900 mm): 141 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH PAE 27 D16 1270 AL V2A
Part No.: 105462
or equivalent.

Certyfikaty



Dane techniczne

Material of spacer Al
Lenght of spacer 1270
Conductor support Rd 27 mm
Material of conductor holder StSt
Clamping range Rd MV clamp 8-10 / 16 mm
Material of clamp Al
Length of variable sealing end 350-900 mm
Max. gust wind speed (1 base, 17 kg each; l = 900 mm) 100 km/h
Max. gust wind speed (2 bases, 17 kg each; l = 900 mm) 141 km/h
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105462 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105462.

Idź do sklepu internetowego

Roof conductor holder for roofs with round standing seam

1 Produkt

Nr kat. 202860 DLH RSF ZS 27 V2A

GTIN / EAN 4013364354180, Nr taryfy celnej (EU): 85389099, Waga brutto: 211.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder for metal roof for HVI power Conductor
Roof conductor holder with two-screw saddle clamp for fixing the HVI power Conductor
onto metal roofs with round standing seam
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: Ø20-25 mm
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH RSF ZS 27 V2A
Part No.: 202860
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range Ø20-25 mm
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 202860 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202860.

Idź do sklepu internetowego

Roof conductor holder

1 Produkt

Nr kat. 253334 DLH ZS 27 V2A 8.5KG KT D240 ULP

GTIN / EAN 4013364154933, Nr taryfy celnej (EU): 85389099, Waga brutto: 8.59 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder with two-screw cleat
Roof conductor holder with two-screw cleat
for installing HVI power Conductors on flat roofs.
For use with a concrete block and support plate.
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH ZS 27 V2A 8.5KG KT D240 ULP
Part No.: 253334
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 253334 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253334.

Idź do sklepu internetowego

Concrete base

1 Produkt

Nr kat. 102010 BES 17KG KT16 D337 SET

GTIN / EAN 4013364057814, Nr taryfy celnej (EU): 68109100, Waga brutto: 17.62 kg, Jednostka opakowaniowa: 54.00 pc(s)

Rysunki

Informacje dodatkowe

Concrete base with fixing wedge
Concrete base with fixing wedge for air-termination rods or self-supporting air-termination rods with tripod for protection of roof superstructures on flat roofs, or for installing spacers of the DEHNiso spacer programme for, e.g. the sealing end of the HVI Conductor, the adjusting range of the HVI light Conductor or for isolated ring conductors
Stackable, weather and frost-proof
DEHNGEPRUEFT: no
Weight: 17 kg
Support: with fixing wedge Ø16 mm
Diameter Ø: 337 mm
Material: concrete (C45/55)
Material of wedge / adapter: StSt

Brand: DEHN
Type: BES 17KG KT16 D337 SET
Part No.: 102010
or equivalent.

Certyfikaty



Dane techniczne

Weight 17 kg
Support with fixing wedge Ø16 mm
Diameter Ø 337 mm
Material concrete (C45/55)
Material of wedge / adapter StSt

Produkt 102010 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 102010.

Idź do sklepu internetowego

Variable tripod with EB element for HVI power Conductor (length of variable sealing end 1500 - 1800 mm)

1 Produkt

Nr kat. 105467 V DBS RA320 PAE 27 V 750 1510 V2A

GTIN / EAN 4013364381599, Nr taryfy celnej (EU): 85389099, Waga brutto: 4.19 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Tripod with EB element length max. 1510mm
Variable tripod for establishing the variable
sealing end of the HVI power Conductor
With UNI earthing clamp for connecting
1x Rd 8-10 mm and 1x conductor 4-50 mm²
Concrete base (Part No. 102 010, weight 8.5 kg) and
base plate (Part No. 102 060) must be ordered
separately.
Material of tripod: StSt
Conductor support Rd: 27 mm
Adjustment range of spacer: 750-1510 mm
Length of variable sealing end: 1500-1800 mm
Max. gust wind speed (3 bases, each 8.5 kg; l = 1500 mm): 104 km/h
Max. gust wind speed (3 bases, each 8.5 kg; l = 1800 mm): 93 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: V DBS RA320 PAE 27 V 750 1510 V2A
Part No.: 105467
or equivalent.

Certyfikaty



Dane techniczne

Material of tripod StSt
Radius 320 mm
Number of concrete bases 3 (8.5 kg each)
Conductor support Rd 27 mm
Adjustment range of spacer 750-1510 mm
Length of variable sealing end 1500-1800 mm
Max. gust wind speed (3 bases, each 8.5 kg; l = 1500 mm) 104 km/h
Max. gust wind speed (3 bases, each 8.5 kg; l = 1800 mm) 93 km/h
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105467 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105467.

Idź do sklepu internetowego

Base plate

1 Produkt

Nr kat. 253300 GP B10 H60 D300 KS GR

GTIN / EAN 4013364129771, Nr taryfy celnej (EU): 85389099, Waga brutto: 196.67 g, Jednostka opakowaniowa: 24.00 pc(s)

Rysunki

Informacje dodatkowe

Base plate
Separate base plate
To hold the spacer bar and
to protect the roof sheeting under the concrete block.
DEHNGEPRUEFT: no
Diameter Ø: 300 mm
Diameter Ø of lock bush: 10 mm
Height: 60 mm
Material: plastic

Brand: DEHN
Type: GP B10 H60 D300 KS GR
Part No.: 253300
or equivalent.



Dane techniczne

Diameter Ø 300 mm
Diameter Ø of lock bush 10 mm
Height 60 mm
Material plastic
Colour grey ●

Produkt 253300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253300.

Idź do sklepu internetowego

Conductor holder

1 Produkt

Nr kat. 253331 LH ZS 27 KT D16 L85 V2A

GTIN / EAN 4013364155206, Nr taryfy celnej (EU): 85389099, Waga brutto: 180.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder for installing HVI power Conductors, StSt
Conductor holder with two-screw clamp for
installing the HVI Conductor on flat roofs.
Material: StSt
Conductor support Rd: 27 mm
Height of conductor holder: approx. 125 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 KT D16 L85 V2A
Part No.: 253331
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 27 mm
Height of conductor holder approx. 125 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 253331 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253331.

Idź do sklepu internetowego

Roof conductor holder

1 Produkt

Nr kat. 202857 DLH ZS 27 30 H55 L205 V2A

GTIN / EAN 4013364153189, Nr taryfy celnej (EU): 85389099, Waga brutto: 132.64 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder, StSt
Roof conductor holder with two-screw clamp
and embossed brace for installing
HVI power Conductors on the surface of gable roofs
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH ZS 27 30 H55 L205 V2A
Part No.: 202857
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 27 mm
Length of brace 205 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 202857 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202857.

Idź do sklepu internetowego

Roof conductor holder for roofs with clamping seam (e.g. RIB-ROOF Speed 500 from Zambelli)

1 Produkt

Nr kat. 202861 DLH KF ZS 27 V2A

GTIN / EAN 4013364354197, Nr taryfy celnej (EU): 85389099, Waga brutto: 221.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder for installing the HVI power Conductor on metal roofs
Roof conductor holder with slotted two-screw clamp for fixing the
HVI power Conductor onto metal roofs with clamping seam
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: approx. 18 / 22 mm
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH KF ZS 27 V2A
Part No.: 202861
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range approx. 18 / 22 mm
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 202861 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202861.

Idź do sklepu internetowego

Variable tripod with EB element for HVI power Conductor (length of variable sealing end 900 - 1500 mm)

1 Produkt

Nr kat. 105468 V DBS RA320 PAE 27 V 600 1180 V2A

GTIN / EAN 4013364381582, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.74 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Tripod with EB element length max. 1180mm
Variable tripod for establishing the variable
sealing end of the HVI power Conductor
With UNI earthing clamp for connecting
1x Rd 8-10 mm and 1x conductor 4-50 mm²
Concrete base (Part No. 102 010, weight 17 kg) and
base plate (Part No. 102 050) must be ordered
separately.
Material of tripod: StSt
Conductor support Rd: 27 mm
Adjustment range of spacer: 600-1180 mm
Length of variable sealing end: 900-1500 mm
Max. gust wind speed (3 bases, 8.5 kg each; l = 900 mm): 170 km/h
Max. gust wind speed (3 bases, 8.5 kg each; l = 1500 mm): 104 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: V DBS RA320 PAE 27 V 600 1180 V2A
Part No.: 105468
or equivalent.

Certyfikaty



Dane techniczne

Material of tripod StSt
Radius 320 mm
Number of concrete bases 3 (8.5 kg each)
Conductor support Rd 27 mm
Adjustment range of spacer 600-1180 mm
Length of variable sealing end 900-1500 mm
Max. gust wind speed (3 bases, 8.5 kg each; l = 900 mm) 170 km/h
Max. gust wind speed (3 bases, 8.5 kg each; l = 1500 mm) 104 km/h
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105468 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105468.

Idź do sklepu internetowego

Conductor holder with tensioning strap

1 Produkt

Nr kat. 275339 LH ZS 27 SB50.300 V2A

GTIN / EAN 4013364223332, Nr taryfy celnej (EU): 85389099, Waga brutto: 257.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with tensioning strap for HVI power Conductors
Stainless steel conductor holder for HVI power Conductors for fixing to, e.g. pipes or antenna masts
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Tensioning range Ø pipe: 50-300 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 SB50.300 V2A
Part No.: 275339
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Tensioning range Ø pipe 50-300 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275339 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275339.

Idź do sklepu internetowego

Conductor holder for fixing with a tensioning strap

1 Produkt

Nr kat. 275359 LH ZS 27 30 SBH 25X0.3 V2A

GTIN / EAN 4013364223271, Nr taryfy celnej (EU): 85389099, Waga brutto: 142.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder, StSt, for HVI power Conductors
Stainless steel conductor holder for HVI power Conductors to be fixed e.g. at pipes or antenna masts e.g. by means of a pipe clamp (Part No. 106 323)
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 30 SBH 25X0.3 V2A
Part No.: 275359
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275359 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275359.

Idź do sklepu internetowego

Spacer for HVI power Conductor

1 Produkt

Nr kat. 106814 DH ZS 27 30 D16 1500 GFK PA

GTIN / EAN 4013364381483, Nr taryfy celnej (EU): 85389099, Waga brutto: 673.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Spacer for HVI power Conductor GRP
Spacer for HVI power Conductor for the
variable sealing end range
For erection in two concrete bases with fixing wedges
Spacer (insulating clearance) made of glass-fibre
reinforced plastic (GRP) Ø16 mm
Material factor km = 0.7
Colour (lightgrey), UV stabilised
The spacers are dimensioned according to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Material of conductor holder / adapter: PA
Length: 1500 mm
Conductor support Rd: 27 mm
Thread: M8
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DH ZS 27 30 D16 1500 GFK PA
Part No.: 106814
or equivalent.

Certyfikaty



Dane techniczne

Material of spacer GRP
Material of conductor holder / adapter PA
Number of concrete bases 2 (17 kg each)
Length 1500 mm
Insulating clearance 1475 mm
Conductor support Rd 27 mm
Thread M8
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 106814 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 106814.

Idź do sklepu internetowego

Separate grip head

1 Produkt

Nr kat. 106324 SPK 25X0.3 V2A

GTIN / EAN 4013364099074, Nr taryfy celnej (EU): 85389099, Waga brutto: 51.70 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

Grip head, StSt
Pipe clamp for attachment and clip
Separate grip head, for combination with endless tensioning strap (Part No. 540 901)
for larger pipe diameters, e.g. for attachment with fixing bush (Part No. 106 322)

DEHNGEPRUEFT: no
Material of head: StSt
For strap: 25 x 0.3 mm
Screw: M8 x 20 mm
Material of screw: StSt

Brand: DEHN
Type: SPK 25X0.3 V2A
Part No.: 106324
or equivalent.

Certyfikaty



Dane techniczne

Material of head StSt
For strap (w x d) 25 x 0.3 mm
Screw di M8 x 20 mm
Material of screw StSt

Produkt 106324 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 106324.

Idź do sklepu internetowego

Conductor holder

1 Produkt

Nr kat. 275249 LH ZS 27 KS H10 V2A

GTIN / EAN 4013364152366, Nr taryfy celnej (EU): 85389099, Waga brutto: 60.20 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with plastic base for HVI power Conductors
Conductor holder for HVI power Conductors
e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Thread: M8
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 KS H10 V2A
Part No.: 275249
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Thread M8
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275249 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275249.

Idź do sklepu internetowego

Conductor holder

1 Produkt

Nr kat. 253330 LH ZS 27 DS10 L75 V2A

GTIN / EAN 4013364153585, Nr taryfy celnej (EU): 85389099, Waga brutto: 101.29 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder StSt for installing the HVI power Conductor
Conductor holder with two-screw clamp for installing the
HVI power Conductor on flat roofs.
Material: StSt
Conductor support Rd: 27 mm
Height of conductor holder: approx. 87 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 DS10 L75 V2A
Part No.: 253330
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 27 mm
Height of conductor holder approx. 87 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 253330 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 253330.

Idź do sklepu internetowego

Tensioning strap

1 Produkt

Nr kat. 540901 SPB 25X0.3 L100M V2A

GTIN / EAN 4013364076525, Nr taryfy celnej (EU): 73269098, Waga brutto: 6.30 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pipe clamps for hazardous areas, tensioning strap
Earthing pipe clamp for combination with different
fixing elements or connection components
DEHNGEPRUEFT: no
Material: StSt
Strap dimensions: 25 x 0.3 mm
Length: 100 m

Brand: DEHN
Type: SPB 25X0.3 L100M V2A
Part No.: 540901
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Strap dimensions (w x d) 25 x 0.3 mm
Length 100 m

Produkt 540901 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540901.

Idź do sklepu internetowego

Conductor holder

1 Produkt

Nr kat. 275242 LH ZS 27 B5.5X10 V2A

GTIN / EAN 4013364152359, Nr taryfy celnej (EU): 85389099, Waga brutto: 55.50 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with slot for HVI power Conductors
Conductor holder for HVI power Conductors
e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Fixing hole: 5.5 x 10 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 B5.5X10 V2A
Part No.: 275242
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Fixing hole 5.5 x 10 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275242 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275242.

Idź do sklepu internetowego

Base plate

1 Produkt

Nr kat. 102060 ULP KS D280 SW

GTIN / EAN 4013364094987, Nr taryfy celnej (EU): 39269097, Waga brutto: 139.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Base plate to protect the roof sheeting, small
Base plate to protect the roof sheeting under the concrete base
DEHNGEPRUEFT: no
Outside diameter Ø : 280 mm
Inside diameter Ø : 270 mm
Material : EVA
Colour: black ●

Brand: DEHN
Type: ULP KS D280 SW
Part No.: 102060
or equivalent.



Dane techniczne

Outside diameter Ø 280 mm
Inside diameter Ø 270 mm
Material EVA
Colour black ●

Produkt 102060 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 102060.

Idź do sklepu internetowego

Base plate

1 Produkt

Nr kat. 102050 ULP KS D370 SW

GTIN / EAN 4013364045996, Nr taryfy celnej (EU): 39269097, Waga brutto: 217.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Base plate to protect the roof sheeting, large
Base plate to protect the roof sheeting
under the concrete base
DEHNGEPRUEFT: no
Outside diameter Ø : 370 mm
Inside diameter Ø : 360 mm
Material: EVA
Colour: black ●

Brand: DEHN
Type: ULP KS D370 SW
Part No.: 102050
or equivalent.



Dane techniczne

Outside diameter Ø 370 mm
Inside diameter Ø 360 mm
Material EVA
Colour black ●

Produkt 102050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 102050.

Idź do sklepu internetowego

Roof conductor holder with connection lug

1 Produkt

Nr kat. 202863 DLH AL ZS 27 V2A

GTIN / EAN 4013364354210, Nr taryfy celnej (EU): 85389099, Waga brutto: 119.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Roof conductor holder for installing the HVI Conductor on metal roofs
Roof conductor holder with slotted saddle clamp for HVI power Conductor
and Z-shaped connection lug for riveting or screwing to metal roofs.
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Fixing: [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH AL ZS 27 V2A
Part No.: 202863
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Material of conductor holder StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd 27 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 202863 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202863.

Idź do sklepu internetowego

Conductor holder

2 Produkty

Nr kat. 275240 LH ZS 27 GM8 V2A

GTIN / EAN 4013364152335, Nr taryfy celnej (EU): 85389099, Waga brutto: 55.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with thread for HVI power Conductors, StSt
Conductor holder for HVI power Conductors
e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Thread: M8
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 GM8 V2A
Part No.: 275240
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Thread M8
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275240 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275240.

Idź do sklepu internetowego

Nr kat. 275241 LH ZS 27 GM6 V2A

GTIN / EAN 4013364152342, Nr taryfy celnej (EU): 85389099, Waga brutto: 56.10 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with thread for HVI power Conductors, StSt
Conductor holder for HVI power Conductors
e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 27 mm
Thread: M6
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 27 GM6 V2A
Part No.: 275241
or equivalent.

Certyfikaty



Dane techniczne

Material of conductor holder StSt
Conductor support Rd 27 mm
Thread M6
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275241 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275241.

Idź do sklepu internetowego

Pipe clamp

1 Produkt

Nr kat. 106323 BRS SPB25 50.300 V2A

GTIN / EAN 4013364097315, Nr taryfy celnej (EU): 85389099, Waga brutto: 121.50 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Pipe clamp, StSt
Pipe clamp for attachment and clip for fixing (clamping) the clip (Part No. 106 321) or the attachment with fixing bush (Part No. 106 322) to different pipes
DEHNGEPRUEFT: no
Material of head / strap: StSt
Clamping range Ø: 50-300 mm
Dimensions of strap: 1100 x 25 x 0.3 mm
Material of screw: StSt

Brand: DEHN
Type: BRS SPB25 50.300 V2A
Part No.: 106323
or equivalent.

Certyfikaty



Dane techniczne

Material of head / strap StSt
Clamping range Ø 50-300 mm
Dimensions of strap 1100 x 25 x 0.3 mm
Material of screw StSt

Produkt 106323 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 106323.

Idź do sklepu internetowego
Powrót na górę
