Fixing Elements for Supporting Tubes

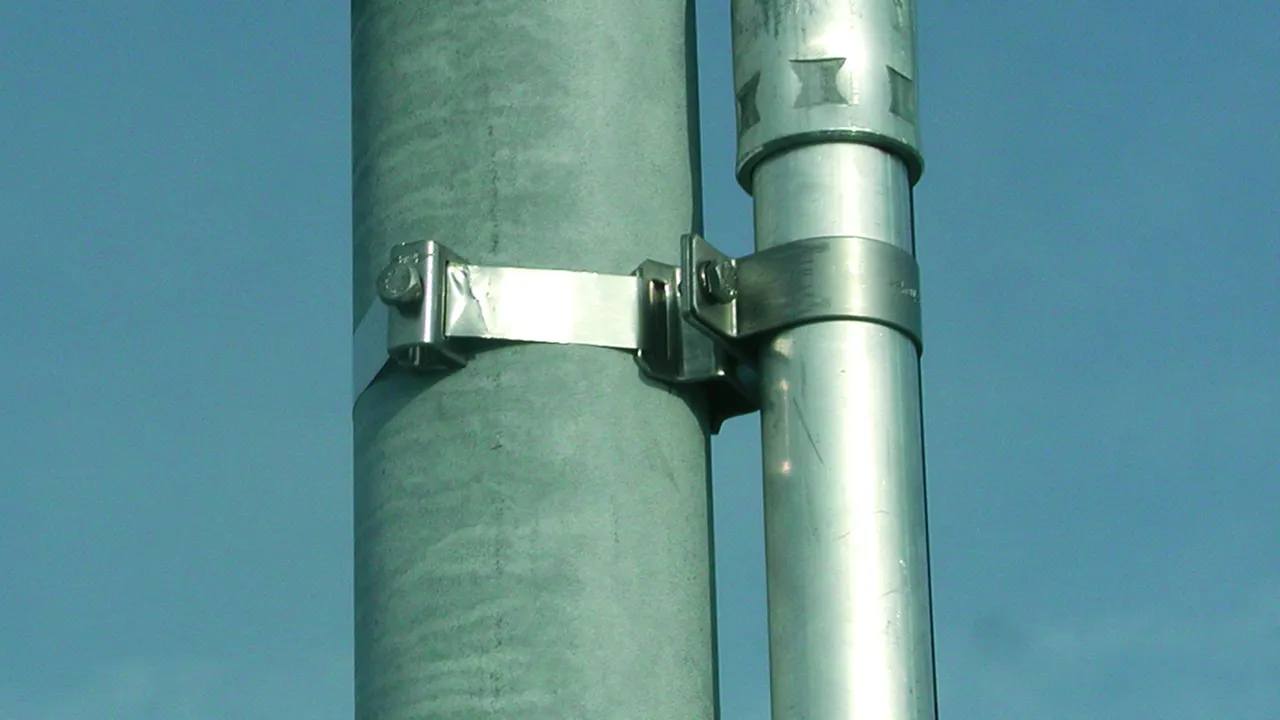

Fixing clamp with tensioning strap

1 Produkt

Nr kat. 105362 BS D50 DS90 SB50.300 V2A

GTIN / EAN 4013364110496, Nr taryfy celnej (EU): 85389099, Waga brutto: 466.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Fixing clamp with tensioning strap with long spacer, StSt
Fixing clamp with tensioning strap for fixing supporting tubes to structures
e.g. antenna masts
with additional spacer (95 mm)
for adjusting, e.g. sector antenna supports to the mast
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 95 mm

Brand: DEHN
Type: BS D50 DS90 SB50.300 V2A
Part No.: 105362
or equivalent.



Dane techniczne

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 95 mm

Produkt 105362 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105362.

Idź do sklepu internetowego

Wall mounting bracket, adjustable from 230-1300 mm

3 Produkty

Nr kat. 105349 WB D40.50 V700.1300 STTZN V2A

GTIN / EAN 4013364288614, Nr taryfy celnej (EU): 85389099, Waga brutto: 5.80 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 700-1300 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V700.1300 STTZN V2A
Part No.: 105349
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 700-1300 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105349 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105349.

Idź do sklepu internetowego

Nr kat. 105343 WB D40.50 V400.700 STTZN V2A

GTIN / EAN 4013364118515, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.60 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bracket for air-termination rods D40 and DEHNcon-H with adjustment range
Support for air-termination rods D40 and DEHNcon-H
For fixing air-termination rods D40 or supporting tubes to the structure to be protected or the wall
Adjustable from 400-700 mm
DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 400-700 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V400.700 STTZN V2A
Part No.: 105343
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 400-700 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105343 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105343.

Idź do sklepu internetowego

Nr kat. 105347 WB D40.50 V230.400 STTZN V2A

GTIN / EAN 4013364278554, Nr taryfy celnej (EU): 85389099, Waga brutto: 2.42 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 230-400 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V230.400 STTZN V2A
Part No.: 105347
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 230-400 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105347 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105347.

Idź do sklepu internetowego

Wall mounting bracket for horizontal mounting, corner

1 Produkt

Nr kat. 105341 EB D50 WA V2A

GTIN / EAN 4013364098800, Nr taryfy celnej (EU): 85389099, Waga brutto: 606.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Mounting bracket, StSt
Mounting bracket for fixing supporting tubes (D50 mm)
to the structure to be protected.
Version for corners.
DEHNGEPRUEFT: no
Material: StSt
Clamping range for supporting tube: 50 mm
Distance from wall / corner: 80 mm
Dimensions of fixing: 152 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Brand: DEHN
Type: EB D50 WA V2A
Part No.: 105341
or equivalent.



Dane techniczne

Material StSt
Clamping range for supporting tube 50 mm
Distance from wall / corner 80 mm
Dimensions of fixing 152 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Produkt 105341 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105341.

Idź do sklepu internetowego

Wall mounting bracket, adjustable from 150-200 mm

1 Produkt

Nr kat. 105344 WB D40.50 V150.200 V2A

GTIN / EAN 4013364147300, Nr taryfy celnej (EU): 85389099, Waga brutto: 1.52 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bracket for air-termination rods D40 and DEHNcon-H, adjustable
Bracket for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes
to structures or walls
adjustable from 150-200 mm
Material of bracket: StSt
Clamping range Rd: 8-10 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 150-200 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing : [4x] 12 x 26 mm
Standard: EN 62561-1

Brand: DEHN
Type: WB D40.50 V150.200 V2A
Part No.: 105344
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket StSt
Clamping range Rd 8-10 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 150-200 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm
Standard EN 62561-1

Produkt 105344 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105344.

Idź do sklepu internetowego

Railing clamp

1 Produkt

Nr kat. 105354 BS D40.50 D48.60 V2A

GTIN / EAN 4013364098725, Nr taryfy celnej (EU): 85389099, Waga brutto: 637.00 g, Jednostka opakowaniowa: 5.00 pc(s)

Rysunki

Informacje dodatkowe

Railing clamp for air-termination rods D40 and DEHNcon-H, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
to structural elements, e.g. railing pipes
DEHNGEPRUEFT: yes
Material: StSt
Clamping range for pipe Ø: 48-60 mm (11/2-2'')
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 D48.60 V2A
Part No.: 105354
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range for pipe Ø 48-60 mm (11/2-2'')
Clamping range for supporting tube 40-50 mm

Produkt 105354 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105354.

Idź do sklepu internetowego

Railing clamp

1 Produkt

Nr kat. 105355 BS D40.50 D70.90 V2A

GTIN / EAN 4013364098732, Nr taryfy celnej (EU): 85389099, Waga brutto: 713.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Railing clamp for pipes, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
to structural elements, e.g. railing pipes
DEHNGEPRUEFT: no
Material: StSt
Clamping range for pipe Ø: 70-90 mm (2 1/4-3'')
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 D70.90 V2A
Part No.: 105355
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range for pipe Ø 70-90 mm (2 1/4-3'')
Clamping range for supporting tube 40-50 mm

Produkt 105355 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105355.

Idź do sklepu internetowego

Railing clamp

2 Produkty

Nr kat. 105356 BS D40.50 4K20.50 V2A

GTIN / EAN 4013364098749, Nr taryfy celnej (EU): 85389099, Waga brutto: 582.20 g, Jednostka opakowaniowa: 5.00 pc(s)

Rysunki

Informacje dodatkowe

Railing clamp for square hollow profiles, StSt
Railing clamp for fixing supporting tubes to structural elements
For square hollow profiles
DEHNGEPRUEFT: no
Material: StSt
Clamping range for square profile: 20 x 20 to 50 x 50 mm
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 4K20.50 V2A
Part No.: 105356
or equivalent.



Dane techniczne

Material StSt
Clamping range for square profile 20 x 20 to 50 x 50 mm
Clamping range for supporting tube 40-50 mm

Produkt 105356 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105356.

Idź do sklepu internetowego

Nr kat. 105376 BS D40.50 4K60.120 V2A

GTIN / EAN 4013364115545, Nr taryfy celnej (EU): 85389099, Waga brutto: 684.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Railing clamp for square hollow profiles, StSt
Railing clamp for fixing supporting tubes to structural elements
For square hollow profiles
DEHNGEPRUEFT: no
Material: StSt
Clamping range for square profile: 60 x 120 mm
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 4K60.120 V2A
Part No.: 105376
or equivalent.



Dane techniczne

Material StSt
Clamping range for square profile 60 x 120 mm
Clamping range for supporting tube 40-50 mm

Produkt 105376 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105376.

Idź do sklepu internetowego

Wall mounting bracket for horizontal mounting, flat

1 Produkt

Nr kat. 105340 WB D50 WA V2A

GTIN / EAN 4013364098794, Nr taryfy celnej (EU): 85389099, Waga brutto: 617.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Wall mounting bracket, StSt
Wall mounting bracket for fixing supporting tubes
to the structure to be protected or the wall.
Wall mounting bracket for horizontal mounting
DEHNGEPRUEFT: no
Material: StSt
Clamping range for supporting tube: 50 mm
Distance from wall / corner: 80 mm
Dimensions of fixing: 320 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Brand: DEHN
Type: WB D50 WA V2A
Part No.: 105340
or equivalent.



Dane techniczne

Material StSt
Clamping range for supporting tube 50 mm
Distance from wall / corner 80 mm
Dimensions of fixing 320 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Produkt 105340 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105340.

Idź do sklepu internetowego

Wall mounting bracket for vertical mounting

2 Produkty

Nr kat. 105348 WB D40.50 SE WA110 V2A

GTIN / EAN 4013364287013, Nr taryfy celnej (EU): 85389099, Waga brutto: 540.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe


DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 110 mm

Brand: DEHN
Type: WB D40.50 SE WA110 V2A
Part No.: 105348
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 110 mm

Produkt 105348 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105348.

Idź do sklepu internetowego

Nr kat. 105342 WB D40.50 SE WA46 V2A

GTIN / EAN 4013364111141, Nr taryfy celnej (EU): 85389099, Waga brutto: 514.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Bracket for air-termination rods D40 and DEHNcon-H, StSt, vertical mounting
Bracket for air-termination rods D40 and DEHNcon-H for attaching air-termination rods D40
or supporting tubes to the structure to be protected or to the wall
DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 46 mm

Brand: DEHN
Type: WB D40.50 SE WA46 V2A
Part No.: 105342
or equivalent.

Certyfikaty



Dane techniczne

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 46 mm

Produkt 105342 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105342.

Idź do sklepu internetowego

Fixing clamp with tensioning strap

1 Produkt

Nr kat. 105360 BS D50 SB50.300 V2A

GTIN / EAN 4013364099777, Nr taryfy celnej (EU): 85389099, Waga brutto: 357.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for
fixing the supporting tubes to structural parts,
e.g. antenna masts
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm

Brand: DEHN
Type: BS D50 SB50.300 V2A
Part No.: 105360
or equivalent.



Dane techniczne

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm

Produkt 105360 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105360.

Idź do sklepu internetowego

Fixing clamp with tensioning strap

1 Produkt

Nr kat. 105361 BS D50 DS30 SB50.300 V2A

GTIN / EAN 4013364102033, Nr taryfy celnej (EU): 85389099, Waga brutto: 385.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for fixing supporting tubes to structural elements, e.g. antenna masts
With additional spacer (30 mm) for adjusting, e.g. sector antenna supports to the mast
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 30 mm

Brand: DEHN
Type: BS D50 DS30 SB50.300 V2A
Part No.: 105361
or equivalent.



Dane techniczne

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 30 mm

Produkt 105361 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105361.

Idź do sklepu internetowego
Powrót na górę
