Sealing collar for round and flat conductors

Sealing collar for bushings in case of watertight foundation slabs / walls (e.g. white tank).
Water-pressure-tight, to be pushed on round conductors with StSt tensioning straps

Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.

For round and flat conductors

1 Produkt

Nr kat. 478597 DM RD8.10 FL30X3.5 D114MM TPE

GTIN / EAN 4013364523029, Nr taryfy celnej (EU): 40169300, Waga brutto: 182.50 g, Jednostka opakowaniowa: 12.00 pc(s)

Rysunki

Informacje dodatkowe

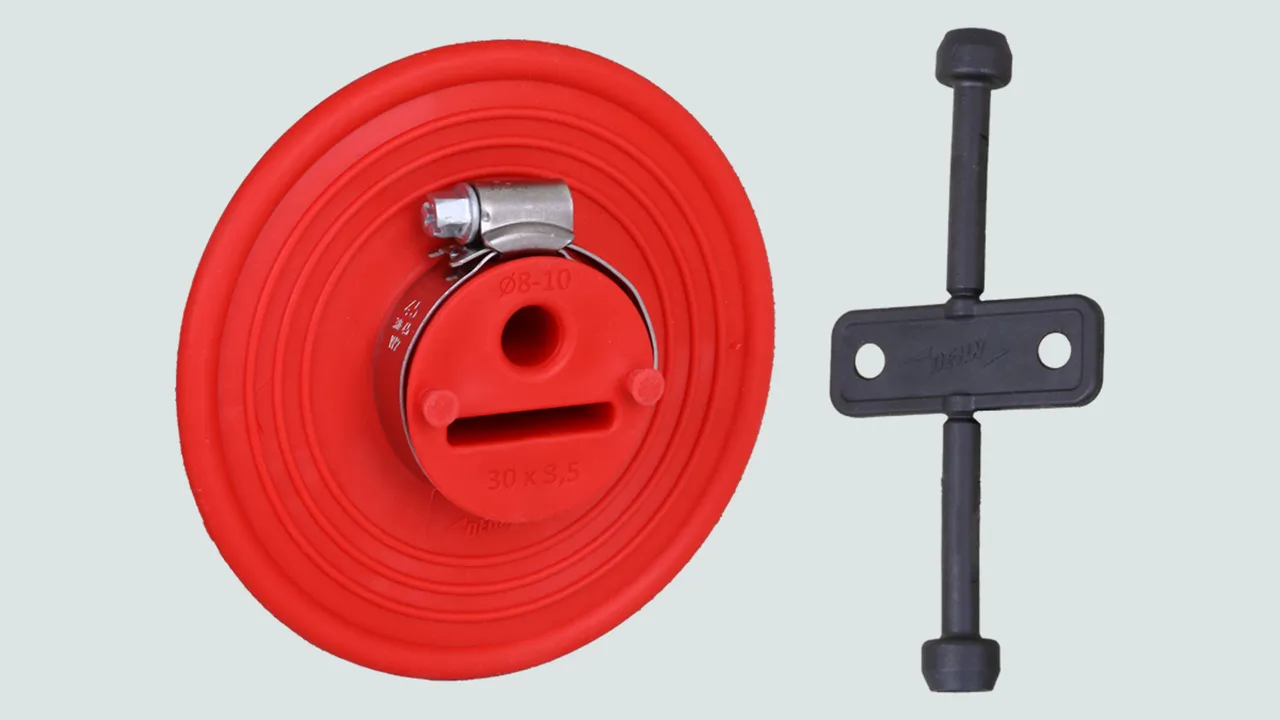

Water-pressure-tight sealing collar for Round conductors (Ø8–10 mm) and flat conductors (30 x 3.5 mm)
With torque control spanner
for easy tightening
of the two stainless steel tensioning straps
Sealing collar for bushings
for waterproof
foundation slabs / walls
(e.g. watertight concrete construction).

Sealing collar material: Thermoplastic elastomer (TPE)
Torque control spanner material: Polyamide (recycled PA)
Material of tensioning straps: StSt
Diameter of sealing collar: 114 mm
Bushing / seal, Rd.: 8-10 mm
Bushing / seal, Fl.: 30 x 3.5 mm
Pressure-water test: MPA tested to 5 bar
Waterproof concrete construction guideline: Load class 1+2
Resistance: Methane-gas-resistant
Radon: Radon-safe (as per FHRK leaflet MB 101)
Breakaway torque Torque control spanner: 3.5 Nm

Brand: DEHN
Type: DM RD8.10 FL30X3.5 D114MM TPE
Part No.: 478597
or equivalent.

Certyfikaty



Dane techniczne

Sealing collar material Thermoplastic elastomer (TPE)
Material of tensioning straps StSt
Diameter of sealing collar 114 mm
Bushing / seal, Rd. 8-10 mm
Bushing / seal, Fl. 30 x 3.5 mm

Produkt 478597 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478597.

Idź do sklepu internetowego

For round conductors

1 Produkt

Nr kat. 478598 DM AF RD10 D105MM TPE

GTIN / EAN 4013364158016, Nr taryfy celnej (EU): 40169300, Waga brutto: 120.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Sealing collar for connection lug (round conductors)
Sealing collar for bushings in case of water-tight foundation slabs / walls (e.g. white tank).
Water-pressure-tight sealing collar can be pushed onto round conductors with StSt tensioning straps. Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
Sealing collar material: thermoplast elastomer
Material of tensioning straps: StSt
Diameter of sealing collar: 105 mm
Bushing / seal, Rd.: 10 mm
Pressure-water test: 1 bar
Standard: EN 62561-5

Brand: DEHN
Type: DM AF RD10 D105MM TPE
Part No.: 478598
or equivalent.

Certyfikaty



Dane techniczne

Sealing collar material thermoplast elastomer
Material of tensioning straps StSt
Diameter of sealing collar 105 mm
Bushing / seal, Rd. 10 mm

Produkt 478598 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478598.

Idź do sklepu internetowego

For flat conductors

1 Produkt

Nr kat. 478599 DM AF FL30X3.5 D120MM TPE

GTIN / EAN 4013364158023, Nr taryfy celnej (EU): 40169300, Waga brutto: 170.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Sealing collar for connection lug (flat conductors)
Sealing collar for bushings in case of water-tight foundation slabs / walls (e.g. white tank). Water-pressure-tight, to be pushed/positioned on round conductors with StSt tensioning straps. Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
Sealing collar material: thermoplast elastomer
Material of tensioning straps: StSt
Diameter of sealing collar: 119 mm
Pressure-water test: 1 bar
Standard: EN 62561-5

Brand: DEHN
Type: DM AF FL30X3.5 D120MM TPE
Part No.: 478599
or equivalent.

Certyfikaty



Dane techniczne

Sealing collar material thermoplast elastomer
Material of tensioning straps StSt
Diameter of sealing collar 119 mm

Produkt 478599 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 478599.

Idź do sklepu internetowego
