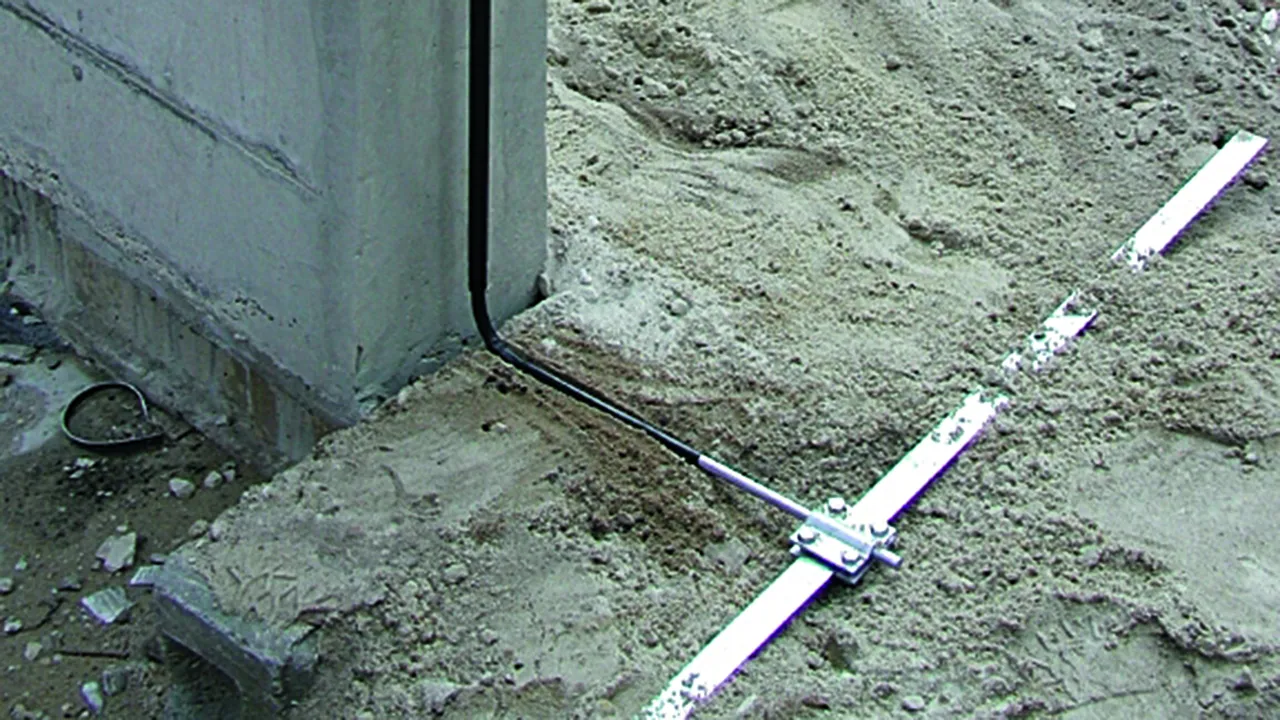

Cross Units for Aboveground and Underground Connections

of conductors in cross, parallel and T arrangement.

With intermediate plate, for round and flat conductors

3 Produkty

Nr kat. 319201 KS 8.10 8.10 FL30 ZP STTZN

GTIN / EAN 4013364024519, Nr taryfy celnej (EU): 85359000, Waga brutto: 324.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units with intermediate plate for round and flat conductors, HDG steel
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: St/tZn
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 ZP STTZN
Part No.: 319201
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
*) See test certificate for exact classification.

Produkt 319201 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319201.

Idź do sklepu internetowego

Nr kat. 319207 KS 8.10 8.10 FL30 ZP CU

GTIN / EAN 4013364020047, Nr taryfy celnej (EU): 85359000, Waga brutto: 353.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units with intermediate plate for round and flat conductors, Cu
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 ZP CU
Part No.: 319207
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-70 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 29 kA
*) See test certificate for exact classification.

Produkt 319207 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319207.

Idź do sklepu internetowego

Nr kat. 319209 KS 8.10 8.10 FL30 ZP V4A

GTIN / EAN 4013364035980, Nr taryfy celnej (EU): 85359000, Waga brutto: 316.90 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units with intermediate plate for round and flat conductors, StSt (V4A)
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement

Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 ZP V4A
Part No.: 319209
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-70 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7 kA
*) See test certificate for exact classification.

Produkt 319209 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319209.

Idź do sklepu internetowego

With intermediate plate, for round and flat conductors up to 40 mm

2 Produkty

Nr kat. 321045 KS 8.10 FL40 STTZN

GTIN / EAN 4013364021518, Nr taryfy celnej (EU): 85359000, Waga brutto: 417.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

cross units with intermediate plate for round and flat conductors up to 40 mm
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Fl: 8-10 / 30-40 mm
Clamping range Fl / Fl: 30-40 / 30-40 mm
Material of screw / nut: St/tZn
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL40 STTZN
Part No.: 321045
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Fl 8-10 / 30-40 mm
Clamping range Fl / Fl 30-40 / 30-40 mm
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 12.6 kA
*) See test certificate for exact classification.

Produkt 321045 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 321045.

Idź do sklepu internetowego

Nr kat. 321047 KS 8.10 FL40 CU

GTIN / EAN 4013364021525, Nr taryfy celnej (EU): 85359000, Waga brutto: 457.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

cross units with intermediate plate for round and flat conductors up to 40 mm
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Fl: 8-10 / 30-40 mm
Clamping range Fl / Fl: 30-40 / 30-40 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL40 CU
Part No.: 321047
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp Cu
Clamping range Rd / Fl 8-10 / 30-40 mm
Clamping range Fl / Fl 30-40 / 30-40 mm
Clamping range (stranded / cable) 35-120 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 35.1 kA
*) See test certificate for exact classification.

Produkt 321047 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 321047.

Idź do sklepu internetowego

With intermediate plate, for two round and flat conductors up to 40 mm

1 Produkt

Nr kat. 319229 KS 7.10 7.10 FL40 ZP V4A

GTIN / EAN 4013364108752, Nr taryfy celnej (EU): 85359000, Waga brutto: 413.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

cross units with intermediate plate for two round and flat conductors up to 40 mm
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
with intermediate plate for
round and flat up to 40 mm
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 / 7-10 mm
Clamping range Rd / Fl: 7-10 / 30-40 mm
Clamping range Fl / Fl: 30-40 / 30-40 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 7.10 7.10 FL40 ZP V4A
Part No.: 319229
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Rd 7-10 / 7-10 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Clamping range Fl / Fl 30-40 / 30-40 mm
Clamping range (stranded / cable) 35-95 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 5.0 kA
*) See test certificate for exact classification.

Produkt 319229 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319229.

Idź do sklepu internetowego

With intermediate plate, for earth entries / air-termination rods

2 Produkty

Nr kat. 319202 KS 8.10 16 FL30 ZP STTZN

GTIN / EAN 4013364024526, Nr taryfy celnej (EU): 85359000, Waga brutto: 337.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units with intermediate plate for earth entry/air-termination rods
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
to earth entry or air-termination rods
Material of clamp: St/tZn
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Material of screw / nut: St/tZn
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 16 FL30 ZP STTZN
Part No.: 319202
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 319202 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319202.

Idź do sklepu internetowego

Nr kat. 319219 KS 8.10 16 FL30 ZP V4A

GTIN / EAN 4013364069916, Nr taryfy celnej (EU): 85359000, Waga brutto: 323.90 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units with intermediate plate for earth entry/air-termination rods
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
to earth entry or air-termination rods
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 16 FL30 ZP V4A
Part No.: 319219
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 319219 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 319219.

Idź do sklepu internetowego

Without intermediate plate, for round and flat conductors

3 Produkty

Nr kat. 318201 KS 8.10 FL30 STTZN

GTIN / EAN 4013364021464, Nr taryfy celnej (EU): 85359000, Waga brutto: 238.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for round and flat conductors, HDG steel
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL30 STTZN
Part No.: 318201
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
*) See test certificate for exact classification.

Produkt 318201 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318201.

Idź do sklepu internetowego

Nr kat. 318207 KS 8.10 FL30 CU

GTIN / EAN 4013364021488, Nr taryfy celnej (EU): 85359000, Waga brutto: 257.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for round and flat conductors, Cu
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL30 CU
Part No.: 318207
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp Cu
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 29 kA
*) See test certificate for exact classification.

Produkt 318207 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318207.

Idź do sklepu internetowego

Nr kat. 318209 KS 8.10 FL30 V4A

GTIN / EAN 4013364035973, Nr taryfy celnej (EU): 85359000, Waga brutto: 249.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for round and flat conductors, StSt (V4A)
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL30 V4A
Part No.: 318209
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
*) See test certificate for exact classification.

Produkt 318209 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318209.

Idź do sklepu internetowego

Without intermediate plate, for two round and flat conductors

2 Produkty

Nr kat. 318251 KS 8.10 8.10 FL30 STTZN

GTIN / EAN 4013364046559, Nr taryfy celnej (EU): 85359000, Waga brutto: 245.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for two round and flat conductors HDG steel
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 STTZN
Part No.: 318251
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
*) See test certificate for exact classification.

Produkt 318251 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318251.

Idź do sklepu internetowego

Nr kat. 318219 KS 8.10 8.10 FL30 V4A

GTIN / EAN 4013364129320, Nr taryfy celnej (EU): 85359000, Waga brutto: 239.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for two round and flat conductors StSt
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 V4A
Part No.: 318219
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
*) See test certificate for exact classification.

Produkt 318219 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318219.

Idź do sklepu internetowego

Without intermediate plate, for two flat conductors

2 Produkty

Nr kat. 318033 KS FL30 STTZN

GTIN / EAN 4013364021471, Nr taryfy celnej (EU): 85359000, Waga brutto: 240.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for two flat conductors, HDG steel
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KS FL30 STTZN
Part No.: 318033
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Fl / Fl 30 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 8.4 kA
*) See test certificate for exact classification.

Produkt 318033 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318033.

Idź do sklepu internetowego

Nr kat. 318233 KS FL30 V4A

GTIN / EAN 4013364096646, Nr taryfy celnej (EU): 85359000, Waga brutto: 229.30 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for two flat conductors, StSt (V4A)
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: StSt (V4A)
Clamping range Fl / Fl: 30 / 30 mm
Material of screw / nut: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: KS FL30 V4A
Part No.: 318233
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Clamping range Fl / Fl 30 / 30 mm
ASTM / AISI: 316Ti / 316L / 316
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.0 kA
*) See test certificate for exact classification.

Produkt 318233 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318233.

Idź do sklepu internetowego

Without intermediate plate, for two flat conductors up to 40 mm

1 Produkt

Nr kat. 320044 KS FL40 STTZN

GTIN / EAN 4013364021501, Nr taryfy celnej (EU): 85359000, Waga brutto: 305.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

cross units without intermediate plate for two flat conductors up to 40 mm, HDG steel
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Fl / Fl: 30-40 / 30-40 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KS FL40 STTZN
Part No.: 320044
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Fl / Fl 30-40 / 30-40 mm
Dimensions 70 x 70 x 3 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 12.6 kA
*) See test certificate for exact classification.

Produkt 320044 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 320044.

Idź do sklepu internetowego

Without intermediate plate, for earth entries / air-termination rods

1 Produkt

Nr kat. 318252 KS 8.10 16 FL30 STTZN

GTIN / EAN 4013364048454, Nr taryfy celnej (EU): 85359000, Waga brutto: 255.80 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units without intermediate plate for earth entry rods / air-termination rods
Cross units for aboveground and
underground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Clamping range Rd / Fl: 16 / 30 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 16 FL30 STTZN
Part No.: 318252
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Clamping range Rd / Fl 16 / 30 mm
Dimensions 60 x 60 x 3 mm
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 318252 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 318252.

Idź do sklepu internetowego
Powrót na górę
