Cross Units for Aboveground Connections

of conductors in cross, parallel and T arrangement.

Without intermediate plate

2 Produkty

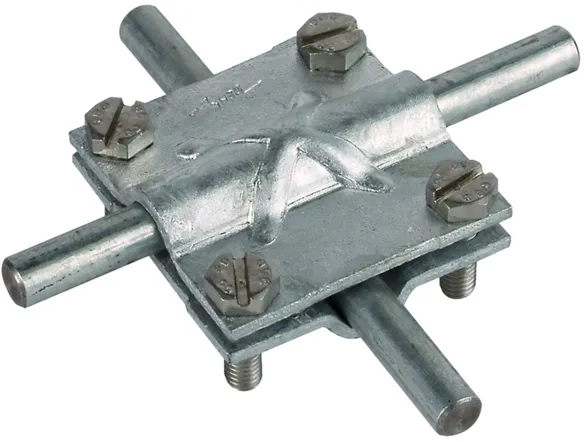

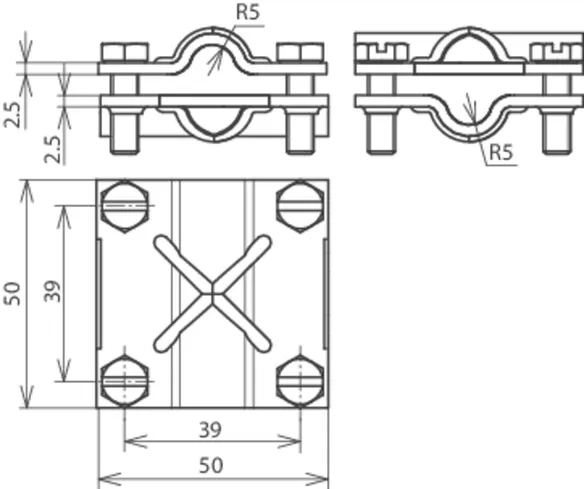

Nr kat. 314300 KS 8.10 8.10 FL30 OV STTZN

GTIN / EAN 4013364096400, Nr taryfy celnej (EU): 85359000, Waga brutto: 122.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units for aboveground connections without intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV STTZN
Part No.: 314300
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 314300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 314300.

Idź do sklepu internetowego

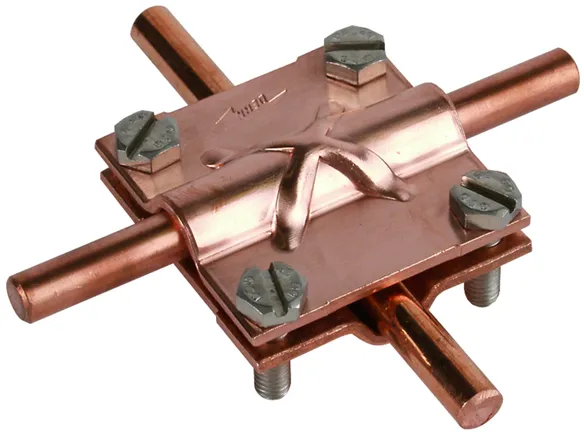

Nr kat. 314307 KS 8.10 8.10 FL30 OV CU

GTIN / EAN 4013364096417, Nr taryfy celnej (EU): 85359000, Waga brutto: 134.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units for aboveground connections without intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
<TRANSLATION_PLACEHOLDER>: 35-70 <TRANSLATION_PLACEHOLDER>
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV CU
Part No.: 314307
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) 35-70 <TRANSLATION_PLACEHOLDER>
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 314307 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 314307.

Idź do sklepu internetowego

With intermediate plate

1 Produkt

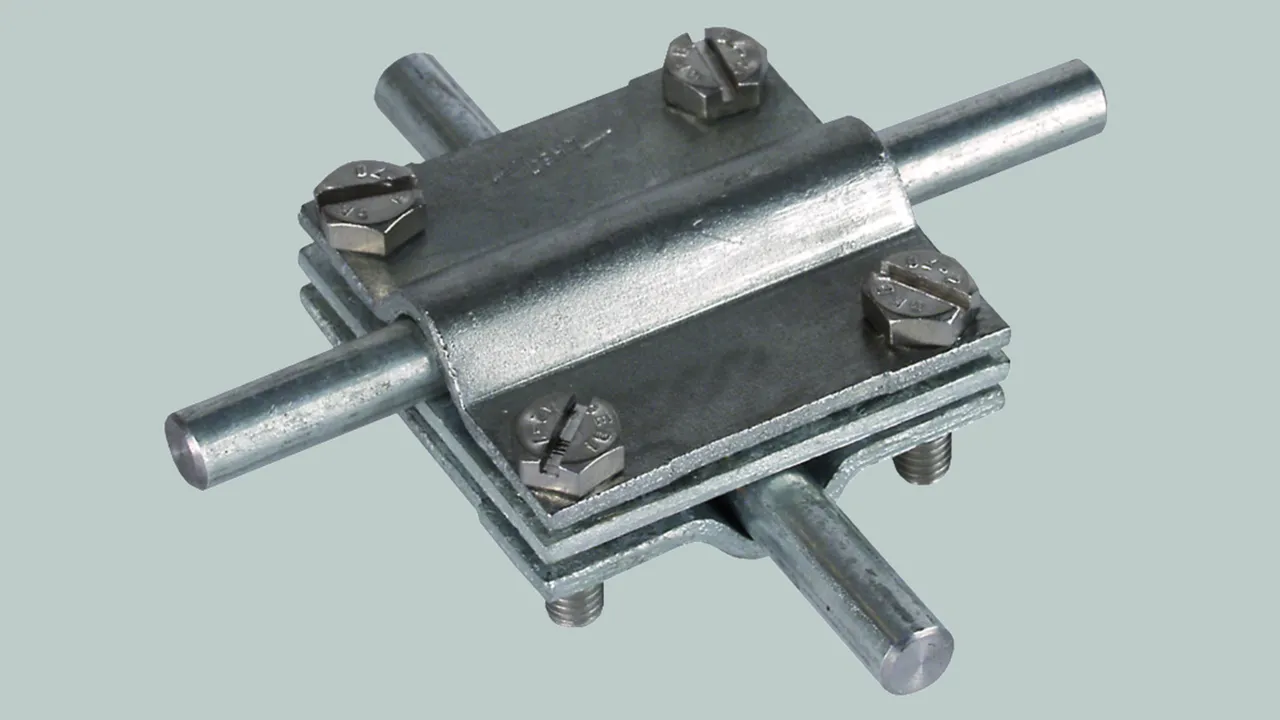

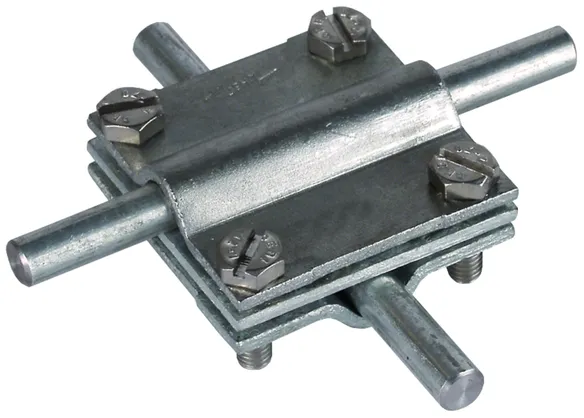

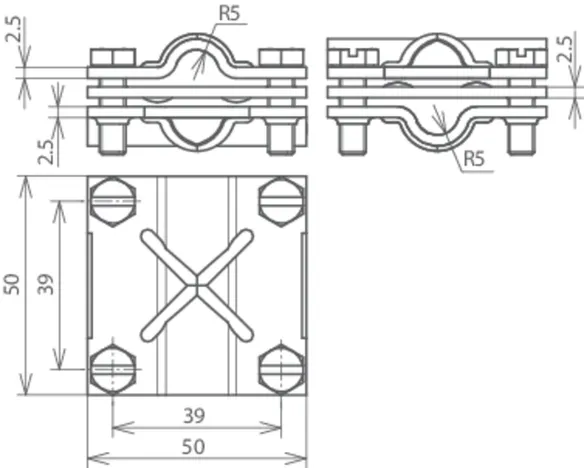

Nr kat. 314310 KS 8.10 8.10 FL30 OV ZP STTZN

GTIN / EAN 4013364042841, Nr taryfy celnej (EU): 85359000, Waga brutto: 176.80 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV ZP STTZN
Part No.: 314310
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 314310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 314310.

Idź do sklepu internetowego

With intermediate plate, e.g. for air-termination rods

2 Produkty

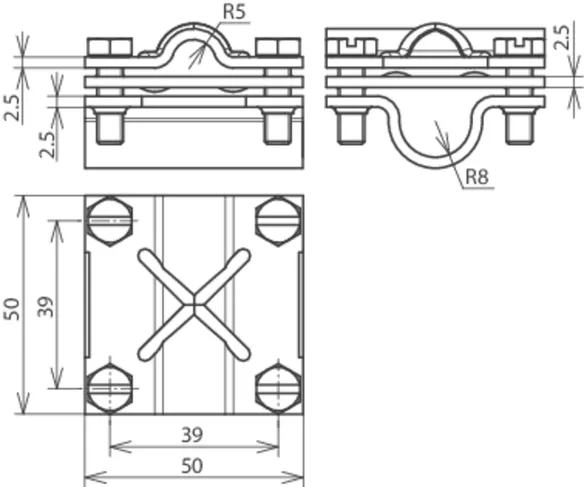

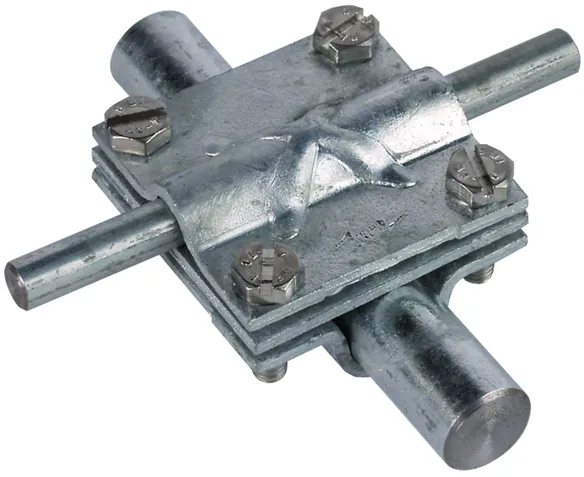

Nr kat. 316163 KS 16 8.10 FL30 OV ZP STTZN

GTIN / EAN 4013364024502, Nr taryfy celnej (EU): 85359000, Waga brutto: 195.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP STTZN
Part No.: 316163
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp St/tZn
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 316163 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 316163.

Idź do sklepu internetowego

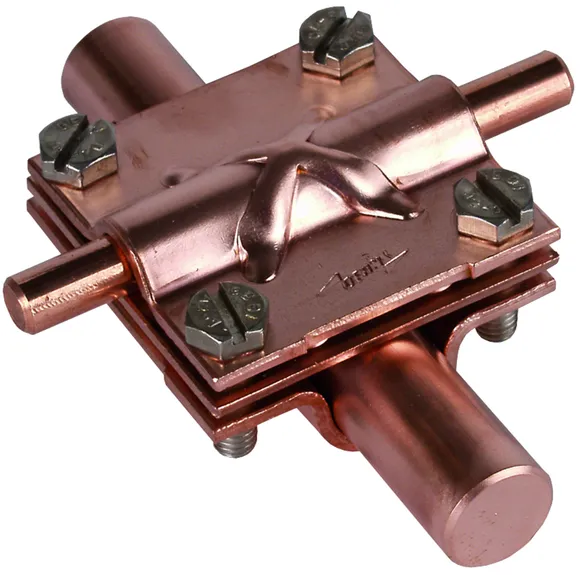

Nr kat. 316167 KS 16 8.10 FL30 OV ZP CU

GTIN / EAN 4013364035386, Nr taryfy celnej (EU): 85359000, Waga brutto: 213.40 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

Cross units for aboveground connections with intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
<TRANSLATION_PLACEHOLDER>: 35-120 <TRANSLATION_PLACEHOLDER>
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP CU
Part No.: 316167
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp Cu
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) 35-120 <TRANSLATION_PLACEHOLDER>
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 316167 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 316167.

Idź do sklepu internetowego
