DEHNcord

Single-pole, two-pole or three-pole surge protective device with monitoring system and disconnector
Visual fault indication
Types with disconnection of the load circuit in the event of a fault and protection of the control phase
Compact design also for outdoor use
Can be fitted in junction boxes, flush-mounted systems, cable ducts and flush-type boxes

Szczegóły

DEHNcord 3P TT 275 FM

Compact three-phase arrester for TT and TN-S systems.

1 Produkt

Nr kat. 900439 DCOR 3P TT 275 FM

GTIN / EAN 4013364436053, Nr taryfy celnej (EU): 85363030, Waga brutto: 129.38 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord 3P TT 275 FM surge arrester
Multipole type 2 + type 3 surge arrester according to EN 61643-11
for use in installation systems
with remote signalling contact, operating state/fault indication
mounted on DIN rails or using screw lugs
Compact dimensions: 94 x 39.5 x 36 mm
Max. continuous operating voltage: 275 V a.c.
Max. continuous operating voltage: 350 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 10 kA
Total discharge current (8/20): 40 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 25 A gG (series connection) / 40 A gG (parallel connection)
Max. load current (a.c.): 25 A
Conductor connection: Push-in
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR 3P TT 275 FM
Part No.: 900439
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Dimensions	2 modules, DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900439 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900439.

Idź do sklepu internetowego

DEHNcord L 2P

Two-pole surge arrester for all installation systems (1+1 configuration) and luminaires of protection class I; compact design.

2 Produkty

Nr kat. 900430 DCOR L 2P 275

GTIN / EAN 4013364157286, Nr taryfy celnej (EU): 85363030, Waga brutto: 73.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 275 surge arrester
Two-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 275
Part No.: 900430
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Produkt 900430 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900430.

Idź do sklepu internetowego

Nr kat. 900432 DCOR L 2P 320

GTIN / EAN 4013364157309, Nr taryfy celnej (EU): 85363030, Waga brutto: 74.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 320 surge arrester
Two-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 320
Part No.: 900432
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Produkt 900432 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900432.

Idź do sklepu internetowego

DEHNcord L 1P

Single-pole surge arrester for luminaires of protection class II; compact design.

2 Produkty

Nr kat. 900431 DCOR L 1P 275

GTIN / EAN 4013364310827, Nr taryfy celnej (EU): 85363030, Waga brutto: 60.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 1P 275 surge arrester
Single-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 275
Part No.: 900431
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Produkt 900431 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900431.

Idź do sklepu internetowego

Nr kat. 900433 DCOR L 1P 320

GTIN / EAN 4013364157316, Nr taryfy celnej (EU): 85363030, Waga brutto: 61.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 1P 320 surge arrester
Single-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 320
Part No.: 900433
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Produkt 900433 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900433.

Idź do sklepu internetowego

DEHNcord L 2P SN1864

Surge arrester for luminaires of protection class II; compact design. With disconnection in the event of a fault.

1 Produkt

Nr kat. 999906 DCOR L 2P SN1864

GTIN / EAN 4013364310926, Nr taryfy celnej (EU): 85363030, Waga brutto: 70.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNcord L 2P SN1864
Multi-pole surge arrester Type 2 according to EN 61643-11
for use in cable junction boxes.
With protection of the control phase
Disconnection of the light in case of fault and
integrated visual fault indication
for supply voltage
Max. continuous operating voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent
protection: 16 A gG
Max. load current AC: 10 A
Energy coordination acc. to DIN EN 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DCOR L 2P SN1864
Part No.: 999906
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, LED head / fuse box for mast installation
Degree of protection of installed device	IP 20
Additional tests:	------------------------------------
– Total discharge current (I_sum )	20 kA

Produkt 999906 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 999906.

Idź do sklepu internetowego

DEHNcord L 2P SN1860

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Produkt

Nr kat. 999937 DCOR L 2P SN1860

GTIN / EAN 4013364303195, Nr taryfy celnej (EU): 85363030, Waga brutto: 86.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P SN1860 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P SN1860
Part No.: 999937
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 160 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Additional tests:	------------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 999937 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 999937.

Idź do sklepu internetowego

DEHNcord L 2P 275 SO LTG

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Produkt

Nr kat. 900446 DCOR L 2P 275 SO LTG

GTIN / EAN 4013364292970, Nr taryfy celnej (EU): 85363030, Waga brutto: 62.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LTG
Part No.: 900446
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	------------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900446 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900446.

Idź do sklepu internetowego

DEHNcord L 3P 275 SO LTG

Three-pole surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Nr kat. 900445 DCOR L 3P 275 SO LTG

GTIN / EAN 4013364280380, Nr taryfy celnej (EU): 85363030, Waga brutto: 71.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 3P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO LTG
Part No.: 900445
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900445 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900445.

Idź do sklepu internetowego

SK EK480 G2S-2d LM DCOR

The EK480 fuse box is a high-quality product from Langmatz which stands out for its excellent workmanship and tried and tested features. The EK480 series meets all mechanical and electrical requirements and standards. This ensures the effective protection of luminaires with high-quality electronics against surges resulting from switching operations or nearby lightning strikes.

1 Produkt

Nr kat. 900443 SK EK480 G2S-2d LM DCOR

GTIN / EAN 4013364394322, Nr taryfy celnej (EU): 85362010, Waga brutto: 788.00 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

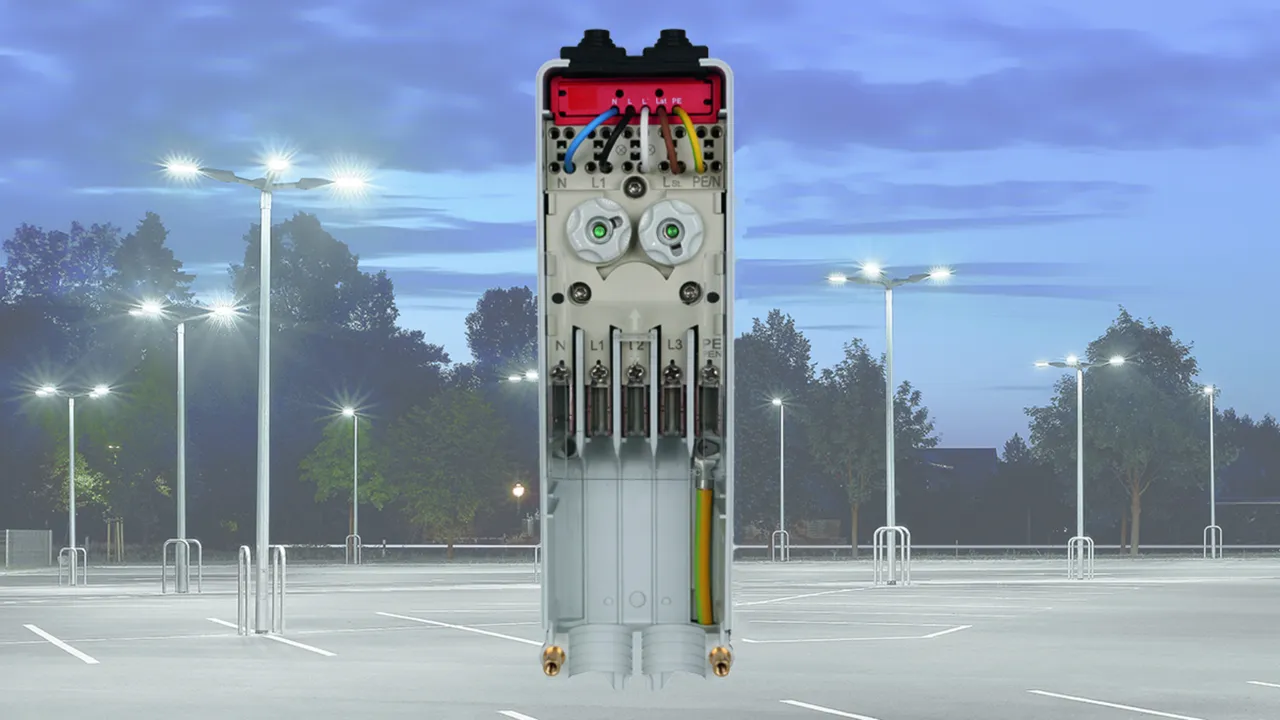

EK480 fuse box with surge arrester
DEHNcord L 3P 275 SO LTG
for protecting LED masts
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: SK EK480 G2S-2d LM DCOR
Part No.: 900443
or equivalent.

Certyfikaty

Dane techniczne

Data of fuse box
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

Data of fuse box
Designation	EK480 with surge protective device
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Enclosure material	polyamide
Enclosure colour	standard colour RAL 7035 light grey
Design	according to DIN 43 628 and VDE 0660 Part 505
Degree of protection	IP 54 according to DIN VDE 0470
Protection class	II
Cover	transparent or grey
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V (50 / 60 Hz)
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating a.c. voltage [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (a.c.) (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Terminal wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900443 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900443.

Idź do sklepu internetowego

DEHNcord L 2P 275 SO LT

Two-pole surge arrester for TNC systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Nr kat. 900435 DCOR L 2P 275 SO LT

GTIN / EAN 4013364292963, Nr taryfy celnej (EU): 85363030, Waga brutto: 70.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 275 SO LT surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LT
Part No.: 900435
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Voltage protection level [L-PEN] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-PEN] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-PEN] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	------------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900435 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900435.

Idź do sklepu internetowego

DEHNcord L 3P 275 SO IP

Three-pole surge arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Nr kat. 900447 DCOR L 3P 275 SO IP

GTIN / EAN 4013364282216, Nr taryfy celnej (EU): 85363030, Waga brutto: 146.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
With protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the
supply voltage and control phase
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO IP
Part No.: 900447
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900447 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900447.

Idź do sklepu internetowego

DEHNcord L 2P 275 SO IP

Two-pole arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault.

1 Produkt

Nr kat. 900448 DCOR L 2P 275 SO IP

GTIN / EAN 4013364293007, Nr taryfy celnej (EU): 85363030, Waga brutto: 139.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO IP
Part No.: 900448
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Additional tests:	------------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	------------------------------------
– Combination wave (U_OC )	10 kV

Produkt 900448 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900448.

Idź do sklepu internetowego

DEHNcord R 3P

Surge arrester for electric Venetian blinds; compact design.

1 Produkt

Nr kat. 900449 DCOR R 3P 275

GTIN / EAN 4013364320031, Nr taryfy celnej (EU): 85363030, Waga brutto: 151.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcord R 3P 275 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for outdoor installation (degree of protection IP54)
for protecting electric sun blinds/blinds or Venetian blinds
Interruption of the load circuit in the event of a fault
For downstream operation
Acoustic fault indication for both protective paths
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 2.5 kA
Total discharge current (8/20) [L+N-PE]: 15 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Nominal load current (a.c.): 10 A
Energy coordination according to IEC/EN 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR R 3P 275
Part No.: 900449
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Connector	Hirschmann STAK 3 / STAS 3

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal load current (a.c.) (I_L )	10 A
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	15 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Acoustic fault indication	yes
Interruption of the load circuit in the event of a fault	yes for downstream operation
Number of ports	1
Connector	Hirschmann STAK 3 / STAS 3
Operating temperature range (T_U )	-20 °C ... +70 °C
Degree of protection of installed device	IP 54

Produkt 900449 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900449.

Idź do sklepu internetowego

DEHNcord

Szczegóły

DEHNcord 3P TT 275 FM

Nr kat. 900439 DCOR 3P TT 275 FM

Nie masz uprawnień, by pobrać 900439.stp

Nie masz uprawnień, by pobrać 900439.igs

Nie masz uprawnień, by pobrać 900439.jt

Nie masz uprawnień, by pobrać 900439.dwg

Nie masz uprawnień, by pobrać 900439m_D.dxf

Nie masz uprawnień, by pobrać 900439_eplan.zip

Nie masz uprawnień, by pobrać DEHN.900439.wspak

Produkt 900439 został dodany do notatnika.

Do koszyka dodano produkt 900439.

DEHNcord L 2P

Nr kat. 900430 DCOR L 2P 275

Nie masz uprawnień, by pobrać 900430.stp

Nie masz uprawnień, by pobrać 900430.igs

Nie masz uprawnień, by pobrać 900430.jt

Nie masz uprawnień, by pobrać 900430.dwg

Nie masz uprawnień, by pobrać 900430m.dxf

Nie masz uprawnień, by pobrać DEHN.900430.edz

Nie masz uprawnień, by pobrać DEHN.900430.wspak

Produkt 900430 został dodany do notatnika.

Do koszyka dodano produkt 900430.

Nr kat. 900432 DCOR L 2P 320

Nie masz uprawnień, by pobrać 900430.stp

Nie masz uprawnień, by pobrać 900430.igs

Nie masz uprawnień, by pobrać 900430.jt

Nie masz uprawnień, by pobrać 900430.dwg

Nie masz uprawnień, by pobrać 900430m.dxf

Nie masz uprawnień, by pobrać DEHN.900432.edz

Nie masz uprawnień, by pobrać DEHN.900432.wspak

Produkt 900432 został dodany do notatnika.

Do koszyka dodano produkt 900432.

DEHNcord L 1P

Nr kat. 900431 DCOR L 1P 275

Nie masz uprawnień, by pobrać 900431.stp

Nie masz uprawnień, by pobrać 900431.igs

Nie masz uprawnień, by pobrać 900431.jt

Nie masz uprawnień, by pobrać 900431.dwg

Nie masz uprawnień, by pobrać 900431m.dxf

Nie masz uprawnień, by pobrać DEHN.900431.edz

Nie masz uprawnień, by pobrać DEHN.900431.wspak

Produkt 900431 został dodany do notatnika.

Do koszyka dodano produkt 900431.

Nr kat. 900433 DCOR L 1P 320

Nie masz uprawnień, by pobrać 900431.stp

Nie masz uprawnień, by pobrać 900431.igs

Nie masz uprawnień, by pobrać 900431.jt

Nie masz uprawnień, by pobrać 900431.dwg

Nie masz uprawnień, by pobrać 900431m.dxf

Nie masz uprawnień, by pobrać DEHN.900433.edz

Nie masz uprawnień, by pobrać DEHN.900433.wspak

Produkt 900433 został dodany do notatnika.

Do koszyka dodano produkt 900433.

DEHNcord L 2P SN1864

Nr kat. 999906 DCOR L 2P SN1864

Nie masz uprawnień, by pobrać 999906.stp

Nie masz uprawnień, by pobrać 999906.igs

Nie masz uprawnień, by pobrać 999906.jt

Nie masz uprawnień, by pobrać 999906.dwg

Nie masz uprawnień, by pobrać 999906m_D.dxf

Nie masz uprawnień, by pobrać DEHN.999906.edz

Nie masz uprawnień, by pobrać DEHN.999906.wspak

Produkt 999906 został dodany do notatnika.

Do koszyka dodano produkt 999906.

DEHNcord L 2P SN1860

Nr kat. 999937 DCOR L 2P SN1860

Nie masz uprawnień, by pobrać 999937.stp

Nie masz uprawnień, by pobrać 999937.igs

Nie masz uprawnień, by pobrać 999937.jt

Nie masz uprawnień, by pobrać 999937.dwg

Nie masz uprawnień, by pobrać 999937m_D.dxf

Nie masz uprawnień, by pobrać DEHN.999937.edz

Nie masz uprawnień, by pobrać DEHN.999937.wspak

Produkt 999937 został dodany do notatnika.

Do koszyka dodano produkt 999937.

DEHNcord L 2P 275 SO LTG

Nr kat. 900446 DCOR L 2P 275 SO LTG

Nie masz uprawnień, by pobrać 900446.stp
