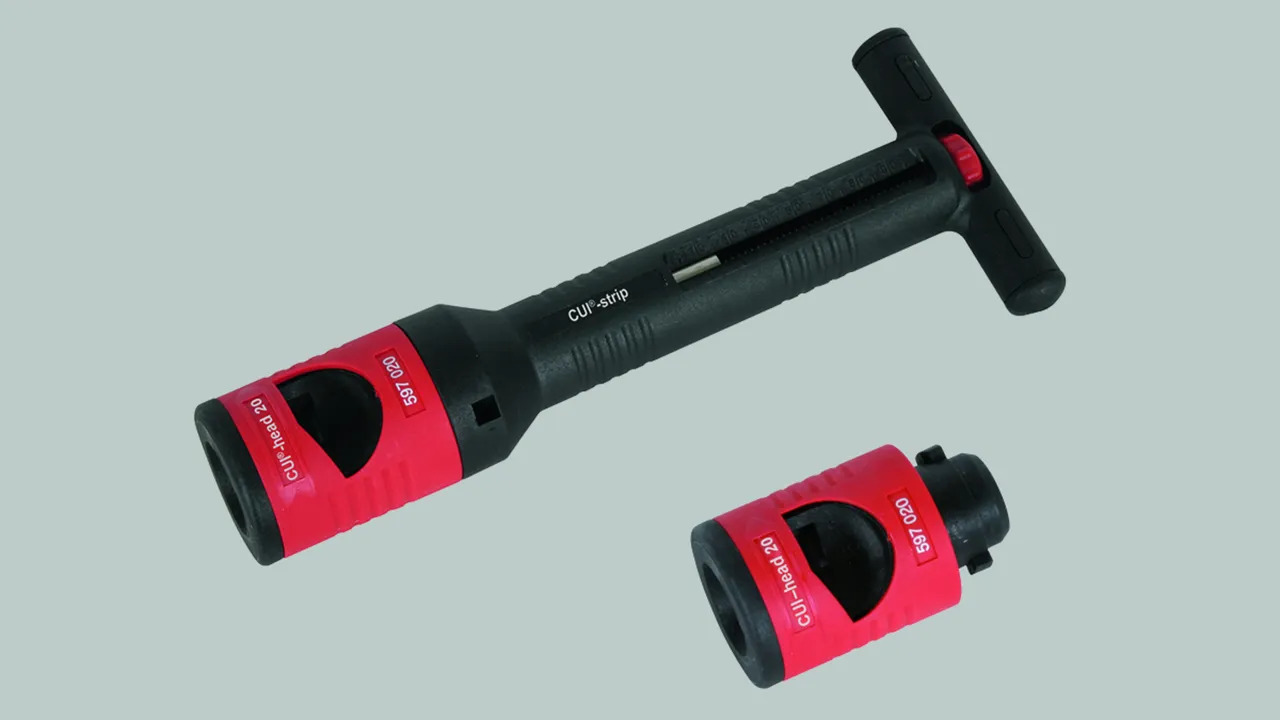

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).

Tool consists of a handle and an exchangeable cutting heads
Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.

HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

CUI-strip 20

1 Produkt

GTIN / EAN 4013364154940, Nr taryfy celnej (EU): 82055980, Waga brutto: 442.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Brand: DEHN
Type: CUI STRIP 20
Part No.: 597320
or equivalent.

Dane techniczne

Idź do notatnika

Idź do sklepu internetowego

Toolless exchange of the cutting head via a bayonet coupling.
