DEHNcombo

Prewired type 1 + type 2 combined lightning current and surge arrester for use in photovoltaic generator circuits
Approved fault-resistant Y circuit prevents damage to the surge protective device in case of insulation faults in the generator circuit
Rated voltage is the same for all modes of protection and, therefore, the arrester can also be used in earthed systems
Space-saving enclosure with a width of only four modules for up to 1500 V d.c.
Tested to IEC 61643-31 / EN 61643-31 / EN 50539-11
Applicable in PV systems in accordance with IEC 60364-7-712
Operating state / fault indication by green / red indicator flag in the inspection window

DEHNcombo YPV ...

Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.

2 Produkty

Nr kat. 900070 DCB YPV 1200

GTIN / EAN 6942299504521, Nr taryfy celnej (EU): 85354000, Waga brutto: 639.16 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB YPV 1200
Part No.: 900070
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900070 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900070.

Idź do sklepu internetowego

Nr kat. 900071 DCB YPV 1500

GTIN / EAN 6942299504545, Nr taryfy celnej (EU): 85354000, Waga brutto: 636.22 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcombo YPV 1500 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500
Part No.: 900071
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900071 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900071.

Idź do sklepu internetowego

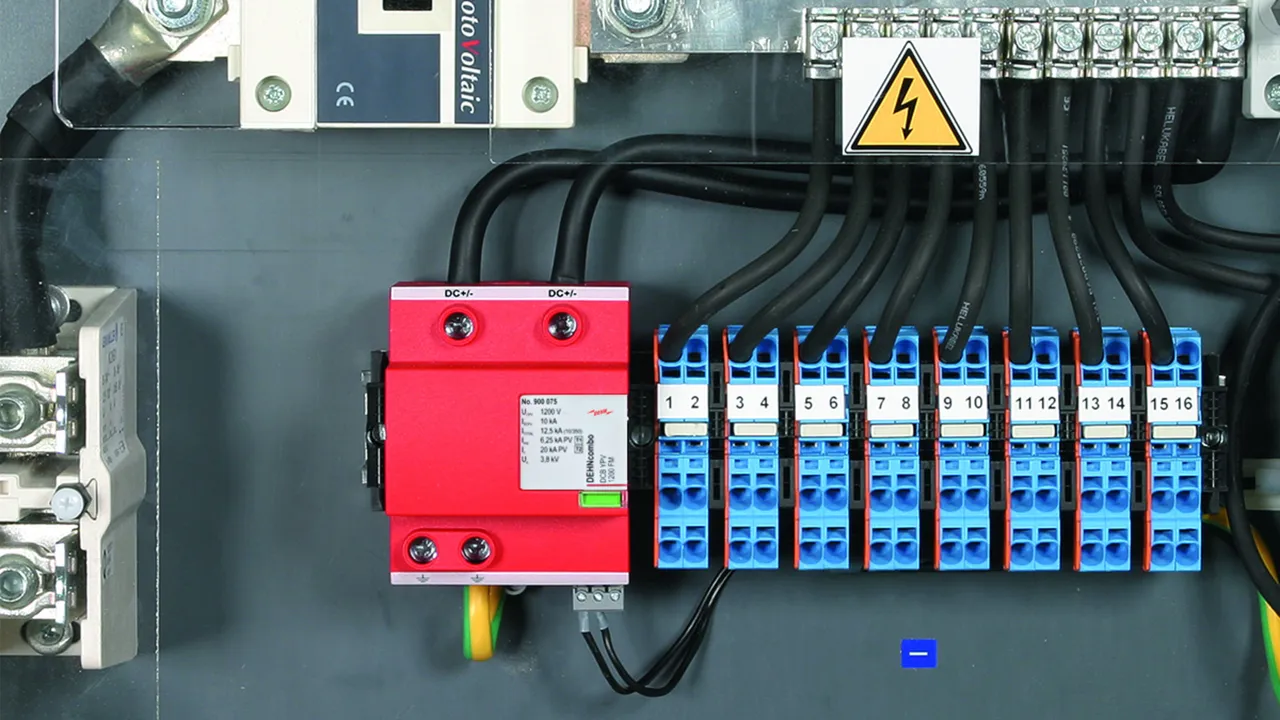

DEHNcombo YPV ... FM

Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.; with floating remote signalling contact.

2 Produkty

Nr kat. 900075 DCB YPV 1200 FM

GTIN / EAN 6942299504538, Nr taryfy celnej (EU): 85354000, Waga brutto: 587.94 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcombo YPV 1200 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1200 FM
Part No.: 900075
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900075 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900075.

Idź do sklepu internetowego

Nr kat. 900076 DCB YPV 1500 FM

GTIN / EAN 6942299504552, Nr taryfy celnej (EU): 85354000, Waga brutto: 638.51 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNcombo YPV 1500 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500 FM
Part No.: 900076
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900076 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900076.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNcombo

DEHNcombo YPV ...

Nr kat. 900070 DCB YPV 1200

Produkt 900070 został dodany do notatnika.

Do koszyka dodano produkt 900070.

Nr kat. 900071 DCB YPV 1500

Produkt 900071 został dodany do notatnika.

Do koszyka dodano produkt 900071.

DEHNcombo YPV ... FM

Nr kat. 900075 DCB YPV 1200 FM

Produkt 900075 został dodany do notatnika.

Do koszyka dodano produkt 900075.

Nr kat. 900076 DCB YPV 1500 FM

Produkt 900076 został dodany do notatnika.

Do koszyka dodano produkt 900076.

DEHNcombo

DEHNcombo YPV ...

Nr kat. 900070 DCB YPV 1200

Nie masz uprawnień, by pobrać 900060.stp

Nie masz uprawnień, by pobrać 900060.igs

Nie masz uprawnień, by pobrać 900060.jt

Nie masz uprawnień, by pobrać 900060.dwg

Nie masz uprawnień, by pobrać 900060m_E.dxf

Nie masz uprawnień, by pobrać 900070_eplan.zip

Nie masz uprawnień, by pobrać DEHN.900070.wspak

Produkt 900070 został dodany do notatnika.

Do koszyka dodano produkt 900070.

Nr kat. 900071 DCB YPV 1500

Nie masz uprawnień, by pobrać 900060.stp

Nie masz uprawnień, by pobrać 900060.igs

Nie masz uprawnień, by pobrać 900060.jt

Nie masz uprawnień, by pobrać 900060.dwg

Nie masz uprawnień, by pobrać 900060m_E.dxf

Nie masz uprawnień, by pobrać DEHN.900060.edz

Nie masz uprawnień, by pobrać DEHN.900071.wspak

Produkt 900071 został dodany do notatnika.

Do koszyka dodano produkt 900071.

DEHNcombo YPV ... FM

Nr kat. 900075 DCB YPV 1200 FM

Nie masz uprawnień, by pobrać 900065.stp

Nie masz uprawnień, by pobrać 900065.igs

Nie masz uprawnień, by pobrać 900065.jt

Nie masz uprawnień, by pobrać 900065.dwg

Nie masz uprawnień, by pobrać 900065m_E.dxf

Nie masz uprawnień, by pobrać 900075_eplan.zip

Nie masz uprawnień, by pobrać DEHN.900075.wspak

Produkt 900075 został dodany do notatnika.

Do koszyka dodano produkt 900075.

Nr kat. 900076 DCB YPV 1500 FM

Nie masz uprawnień, by pobrać 900065.stp

Nie masz uprawnień, by pobrać 900065.igs

Nie masz uprawnień, by pobrać 900065.jt

Nie masz uprawnień, by pobrać 900065.dwg

Nie masz uprawnień, by pobrać 900065m_E.dxf

Nie masz uprawnień, by pobrać DEHN.900065.edz

Nie masz uprawnień, by pobrać DEHN.900076.wspak

Produkt 900076 został dodany do notatnika.

Do koszyka dodano produkt 900076.
