Conductor Holders for External Thermal Insulation Composite Systems

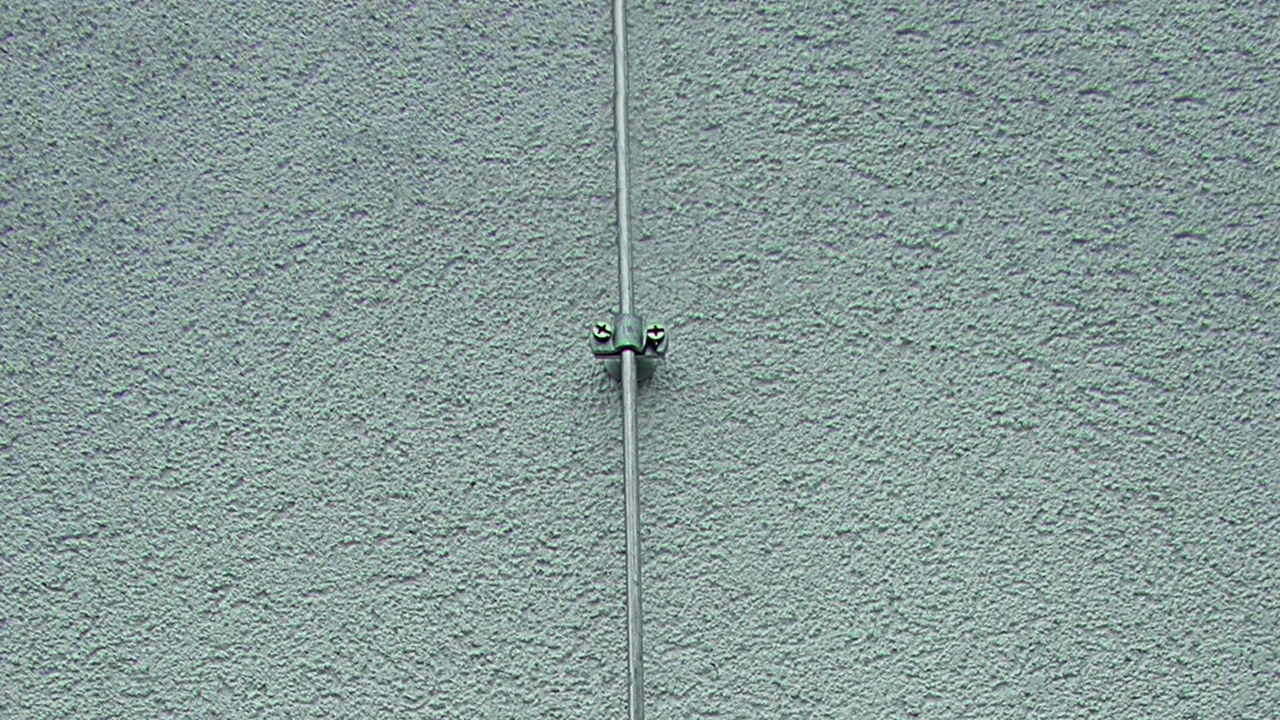

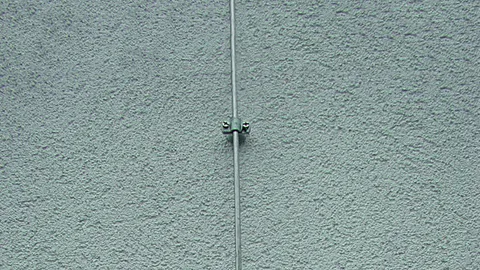

Conductor holders for fixing down conductors at walls with external thermal insulation composite system.
Two-screw clamp with M6 screws, with flange (ZDC) and plastic plug Ø10 mm, fixed conductor routing.

3 Produkty

Nr kat. 273740 LH ZS 7.10 AB D10X140 STTZN ZG

GTIN / EAN 4013364096714, Nr taryfy celnej (EU): 85389099, Waga brutto: 113.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 70 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 140 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X140 STTZN ZG
Part No.: 273740
or equivalent.

Certyfikaty



Dane techniczne

Clamping length 70 mm
Total length 140 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 140 mm
Standard EN 62561-4

Produkt 273740 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 273740.

Idź do sklepu internetowego

Nr kat. 273741 LH ZS 7.10 AB D10X180 STTZN ZG

GTIN / EAN 4013364096721, Nr taryfy celnej (EU): 85389099, Waga brutto: 126.22 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 100 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 180 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X180 STTZN ZG
Part No.: 273741
or equivalent.

Certyfikaty



Dane techniczne

Clamping length 100 mm
Total length 180 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 180 mm
Standard EN 62561-4

Produkt 273741 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 273741.

Idź do sklepu internetowego

Nr kat. 273742 LH ZS 7.10 AB D10X240 STTZN ZG

GTIN / EAN 4013364096738, Nr taryfy celnej (EU): 85389099, Waga brutto: 154.76 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 160 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 240 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X240 STTZN ZG
Part No.: 273742
or equivalent.

Certyfikaty



Dane techniczne

Clamping length 160 mm
Total length 230 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 240 mm
Standard EN 62561-4
