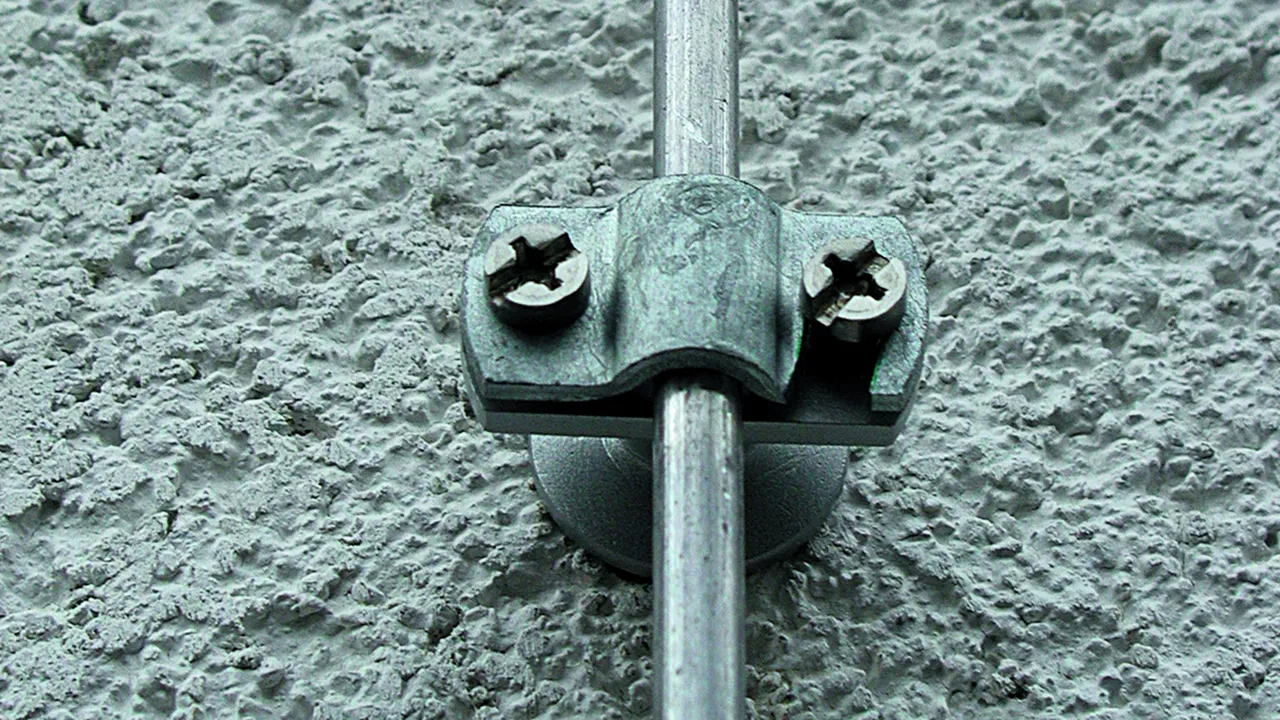

Conductor Holders with Saddle Clamp and Flange

Complete unit with flange for installing conductors, fixed conductor routing.

With M8 female thread

1 Produkt

Nr kat. 275110 LH ZS 7.10 IGM8 STTZN ZG

GTIN / EAN 4013364095793, Nr taryfy celnej (EU): 85389099, Waga brutto: 66.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and flange
Complete unit with flange for installing conductors, fixed conductor routing
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 7.10 IGM8 STTZN ZG
Part No.: 275110
or equivalent.

Certyfikaty



Dane techniczne

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Standard EN 62561-4

Produkt 275110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275110.

Idź do sklepu internetowego

With female thread, pre-assembled with screw and plug

1 Produkt

Nr kat. 275160 LH ZS 7.10 KD8X40 STTZN ZG

GTIN / EAN 4013364095809, Nr taryfy celnej (EU): 85389099, Waga brutto: 78.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and flange
Complete unit with flange for installing conductors, fixed conductor routing
Pre-assembled with screw and plug
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: LH ZS 7.10 KD8X40 STTZN ZG
Part No.: 275160
or equivalent.

Certyfikaty



Dane techniczne

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Screw ak 5 x 50 mm
Plastic plug Ø8 x 40 mm
Standard EN 62561-4

Produkt 275160 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275160.

Idź do sklepu internetowego

With female thread, e.g. for round wire with plastic sheath

1 Produkt

Nr kat. 275113 LH ZS 13 IGM8 STTZN ZG

GTIN / EAN 4013364095816, Nr taryfy celnej (EU): 85389099, Waga brutto: 84.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Conductor holder with saddle clamp and flange
Conductor holder with saddle clamp and flange
Complete unit with flange for installing round wires with plastic sheath
Fixed conductor routing

Conductor support Rd: 11-13 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 13 IGM8 STTZN ZG
Part No.: 275113
or equivalent.

Certyfikaty



Dane techniczne

Conductor support Rd 11-13 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC

Produkt 275113 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275113.

Idź do sklepu internetowego
