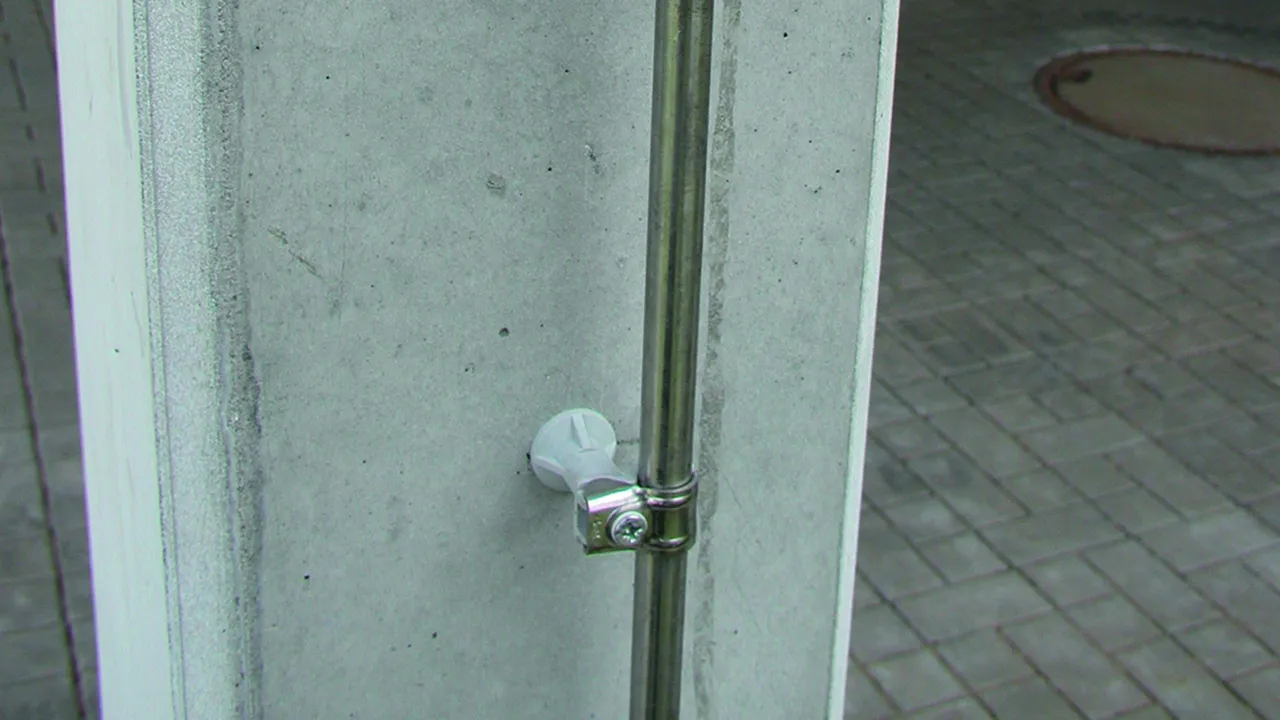

Conductor Holders DEHNfix

Two-in-one system (fixes the holder and the conductor) with conductor holder DEHNquick, fixed conductor routing, UV-stabilised.
Height 30 mm, drilling depth 45 mm, hole Ø8 mm.

Easy mounting:
– Pre-drill the holes
– Push in the holder with inserted conductor
– Fix with a few hammer blows

Advantages:
– Clamp, spacer and dowel form a single unit
– Pre-assembled, ready for mounting

Height 30 mm

3 Produkty

Nr kat. 250000 LH DFI DQ 6.10 STTZN H30 GR

GTIN / EAN 4013364023871, Nr taryfy celnej (EU): 85389099, Waga brutto: 31.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

DEHNfix conductor holder, height: 30 mm, grey, St/tZn
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: St/tZn
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: grey ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 STTZN H30 GR
Part No.: 250000
or equivalent.



Dane techniczne

Material of clamp St/tZn
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder grey ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm

Produkt 250000 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 250000.

Idź do sklepu internetowego

Nr kat. 250001 LH DFI DQ 6.10 V2A H30 GR

GTIN / EAN 4013364023888, Nr taryfy celnej (EU): 85389099, Waga brutto: 30.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

DEHNfix conductor holder, height: 30 mm, grey, StSt
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: StSt
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: grey ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 V2A H30 GR
Part No.: 250001
or equivalent.



Dane techniczne

Material of clamp StSt
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder grey ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm

Produkt 250001 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 250001.

Idź do sklepu internetowego

Nr kat. 250007 LH DFI DQ 6.10 CU H30 BR

GTIN / EAN 4013364023895, Nr taryfy celnej (EU): 85389099, Waga brutto: 31.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

DEHNfix conductor holder, height: 30 mm, brown, Cu
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: Cu
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: brown ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 CU H30 BR
Part No.: 250007
or equivalent.



Dane techniczne

Material of clamp Cu
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder brown ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm
