Specific PCB solutions

Surge arrester for protecting the terminal device ready for installation
Space-saving protective devices for integration into the customer application
Can be used in AC, DC and AC+DC applications
Fitted directly on the PCB using THT
Designed as a type 1 +2 combined arrester in RAC spark gap technology with follow current limitation
Designed as a type 2 arrester in varistor technology with "thermodynamic control" arrester monitoring
High device reliability requiring minimal installation space
Use in various sectors: e.g. wind, PV, mobile communication

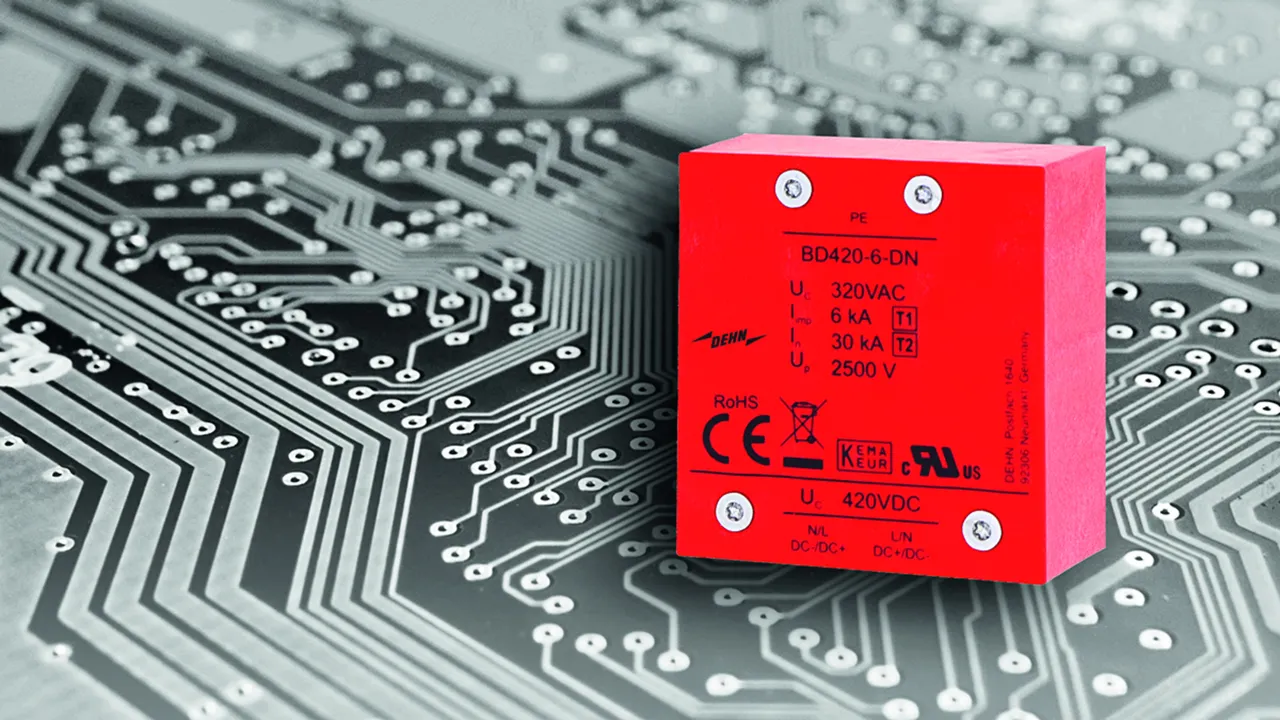

BD420-6-DN

1 Produkt

Nr kat. 900488 BD420-6-DN

GTIN / EAN 4013364426382, Nr taryfy celnej (EU): 85363090, Waga brutto: 58.00 g, Jednostka opakowaniowa: 125.00 pc(s)

Rysunki

Informacje dodatkowe

Brand: DEHN
Type: BD420-6-DN
Part No.: 900488
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	6 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 3 kA_rms	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal voltage (d.c.) (U_N )	380 V
Max. continuous operating voltage (d.c.) (Uc)	420 V
Lightning impulse current (10/350 µs) (I_imp )	6 kA
Specific energy (W/R)	9 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi) 275 V	3 kA_rms
Follow current extinguishing capability (a.c.) (I_fi) 320 V	1.5 kA_rms
Follow current extinguishing capability (d.c.) (I_fi) 420 V	50 A
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 3 kA_rms	100 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] (T_U )	-40 °C ... +105 °C
For mounting on	printed circuit boards
Enclosure material	thermoplastic, red, UL 94 V-0 and UL
Place of installation	PCB assembly
Dimensions	41.05 x 38.25 x 20 mm
Approvals	KEMA, UL

Produkt 900488 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900488.

Idź do sklepu internetowego

VC 350 2 5

1 Produkt

Nr kat. 900495 VC 350 2 5

GTIN / EAN 6942299502527, Nr taryfy celnej (EU): , Waga brutto: 27.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

VC 350 2 5 PCB surge arrester
Two-pole surge arrester
For installation onto printed circuit boards of terminal equipment to be protected
Type 2 SPD as per IEC 61643-11
Energy-coordinated as per IEC 62305-4, GB/T21714.4-2015 with arresters from the Red/Line product series

Brand: DEHN
Type: VC 350 2 5
Part No.: 900495
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	350 V (50 / 60 Hz)
Voltage protection level (U_P )	≤ 1.5 kV
Supplementary data:	-------------------------
Nominal discharge current (8/20 µs) at ≤70 °C [L-N/N-PE / L-PE] (I_n )	5.5 kA +-5 times, interval 1min. (each time), interval 25 min. (each group)

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	350 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 16 2P
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating state / fault indication	green / not green
For mounting on	printed circuit boards
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	25 x 24 x 16.2 mm
Approvals	CE / TÜV
Degree of pollution	II
Number of ports	1
Altitude	5000 m
Isolation voltage	2.5 kV, 1 min.
Wire pull	40 N
Safety gap	3 mm
Wave soldering	260 °C, 10 s (max. 2 times)
Iron soldering	350 °C, 5 s
Withstanding temperature of disconnector	130 °C, 30 min.
Operating temperature range (T_U )	-40 °C ~ +95 °C (humidity: 45% RH~95%RH), +95 °C ~ +105 °C (humidity: 45% RH~75%RH)
Power supply system	TT / TN
Supplementary data:	-------------------------
Nominal discharge current (8/20 µs) at ≤70 °C [L-N/N-PE / L-PE] (I_n )	5.5 kA +-5 times, interval 1min. (each time), interval 25 min. (each group)

Produkt 900495 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900495.

Idź do sklepu internetowego

VC 320 2 10

1 Produkt

Nr kat. 900499 VC 320 2 10

GTIN / EAN , Nr taryfy celnej (EU): , Waga brutto: 0.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Brand: DEHN
Type: VC 320 2 10
Part No.: 900499
or equivalent.

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L/N-PE] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) [(DC+/DC-) --> PE] (Uc)	450 V
Voltage protection level (U_P )	≤ 1.8 kV
Supplementary data:	-------------------------

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L/N-PE] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) [(DC+/DC-) --> PE] (Uc)	450 V
Nominal voltage (d.c.) (U_N )	400 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Total discharge current (8/20 µs) (I_total )	20 kA
Voltage protection level (U_P )	≤ 1.8 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 25 2P
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating state / fault indication	black / red
For mounting on	printed circuit boards
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	40.8 x 38 x 20 mm
Approvals	TÜV; CE
Degree of pollution	II
Number of ports	1
Altitude	5000 m
Wave soldering	260 °C, 10 s (max. 2 times)
Operating temperature range (T_U )	-40 °C ~ +85 °C
Power supply system	TT/TN
Remote contact: switching capacity (a.c.)	250 V / 0.1 A
Remote contact: switching capacity (d.c.)	125 V / 0.05 A
Supplementary data:	-------------------------

Produkt 900499 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900499.

Idź do sklepu internetowego

VC 385 1 10

1 Produkt

Nr kat. 900485 VC 385 1 10

GTIN / EAN 4013364434790, Nr taryfy celnej (EU): 85363010, Waga brutto: 30.58 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: VC 385 1 10
Part No.: 900485
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V
Voltage protection level (U_P )	≤ 1.75 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	385 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 3 kA (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	80 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Produkt 900485 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900485.

Idź do sklepu internetowego

VC 600 1 10

1 Produkt

Nr kat. 900486 VC 600 1 10

GTIN / EAN 4013364434806, Nr taryfy celnej (EU): 85363010, Waga brutto: 38.25 g, Jednostka opakowaniowa: 120.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: VC 600 1 10
Part No.: 900486
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V
Voltage protection level (U_P )	≤ 2.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	600 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 3 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	80 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 18 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Produkt 900486 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900486.

Idź do sklepu internetowego

VC NPE 1 10

1 Produkt

Nr kat. 900483 VC NPE 1 10

GTIN / EAN 4013364434813, Nr taryfy celnej (EU): 85363010, Waga brutto: 22.25 g, Jednostka opakowaniowa: 120.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: VC NPE 1 10
Part No.: 900483
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V
Voltage protection level (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	255 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 3 kA (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Produkt 900483 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900483.

Idź do sklepu internetowego

VC PV 670 1 10

1 Produkt

Nr kat. 900487 VC PV 670 1 10

GTIN / EAN 4013364434820, Nr taryfy celnej (EU): 85363010, Waga brutto: 34.33 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: VC PV 670 1 10
Part No.: 900487
or equivalent.

Certyfikaty

Dane techniczne

Max. PV voltage (d.c.) (U_CPV )	670 V
Voltage protection level (U_P )	≤ 2 kV

SPD according to EN 50539-11 / IEC 61643-31	type 2 / class II
SPD according to UL1449	4CA
Max. PV voltage (d.c.) (U_CPV )	670 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 3 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability (I_SCPV )	1 kA
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	34 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Produkt 900487 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900487.

Idź do sklepu internetowego

VC PV 750 1 10

1 Produkt

Nr kat. 900481 VC PV 750 1 10

GTIN / EAN 4013364434837, Nr taryfy celnej (EU): 85363010, Waga brutto: 38.08 g, Jednostka opakowaniowa: 120.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: VC PV 750 1 10
Part No.: 900481
or equivalent.

Certyfikaty

Dane techniczne

Max. PV voltage (d.c.) (U_CPV )	750 V
Voltage protection level (U_P )	≤ 2.5 kV

SPD according to EN 50539-11 / IEC 61643-31	type 2 / class II
SPD according to UL1449	4CA
Max. PV voltage (d.c.) (U_CPV )	750 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 3 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability (I_SCPV )	1 kA
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	34 x 18 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Produkt 900481 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900481.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

Specific PCB solutions

BD420-6-DN

Nr kat. 900488 BD420-6-DN

Produkt 900488 został dodany do notatnika.

Do koszyka dodano produkt 900488.

VC 350 2 5

Nr kat. 900495 VC 350 2 5

Produkt 900495 został dodany do notatnika.

Do koszyka dodano produkt 900495.

VC 320 2 10

Nr kat. 900499 VC 320 2 10

Produkt 900499 został dodany do notatnika.

Do koszyka dodano produkt 900499.

VC 385 1 10

Nr kat. 900485 VC 385 1 10

Produkt 900485 został dodany do notatnika.

Do koszyka dodano produkt 900485.

VC 600 1 10

Nr kat. 900486 VC 600 1 10

Produkt 900486 został dodany do notatnika.

Do koszyka dodano produkt 900486.

VC NPE 1 10

Nr kat. 900483 VC NPE 1 10

Produkt 900483 został dodany do notatnika.

Do koszyka dodano produkt 900483.

VC PV 670 1 10

Nr kat. 900487 VC PV 670 1 10

Produkt 900487 został dodany do notatnika.

Do koszyka dodano produkt 900487.

VC PV 750 1 10

Nr kat. 900481 VC PV 750 1 10

Produkt 900481 został dodany do notatnika.

Do koszyka dodano produkt 900481.

Specific PCB solutions

BD420-6-DN

Nr kat. 900488 BD420-6-DN

Produkt 900488 został dodany do notatnika.

Do koszyka dodano produkt 900488.

VC 350 2 5

Nr kat. 900495 VC 350 2 5

Nie masz uprawnień, by pobrać 900495.stp

Nie masz uprawnień, by pobrać 900495.igs

Nie masz uprawnień, by pobrać 900495.jt

Nie masz uprawnień, by pobrać 900495.dwg

Nie masz uprawnień, by pobrać 900495m_D.dxf

Produkt 900495 został dodany do notatnika.

Do koszyka dodano produkt 900495.

VC 320 2 10

Nr kat. 900499 VC 320 2 10

Nie masz uprawnień, by pobrać 900499.stp

Nie masz uprawnień, by pobrać 900499.igs

Nie masz uprawnień, by pobrać 900499.jt

Nie masz uprawnień, by pobrać 900499.dwg

Produkt 900499 został dodany do notatnika.

Do koszyka dodano produkt 900499.

VC 385 1 10

Nr kat. 900485 VC 385 1 10

Nie masz uprawnień, by pobrać 900483_485_487.stp

Nie masz uprawnień, by pobrać 900483_485_487.igs

Nie masz uprawnień, by pobrać 900483_485_487.jt

Nie masz uprawnień, by pobrać 900483_485_487.dwg

Nie masz uprawnień, by pobrać 900485m_CN.dxf

Produkt 900485 został dodany do notatnika.

Do koszyka dodano produkt 900485.

VC 600 1 10

Nr kat. 900486 VC 600 1 10

Nie masz uprawnień, by pobrać 900481_486.stp

Nie masz uprawnień, by pobrać 900481_486.igs

Nie masz uprawnień, by pobrać 900481_486.jt

Nie masz uprawnień, by pobrać 900481_486.dwg

Nie masz uprawnień, by pobrać 900486m_CN.dxf

Produkt 900486 został dodany do notatnika.

Do koszyka dodano produkt 900486.

VC NPE 1 10

Nr kat. 900483 VC NPE 1 10

Nie masz uprawnień, by pobrać 900483_485_487.stp

Nie masz uprawnień, by pobrać 900483_485_487.igs

Nie masz uprawnień, by pobrać 900483_485_487.jt

Nie masz uprawnień, by pobrać 900483_485_487.dwg

Nie masz uprawnień, by pobrać 900485m_CN.dxf

Produkt 900483 został dodany do notatnika.

Do koszyka dodano produkt 900483.

VC PV 670 1 10

Nr kat. 900487 VC PV 670 1 10

Nie masz uprawnień, by pobrać 900483_485_487.stp

Nie masz uprawnień, by pobrać 900483_485_487.igs

Nie masz uprawnień, by pobrać 900483_485_487.jt

Nie masz uprawnień, by pobrać 900483_485_487.dwg

Nie masz uprawnień, by pobrać 900485m_CN.dxf

Produkt 900487 został dodany do notatnika.

Do koszyka dodano produkt 900487.

VC PV 750 1 10

Nr kat. 900481 VC PV 750 1 10

Nie masz uprawnień, by pobrać 900481_486.stp

Nie masz uprawnień, by pobrać 900481_486.igs

Nie masz uprawnień, by pobrać 900481_486.jt

Nie masz uprawnień, by pobrać 900481_486.dwg

Nie masz uprawnień, by pobrać 900486m_CN.dxf

Produkt 900481 został dodany do notatnika.

Do koszyka dodano produkt 900481.
