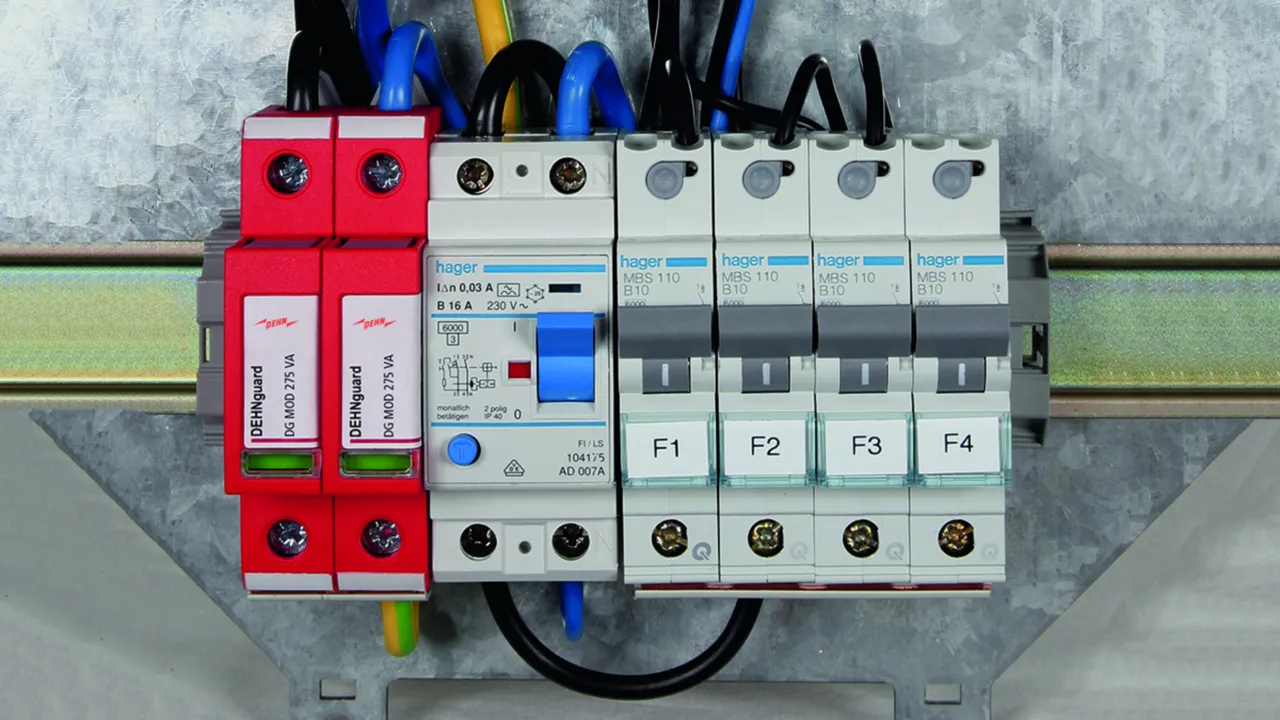

DEHNguard S ... VA

Multi-purpose surge arrester consisting of a base part and a plug-in protection module
Leakage-current-free series connection of a varistor and a spark gap in the pluggable protection module
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Energy coordination with other arresters of the Red/Line product family
Easy replacement of protection modules without tools due to module locking system with module release button
Narrow (modular) design according to DIN 43880
Multifunctional terminal for connecting conductors and busbars
Vibration and shock-tested according to EN 60068-2

DEHNguard S VA

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module.

3 Produkty

Nr kat. 952080 DG S 75 VA

GTIN / EAN 4013364127296, Nr taryfy celnej (EU): 85363030, Waga brutto: 118.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S 75 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA
Part No.: 952080
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 952080 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952080.

Idź do sklepu internetowego

Nr kat. 952082 DG S 275 VA

GTIN / EAN 4013364127319, Nr taryfy celnej (EU): 85363030, Waga brutto: 123.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S 275 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA
Part No.: 952082
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952082 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952082.

Idź do sklepu internetowego

Nr kat. 952084 DG S 385 VA

GTIN / EAN 4013364127333, Nr taryfy celnej (EU): 85363030, Waga brutto: 127.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S 385 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA
Part No.: 952084
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² stranded / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 952084 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952084.

Idź do sklepu internetowego

DEHNguard S VA FM

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module; with floating remote signalling contact.

3 Produkty

Nr kat. 952085 DG S 75 VA FM

GTIN / EAN 4013364127302, Nr taryfy celnej (EU): 85363030, Waga brutto: 122.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S 75 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA FM
Part No.: 952085
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952085 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952085.

Idź do sklepu internetowego

Nr kat. 952087 DG S 275 VA FM

GTIN / EAN 4013364127326, Nr taryfy celnej (EU): 85363030, Waga brutto: 126.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S275 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA FM
Part No.: 952087
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952087 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952087.

Idź do sklepu internetowego

Nr kat. 952089 DG S 385 VA FM

GTIN / EAN 4013364127340, Nr taryfy celnej (EU): 85363030, Waga brutto: 131.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard S 385 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA FM
Part No.: 952089
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952089 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952089.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNguard S ... VA

DEHNguard S VA

Nr kat. 952080 DG S 75 VA

Produkt 952080 został dodany do notatnika.

Do koszyka dodano produkt 952080.

Nr kat. 952082 DG S 275 VA

Produkt 952082 został dodany do notatnika.

Do koszyka dodano produkt 952082.

Nr kat. 952084 DG S 385 VA

Produkt 952084 został dodany do notatnika.

Do koszyka dodano produkt 952084.

DEHNguard S VA FM

Nr kat. 952085 DG S 75 VA FM

Produkt 952085 został dodany do notatnika.

Do koszyka dodano produkt 952085.

Nr kat. 952087 DG S 275 VA FM

Produkt 952087 został dodany do notatnika.

Do koszyka dodano produkt 952087.

Nr kat. 952089 DG S 385 VA FM

Produkt 952089 został dodany do notatnika.

Do koszyka dodano produkt 952089.

DEHNguard S ... VA

DEHNguard S VA

Nr kat. 952080 DG S 75 VA

Nie masz uprawnień, by pobrać 952070.stp

Nie masz uprawnień, by pobrać 952070.igs

Nie masz uprawnień, by pobrać 952070.jt

Nie masz uprawnień, by pobrać 952070.dwg

Nie masz uprawnień, by pobrać 952070m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952080.wspak

Nie masz uprawnień, by pobrać DEHN.952080.edz

Produkt 952080 został dodany do notatnika.

Do koszyka dodano produkt 952080.

Nr kat. 952082 DG S 275 VA

Nie masz uprawnień, by pobrać 952070.stp

Nie masz uprawnień, by pobrać 952070.igs

Nie masz uprawnień, by pobrać 952070.jt

Nie masz uprawnień, by pobrać 952070.dwg

Nie masz uprawnień, by pobrać 952070m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952082.wspak

Nie masz uprawnień, by pobrać DEHN.952082.edz

Produkt 952082 został dodany do notatnika.

Do koszyka dodano produkt 952082.

Nr kat. 952084 DG S 385 VA

Nie masz uprawnień, by pobrać 952070.stp

Nie masz uprawnień, by pobrać 952070.igs

Nie masz uprawnień, by pobrać 952070.jt

Nie masz uprawnień, by pobrać 952070.dwg

Nie masz uprawnień, by pobrać 952070m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952084.wspak

Nie masz uprawnień, by pobrać DEHN.952084.edz

Produkt 952084 został dodany do notatnika.

Do koszyka dodano produkt 952084.

DEHNguard S VA FM

Nr kat. 952085 DG S 75 VA FM

Nie masz uprawnień, by pobrać 952090.stp

Nie masz uprawnień, by pobrać 952090.igs

Nie masz uprawnień, by pobrać 952090.jt

Nie masz uprawnień, by pobrać 952090.dwg

Nie masz uprawnień, by pobrać 952090m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952085.wspak

Nie masz uprawnień, by pobrać DEHN.952085.edz

Produkt 952085 został dodany do notatnika.

Do koszyka dodano produkt 952085.

Nr kat. 952087 DG S 275 VA FM

Nie masz uprawnień, by pobrać 952090.stp

Nie masz uprawnień, by pobrać 952090.igs

Nie masz uprawnień, by pobrać 952090.jt

Nie masz uprawnień, by pobrać 952090.dwg

Nie masz uprawnień, by pobrać 952090m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952087.wspak

Nie masz uprawnień, by pobrać DEHN.952087.edz

Produkt 952087 został dodany do notatnika.

Do koszyka dodano produkt 952087.

Nr kat. 952089 DG S 385 VA FM

Nie masz uprawnień, by pobrać 952090.stp

Nie masz uprawnień, by pobrać 952090.igs

Nie masz uprawnień, by pobrać 952090.jt

Nie masz uprawnień, by pobrać 952090.dwg

Nie masz uprawnień, by pobrać 952090m_E.dxf

Nie masz uprawnień, by pobrać DEHN.952089.wspak

Nie masz uprawnień, by pobrać DEHN.952089.edz

Produkt 952089 został dodany do notatnika.

Do koszyka dodano produkt 952089.
