Nr kat. 942300 DG MP TNC 275

GTIN / EAN 4013364495272, Nr taryfy celnej (EU): 85363030, Waga brutto: 316.66 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TNC 275 surge arrester
3-pole, modular, pluggable
surge arrester with
double push-in connection clamp suitable for
stub wiring and feed-through wiring
for 230/400 V TN-C systems, width: 3 modules
with remote signalling contact
Arrester type 2 + type 3 according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNC 275
Part No.: 942300
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA, VDE

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE

Produkt 942300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942300.

Idź do sklepu internetowego

Nr kat. 942318 DG MP TNC 150 FM

GTIN / EAN 4013364495265, Nr taryfy celnej (EU): 85363030, Waga brutto: 324.71 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TNC 150 FM surge arrester
3-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-C systems, width of 3 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V AC
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNC 150 FM
Part No.: 942318
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 208 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942318 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942318.

Idź do sklepu internetowego

Nr kat. 942305 DG MP TNC 275 FM

GTIN / EAN 4013364495289, Nr taryfy celnej (EU): 85363030, Waga brutto: 323.13 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TNC 275 FM surge arrester
3-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for 230/400 V TN-C systems, width of 3 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNC 275 FM
Part No.: 942305
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942305 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942305.

Idź do sklepu internetowego

Nr kat. 942319 DG MP TNC 385 FM

GTIN / EAN 4013364495296, Nr taryfy celnej (EU): 85363030, Waga brutto: 324.71 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TNC 385 FM surge arrester
3-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-C systems, width of 3 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V AC
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNC 385 FM
Part No.: 942319
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942319 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942319.

Idź do sklepu internetowego

Nr kat. 942308 DG MP TNC 440 FM

GTIN / EAN 4013364495258, Nr taryfy celnej (EU): 85363030, Waga brutto: 355.78 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TNC 440 FM surge arrester
3-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for 400/690 V TN-C systems, width of 3 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 440 V AC
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNC 440 FM
Part No.: 942308
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 / 690 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942308 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942308.

Idź do sklepu internetowego

Nr kat. 942400 DG MP TNS 275

GTIN / EAN 4013364484115, Nr taryfy celnej (EU): 85363030, Waga brutto: 407.53 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TNS 275 surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-S systems, width of 4 standard DIN modules
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNS 275
Part No.: 942400
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE

Produkt 942400 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942400.

Idź do sklepu internetowego

Nr kat. 942408 DG MP TNS 150 FM

GTIN / EAN 4013364484863, Nr taryfy celnej (EU): 85363030, Waga brutto: 385.91 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TNS 150 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V AC
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNS 150 FM
Part No.: 942408
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 208 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942408 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942408.

Idź do sklepu internetowego

Nr kat. 942405 DG MP TNS 275 FM

GTIN / EAN 4013364477124, Nr taryfy celnej (EU): 85363030, Waga brutto: 350.91 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

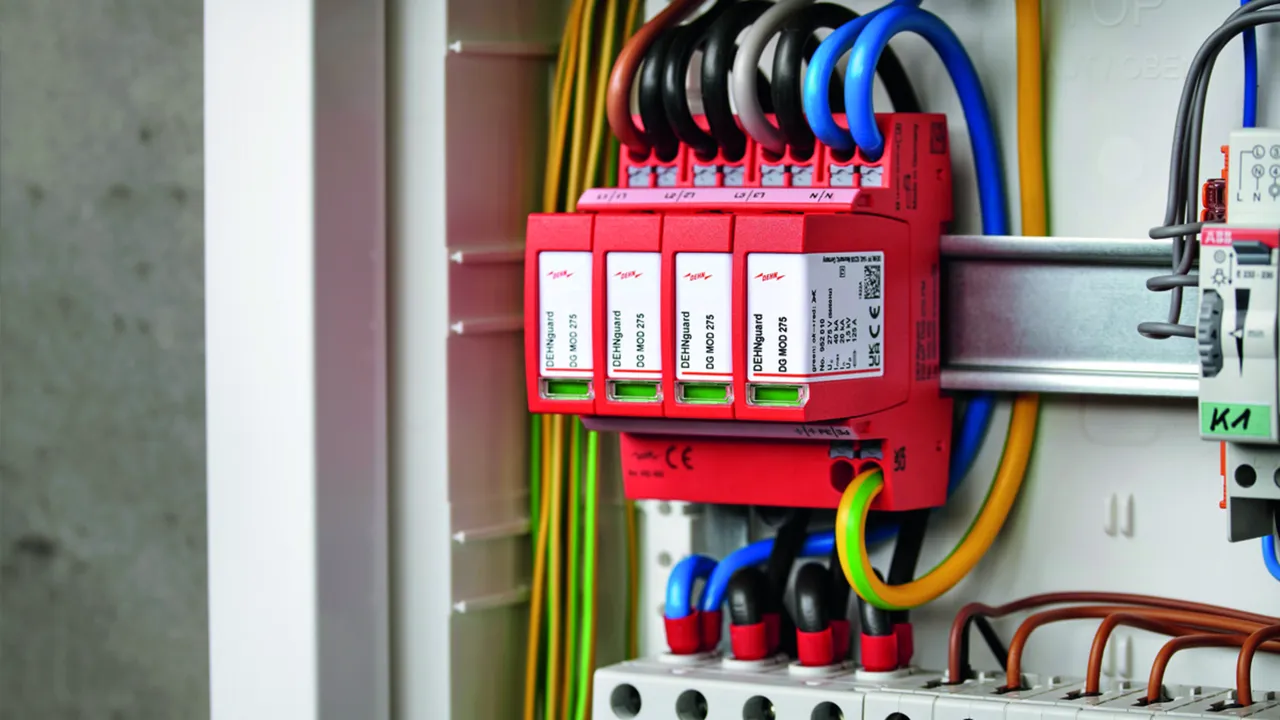

DEHNguard MP TNS 275 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNS 275 FM
Part No.: 942405
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942405 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942405.

Idź do sklepu internetowego

Nr kat. 942409 DG MP TNS 385 FM

GTIN / EAN 4013364484832, Nr taryfy celnej (EU): 85363030, Waga brutto: 441.67 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TNS 385 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V AC
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TNS 385 FM
Part No.: 942409
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942409 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942409.

Idź do sklepu internetowego

Nr kat. 942310 DG MP TT 275

GTIN / EAN 4013364484108, Nr taryfy celnej (EU): 85363030, Waga brutto: 343.84 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 275 surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TT and TN-S systems, width of 4 standard DIN modules
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 275
Part No.: 942310
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942310.

Idź do sklepu internetowego

Nr kat. 942328 DG MP TT 150 FM

GTIN / EAN 4013364484856, Nr taryfy celnej (EU): 85363030, Waga brutto: 388.86 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 275 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TT and TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V AC
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 150 FM
Part No.: 942328
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	15 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 208 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	15 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	230 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942328 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942328.

Idź do sklepu internetowego

Nr kat. 942315 DG MP TT 275 FM

GTIN / EAN 4013364477162, Nr taryfy celnej (EU): 85363030, Waga brutto: 346.63 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 275 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TT and TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 275 FM
Part No.: 942315
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942315 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942315.

Idź do sklepu internetowego

Nr kat. 942325 DG MP TT 320 FM

GTIN / EAN 4013364484849, Nr taryfy celnej (EU): 85363030, Waga brutto: 418.85 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 320 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TT and TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 320 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 320 FM
Part No.: 942325
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942325 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942325.

Idź do sklepu internetowego

Nr kat. 942317 DG MP TT 385 FM

GTIN / EAN 4013364484825, Nr taryfy celnej (EU): 85363030, Waga brutto: 430.48 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 385 FM surge arrester
4-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for TT and TN-S systems, width of 4 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V AC
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 385 FM
Part No.: 942317
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²flexible
Cross-sectional area (max.)	10 mm²solid / flexible
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942317 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942317.

Idź do sklepu internetowego

Nr kat. 942200 DG MP TN 275

GTIN / EAN 4013364495395, Nr taryfy celnej (EU): 85363030, Waga brutto: 228.88 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TN 275 surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase 230 V TN systems, width of 2 standard DIN modules
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TN 275
Part No.: 942200
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE

Produkt 942200 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942200.

Idź do sklepu internetowego

Nr kat. 942207 DG MP TN 150 FM

GTIN / EAN 4013364495418, Nr taryfy celnej (EU): 85363030, Waga brutto: 231.67 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TN 150 FM surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase TN systems, width of 2 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V AC
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TN 150 FM
Part No.: 942207
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Approvals	KEMA, VDE
Type of remote signalling contact	Changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine stranded

Produkt 942207 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942207.

Idź do sklepu internetowego

Nr kat. 942205 DG MP TN 275 FM

GTIN / EAN 4013364495401, Nr taryfy celnej (EU): 85363030, Waga brutto: 231.32 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TN 275 FM surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase 230 V TN systems, width of 2 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TN 275 FM
Part No.: 942205
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	Changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine stranded

Produkt 942205 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942205.

Idź do sklepu internetowego

Nr kat. 942110 DG MP TT 2P 275

GTIN / EAN 4013364495326, Nr taryfy celnej (EU): 85363030, Waga brutto: 220.36 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard MP TT 2P 275 surge arrester
2-pole, modular, pluggable
surge arrester with
double push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase 230 V TT and TN systems, width: 2 modules
Arrester type 2 + type 3 according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 2P 275
Part No.: 942110
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942110.

Idź do sklepu internetowego

Nr kat. 942115 DG MP TT 2P 275 FM

GTIN / EAN 4013364495333, Nr taryfy celnej (EU): 85363030, Waga brutto: 226.75 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TT 2P 275 FM surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase 230 V TT and TN systems, width of 2 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 50 kAeff
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 2P 275 FM
Part No.: 942115
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine stranded
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942115 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942115.

Idź do sklepu internetowego

Nr kat. 942135 DG MP TT 2P 320 FM

GTIN / EAN 4013364495340, Nr taryfy celnej (EU): 85363030, Waga brutto: 230.96 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TT 2P 320 FM surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase 230 V TT and TN systems, width of 2 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 320 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 2P 320 FM
Part No.: 942135
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine stranded
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 942135 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942135.

Idź do sklepu internetowego

Nr kat. 942117 DG MP TT 2P 385 FM

GTIN / EAN 4013364495357, Nr taryfy celnej (EU): 85363030, Waga brutto: 227.23 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP TT 2P 385 FM surge arrester
2-pole, modular, pluggable
surge arrester with
double-push-in connection clamp suitable for
stub wiring and feed-through wiring
for single-phase TT and TN systems, width of 2 standard DIN modules
with remote signalling contact
Type 2 + type 3 arrester according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V AC
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP TT 2P 385 FM
Part No.: 942117
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Combination wave [L-N] (U_OC )	20 kV
Combination wave [N-PE] (U_OC )	6 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine stranded
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 942117 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942117.

Idź do sklepu internetowego

Nr kat. 942307 DG MP WE 600 FM

GTIN / EAN 4013364495302, Nr taryfy celnej (EU): 85363030, Waga brutto: 384.26 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard MP WE 600 FM surge arrester
3-pole, modular, pluggable
surge arrester with
double push-in connection clamp suitable for
stub wiring and feed-through wiring
for wind turbines for use in
400/690 V TN-C systems, width: 3 modules
with remote signalling contact
Consideration of short-term voltage fluctuations
resulting from increased rated varistor voltage Umov
Arrester type 2 + type 3 according to EN 61643-11
Fault indication
Max. continuous operating voltage: 600 V AC
Varistor rated voltage 750 V AC
Voltage protection level: <= 3 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG MP WE 600 FM
Part No.: 942307
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 / 830 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Combination wave [L-N] (U_OC )	20 kV
Nominal load current for “V-connection” (I_L )	40 A
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection with “V-connection”	40 A gG
Max. mains-side overcurrent protection with stub wiring (double connection 2 x 10 mm²)	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 942307 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 942307.

Idź do sklepu internetowego

Nr kat. 952313 DG M TNC 150

GTIN / EAN 4013364123939, Nr taryfy celnej (EU): 85363030, Waga brutto: 319.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 150 surge arrester
Modular and pluggable three-pole surge arrester
for TN-C systems, width: 3 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 150
Part No.: 952313
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952313 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952313.

Idź do sklepu internetowego

Nr kat. 952300 DG M TNC 275

GTIN / EAN 4013364108431, Nr taryfy celnej (EU): 85363030, Waga brutto: 355.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 275 surge arrester
Modular and pluggable three-pole surge arrester
for TN-C systems, width: 3 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 275
Part No.: 952300
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 / 400 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952300 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952300.

Idź do sklepu internetowego

Nr kat. 952314 DG M TNC 385

GTIN / EAN 4013364124028, Nr taryfy celnej (EU): 85363030, Waga brutto: 362.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 385 surge arrester
Modular and pluggable three-pole surge arrester
for TN-C systems, width: 3 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 385
Part No.: 952314
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952314 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952314.

Idź do sklepu internetowego

Nr kat. 952303 DG M TNC 440

GTIN / EAN 4013364120709, Nr taryfy celnej (EU): 85363030, Waga brutto: 376.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 440 surge arrester
Modular and pluggable three-pole surge arrester
for 400/690 V TN-C systems, width: 3 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 440 V a.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 440
Part No.: 952303
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 / 690 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952303 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952303.

Idź do sklepu internetowego

Nr kat. 952318 DG M TNC 150 FM

GTIN / EAN 4013364124011, Nr taryfy celnej (EU): 85363030, Waga brutto: 326.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 150 FM surge arrester
Modular and pluggable three-pole surge arrester
for TN-C systems, width: 3 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 150 FM
Part No.: 952318
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952318 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952318.

Idź do sklepu internetowego

Nr kat. 952305 DG M TNC 275 FM

GTIN / EAN 4013364108448, Nr taryfy celnej (EU): 85363030, Waga brutto: 348.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 275 FM surge arrester
Modular and pluggable three-pole surge arrester
for 230/400 V TN-C systems, width: 3 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 275 FM
Part No.: 952305
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952305 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952305.

Idź do sklepu internetowego

Nr kat. 952319 DG M TNC 385 FM

GTIN / EAN 4013364124035, Nr taryfy celnej (EU): 85363030, Waga brutto: 370.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 385 FM surge arrester
Modular and pluggable three-pole surge arrester
for TN-C systems, width: 3 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 385 FM
Part No.: 952319
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952319 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952319.

Idź do sklepu internetowego

Nr kat. 952308 DG M TNC 440 FM

GTIN / EAN 4013364120716, Nr taryfy celnej (EU): 85363030, Waga brutto: 383.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNC 440 FM surge arrester
Modular and pluggable three-pole surge arrester
for 400/690 V TN-C systems, width: 3 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 440 V a.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNC 440 FM
Part No.: 952308
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 / 690 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952308 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952308.

Idź do sklepu internetowego

Nr kat. 952403 DG M TNS 150

GTIN / EAN 4013364128569, Nr taryfy celnej (EU): 85363030, Waga brutto: 443.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 150 surge arrester
Modular and pluggable four-pole surge arrester
for TN-S systems, width: 4 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 150
Part No.: 952403
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952403 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952403.

Idź do sklepu internetowego

Nr kat. 952400 DG M TNS 275

GTIN / EAN 4013364108455, Nr taryfy celnej (EU): 85363030, Waga brutto: 444.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 275 surge arrester
Modular and pluggable four-pole surge arrester
for 230/400 V TN-S systems, width: 4 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 275
Part No.: 952400
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 / 400 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952400 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952400.

Idź do sklepu internetowego

Nr kat. 952404 DG M TNS 385

GTIN / EAN 4013364128545, Nr taryfy celnej (EU): 85363030, Waga brutto: 499.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 385 surge arrester
Modular and pluggable four-pole surge arrester
for TN-S systems, width: 4 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 385
Part No.: 952404
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952404 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952404.

Idź do sklepu internetowego

Nr kat. 952408 DG M TNS 150 FM

GTIN / EAN 4013364128576, Nr taryfy celnej (EU): 85363030, Waga brutto: 451.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 150 FM surge arrester
Modular and pluggable four-pole surge arrester
for TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 150 FM
Part No.: 952408
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952408 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952408.

Idź do sklepu internetowego

Nr kat. 952405 DG M TNS 275 FM

GTIN / EAN 4013364108462, Nr taryfy celnej (EU): 85363030, Waga brutto: 479.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 275 FM surge arrester
Modular and pluggable four-pole surge arrester
for 230/400 V TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 275 FM
Part No.: 952405
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 / 400 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952405 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952405.

Idź do sklepu internetowego

Nr kat. 952409 DG M TNS 385 FM

GTIN / EAN 4013364128552, Nr taryfy celnej (EU): 85363030, Waga brutto: 508.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TNS 385 FM surge arrester
Modular and pluggable four-pole surge arrester
for TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TNS 385 FM
Part No.: 952409
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.75 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952409 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952409.

Idź do sklepu internetowego

Nr kat. 952381 DG M H TT 275

GTIN / EAN 4013364318144, Nr taryfy celnej (EU): 85363030, Waga brutto: 435.03 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M H TT 275 surge arrester
4-pole, modular surge arrester with an increased
discharge capacity for 230/400 V TT and TN-S systems
Width: 4 modules, Fault indication
SPD Type 2 according to EN 61643-11
Max. continuous voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current [L-N]: 20 kA
Nominal discharge current [N-PE]: 80 kA
Short circuit withstand capability: 50 kArms
Energy-coordinated according to
IEC 62305-4 with SPDs of the Red/Line family

Brand: DEHN
Type: DG M H TT 275
Part No.: 952381
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	40 kA

Produkt 952381 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952381.

Idź do sklepu internetowego

Nr kat. 952385 DG M H TT 275 FM

GTIN / EAN 4013364318137, Nr taryfy celnej (EU): 85363030, Waga brutto: 441.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M H TT 275 FM surge arrester
4-pole, modular surge arrester with an increased
discharge capacity for 230/400 V TT and TN-S systems,
Width: 4 modules, Fault indication
With remote signalling contact for control device
SPD Type 2 according to EN 61643-11
Max. continuous voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current [L-N]: 20 kA
Nominal discharge current [N-PE]: 80 kA
Short circuit withstand capability: 50 kArms
Energy-coordinated according to
IEC 62305-4 of the Red/Line family

Brand: DEHN
Type: DG M H TT 275 FM
Part No.: 952385
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	40 kA

Produkt 952385 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952385.

Idź do sklepu internetowego

Nr kat. 952323 DG M TT 150

GTIN / EAN 4013364133235, Nr taryfy celnej (EU): 85363030, Waga brutto: 406.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 150 surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 150
Part No.: 952323
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	230 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 952323 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952323.

Idź do sklepu internetowego

Nr kat. 952310 DG M TT 275

GTIN / EAN 4013364108479, Nr taryfy celnej (EU): 85363030, Waga brutto: 435.03 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 275 surge arrester
Modular and pluggable four-pole surge arrester
for 230/400 V TT and TN-S systems, width: 4 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.25 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 275
Part No.: 952310
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 / 400 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952310.

Idź do sklepu internetowego

Nr kat. 952320 DG M TT 320

GTIN / EAN 4013364126794, Nr taryfy celnej (EU): 85363030, Waga brutto: 442.08 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 320 surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 320
Part No.: 952320
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 952320 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952320.

Idź do sklepu internetowego

Nr kat. 952311 DG M TT 385

GTIN / EAN 4013364119390, Nr taryfy celnej (EU): 85363030, Waga brutto: 458.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 385 surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
Fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 385
Part No.: 952311
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 952311 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952311.

Idź do sklepu internetowego

Nr kat. 952328 DG M TT 150 FM

GTIN / EAN 4013364133242, Nr taryfy celnej (EU): 85363030, Waga brutto: 416.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 150 FM surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 150 FM
Part No.: 952328
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 0.7 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	230 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV

Produkt 952328 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952328.

Idź do sklepu internetowego

Nr kat. 952315 DG M TT 275 FM

GTIN / EAN 4013364108486, Nr taryfy celnej (EU): 85363030, Waga brutto: 441.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 275 FM surge arrester
Modular and pluggable four-pole surge arrester
for 230/400 V TT and TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 275 FM
Part No.: 952315
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 / 400 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952315 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952315.

Idź do sklepu internetowego

Nr kat. 952325 DG M TT 320 FM

GTIN / EAN 4013364126800, Nr taryfy celnej (EU): 85363030, Waga brutto: 450.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 320 FM surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 320 FM
Part No.: 952325
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 952325 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952325.

Idź do sklepu internetowego

Nr kat. 952316 DG M TT 385 FM

GTIN / EAN 4013364119406, Nr taryfy celnej (EU): 85363030, Waga brutto: 462.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 385 FM surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 385 FM
Part No.: 952316
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 952316 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952316.

Idź do sklepu internetowego

Nr kat. 952332 DG M TT 385/305 FM

GTIN / EAN 4013364469945, Nr taryfy celnej (EU): 85363030, Waga brutto: 464.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 385/305 FM surge arrester
4-pole, modular, pluggable surge arrester
for TT and TN-S systems, width: 4 modules
with remote signalling contact
Type 2 arrester as per EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V AC
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short-circuit withstand capability 25 kArms
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DG M TT 385/305 FM
Part No.: 952332
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	305 V (50 / 60 Hz)
UL voltage	277 / 480 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 952332 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952332.

Idź do sklepu internetowego

Nr kat. 952201 DG M TN 150

GTIN / EAN 4013364123915, Nr taryfy celnej (EU): 85363030, Waga brutto: 227.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TN 150 surge arrester
Modular and pluggable two-pole surge arrester
for single-phase TN-S systems, width: 2 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TN 150
Part No.: 952201
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952201 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952201.

Idź do sklepu internetowego

Nr kat. 952200 DG M TN 275

GTIN / EAN 4013364108394, Nr taryfy celnej (EU): 85363030, Waga brutto: 244.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TN 275 surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TN systems, width: 2 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TN 275
Part No.: 952200
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, ATEX, IECEx


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8929 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0079X: Ex ec IIC T4 Gc
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952200 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952200.

Idź do sklepu internetowego

Nr kat. 952206 DG M TN 150 FM

GTIN / EAN 4013364123922, Nr taryfy celnej (EU): 85363030, Waga brutto: 233.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TN 150 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TN 150 FM
Part No.: 952206
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 0.7 / ≤ 0.7 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 0.55 / ≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952206 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952206.

Idź do sklepu internetowego

Nr kat. 952205 DG M TN 275 FM

GTIN / EAN 4013364108400, Nr taryfy celnej (EU): 85363030, Waga brutto: 247.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TN 275 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TN 275 FM
Part No.: 952205
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, ATEX, IECEx
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8929 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0079X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952205 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952205.

Idź do sklepu internetowego

Nr kat. 952181 DG M H TT 2P 275

GTIN / EAN 4013364318175, Nr taryfy celnej (EU): 85363030, Waga brutto: 244.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M H TT 2P 275 surge arrester
2-pole, modular surge arrester with an
increased discharge capacity
for single-phase 230 V TT and TN systems, 2 mods.
SPD Type 2 according to EN 61643-11
Fault indication
Max. continuous voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current [L-N]: 20 kA
Nominal discharge current [N-PE]: 80 kA
Short circuit withstand capability: 25 kArms
Energy-coordinated according to
IEC 62305-4 with SPDs of the Red/Line family

Brand: DEHN
Type: DG M H TT 2P 275
Part No.: 952181
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	40 kA

Produkt 952181 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952181.

Idź do sklepu internetowego

Nr kat. 952185 DG M H TT 2P 275 FM

GTIN / EAN 4013364318151, Nr taryfy celnej (EU): 85363030, Waga brutto: 244.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M H TT 2P 275 FM surge arrester
2-pole, modular surge arrester with an
increased discharge capacity
for single-phase 230 V TT and TN systems, 2 mods.
With remote signalling contact for control device
SPD Type 2 according to EN 61643-11
Fault indication
Max. continuous voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current [L-N]: 20 kA
Nominal discharge current [N-PE]: 80 kA
Short circuit withstand capability: 25 kArms
Energy-coordinated according to
IEC 62305-4 with SPDs of the Red/Line family

Brand: DEHN
Type: DG M H TT 2P 275 FM
Part No.: 952185
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [L-N] (I_n )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	80 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	40 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	120 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	40 kA

Produkt 952185 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952185.

Idź do sklepu internetowego

Nr kat. 952110 DG M TT 2P 275

GTIN / EAN 4013364108417, Nr taryfy celnej (EU): 85363030, Waga brutto: 258.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 275 surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 275
Part No.: 952110
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, ATEX, IECEx


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8929 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0079X: Ex ec IIC T4 Gc
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952110.

Idź do sklepu internetowego

Nr kat. 952130 DG M TT 2P 320

GTIN / EAN 4013364128521, Nr taryfy celnej (EU): 85363030, Waga brutto: 263.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 320 surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 320
Part No.: 952130
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1,2 / ≤ 1,5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 952130 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952130.

Idź do sklepu internetowego

Nr kat. 952111 DG M TT 2P 385

GTIN / EAN 4013364119420, Nr taryfy celnej (EU): 85363030, Waga brutto: 248.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 385 surge arrester
Modular and pluggable two-pole surge arrester
for single-phase TT and TN systems, width: 2 modules
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 385
Part No.: 952111
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 952111 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952111.

Idź do sklepu internetowego

Nr kat. 952115 DG M TT 2P 275 FM

GTIN / EAN 4013364108424, Nr taryfy celnej (EU): 85363030, Waga brutto: 244.10 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 275 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 275 FM
Part No.: 952115
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, ATEX, IECEx
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8929 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0079X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.5 kV
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952115 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952115.

Idź do sklepu internetowego

Nr kat. 952135 DG M TT 2P 320 FM

GTIN / EAN 4013364128538, Nr taryfy celnej (EU): 85363030, Waga brutto: 269.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 320 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 320 FM
Part No.: 952135
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	1.75 kV

Produkt 952135 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952135.

Idź do sklepu internetowego

Nr kat. 952116 DG M TT 2P 385 FM

GTIN / EAN 4013364119413, Nr taryfy celnej (EU): 85363030, Waga brutto: 251.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M TT 2P 385 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase TT and TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 385 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG M TT 2P 385 FM
Part No.: 952116
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.35 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-PE] (U_P )	2.0 kV

Produkt 952116 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952116.

Idź do sklepu internetowego

Nr kat. 952302 DG M WE 600

GTIN / EAN 4013364113305, Nr taryfy celnej (EU): 85363030, Waga brutto: 406.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M WE 600 surge arrester
Modular and pluggable three-pole surge arrester
for wind turbines for use in
400/690 V TN-C systems, Width: 3 modules
Consideration of short-term voltage fluctuations
resulting from increased rated varistor voltage Umov
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 600 V a.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Voltage protection level at 5 kA: <= 2.5 kV
Nominal discharge current: 15 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series

Brand: DEHN
Type: DG M WE 600
Part No.: 952302
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL

Produkt 952302 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952302.

Idź do sklepu internetowego

Nr kat. 952307 DG M WE 600 FM

GTIN / EAN 4013364113312, Nr taryfy celnej (EU): 85363030, Waga brutto: 409.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNguard M WE 600 FM surge arrester
Modular three-polesurge arrester
for wind turbines for use in 400/690 V TN-C systems,
Width: 3 modules
Consideration of short-term voltage fluctuations
resulting from increased rated varistor voltage Umov
With remote signalling contact
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 600 V a.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Voltage protection level at 5 kA: <= 2.5 kV
Nominal discharge current: 15 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series

Brand: DEHN
Type: DG M WE 600 FM
Part No.: 952307
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 952307 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952307.

Idź do sklepu internetowego

DEHNguard modular

Szczegóły

DEHNguard MP TNC ...

Nr kat. 942300 DG MP TNC 275

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX.stp

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX.igs

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX.jt

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX.dwg

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_m_D.dxf

Produkt 942300 został dodany do notatnika.

Do koszyka dodano produkt 942300.

DEHNguard MP TNC ... FM

Nr kat. 942318 DG MP TNC 150 FM

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.stp

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.igs

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.jt

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.dwg

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM_m_D.dxf

Produkt 942318 został dodany do notatnika.

Do koszyka dodano produkt 942318.

Nr kat. 942305 DG MP TNC 275 FM

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.stp

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.igs

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.jt

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.dwg

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM_m_D.dxf

Produkt 942305 został dodany do notatnika.

Do koszyka dodano produkt 942305.

Nr kat. 942319 DG MP TNC 385 FM

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.stp

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.igs

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.jt

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.dwg

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM_m_D.dxf

Produkt 942319 został dodany do notatnika.

Do koszyka dodano produkt 942319.

Nr kat. 942308 DG MP TNC 440 FM

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.stp

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.igs

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.jt

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM.dwg

Nie masz uprawnień, by pobrać 942XXX_DG_MP_WE_TNC_XXX_FM_m_D.dxf

Produkt 942308 został dodany do notatnika.

Do koszyka dodano produkt 942308.

DEHNguard MP TNS ...

Nr kat. 942400 DG MP TNS 275

Nie masz uprawnień, by pobrać 942310.stp

Nie masz uprawnień, by pobrać 942310.igs

Nie masz uprawnień, by pobrać 942310.jt

Nie masz uprawnień, by pobrać 942310.dwg

Nie masz uprawnień, by pobrać 942310m.dxf

Produkt 942400 został dodany do notatnika.

Do koszyka dodano produkt 942400.

DEHNguard MP TNS ... FM

Nr kat. 942408 DG MP TNS 150 FM

Nie masz uprawnień, by pobrać 942315.stp

Nie masz uprawnień, by pobrać 942315.igs

Nie masz uprawnień, by pobrać 942315.jt

Nie masz uprawnień, by pobrać 942315.dwg

Nie masz uprawnień, by pobrać 942315_942317_942325_924328_942405_942408_942409m_E.dxf

Produkt 942408 został dodany do notatnika.

Do koszyka dodano produkt 942408.

Nr kat. 942405 DG MP TNS 275 FM

Nie masz uprawnień, by pobrać 942315.stp

Nie masz uprawnień, by pobrać 942315.igs

Nie masz uprawnień, by pobrać 942315.jt

Nie masz uprawnień, by pobrać 942315.dwg

Nie masz uprawnień, by pobrać 942315_942317_942325_924328_942405_942408_942409m_E.dxf

Produkt 942405 został dodany do notatnika.

Do koszyka dodano produkt 942405.

Nr kat. 942409 DG MP TNS 385 FM

Nie masz uprawnień, by pobrać 942315.stp

Nie masz uprawnień, by pobrać 942315.igs

Nie masz uprawnień, by pobrać 942315.jt

Nie masz uprawnień, by pobrać 942315.dwg

Nie masz uprawnień, by pobrać 942315_942317_942325_924328_942405_942408_942409m_E.dxf

Produkt 942409 został dodany do notatnika.

Do koszyka dodano produkt 942409.

DEHNguard MP TT ...

Nr kat. 942310 DG MP TT 275
