Enclosure and Protective Conductor Terminal

  • High-quality accessories
  • Suitable for DIN rail mounted arresters

Aluminium Enclosure

For the installation of DIN rail mounted devices. With two M20 brass glands.

1 Produkt

Nr kat. 906055 ALGA 5

GTIN / EAN 4013364071513, Nr taryfy celnej (EU): 85381000, Waga brutto: 1.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

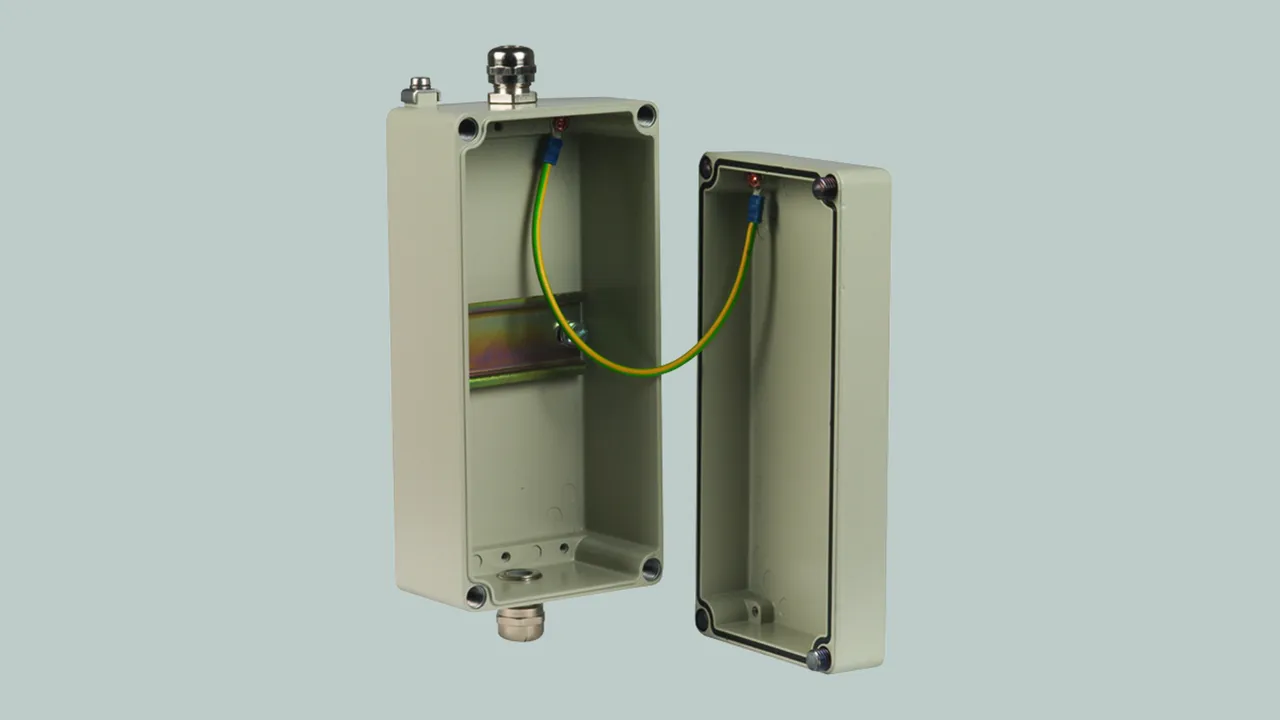

M20 ALGA 5 aluminium enclosure with two brass glands
Aluminium enclosure for installation of
DIN rail mountable devices,
with 2 brass glands PG 11,
dimensions W x H x D 100 x 200 x 81 mm
maximum assembly: 5 TE
Degree of protection: IP 65
Enclosure colour: grey


Brand: DEHN
Type: ALGA 5
Part No.: 906055
or equivalent.



Dane techniczne

Degree of protection IP 65
For mounting on walls
Dimensions (W x H x D) 100 x 200 x 81 mm
Enclosure material Al

Produkt 906055 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 906055.

Idź do sklepu internetowego

Aluminium Enclosure for Ex(i) Surge Arresters

With four plastic glands M20 x 1.5, sealable, pressure compensating grommets.

1 Produkt

Nr kat. 906058 ALGA 5 X

GTIN / EAN 4013364091658, Nr taryfy celnej (EU): 85381000, Waga brutto: 899.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Aluminium enclosure for Ex (i) ALGA 5 X
Aluminium enclosure for installation of
Ex(i) surge arresters as DIN rail mountable devices,
with 4 plastic glands M20 x 1,5, sealable,
with pressure compensating membrane
dimensions W x H x D 160 x 100 x 81 mm
maximum assembly: 5 TE
Degree of protection: IP 65
Enclosure colour: grey

Brand: DEHN
Type: ALGA 5 X
Part No.: 906058
or equivalent.



Dane techniczne

Degree of protection IP 65
For mounting on walls
Dimensions (W x H x D) 160 x 100 x 85 mm
Enclosure material Al

Produkt 906058 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 906058.

Idź do sklepu internetowego

Protective Conductor Terminal

For earthing DIN rails

1 Produkt

Nr kat. 910099 SLK 16

GTIN / EAN 4013364037298, Nr taryfy celnej (EU): 85369095, Waga brutto: 37.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Protective conductor terminal
Protective conductor terminal with
all-purpose base, for
DIN rail installation according to EN 60715
Enclosure made of polyamide (green/yellow)
Clamping range 6 – 16 mm² (fine stranded)
6 – 25 mm² (solid/stranded)
Width: 12 mm

Brand: DEHN
Type: SLK 16
Part No.: 910099
or equivalent.



Dane techniczne

Cross-sectional area, flexible 6-16 mm2
Cross-sectional area, solid 6-25 mm2
For mounting on DIN rails acc. to EN 60715
Enclosure material polyamide 6.6

Produkt 910099 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 910099.

Idź do sklepu internetowego
