Shield Connection for Cables

  • Lightning-impulse-current-tested up to 10 kA (10/350 µs)
  • Extremely space-saving
  • Spring element ensures permanent shield connection

Constant Force Spring

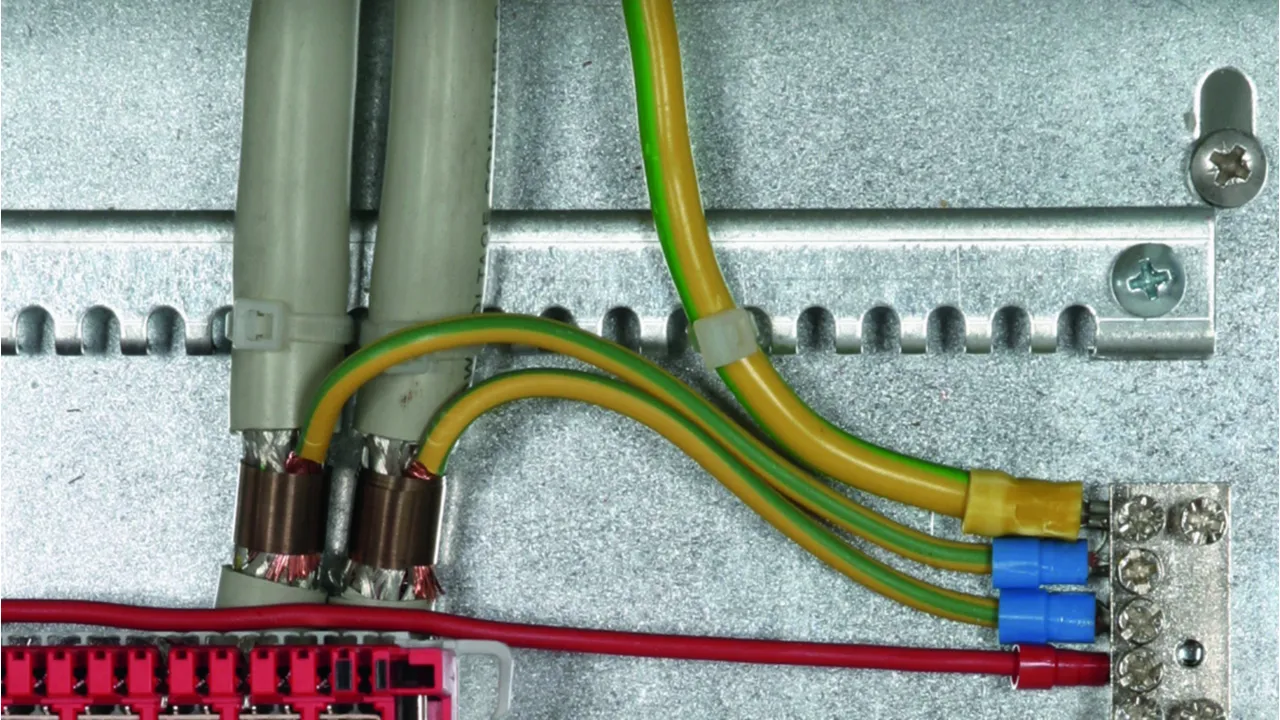

Constant force springs allow solderless shield connections for equipotential bonding or lightning equipotential bonding. They can be installed subsequently without interrupting the cable shield or requiring tools for installation.

8 Produkty

Nr kat. 919031 SA KRF 10 V2A

GTIN / EAN 4013364103511, Nr taryfy celnej (EU): 73209090, Waga brutto: 2.00 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

10 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 4-10 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 10 V2A
Part No.: 919031
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 4-10 mm
Colour bare surface
For mounting on cable shields

Produkt 919031 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919031.

Idź do sklepu internetowego

Nr kat. 919032 SA KRF 15 V2A

GTIN / EAN 4013364103528, Nr taryfy celnej (EU): 73209090, Waga brutto: 2.00 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

15 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 9-15 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 15 V2A
Part No.: 919032
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 9-15 mm
Colour bare surface
For mounting on cable shields

Produkt 919032 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919032.

Idź do sklepu internetowego

Nr kat. 919033 SA KRF 22 V2A

GTIN / EAN 4013364103535, Nr taryfy celnej (EU): 73209090, Waga brutto: 5.00 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

22 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 14-22 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 22 V2A
Part No.: 919033
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 14-22 mm
Colour bare surface
For mounting on cable shields

Produkt 919033 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919033.

Idź do sklepu internetowego

Nr kat. 919034 SA KRF 29 V2A

GTIN / EAN 4013364103542, Nr taryfy celnej (EU): 73209090, Waga brutto: 7.20 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

29 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 18,5-29 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 29 V2A
Part No.: 919034
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 18.5-29 mm
Colour bare surface
For mounting on cable shields

Produkt 919034 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919034.

Idź do sklepu internetowego

Nr kat. 919035 SA KRF 37 V2A

GTIN / EAN 4013364103559, Nr taryfy celnej (EU): 73209090, Waga brutto: 11.77 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

37 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 23,5-37 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 37 V2A
Part No.: 919035
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 23.5-37 mm
Colour bare surface
For mounting on cable shields

Produkt 919035 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919035.

Idź do sklepu internetowego

Nr kat. 919036 SA KRF 50 V2A

GTIN / EAN 4013364103566, Nr taryfy celnej (EU): 73209090, Waga brutto: 23.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

50 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 31-50 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 50 V2A
Part No.: 919036
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 31-50 mm
Colour bare surface
For mounting on cable shields

Produkt 919036 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919036.

Idź do sklepu internetowego

Nr kat. 919037 SA KRF 70 V2A

GTIN / EAN 4013364103573, Nr taryfy celnej (EU): 73209090, Waga brutto: 50.00 g, Jednostka opakowaniowa: 20.00 pc(s)

Rysunki

Informacje dodatkowe

70 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 44-70 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 70 V2A
Part No.: 919037
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 44-70 mm
Colour bare surface
For mounting on cable shields

Produkt 919037 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919037.

Idź do sklepu internetowego

Nr kat. 919038 SA KRF 94 V2A

GTIN / EAN 4013364103580, Nr taryfy celnej (EU): 73209090, Waga brutto: 82.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

92 V2A constant force spring
Constant force spring with lightning current
carrying capacity 10 kA (10/350) out of
stainless steel for earthing conductor shields
Rd 44-70 mm, can be mounted without tools
without interrupting conductor shield

Brand: DEHN
Type: SA KRF 94 V2A
Part No.: 919038
or equivalent.



Dane techniczne

Lightning impulse current carrying capability (10/350 µs) 10 kA
Clamping range Rd 58-94 mm
Colour bare surface
For mounting on cable shields

Produkt 919038 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919038.

Idź do sklepu internetowego

Self-bonding Rubber Tape

Roll with 9 m self-bonding rubber tape to be wrapped around constant force springs for permanent corrosion protection.

1 Produkt

Nr kat. 919030 SKB 19 9M SW

GTIN / EAN 4013364103504, Nr taryfy celnej (EU): 40069000, Waga brutto: 167.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

SKB 19 9M SW self-bonding rubber tape
Selfbonding rubber tape on reel, 9 m,
for wrapping around constant force springs
for permanent protection against corrosion

Brand: DEHN
Type: SKB 19 9M SW
Part No.: 919030
or equivalent.



Dane techniczne

Colour black 1
Tape dimensions (W x L) 19 mm x 9 m

Produkt 919030 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 919030.

Idź do sklepu internetowego
