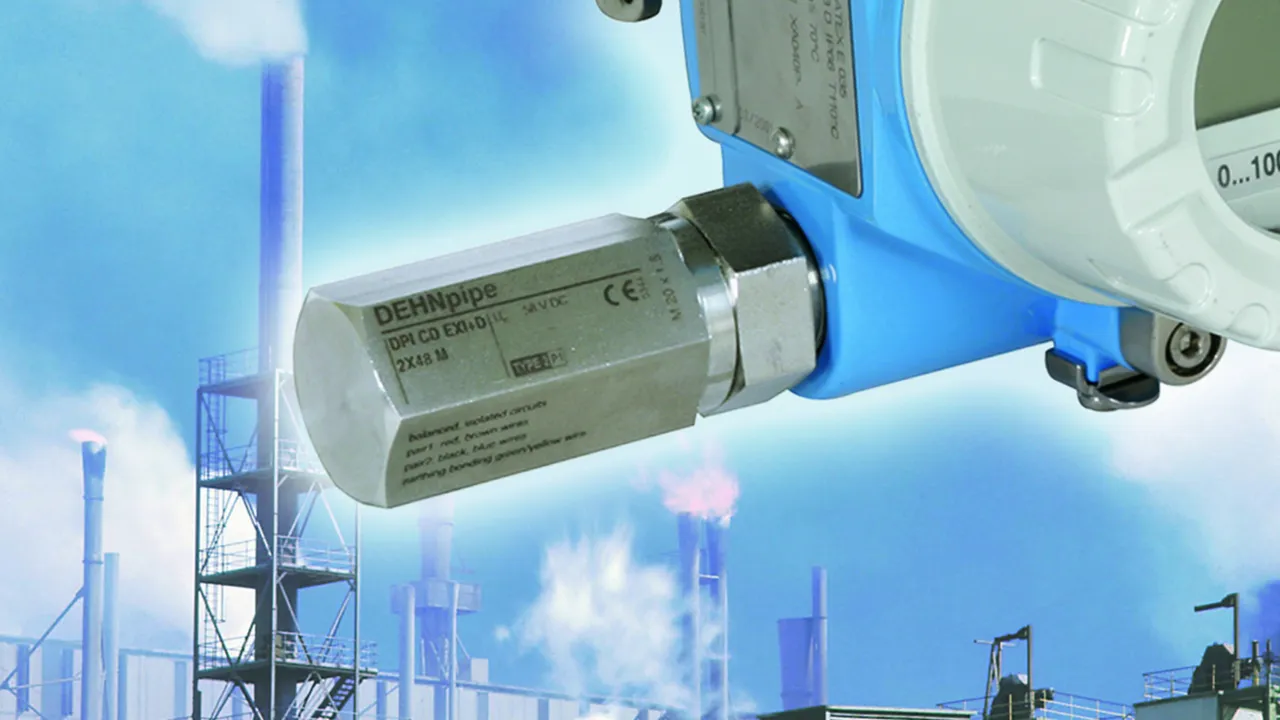

DEHNpipe

Surge arresters to be screwed onto field devices

Parallel or series connection
Made of corrosion-resistant stainless steel
Arrester for protecting a second interface (data or power side) available

Types for Ex (i) and Ex (d) applications

For protecting intrinsically safe measuring circuits and bus systems Ex (i)
Type in a flameproof enclosure Ex (d)

Variety of approvalsApprovals depending on the arrester: IECEx, ATEX, FISCO, CSA Hazloc

Szczegóły

Robust type made of corrosion-resistant stainless steel.

DPI MD

Energy-coordinated two-stage arrester, no leakage currents to earth, for 4-20 mA interfaces with M20 x 1.5 thread (female/male). Direct, indirect or no shield earthing. Cable gland available as an accessory.

1 Produkt

Nr kat. 929941 DPI MD 24 M 2S

GTIN / EAN 4013364098152, Nr taryfy celnej (EU): 85363010, Waga brutto: 187.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNpipe DPI MD 24 M 2S leakage-current-free two-stage arrester
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, two-part
enclosure design, for screwing into 2-conductor
process field devices, for serial protection of
interfaces acc. to NAMUR NE 21
Max. continuous operating voltage (d.c.): 34.8 V
Nominal current: 0.5 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 14 MHz

Brand: DEHN
Type: DPI MD 24 M 2S
Part No.: 929941
or equivalent.

Certyfikaty

Dane techniczne

SPD class	Q
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	14 MHz
For mounting on (field / device side)	M20 x 1.5 female thread / M20 x 1.5 male thread
Approvals	SIL
*⁾ For details see: www.dehn-international.com

SPD class	Q
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Max. continuous operating voltage (a.c.) (U_C )	24.5 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) shield-PG (I_n )	20 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 650 V
Voltage protection level shield-PG for I_nC2 (U_P )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 500 V
Voltage protection level shield-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Cut-off frequency line-line (f_G )	14 MHz
Capacitance line-line (C)	≤ 400 pF
Capacitance line-PG (C)	≤ 20 pF
Capacitance shield-PG (C)	≤ 15 pF
Series resistance per line	2.2 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection with cable gland	IP 67
For mounting on (field / device side)	M20 x 1.5 female thread / M20 x 1.5 male thread
Connection (input / output)	screw / connecting lines (1.5 mm²)
Length of the connecting lead	200 mm
Cross-sectional area, solid	0.08-2.5 mm²
Cross-sectional area, flexible	0.08-1.5 mm²
Earthing via	enclosure or earthing ring (accessories)
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	SIL
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929941 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929941.

Idź do sklepu internetowego

DPI ME

Energy-coordinated two-stage arrester with gas discharge tube and diodes to earth. For unbalanced interfaces with 1/2-14 NPT thread (male/male). The earthing conductor is led through the surge arrester.

1 Produkt

Nr kat. 929921 DPI ME 24 N A2G

GTIN / EAN 4013364098169, Nr taryfy celnej (EU): 85363010, Waga brutto: 255.20 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Coordinated two-stage arrester DEHNpipe DPI ME 24 N A2G
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, for screwing
into 2-conductor process field devices, for the
protection of unbalanced interfaces as well as bus
systems
Max. continuous operating voltage (d.c.): 34.8 V
Nominal current: 0.5 A
C2 Total nominal discharge current (8/20 µs): 10 kA

Brand: DEHN
Type: DPI ME 24 N A2G
Part No.: 929921
or equivalent.

Certyfikaty

Dane techniczne

SPD class	Q
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
For mounting on (field / device side)	¹/₂-14 NPT male thread / ¹/₂-14 NPT male thread
Approvals	UL, SIL
*⁾ For details see: www.dehn-international.com

SPD class	Q
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Max. continuous operating voltage (a.c.) (U_C )	24.5 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 120 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 65 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 98 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 49 V
Capacitance line-line (C)	≤ 250 pF
Capacitance line-PG (C)	≤ 450 pF
Series resistance per line	4.7 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT male thread / ¹/₂-14 NPT male thread
Connection (input / output)	connecting lines AWG 16
Length of the connecting lead	500 mm
Earthing via	enclosure and connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL, SIL
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929921 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929921.

Idź do sklepu internetowego

DPI MD EX

Energy-coordinated two-stage surge arrester with low-capacitance protective circuit for protecting intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V to earth. Cable glands must be ordered separately.

2 Produkty

Nr kat. 929960 DPI MD EX 24 M 2

GTIN / EAN 4013364098145, Nr taryfy celnej (EU): 85363010, Waga brutto: 185.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Coordinated two-stage arrester DEHNpipe DPI MD EX 24 M 2
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, two-part
enclosure design in Ex(i) version, for screwing
into 2-conductor process field devices, for serial
protection of intrinsically safe interfaces acc. to
NAMUR NE 21

Max. continuous operating voltage (d.c.): 34.8 V
Nominal current: 0.5 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 7 MHz

Brand: DEHN
Type: DPI MD EX 24 M 2
Part No.: 929960
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	7 MHz
For mounting on (field / device side)	M20 x 1.5 female thread / M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Max. continuous operating voltage (a.c.) (U_C )	24.5 V
Max. input voltage acc. to EN 60079-11 (U_i )	30 V
Max. input current acc. to EN 60079-11 (I_i )	0.5 A
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 55 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1100 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 49 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1000 V
Cut-off frequency line-line (f_G )	7 MHz
Capacitance line-line (C)	≤ 850 pF
Capacitance line-PG (C)	≤ 15 pF
Series resistance per line	1.8 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 female thread / M20 x 1.5 male thread
Connection (input / output)	screw / connecting lines (1.5 mm²)
Length of the connecting lead	200 mm
Cross-sectional area, solid	0.08-2.5 mm²
Cross-sectional area, flexible	0.08-1.5 mm²
Earthing via	enclosure
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	DEKRA 11ATEX0076 X: II 2 (1) G Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals	DEK 11.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
CSA & USA Hazloc approvals (1)	CSA17CA.70144338: Ex ia [ia Ga] IIC T4 … T6 Gb
CSA & USA Hazloc approvals (2)	CSA17CA.70144338: Class I Div 1; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001027
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929960 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929960.

Idź do sklepu internetowego

Nr kat. 929965 DPI MD EX 24 N 2

GTIN / EAN 4013364360778, Nr taryfy celnej (EU): 85363010, Waga brutto: 185.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Coordinated two-stage arrester DEHNpipe DPI MD EX 24 N 2
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, two-part
enclosure design in Ex(i) version, for screwing
into 2-conductor process field devices, for serial
protection of intrinsically safe interfaces acc. to
NAMUR NE 21

Max. continuous operating voltage (d.c.): 34.8 V
Nominal current: 0.5 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 7 MHz

Brand: DEHN
Type: DPI MD EX 24 N 2
Part No.: 929965
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	7 MHz
For mounting on (field / device side)	¹/₂-14 NPT female thread / ¹/₂-14 NPT male thread
Approvals	ATEX, IECEx, CCC, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	34.8 V
Max. continuous operating voltage (a.c.) (U_C )	24.5 V
Max. input voltage acc. to EN 60079-11 (U_i )	30 V
Max. input current acc. to EN 60079-11 (I_i )	0.5 A
Nominal current (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 55 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1100 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 49 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1000 V
Cut-off frequency line-line (f_G )	7 MHz
Capacitance line-line (C)	≤ 850 pF
Capacitance line-PG (C)	≤ 15 pF
Series resistance per line	1.8 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT female thread / ¹/₂-14 NPT male thread
Connection (input / output)	screw / connecting lines (1.5 mm²)
Length of the connecting lead	200 mm
Cross-sectional area, solid	0.08-2.5 mm²
Cross-sectional area, flexible	0.08-1.5 mm²
Earthing via	enclosure
Enclosure material	NIRO (V2A)
Colour	bare
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, SIL
ATEX approvals	DEKRA 11ATEX0076 X: II 2 (1) G Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals	DEK 11.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
China Compulsory Certification	CCC No. 2021312304001027
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929965 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929965.

Idź do sklepu internetowego

DPI CD EXI

Surge arrester with a low-capacitance protective circuit for protecting intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V to earth.

2 Produkty

Nr kat. 929961 DPI CD EXI 24 M

GTIN / EAN 4013364101784, Nr taryfy celnej (EU): 85363010, Waga brutto: 183.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD EX (i) DPI CD EXI 24 M
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, Ex(i)-version,
for screwing into 2-conductor process field devices,
parallel protection of a floating pair as well as
intrinsically safe bus systems
Max. continuous operating voltage (d.c.): 32 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 67 MHz

Brand: DEHN
Type: DPI CD EXI 24 M
Part No.: 929961
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	67 MHz
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Max. input voltage acc. to EN 60079-11 (U_i )	30 V
Max. input current acc. to EN 60079-11 (I_i )	0.55 A
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) line-line (I_n )	150 A
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1700 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Cut-off frequency line-line (f_G )	67 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-50 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 04ATEX1189 X: II 2 (1) G Ex ia [ia Ga] IIC T5 ... T6 Gb
IECEx approvals	KEM 09.0076X: Ex ia [ia Ga] IIC T5 ... T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001030
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929961 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929961.

Idź do sklepu internetowego

Nr kat. 929963 DPI CD EXI 24 N

GTIN / EAN 4013364101807, Nr taryfy celnej (EU): 85363010, Waga brutto: 196.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD EX (i) DPI CD EXI 24 N
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21 and energy coordinated
acc. to IEC 61643-22, in V2A, IP67, Ex(i)-version,
for screwing into 2-conductor process field devices,
parallel protection of a floating pair as well as
intrinsically safe bus systems
Max. continuous operating voltage (d.c.): 32 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 67 MHz

Brand: DEHN
Type: DPI CD EXI 24 N
Part No.: 929963
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	67 MHz
For mounting on (field / device side)	¹/₂-14 NPT male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Max. input voltage acc. to EN 60079-11 (U_i )	30 V
Max. input current acc. to EN 60079-11 (I_i )	0.55 A
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) line-line (I_n )	150 A
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1700 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Cut-off frequency line-line (f_G )	67 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-50 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 04ATEX1189 X: II 2 (1) G Ex ia [ia Ga] IIC T5 ... T6 Gb
IECEx approvals	KEM 09.0076X: Ex ia [ia Ga] IIC T5 ... T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001030
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929963 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929963.

Idź do sklepu internetowego

DPI CD EXD

Flameproof surge arrester with a low-capacitance protective circuit for protecting measuring circuits and bus systems in potentially explosive atmospheres. Insulation strength > 500 V to earth. Certified to CSA and USA Hazloc standards.

2 Produkty

Nr kat. 929962 DPI CD EXD 24 M

GTIN / EAN 4013364101791, Nr taryfy celnej (EU): 85363010, Waga brutto: 183.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD Ex (d) DPI CD EXD 24 M
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21, in V4A, IP67,
Ex(d)-version, for screwing into 2-conductor
process field devices, parallel protection of a
floating pair as well as bus systems in
Ex zone 1 or 2
Max. continuous operating voltage (d.c.): 32 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 67 MHz

Brand: DEHN
Type: DPI CD EXD 24 M
Part No.: 929962
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	67 MHz
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*) For more detailed information, please visit www.dehn-international.com.

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1700 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Cut-off frequency line-line (f_G )	67 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-50 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 04ATEX2190 X: II 2 G Ex db IIC T5 or T6 Gb
IECEx approvals	KEM 09.0064X: Ex db IIC T5 or T6 Gb
CSA & USA Hazloc approvals (1)	CSA 10.2317168: Ex d IIC T4 ... T6
CSA & USA Hazloc approvals (2)	CSA 10.2317168: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001029
SIL classification	up to SIL3 *⁾
*) For more detailed information, please visit www.dehn-international.com.

Produkt 929962 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929962.

Idź do sklepu internetowego

Nr kat. 929964 DPI CD EXD 24 N

GTIN / EAN 4013364101814, Nr taryfy celnej (EU): 85363010, Waga brutto: 183.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD Ex (d) DPI CD EXD 24 N
Surge arrester DEHNpipe, SPD class TYPE 2/1,
tested acc. to EN 61643-21, in V4A, IP67,
Ex(d)-version, for screwing into 2-conductor
process field devices, parallel protection of a
floating pair as well as bus systems in
Ex zone 1 or 2
Max. continuous operating voltage (d.c.): 32 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA
Cut-off frequency line-line: 67 MHz

Brand: DEHN
Type: DPI CD EXD 24 N
Part No.: 929964
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Cut-off frequency line-line (f_G )	67 MHz
For mounting on (field / device side)	¹/₂-14 NPT male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*) For more detailed information, please visit www.dehn-international.com.

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1700 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Cut-off frequency line-line (f_G )	67 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-50 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 04ATEX2190 X: II 2 G Ex db IIC T5 or T6 Gb
IECEx approvals	KEM 09.0064X: Ex db IIC T5 or T6 Gb
CSA & USA Hazloc approvals (1)	CSA 10.2317168: Ex d IIC T4 ... T6
CSA & USA Hazloc approvals (2)	CSA 10.2317168: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001029
SIL classification	up to SIL3 *⁾
*) For more detailed information, please visit www.dehn-international.com.

Produkt 929964 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929964.

Idź do sklepu internetowego

DPI CD HF EXD

Flameproof surge arrester with an energy-coordinated low-capacitance protective circuit for protecting measuring circuits and bus systems in potentially explosive atmospheres.

1 Produkt

Nr kat. 929971 DPI CD HF EXD 5 M

GTIN / EAN 4013364120761, Nr taryfy celnej (EU): 85363010, Waga brutto: 285.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD Ex (d) DPI CD HF EXD 5 M
DEHNpipe surge arrester of SPD class Type 2 / P1,
tested in accordance with EN 61643-21, V4A, IP 67,
available as Ex (d) type, to be screwed onto 2-
conductor field devices, serial protection of an
unearthed pair and bus systems in explosion
protection zone 1 or 2.

Max. continuous operating voltage (d.c.): 6 V
Nominal current at 80 °C: 0.1 A
C2 Total nominal discharge current (8/20 µs): 20 kA
Cut-off frequency line-line: 100 MHz

Brand: DEHN
Type: DPI CD HF EXD 5 M
Part No.: 929971
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	6 V
Nominal current at 80 °C (I_L )	0.1 A
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
Cut-off frequency line-line (f_G )	100 MHz
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*) For more detailed information, please visit www.dehn-international.com.

SPD class	T
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	6 V
Max. continuous operating voltage (a.c.) (U_C )	4.2 V
Nominal current at 80 °C (I_L )	0.1 A
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 55 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 1000 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 12 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 700 V
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 40 pF
Capacitance line-PG (C)	≤ 30 pF
Series resistance per line	4.7 ohms
Operating temperature range (T_U) for ATEX / IECEx	-50 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	300 mm
Earthing via	connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 04ATEX2190 X: II 2 G Ex db IIC T5 or T6 Gb
IECEx approvals	KEM 09.0064X: Ex db IIC T5 or T6 Gb
China Compulsory Certification	CCC No. 2021312304001029
SIL classification	bis SIL3 *⁾
*) For more detailed information, please visit www.dehn-international.com.

Produkt 929971 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929971.

Idź do sklepu internetowego

DPI CD EXD 230 24

Flameproof surge arrester for the data and power side for protecting one 120 / 230 V power supply system and one 24 V data interface of field devices in potentially explosive areas (zones 1 and 2).
Additional safety due to fault-proof Y circuit for 120 / 230 V power supply systems.

II 2 G Ex d IIC T5/T6 version universally applicable in hazardous zones 1 and 2. Certified to CSA and USA Hazloc standards.

2 Produkty

Nr kat. 929969 DPI CD EXD 230 24 M

GTIN / EAN 4013364127418, Nr taryfy celnej (EU): 85363010, Waga brutto: 280.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Dual surge arrester DEHNpipe CD Ex (d) DPI CD EXD 230 24 M
DEHNpipe
dual type 2 and type 2 / P2 surge arrester,
tested in accordance with EN 61643-11 and -21,
in V4A, IP 67, Ex (d) version,
to be screwed onto two-conductor field devices
with voltage supply connection,
parallel protection of 230 V power supply systems
and 0/4-20 mA interfaces in hazardous zone 1 or 2

Max. continuous operating voltage (d.c.): 32 V
Nominal current at 80 °C: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA

Brand: DEHN
Type: DPI CD EXD 230 24 M
Part No.: 929969
or equivalent.

Certyfikaty

Dane techniczne

Protection of the data side
SPD class	U
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current at 80 °C (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*) For more detailed information, please visit www.dehn.de.
Protection of the power side
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V
Total discharge current (8/20 µs) L+N-PE (I_total )	5 kA
Voltage protection level L-N (U_P )	≤ 1.4 kV
Max. mains-side overcurrent protection	16 A gG or B 16 A

Protection of the data side
SPD class	U
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Nominal current at 80 °C (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 900 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 850 V
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting line	250 mm
Earthing via	connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 10ATEX0114 X: II 2 G Ex db IIC T5/T6 Gb
IECEx approvals	DEK 11.0006X: Ex db IIC T5 or T6 Gb
CSA & USA Hazloc approvals (1)	CSA 10.2317168: Ex d IIC T4 ... T6
CSA & USA Hazloc approvals (2)	CSA 10.2317168: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001026
SIL classification	up to SIL3 *)
*) For more detailed information, please visit www.dehn.de.
Protection of the power side
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	120/230 V
Max. continuous operating voltage (a.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) L-N (I_n )	3 kA
Total discharge current (8/20 µs) L+N-PE (I_total )	5 kA
Voltage protection level L-N (U_P )	≤ 1.4 kV
Voltage protection level L/N-PE (U_P )	≤ 1.5 kV
Max. discharge current L-N (I_max )	3 kA
Max. mains-side overcurrent protection	16 A gG or B 16 A
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG	6 kA_rms
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 sec.
Temporary overvoltage (TOV) L/N-PE (1) (U_T )	400 V / 5 sec.
Temporary overvoltage (TOV) L/N-PE (2) (U_T )	1200 V+U_CS/ 200 ms
Indication of the disconnector	upstream fuse

Produkt 929969 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929969.

Idź do sklepu internetowego

Nr kat. 929970 DPI CD EXD 230 24 N

GTIN / EAN 4013364127425, Nr taryfy celnej (EU): 85363010, Waga brutto: 273.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Dual surge arrester DEHNpipe CD Ex (d) DPI CD EXD 230 24 N
DEHNpipe
dual type 2 and type 2 / P2 surge arrester,
tested in accordance with EN 61643-11 and -21,
in V4A, IP 67, Ex (d) version,
to be screwed onto two-conductor field devices
with voltage supply connection,
parallel protection of 230 V power supply systems
and 0/4-20 mA interfaces in hazardous zone 1 or 2

Max. continuous operating voltage (d.c.): 32 V
Nominal current at 80 °C: 0.55 A
C2 Total nominal discharge current (8/20 µs): 10 kA

Brand: DEHN
Type: DPI CD EXD 230 24 N
Part No.: 929970
or equivalent.

Certyfikaty

Dane techniczne

Protection of the data side
SPD class	U
Max. continuous operating voltage (d.c.) (U_C )	32 V
Nominal current at 80 °C (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
For mounting on (field / device side)	¹/₂-14 npt male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*) For more detailed information, please visit www.dehn.de.
Protection of the power side
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V
Total discharge current (8/20 µs) L+N-PE (I_total )	5 kA
Voltage protection level L-N (U_P )	≤ 1.4 kV
Max. mains-side overcurrent protection	16 A gG or B 16 A

Protection of the data side
SPD class	U
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	32 V
Max. continuous operating voltage (a.c.) (U_C )	22.6 V
Nominal current at 80 °C (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 58 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 900 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 850 V
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 npt male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting line	250 mm
Earthing via	connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals	KEMA 10ATEX0114 X: II 2 G Ex db IIC T5/T6 Gb
IECEx approvals	DEK 11.0006X: Ex db IIC T5 or T6 Gb
CSA & USA Hazloc approvals (1)	CSA 10.2317168: Ex d IIC T4 ... T6
CSA & USA Hazloc approvals (2)	CSA 10.2317168: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification	CCC No. 2021312304001026
SIL classification	up to SIL3 *)
*) For more detailed information, please visit www.dehn.de.
Protection of the power side
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	120 / 230 V
Max. continuous operating voltage (a.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) L-N (I_n )	3 kA
Total discharge current (8/20 µs) L+N-PE (I_total )	5 kA
Voltage protection level L-N (U_P )	≤ 1.4 kV
Voltage protection level L/N-PE (U_P )	≤ 1.5 kV
Max. discharge current L-N (I_max )	3 kA
Max. mains-side overcurrent protection	16 A gG or B 16 A
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG	6 kA_rms
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 sec.
Temporary overvoltage (TOV) L/N-PE (1) (U_T )	400 V / 5 sec.
Temporary overvoltage (TOV) L/N-PE (2) (U_T )	1200 V+U_CS/ 200 ms
Indication of the disconnector	upstream fuse

Produkt 929970 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929970.

Idź do sklepu internetowego

DPI CD EXI+D 2X24

Flameproof surge arrester for protecting two 24 V interfaces in potentially explosive atmospheres.

2 Produkty

Nr kat. 929950 DPI CD EXI+D 2X24 M

GTIN / EAN 4013364137387, Nr taryfy celnej (EU): 85363010, Waga brutto: 247.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD EX (i) + Ex (d) DPI CD EXI+D 2X24 M
DEHNpipe surge arrester
SPD class: type 2 / P1
tested to EN 61643-21, V4A, IP 67,
Ex (i) + (d) version,
To be screwed onto field devices
For protecting two unearthed
signal circuits or the supply circuit
of the field device and a signal circuit
in Ex zone 1 or 2.
Max. continuous operating voltage (d.c.): 36 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DPI CD EXI+D 2X24 M
Part No.: 929950
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 2000 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Capacitance line-line (C)	≤ 2000 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals (1)	DEKRA 11ATEX0207 X: II 2 (1) G Ex ia [ia Ga] IIC T5 / T6 Gb
ATEX approvals (2)	DEKRA 11ATEX0217 X: II 2 G Ex db IIC T5 / T6 Gb
IECEx approvals (1)	DEK 11.0076X: Ex ia [ia Ga] IIC T5 / T6 Gb
IECEx approvals (2)	DEK 11.0079X: Ex db IIC T5 / T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification (1)	CCC No. 2021312304001028 (Ex ia)
China Compulsory Certification (2)	CCC No. 2021312304001025 (Ex d)
SIL classification	up to SIL3 ^*)
*⁾ For details see: www.dehn-international.com

Produkt 929950 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929950.

Idź do sklepu internetowego

Nr kat. 929951 DPI CD EXI+D 2X24 N

GTIN / EAN 4013364137394, Nr taryfy celnej (EU): 85363010, Waga brutto: 247.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester DEHNpipe CD EX (i) + Ex (d) DPI CD EXI+D 2X24 N
DEHNpipe surge arrester
SPD class: type 2 / P1
tested to EN 61643-21, V4A, IP 67,
Ex (i) + (d) version,
To be screwed onto field devices
For protecting two unearthed
signal circuits or the supply circuit
of the field device and a signal circuit
in Ex zone 1 or 2.
Max. continuous operating voltage (d.c.): 36 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DPI CD EXI+D 2X24 N
Part No.: 929951
or equivalent.

Certyfikaty

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
For mounting on (field / device side)	¹/₂-14 NPT male thread
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 2000 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 50 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Capacitance line-line (C)	≤ 2000 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V2A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
ATEX approvals (1)	DEKRA 11ATEX0207 X: II 2 (1) G Ex ia [ia Ga] IIC T5 / T6 Gb
ATEX approvals (2)	DEKRA 11ATEX0217 X: II 2 G Ex db IIC T5 / T6 Gb
IECEx approvals (1)	DEK 11.0076X: Ex ia [ia Ga] IIC T5 / T6 Gb
IECEx approvals (2)	DEK 11.0079X: Ex db IIC T5 / T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
China Compulsory Certification (1)	CCC No. 2021312304001028 (Ex ia)
China Compulsory Certification (2)	CCC No. 2021312304001025 (Ex d)
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929951 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929951.

Idź do sklepu internetowego

DPI CD EXI+D 2X48

Flameproof surge arrester for protecting two 48 V interfaces in potentially explosive atmospheres.

2 Produkty

Nr kat. 929952 DPI CD EXI+D 2X48 M

GTIN / EAN 4013364137400, Nr taryfy celnej (EU): 85363010, Waga brutto: 247.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Surge arrester DEHNpipe CD Ex (i) + Ex (d) DPI CD EXI+D 2x48 M
DEHNpipe surge arrester
SPD class: type 2 / P1
tested to EN 61643-21, V4A, IP 67,
Ex (i) + (d) version,
To be screwed onto field devices
For protecting two unearthed
signal circuits or the supply circuit
of the field device and a signal circuit
in Ex zone 1 or 2.
Max. continuous operating voltage (d.c.): 58 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DPI CD EXI+D 2X48 M
Part No.: 929952
or equivalent.

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	58 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
For mounting on (field / device side)	M20 x 1.5 male thread
Approvals	ATEX, IECEx, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	58 V
Max. continuous operating voltage (a.c.) (U_C )	41 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 95 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 2000 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 80 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Capacitance line-line (C)	≤ 1200 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	M20 x 1.5 male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CSA & USA Hazloc, SIL
ATEX approvals (1)	DEKRA 11ATEX0207 X: II 2 (1) G Ex ia [ia Ga] IIC T5 / T6 Gb
ATEX approvals (2)	DEKRA 11ATEX0217 X: II 2 G Ex d IIC T5 / T6 Gb
IECEx approvals (1)	DEK 11.0076X: Ex ia [ia Ga ] IIC T5 / T6 Gb
IECEx approvals (2)	DEK 11.0079X: Ex d IIC T5 or T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929952 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929952.

Idź do sklepu internetowego

Nr kat. 929953 DPI CD EXI+D 2X48 N

GTIN / EAN 4013364137417, Nr taryfy celnej (EU): 85363010, Waga brutto: 247.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Surge arrester DEHNpipe CD Ex (i) + Ex (d) DPI CD EXI+D 2x48 N
DEHNpipe surge arrester
SPD class: type 2 / P1
tested to EN 61643-21, V4A, IP 67,
Ex (i) + (d) version,
To be screwed onto field devices
For protecting two unearthed
signal circuits or the supply circuit
of the field device and a signal circuit
in Ex zone 1 or 2.
Max. continuous operating voltage (d.c.): 58 V
Nominal current: 0.55 A
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DPI CD EXI+D 2X48 N
Part No.: 929953
or equivalent.

Dane techniczne

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	58 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
For mounting on (field / device side)	¹/₂-14 NPT male thread
Approvals	ATEX, IECEx, CSA & USA Hazloc, SIL
*⁾ For details see: www.dehn-international.com

SPD class	T
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	58 V
Max. continuous operating voltage (a.c.) (U_C )	41 V
Nominal current (I_L )	0.55 A
D1 Lightning impulse current (10/350 µs) line-PG (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	20 kA
C2 Nominal discharge current (8/20 µs) line-PG (I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 95 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 2000 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 80 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1200 V
Capacitance line-line (C)	≤ 1200 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 67
For mounting on (field / device side)	¹/₂-14 NPT male thread
Connection	connecting lines (1.3 mm²)
Length of the connecting lead	250 mm
Earthing via	connecting line
Enclosure material	StSt (V4A)
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CSA & USA Hazloc, SIL
ATEX approvals (1)	DEKRA 11ATEX0207 X: II 2 (1) G Ex ia [ia Ga] IIC T5 / T6 Gb
ATEX approvals (2)	DEKRA 11ATEX0217 X: II 2 G Ex d IIC T5 / T6 Gb
IECEx approvals (1)	DEK 11.0076X: Ex ia [ia Ga ] IIC T5 / T6 Gb
IECEx approvals (2)	DEK 11.0079X: Ex d IIC T5 / T6 Gb
CSA & USA Hazloc approvals (1)	CSA 13.70000407: Ex ia [ia] IIC T5 … T6
CSA & USA Hazloc approvals (2)	CSA 13.70000407: Class I Div 1, 2; Class I Zone 1
SIL classification	up to SIL3 *⁾
*⁾ For details see: www.dehn-international.com

Produkt 929953 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 929953.

Idź do sklepu internetowego

DEHNpipe

Szczegóły

DPI MD

Nr kat. 929941 DPI MD 24 M 2S

Nie masz uprawnień, by pobrać 929941.stp

Nie masz uprawnień, by pobrać 929941.igs

Nie masz uprawnień, by pobrać 929941.jt

Nie masz uprawnień, by pobrać 929941.dwg

Nie masz uprawnień, by pobrać 929941m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929941.wspak

Nie masz uprawnień, by pobrać DEHN.929941.edz

Produkt 929941 został dodany do notatnika.

Do koszyka dodano produkt 929941.

DPI ME

Nr kat. 929921 DPI ME 24 N A2G

Nie masz uprawnień, by pobrać 929921.stp

Nie masz uprawnień, by pobrać 929921.igs

Nie masz uprawnień, by pobrać 929921.jt

Nie masz uprawnień, by pobrać 929921.dwg

Nie masz uprawnień, by pobrać 929921m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929921.wspak

Nie masz uprawnień, by pobrać DEHN.929921.edz

Produkt 929921 został dodany do notatnika.

Do koszyka dodano produkt 929921.

DPI MD EX

Nr kat. 929960 DPI MD EX 24 M 2

Nie masz uprawnień, by pobrać 929960.stp

Nie masz uprawnień, by pobrać 929960.igs

Nie masz uprawnień, by pobrać 929960.jt

Nie masz uprawnień, by pobrać 929960.dwg

Nie masz uprawnień, by pobrać 929960m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929960.wspak

Nie masz uprawnień, by pobrać DEHN.929960.edz

Produkt 929960 został dodany do notatnika.

Do koszyka dodano produkt 929960.

Nr kat. 929965 DPI MD EX 24 N 2

Nie masz uprawnień, by pobrać 929965.dxf

Nie masz uprawnień, by pobrać DEHN.929965.wspak

Nie masz uprawnień, by pobrać DEHN.929965.edz

Produkt 929965 został dodany do notatnika.

Do koszyka dodano produkt 929965.

DPI CD EXI

Nr kat. 929961 DPI CD EXI 24 M

Nie masz uprawnień, by pobrać 929961.stp

Nie masz uprawnień, by pobrać 929961.igs

Nie masz uprawnień, by pobrać 929961.jt

Nie masz uprawnień, by pobrać 929961.dwg

Nie masz uprawnień, by pobrać 929961m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929961.wspak

Nie masz uprawnień, by pobrać DEHN.929961.edz

Produkt 929961 został dodany do notatnika.

Do koszyka dodano produkt 929961.

Nr kat. 929963 DPI CD EXI 24 N

Nie masz uprawnień, by pobrać 929963.stp

Nie masz uprawnień, by pobrać 929963.igs

Nie masz uprawnień, by pobrać 929963.jt

Nie masz uprawnień, by pobrać 929963.dwg

Nie masz uprawnień, by pobrać 929963_964m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929963.wspak

Nie masz uprawnień, by pobrać DEHN.929963.edz

Produkt 929963 został dodany do notatnika.

Do koszyka dodano produkt 929963.

DPI CD EXD

Nr kat. 929962 DPI CD EXD 24 M

Nie masz uprawnień, by pobrać 929961.stp

Nie masz uprawnień, by pobrać 929961.igs

Nie masz uprawnień, by pobrać 929961.jt

Nie masz uprawnień, by pobrać 929961.dwg

Nie masz uprawnień, by pobrać 929961_962m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929962.wspak

Nie masz uprawnień, by pobrać DEHN.929962.edz

Produkt 929962 został dodany do notatnika.

Do koszyka dodano produkt 929962.

Nr kat. 929964 DPI CD EXD 24 N

Nie masz uprawnień, by pobrać 929963.stp

Nie masz uprawnień, by pobrać 929963.igs

Nie masz uprawnień, by pobrać 929963.jt

Nie masz uprawnień, by pobrać 929963.dwg

Nie masz uprawnień, by pobrać 929963_964m_D.dxf

Nie masz uprawnień, by pobrać DEHN.929964.wspak
