Stripping tool for the HVI light conductor / HVI light plus Conductor / HVI Conductor

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI light Conductor, HVI Conductor (outer diameter 20 mm).

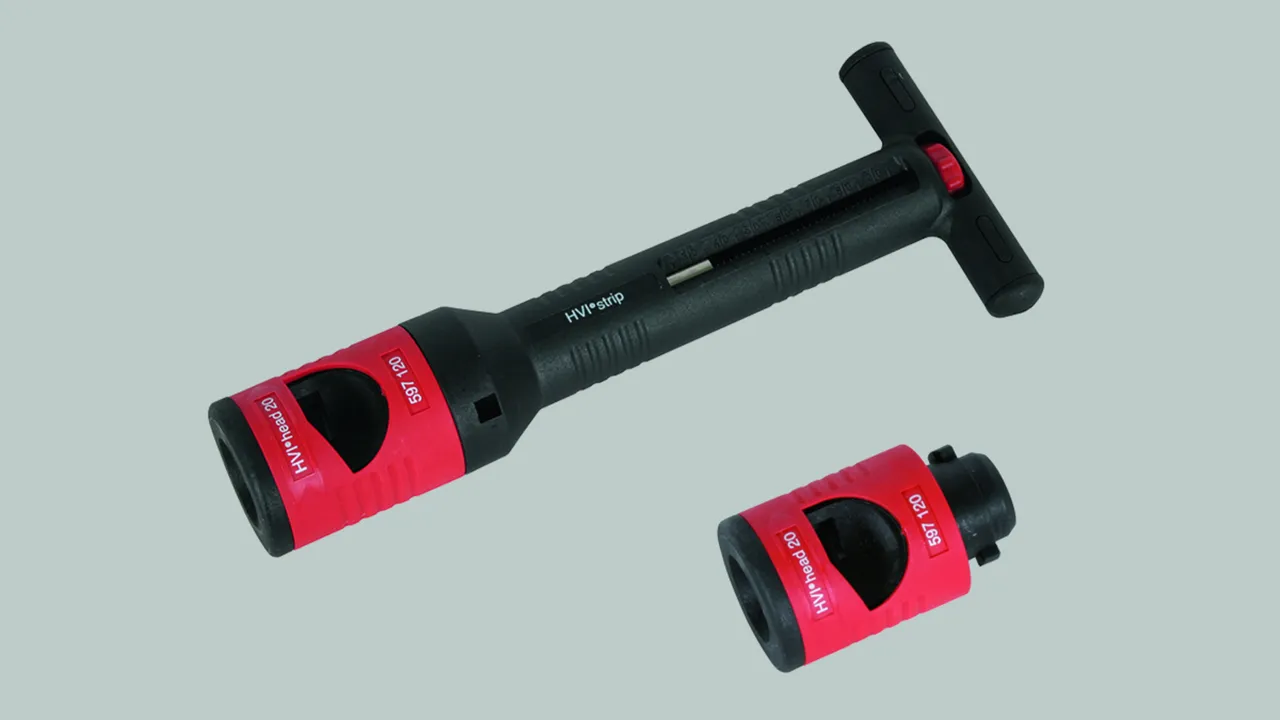

The tool consists of a handle and various interchangeable stripping inserts
The stripping length of the HVI light Conductor, HVI light plus Conductor, HVI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length that is set.

OperationPosition the stripping insert at the cut-off end of the conductor.Turn clockwise applying light pressure, the cutting operation/stripping occurs through the tool.The interchangeable stripping insert can be attached without tools via the bayonet coupling.

HVI strip 20

Version for the HVI light conductor, HVI light plus Conductor and HVI Conductor (handle + stripping insert).

1 Produkt

Nr kat. 597220 HVI STRIP 20

GTIN / EAN 4013364144972, Nr taryfy celnej (EU): 82055980, Waga brutto: 330.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Brand: DEHN
Type: HVI STRIP 20
Part No.: 597220
or equivalent.

Dane techniczne

Diameter Ø conductor	20 mm
Material of moulded part	plastic
Material of blade	StSt

Produkt 597220 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597220.

Idź do sklepu internetowego

HVI head 20

Version for HVI light Conductor, HVI light plus Conductor and HVI Conductor (stripping insert).

1 Produkt

Nr kat. 597120 HVI HEAD 20

GTIN / EAN 4013364142497, Nr taryfy celnej (EU): 82055980, Waga brutto: 100.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Brand: DEHN
Type: HVI HEAD 20
Part No.: 597120
or equivalent.

Dane techniczne

Diameter Ø conductor	20 mm
Material of moulded part	plastic
Material of blade	StSt

Produkt 597120 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 597120.

Idź do sklepu internetowego
