DEHNventil ZP

Type 1 and type 2 combined lightning current and surge arrester with RADAX Flow spark gap technology

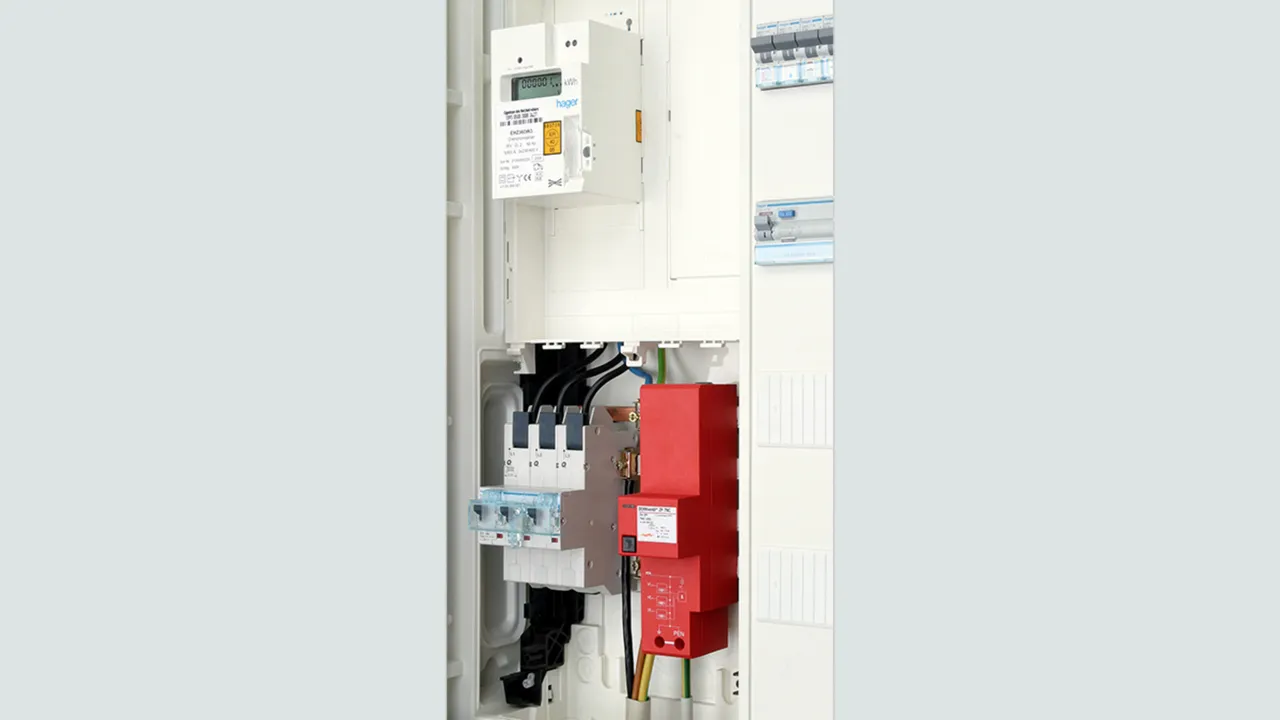

Fully compliant with all requirements of VDE-AR-N 4100 on the use of SPDs upstream of the meter panel
Quick and easy installation by snapping the arrester onto 40 mm busbar systems
Test for correct operation by pressing the button with indicator light
No tripping of 32 A gG fuses up to short-circuit currents of 25 kA_rms
Discharge capacity up to 100 kA (10/350 µs)
Capable of protecting terminal equipment
Maximum system availability

Szczegóły

DEHNventil ZP TNC

Combined lightning current and surge arrester for TN-C systems for use in main power systems in case of buildings with external lightning protection system and high performance parameters (3+0 configuration).

1 Produkt

Nr kat. 900390 DV ZP TNC 255

GTIN / EAN 4013364105751, Nr taryfy celnej (EU): 85363090, Waga brutto: 957.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNventil ZP TNC 255 combined arrester
Three-pole combined arrester for use in 230/400 V TN-C systems
For use upstream of the meter according to national regulations
(e.g. Germany: VDN directive)
Type 1 + Type 2 SPD according to EN 61643-11
RADAX-Flow spark gap technology
for follow current limitation
Can be directly snapped onto 40 mm busbar systems
without tools in the lower compartment of the meter panel
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 75 kA
Follow current extinguishing capability: 25 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment
Operating state indication

Brand: DEHN
Type: DV ZP TNC 255
Part No.: 900390
or equivalent.

Certyfikaty

Funkcja falochronu

Ogranicznik przepięć typu 1 – podobnie jak falochron – ucina energię udaru do znacznie niższego poziomu. Chroni to instalację elektryczną i ograniczniki typu 2 i 3 zainstalowane za ogranicznikiem typu 1, wydłużając okres ich eksploatacji. Wszystkie ograniczniki typu 1 z serii produktów Red/Line posiadają funkcję falochronu (WBF).

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse up to I_K= 25 kA_rms	315 A gG
Approvals	VDE

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Specific energy [L1+L2+L3-PEN] (W/R)	1.40 MJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Specific energy [L-PEN] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	25 / 75 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse up to I_K= 25 kA_rms	315 A gG
Max. backup fuse for I_K> 25 kA_rms	200 A gG
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state indication	button with indicator light
Number of ports	1
Cross-sectional area (PEN, 9)	10-35 mm²fine-stranded / 50 mm²stranded
For mounting on	40 mm busbar systems
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 30 (in combination with cover)
Capacity	3 module(s), DIN 43880
Approvals	VDE

Produkt 900390 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900390.

Idź do sklepu internetowego

DEHNventil ZP TT

Combined lightning current and surge arrester for TT and TN-S systems for use in primary power systems in case of buildings with external lightning protection system and high performance parameters (3+1 configuration).

1 Produkt

Nr kat. 900391 DV ZP TT 255

GTIN / EAN 4013364105768, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.08 kg, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNventil ZP TT 255 combined arrester
Four-pole combined arrester for 230/400 V
TT and TN(C)-S systems
For use upstream of the meter according to national regulations
(e.g. Germany: VDN directive)
Type 1 + Type 2 SPD acc. to EN 61643-11
RADAX-Flow spark gap technology
for follow current limitation
Can be directly snapped onto 40 mm busbar systems
without tools in the lower compartment of the meter panel
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: 25 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment
Fault indication

Brand: DEHN
Type: DV ZP TT 255
Part No.: 900391
or equivalent.

Certyfikaty

Funkcja falochronu

Dane techniczne

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. backup fuse up to I_K= 25 kA_rms	315 A gG
Approvals	VDE

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N] (I_imp )	25 kA
Specific energy [L-N] (W/R)	156.25 kJ/ohms
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Specific energy [N-PE] (W/R)	2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	25 kA_rms
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse up to I_K= 25 kA_rms	315 A gG
Max. backup fuse for I_K> 25 kA_rms	200 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state indication	button with indicator light
Number of ports	1
Cross-sectional area (PE, 9)	10-35 mm²fine-stranded / 50 mm²stranded
For mounting on	40 mm busbar systems
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 30 (in combination with cover)
Capacity	3 module(s), DIN 43880
Approvals	VDE
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	2.2 kV
