Protection module for DEHNventil modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Maximum system availability due to RADAX Flow follow current limitation
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state / fault indication by green / red indicator flag in the inspection window

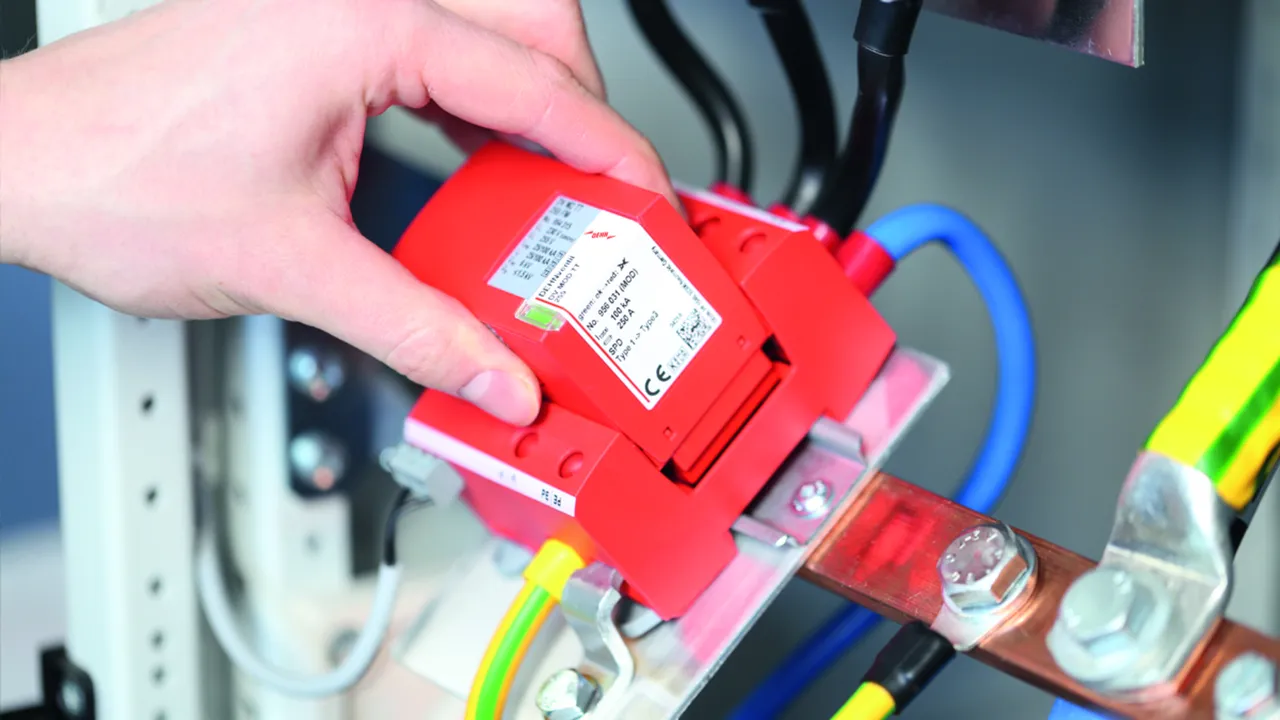

  • The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover
In multipole protective circuits, we recommend replacing the complete set of protection modules when one module fails.

Szczegóły

lorem ipsum

RAC Spark Gap Protection Module

5 Produkty

Nr kat. 956030 DV MOD TNC 255

GTIN / EAN 4013364510609, Nr taryfy celnej (EU): 85363090, Waga brutto: 269.21 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Spark-gap-based protection module, DV MOD TNC 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 75 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNC 255
Part No.: 956030
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 75 kA

Produkt 956030 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 956030.

Idź do sklepu internetowego

Nr kat. 956040 DV MOD TNS 255

GTIN / EAN 4013364510593, Nr taryfy celnej (EU): 85363090, Waga brutto: 333.70 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

DV MOD TNS 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNS 255
Part No.: 956040
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Produkt 956040 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 956040.

Idź do sklepu internetowego

Nr kat. 956031 DV MOD TT 255

GTIN / EAN 4013364410275, Nr taryfy celnej (EU): 85363090, Waga brutto: 346.83 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DV MOD TT 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 255
Part No.: 956031
or equivalent.



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Produkt 956031 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 956031.

Idź do sklepu internetowego

Nr kat. 956020 DV MOD TN 255

GTIN / EAN 4013364510616, Nr taryfy celnej (EU): 85363090, Waga brutto: 173.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Spark-gap-based protection module, DV MOD TN 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TN 255
Part No.: 956020
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Produkt 956020 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 956020.

Idź do sklepu internetowego

Nr kat. 956011 DV MOD TT 2P 255

GTIN / EAN 4013364400887, Nr taryfy celnej (EU): 85363090, Waga brutto: 191.83 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Spark-gap-based protection module, DV MOD TT 2P 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kAeff (prosp.)
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 2P 255
Part No.: 956011
or equivalent.



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 956011 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 956011.

Idź do sklepu internetowego

Spark-Gap-Based Protection Module

Spark-gap-based protection module for DEHNventil M ...

1 Produkt

Nr kat. 951001 DV MOD 255

GTIN / EAN 4013364108066, Nr taryfy celnej (EU): 85363090, Waga brutto: 204.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Spark-gap-based protection module DV MOD 255
Spark-gap-based protection module for type 1 + type 2
Arresters of the Red/Line series acc. to EN 61643-11
Highly efficient creepage discharge spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 264 V AC
Lightning impulse current: 25 kA

Brand: DEHN
Type: DV MOD 255
Part No.: 951001
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 264 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 951001 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951001.

Idź do sklepu internetowego

N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for DEHNventil M ... with ... + 1 configuration.

2 Produkty

Nr kat. 951050 DV MOD NPE 50

GTIN / EAN 4013364108073, Nr taryfy celnej (EU): 85363030, Waga brutto: 182.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DV MOD NPE 50 N-PE spark-gap-based protection module
50 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters
of the Red/Line family acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA

Brand: DEHN
Type: DV MOD NPE 50
Part No.: 951050
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Produkt 951050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951050.

Idź do sklepu internetowego

Nr kat. 951100 DV MOD NPE 100

GTIN / EAN 4013364108080, Nr taryfy celnej (EU): 85363030, Waga brutto: 183.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DV MOD NPE 100 N-PE spark-gap-based protection module
100 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters of the
Red/Line product series acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA

Brand: DEHN
Type: DV MOD NPE 100
Part No.: 951100
or equivalent.

Certyfikaty



Dane techniczne

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Produkt 951100 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951100.

Idź do sklepu internetowego
