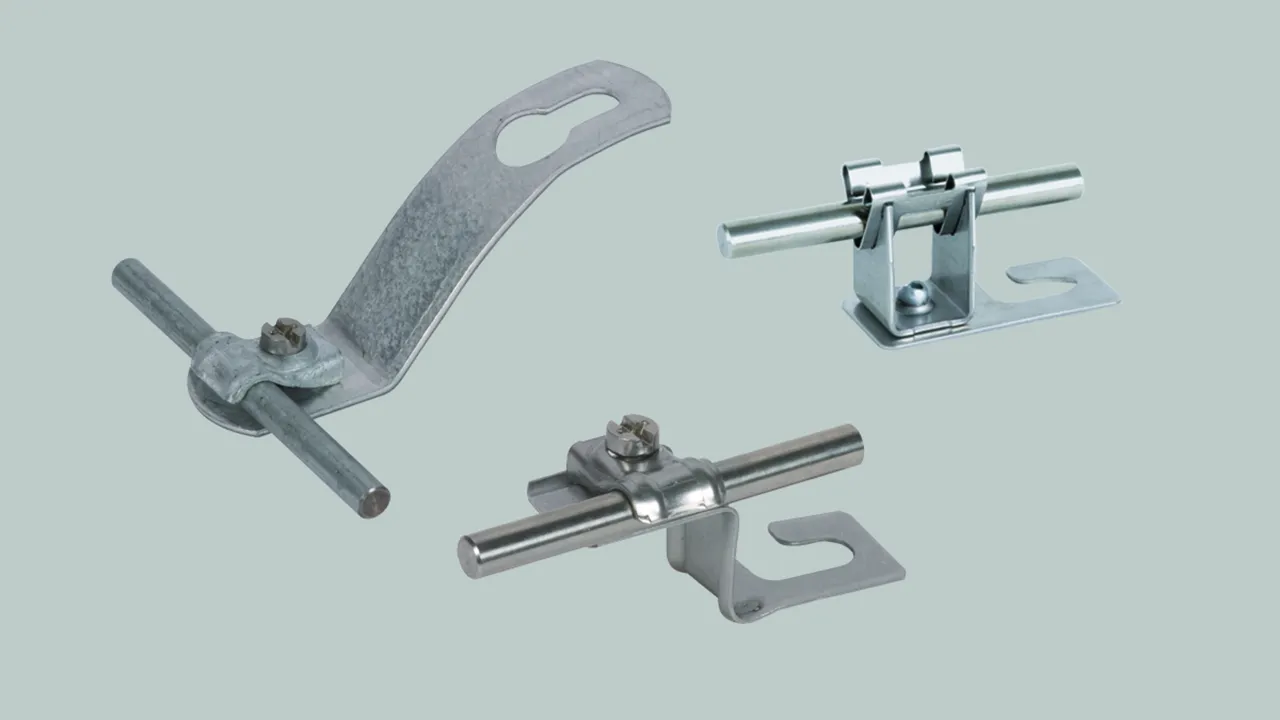

Roof Conductor Holders for Corrugated Sheet Roofs

For installing ridge conductors and conductors on the roof surface. Corrugations 177 mm (profile 5) and 130 mm (profile 8).

For corrugated sheet roofs (profile 5), with DEHNquick

For installation on the roof surface.

1 Produkt

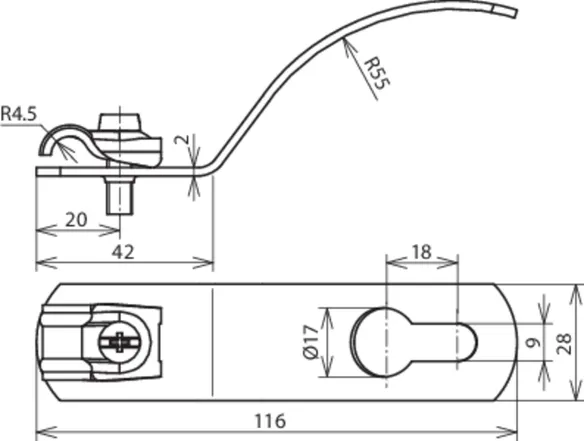

Nr kat. 202005 DLH DQ 6.10 WPRO5 STTZN

GTIN / EAN 4013364022041, Nr taryfy celnej (EU): 85389099, Waga brutto: 72.20 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

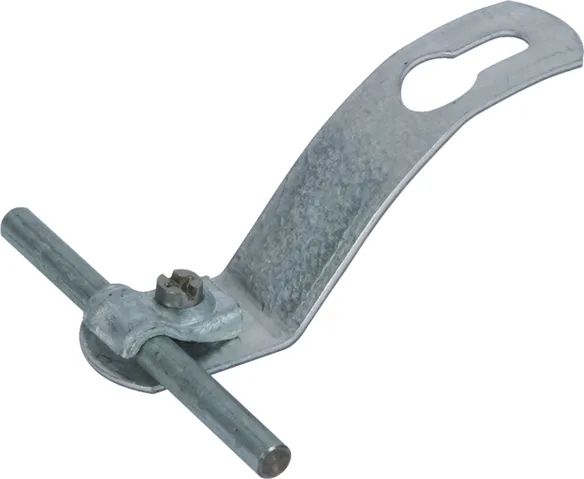

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 STTZN
Part No.: 202005
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	St/tZn
Material of conductor holder	St/tZn
Conductor support Rd	6-10 mm
Conductor routing	fixed

Application note	for roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNquick
Material of conductor holder	St/tZn
Conductor support Rd	6-10 mm
Conductor routing	fixed
Hole Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	currogated sheets profile 5 (shaft space 177 mm)

Produkt 202005 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202005.

Idź do sklepu internetowego

For corrugated sheet roofs (profile 5), with DEHNgrip

For installation on the roof surface.

1 Produkt

Nr kat. 206105 DLH DQ 8 WPRO5 V2A STTZN

GTIN / EAN 4013364083189, Nr taryfy celnej (EU): 85389099, Waga brutto: 76.30 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

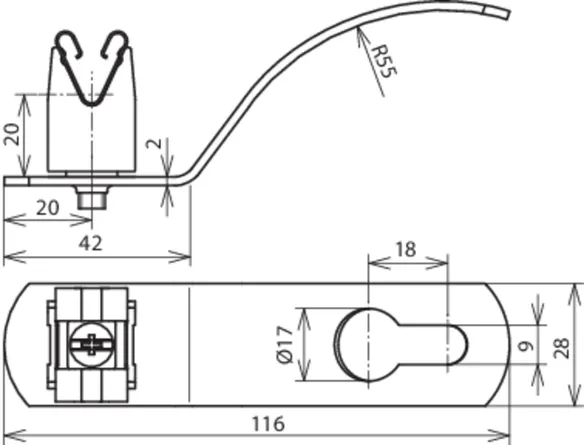

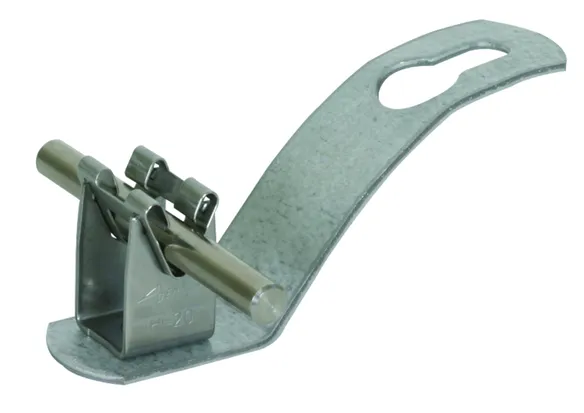

Roof conductor holder for corrugated sheet roofs (DEHNgrip)
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DQ 8 WPRO5 V2A STTZN
Part No.: 206105
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	St/tZn
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Conductor routing	loose
Standard	EN 62561-4

Application note	for ridge and roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Conductor routing	loose
Hole Ø	7.8 mm
Fixing possibility	for clipping under the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177 mm)
Standard	EN 62561-4

Produkt 206105 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206105.

Idź do sklepu internetowego

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 Produkt

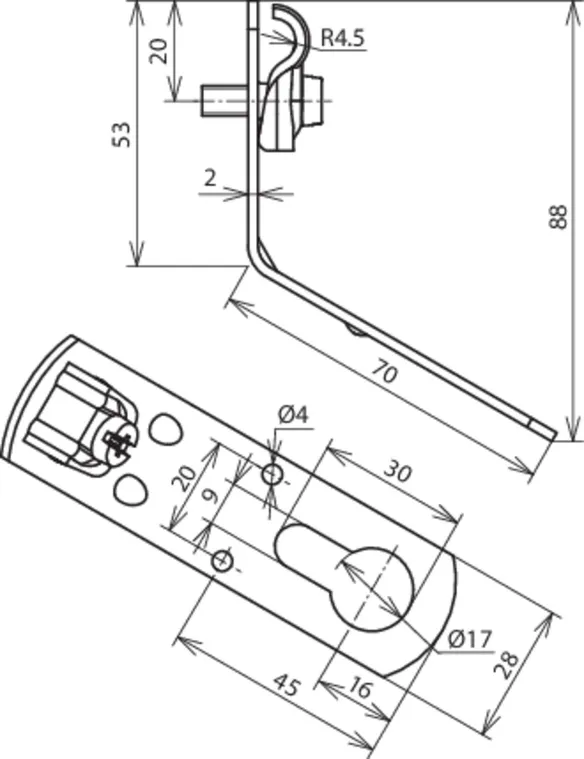

Nr kat. 202015 DLH DQ 6.10 WPRO5 8 STTZN

GTIN / EAN 4013364022089, Nr taryfy celnej (EU): 85389099, Waga brutto: 61.20 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

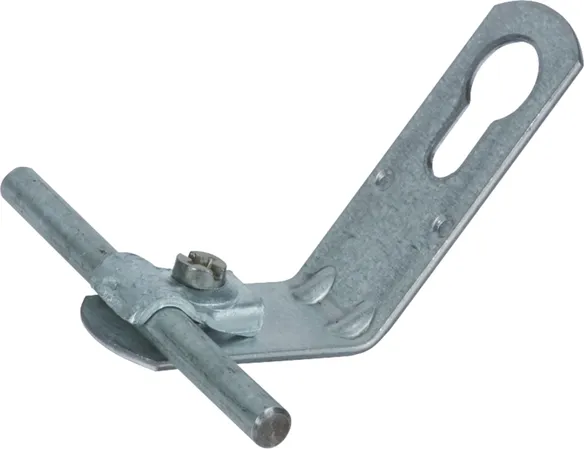

Roof conductor holder for corrugated sheet roofs (DEHNquick), St/tZn
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, angled unit
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 STTZN
Part No.: 202015
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	St/tZn
Material of conductor holder	St/tZn
Conductor support Rd	6-10 mm
Conductor routing	fixed

Application note	for ridge and roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNquick
Material of conductor holder	St/tZn
Conductor support Rd	6-10 mm
Conductor routing	fixed
Hole Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 202015 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202015.

Idź do sklepu internetowego

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 Produkt

Nr kat. 202906 DLH DQ 6.10 WPRO5 8 V2A

GTIN / EAN 4013364022102, Nr taryfy celnej (EU): 85389099, Waga brutto: 34.20 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

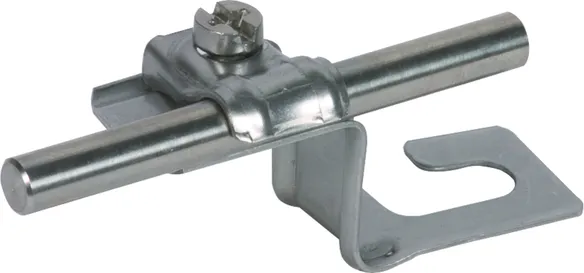

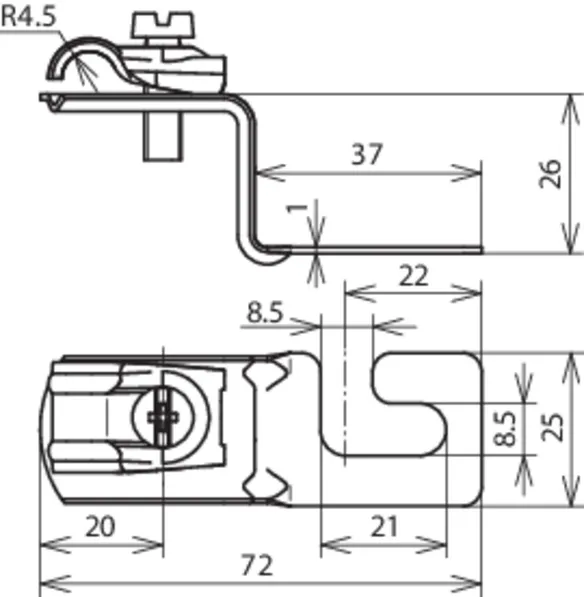

Roof conductor holder for corrugated sheet roofs (DEHNquick), StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, angled unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNquick
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 V2A
Part No.: 202906
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	StSt
Material of conductor holder	StSt
Conductor support Rd	6-10 mm
Conductor routing	fixed

Application note	for ridge and roof conductors
Material of roof conductor holder	StSt
Type of conductor holder	DEHNquick
Material of conductor holder	StSt
Conductor support Rd	6-10 mm
Conductor routing	fixed
Hole Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated roof sheetings profile 5 (distance 177mm) profile 8 (distance 130mm)

Produkt 202906 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202906.

Idź do sklepu internetowego

For corrugated sheet roofs (profile 5 and profile 8), with DEHNgrip

For installing ridge conductors and conductors on the roof surface, straight design.

1 Produkt

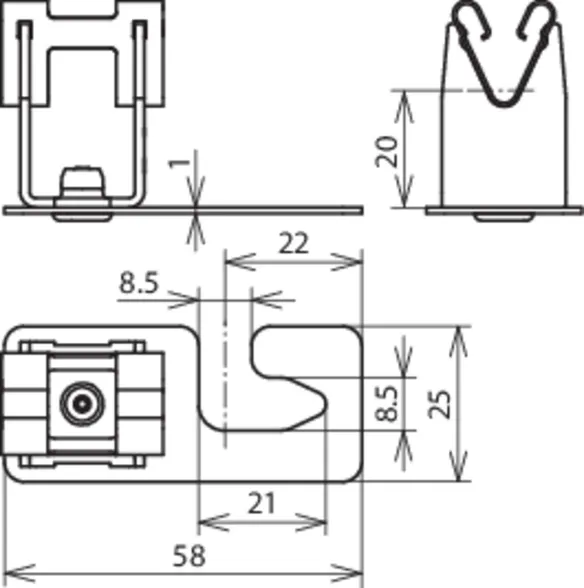

Nr kat. 206339 DLH DG 8 H20 WPRO5 8 V2A

GTIN / EAN 4013364047730, Nr taryfy celnej (EU): 85389099, Waga brutto: 29.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

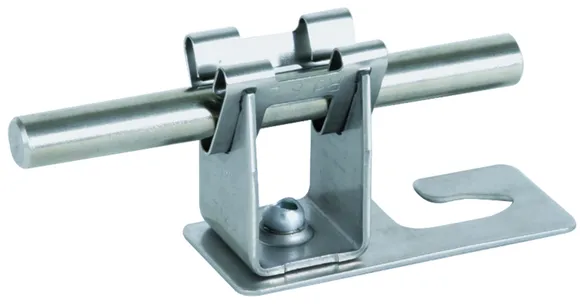

Roof conductor holder for corrugated sheet roofs (DEHNgrip), StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H20 WPRO5 8 V2A
Part No.: 206339
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	StSt
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Conductor routing	loose
Standard	EN 62561-4

Application note	for ridge and roof conductors, adjustable conductor leading (support)
Material of roof conductor holder	StSt
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Conductor routing	loose
Hole Ø	7.8 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheet roofing profile 5 (distance 177 mm) profile 8 (distance 130 mm)
Standard	EN 62561-4

Produkt 206339 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206339.

Idź do sklepu internetowego

For corrugated sheet roofs (profile 5 and profile 8), with DEHNsnap

For installing ridge conductors and conductors on the roof surface, straight design.

2 Produkty

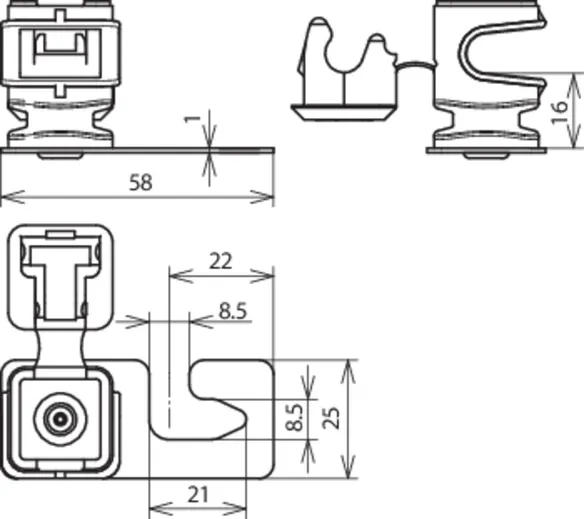

Nr kat. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

GTIN / EAN 4013364028456, Nr taryfy celnej (EU): 85389099, Waga brutto: 21.00 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

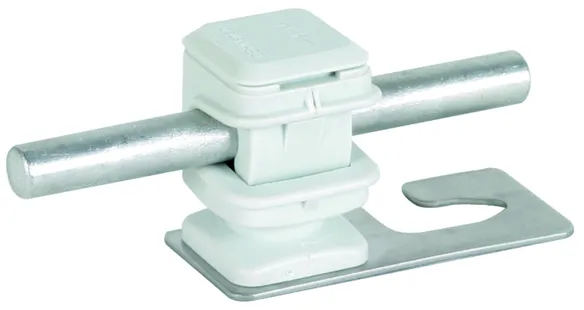

Roof conductor holder for corrugated sheet roofs (DEHNsnap), grey, StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 GR V2A
Part No.: 204906
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	StSt
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Conductor routing	loose

Application note	for ridge and roof conductors, conductor leading (support) adjustable
Material of roof conductor holder	StSt
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Conductor routing	loose
Female thread	M6
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 204906 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204906.

Idź do sklepu internetowego

Nr kat. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

GTIN / EAN 4013364030565, Nr taryfy celnej (EU): 85389099, Waga brutto: 20.80 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

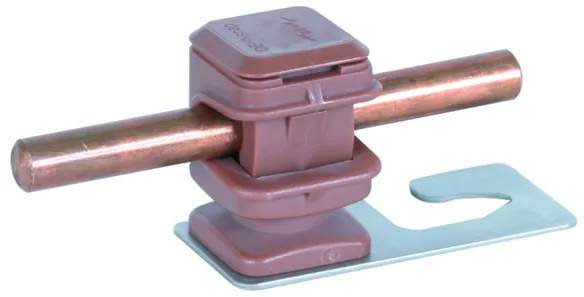

Roof conductor holder for corrugated sheet roofs (DEHNsnap), brown, StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 BR V2A
Part No.: 204916
or equivalent.

Certyfikaty

Dane techniczne

Material of roof conductor holder	StSt
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor support Rd	8 mm
Conductor routing	loose

Application note	for ridge and roof conductors, adjustable conductor leading (support)
Material of roof conductor holder	StSt
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor support Rd	8 mm
Conductor routing	loose
Female thread	M6
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 204916 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204916.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

Roof Conductor Holders for Corrugated Sheet Roofs

For corrugated sheet roofs (profile 5), with DEHNquick

Nr kat. 202005 DLH DQ 6.10 WPRO5 STTZN

Produkt 202005 został dodany do notatnika.

Do koszyka dodano produkt 202005.

For corrugated sheet roofs (profile 5), with DEHNgrip

Nr kat. 206105 DLH DQ 8 WPRO5 V2A STTZN

Produkt 206105 został dodany do notatnika.

Do koszyka dodano produkt 206105.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

Nr kat. 202015 DLH DQ 6.10 WPRO5 8 STTZN

Produkt 202015 został dodany do notatnika.

Do koszyka dodano produkt 202015.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

Nr kat. 202906 DLH DQ 6.10 WPRO5 8 V2A

Produkt 202906 został dodany do notatnika.

Do koszyka dodano produkt 202906.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNgrip

Nr kat. 206339 DLH DG 8 H20 WPRO5 8 V2A

Produkt 206339 został dodany do notatnika.

Do koszyka dodano produkt 206339.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNsnap

Nr kat. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

Produkt 204906 został dodany do notatnika.

Do koszyka dodano produkt 204906.

Nr kat. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

Produkt 204916 został dodany do notatnika.

Do koszyka dodano produkt 204916.

Roof Conductor Holders for Corrugated Sheet Roofs

For corrugated sheet roofs (profile 5), with DEHNquick

Nr kat. 202005 DLH DQ 6.10 WPRO5 STTZN

Nie masz uprawnień, by pobrać 202005.stp

Nie masz uprawnień, by pobrać 202005.igs

Nie masz uprawnień, by pobrać 202005.jt

Nie masz uprawnień, by pobrać 202005.dwg

Nie masz uprawnień, by pobrać 202005m_D.dxf

Produkt 202005 został dodany do notatnika.

Do koszyka dodano produkt 202005.

For corrugated sheet roofs (profile 5), with DEHNgrip

Nr kat. 206105 DLH DQ 8 WPRO5 V2A STTZN

Nie masz uprawnień, by pobrać 206105.stp

Nie masz uprawnień, by pobrać 206105.igs

Nie masz uprawnień, by pobrać 206105.jt

Nie masz uprawnień, by pobrać 206105.dwg

Nie masz uprawnień, by pobrać 206105m_D.dxf

Produkt 206105 został dodany do notatnika.

Do koszyka dodano produkt 206105.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

Nr kat. 202015 DLH DQ 6.10 WPRO5 8 STTZN

Nie masz uprawnień, by pobrać 202015.stp

Nie masz uprawnień, by pobrać 202015.igs

Nie masz uprawnień, by pobrać 202015.jt

Nie masz uprawnień, by pobrać 202015.dwg

Nie masz uprawnień, by pobrać 202015m_D.dxf

Produkt 202015 został dodany do notatnika.

Do koszyka dodano produkt 202015.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

Nr kat. 202906 DLH DQ 6.10 WPRO5 8 V2A

Nie masz uprawnień, by pobrać 202906.stp

Nie masz uprawnień, by pobrać 202906.igs

Nie masz uprawnień, by pobrać 202906.jt

Nie masz uprawnień, by pobrać 202906.dwg

Nie masz uprawnień, by pobrać 202906m_D.dxf

Produkt 202906 został dodany do notatnika.

Do koszyka dodano produkt 202906.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNgrip

Nr kat. 206339 DLH DG 8 H20 WPRO5 8 V2A

Nie masz uprawnień, by pobrać 206339.stp

Nie masz uprawnień, by pobrać 206339.igs

Nie masz uprawnień, by pobrać 206339.jt

Nie masz uprawnień, by pobrać 206339.dwg

Nie masz uprawnień, by pobrać 206339m_D.dxf

Produkt 206339 został dodany do notatnika.

Do koszyka dodano produkt 206339.

For corrugated sheet roofs (profile 5 and profile 8), with DEHNsnap

Nr kat. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

Nie masz uprawnień, by pobrać 202906.stp

Nie masz uprawnień, by pobrać 202906.igs

Nie masz uprawnień, by pobrać 202906.jt

Nie masz uprawnień, by pobrać 202906.dwg

Nie masz uprawnień, by pobrać 204906m_D.dxf

Produkt 204906 został dodany do notatnika.

Do koszyka dodano produkt 204906.

Nr kat. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

Nie masz uprawnień, by pobrać 204906.stp

Nie masz uprawnień, by pobrać 204906.igs

Nie masz uprawnień, by pobrać 204906.jt

Nie masz uprawnień, by pobrać 204906.dwg

Nie masz uprawnień, by pobrać 204906m_D.dxf

Produkt 204916 został dodany do notatnika.

Do koszyka dodano produkt 204916.
