Roof Conductor Holders Adjustable for Ridge and Hip Tiles

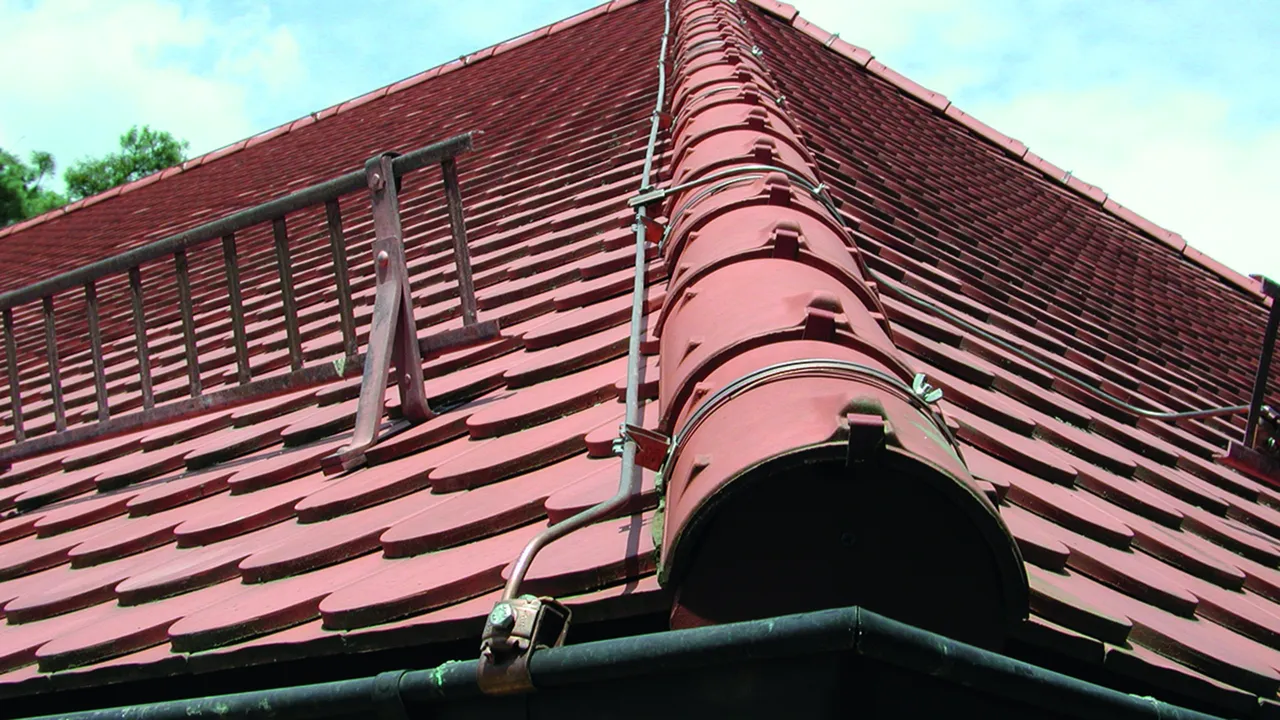

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor routing, laterally adjustable (top centre to the bottom).

6 Produkty

Nr kat. 204109 DLH DS 8 H16 FG180.280 GR V2A

GTIN / EAN 4013364028098, Nr taryfy celnej (EU): 85389099, Waga brutto: 103.64 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204109 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204109.

Idź do sklepu internetowego

Nr kat. 204911 DLH DS 8 H16 FG180.280 BR V2A

GTIN / EAN 4013364030640, Nr taryfy celnej (EU): 85389099, Waga brutto: 104.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge e.g., for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204911 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204911.

Idź do sklepu internetowego

Nr kat. 204107 DLH DS 8 H16 FG180.280BR GALCU

GTIN / EAN 4013364028104, Nr taryfy celnej (EU): 85389099, Waga brutto: 111.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204107 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204107.

Idź do sklepu internetowego

Nr kat. 204129 DLH DS 8 H36 FG180.280 GR V2A

GTIN / EAN 4013364021433, Nr taryfy celnej (EU): 85389099, Waga brutto: 108.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204129 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204129.

Idź do sklepu internetowego

Nr kat. 204913 DLH DS 8 H36 FG180.280 BR V2A

GTIN / EAN 4013364030664, Nr taryfy celnej (EU): 85389099, Waga brutto: 114.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204913 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204913.

Idź do sklepu internetowego

Nr kat. 204127 DLH DS 8 H36 FG180.280BR GALCU

GTIN / EAN 4013364028142, Nr taryfy celnej (EU): 85389099, Waga brutto: 116.24 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204127 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 204127.

Idź do sklepu internetowego

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor routing, laterally adjustable (top centre to the bottom).

5 Produkty

Nr kat. 206109 DLH DG 8 H20 FG180.280 V2A

GTIN / EAN 4013364042810, Nr taryfy celnej (EU): 85389099, Waga brutto: 116.00 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 23 mm
Standard EN 62561-4

Produkt 206109 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206109.

Idź do sklepu internetowego

Nr kat. 206809 DLH DG 8 H20 FG180.280 KK V2A

GTIN / EAN 4013364077485, Nr taryfy celnej (EU): 85389099, Waga brutto: 120.34 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206809 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206809.

Idź do sklepu internetowego

Nr kat. 206807 DLH DG 8 H20 FG180.280 KK GALCU

GTIN / EAN 4013364046306, Nr taryfy celnej (EU): 85389099, Waga brutto: 113.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.



Dane techniczne

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206807 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206807.

Idź do sklepu internetowego

Nr kat. 206817 DLH DG 8 H32 FG180.280 KK GALCU

GTIN / EAN 4013364078581, Nr taryfy celnej (EU): 85389099, Waga brutto: 128.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.



Dane techniczne

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206817 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206817.

Idź do sklepu internetowego

Nr kat. 206819 DLH DG 8 H32 FG180.280 KK V2A

GTIN / EAN 4013364077362, Nr taryfy celnej (EU): 85389099, Waga brutto: 121.04 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.



Dane techniczne

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206819 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 206819.

Idź do sklepu internetowego

Adjustable in steps with conductor holder DEHNquick

Fixed conductor routing.

5 Produkty

Nr kat. 202020 DLH DQ 6.10 FG120.240 STTZN

GTIN / EAN 4013364020764, Nr taryfy celnej (EU): 85389099, Waga brutto: 259.92 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202020 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202020.

Idź do sklepu internetowego

Nr kat. 202021 DLH DQ 6.10 FG200.280 STTZN

GTIN / EAN 4013364020788, Nr taryfy celnej (EU): 85389099, Waga brutto: 273.92 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202021 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202021.

Idź do sklepu internetowego

Nr kat. 202900 DLH DQ 6.10 FG120.240 V2A

GTIN / EAN 4013364020801, Nr taryfy celnej (EU): 85389099, Waga brutto: 133.24 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202900 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202900.

Idź do sklepu internetowego

Nr kat. 202027 DLH DQ 6.10 FG120.240 CU

GTIN / EAN 4013364020771, Nr taryfy celnej (EU): 85389099, Waga brutto: 299.92 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202027 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202027.

Idź do sklepu internetowego

Nr kat. 202227 DLH DQ 6.10 FG200.280 CU

GTIN / EAN 4013364020795, Nr taryfy celnej (EU): 85389099, Waga brutto: 299.92 g, Jednostka opakowaniowa: 25.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

Certyfikaty



Dane techniczne

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202227 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 202227.

Idź do sklepu internetowego
Powrót na górę
